ABS W/EBD & BA & TRAC & VSC System

DTC C1251 ABS Pump Motor Lock

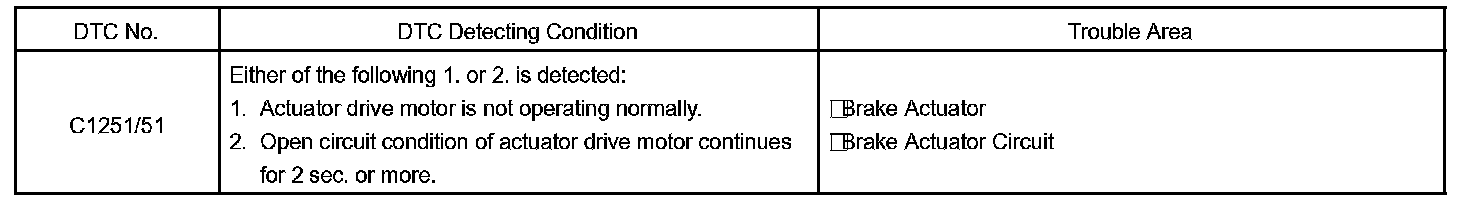

DTC Detecting Condition:

CIRCUIT DESCRIPTION

Wiring Diagram:

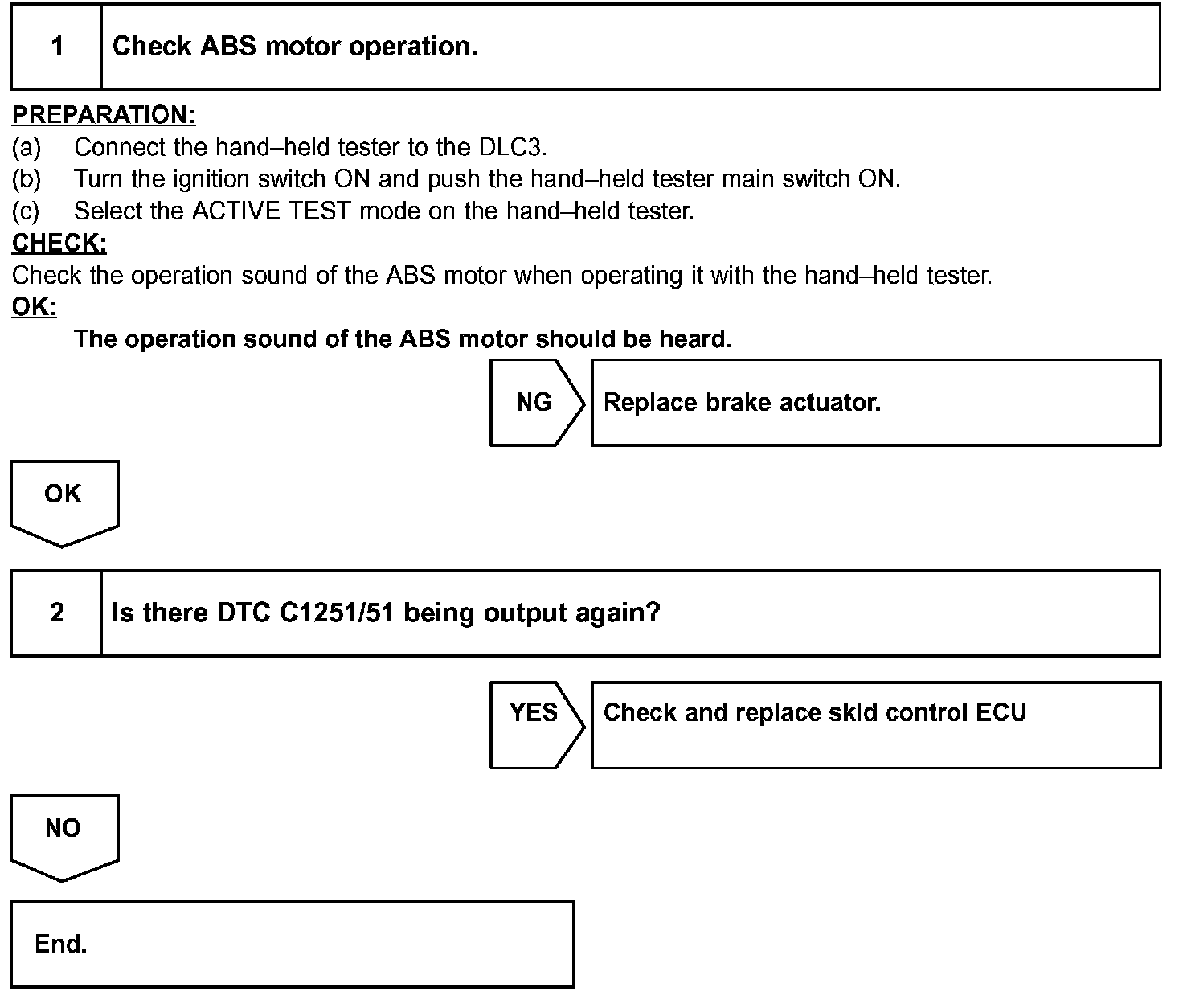

Step 1 - 2:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using hand-held tester.
