C1245

DTC C1245 Malfunction in deceleration sensor (Output error)

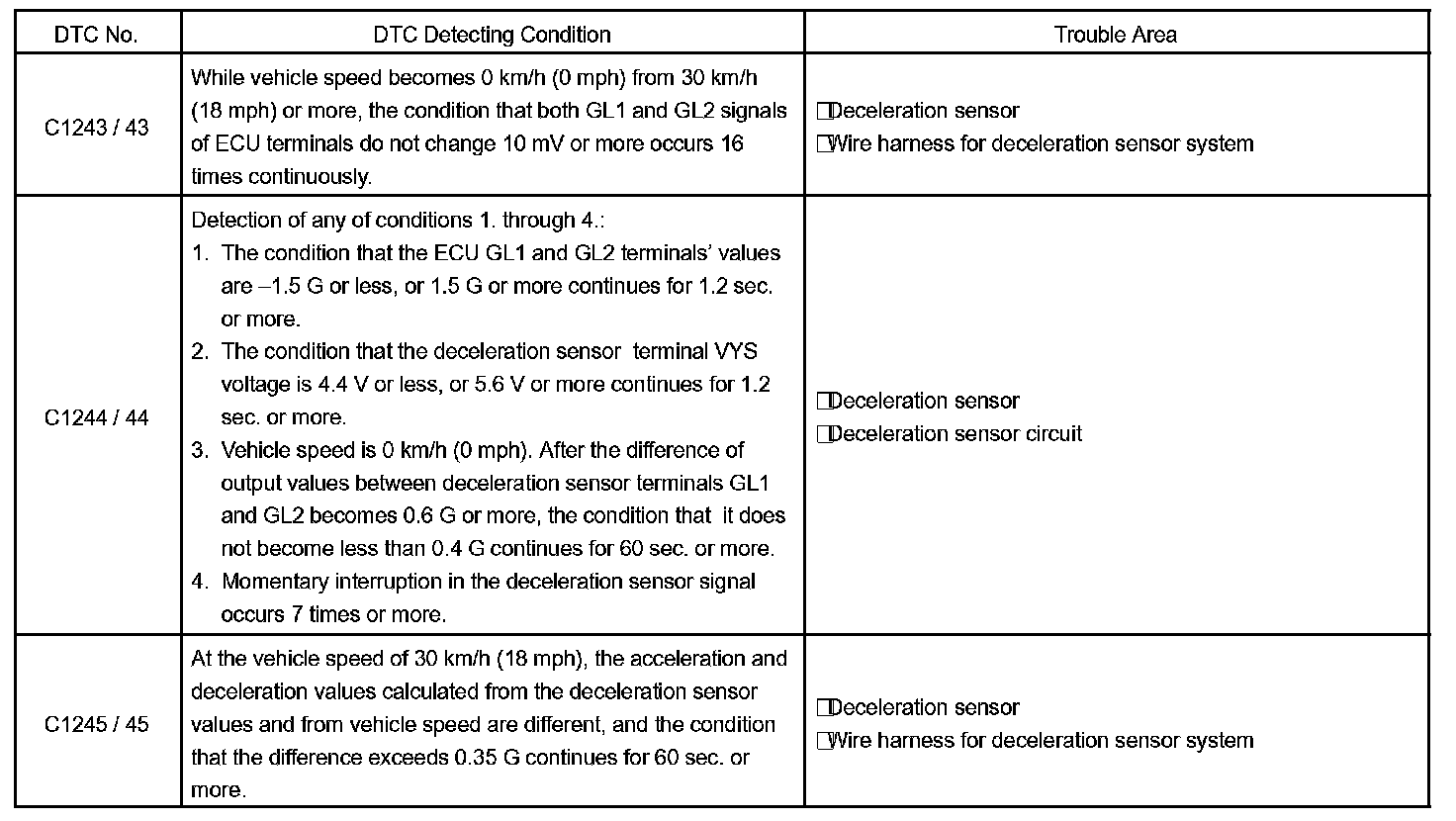

DTC Detecting Condition:

CIRCUIT DESCRIPTION

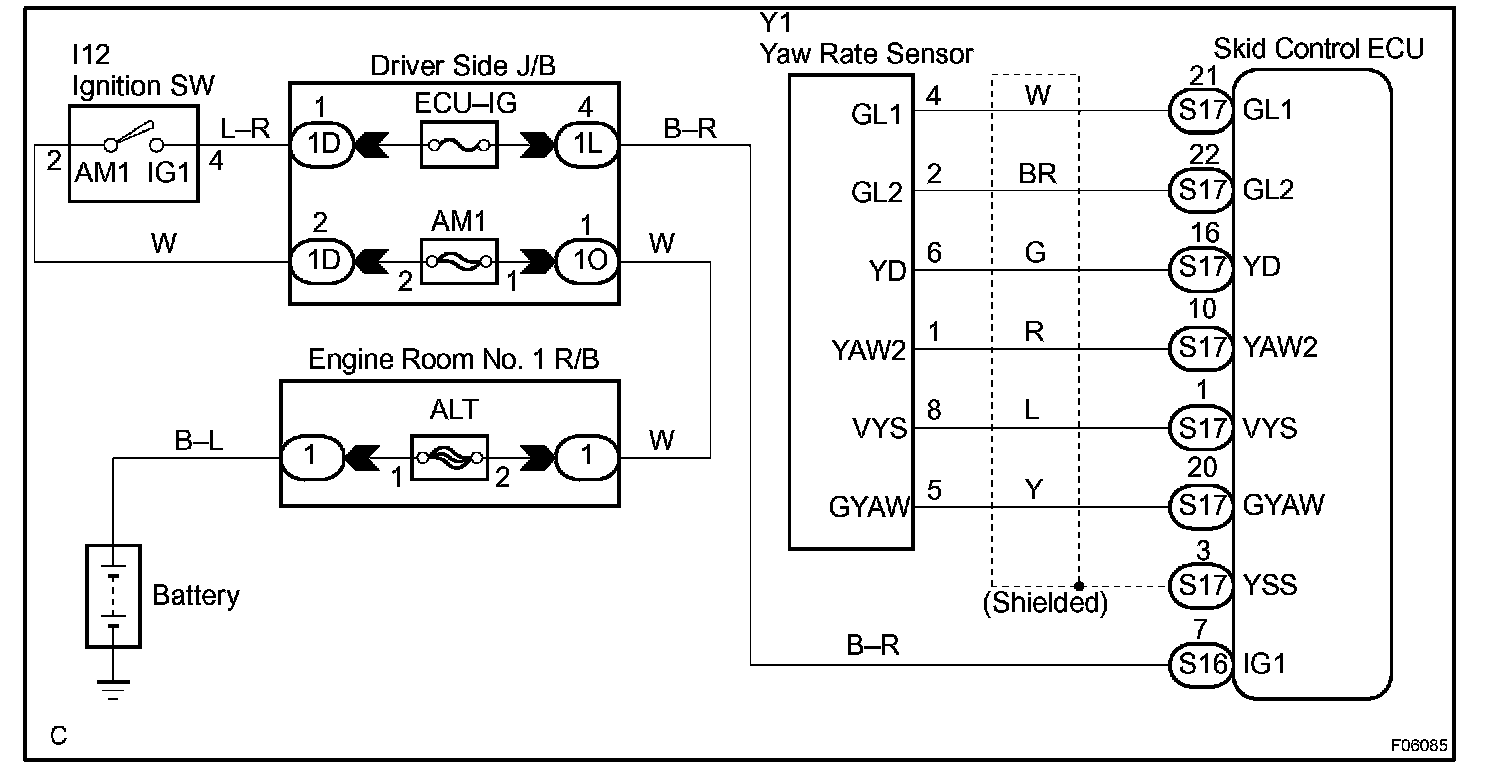

Wiring Diagram:

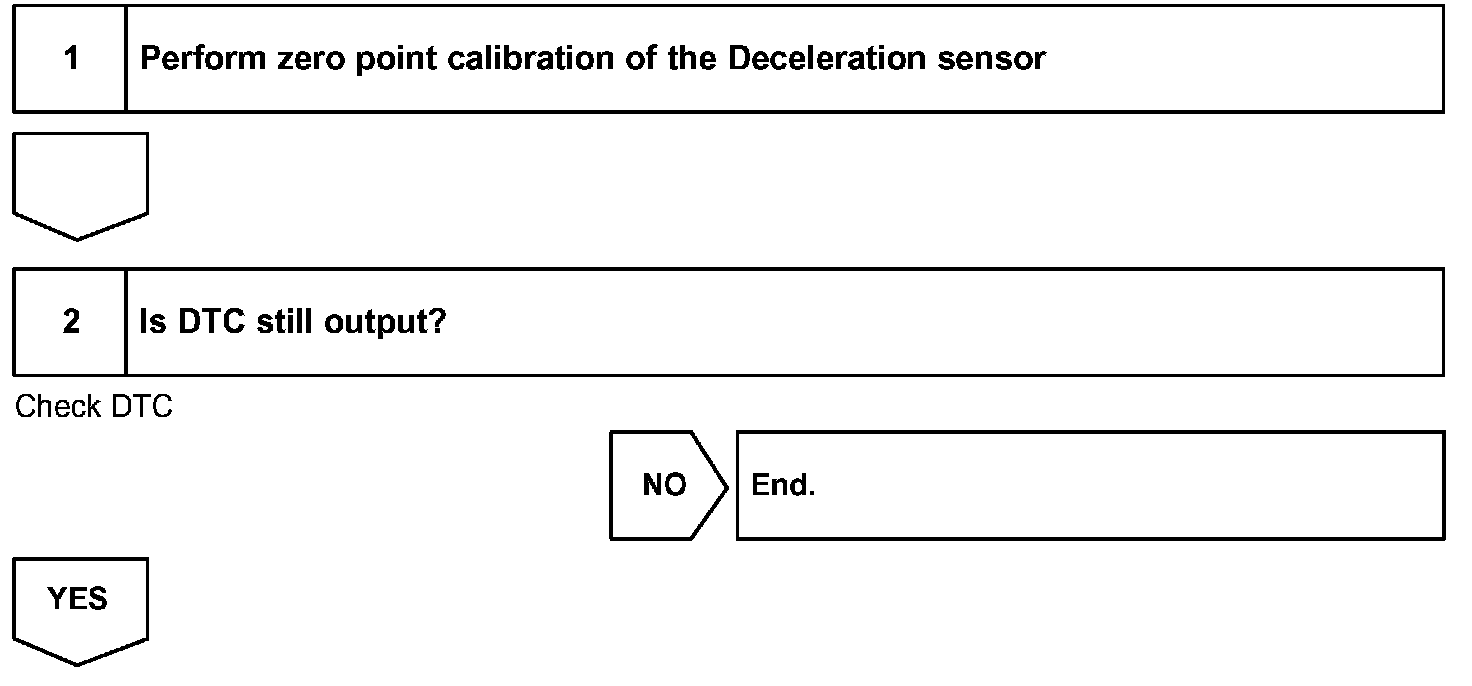

Step 1 - 2:

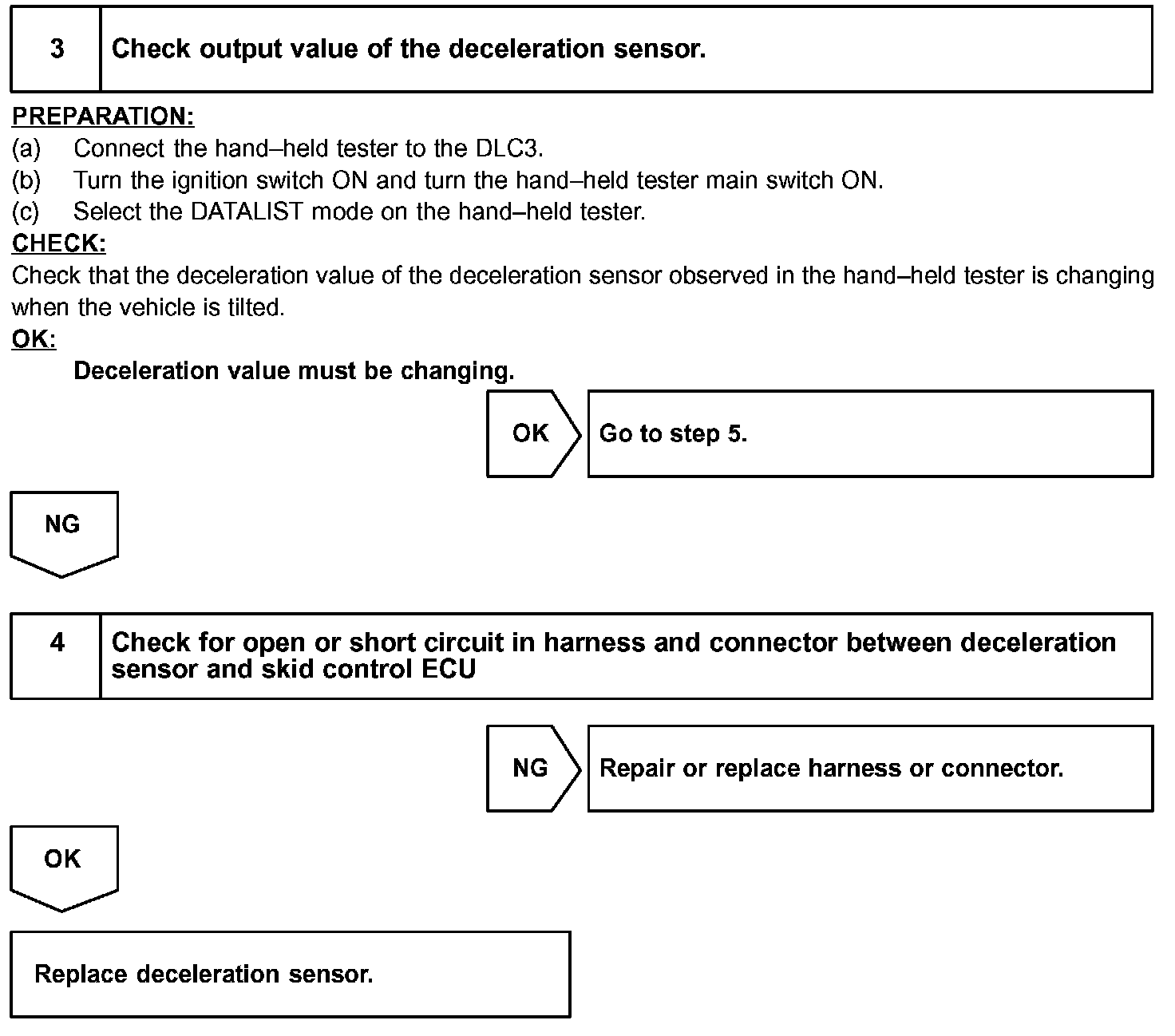

Step 3 - 4:

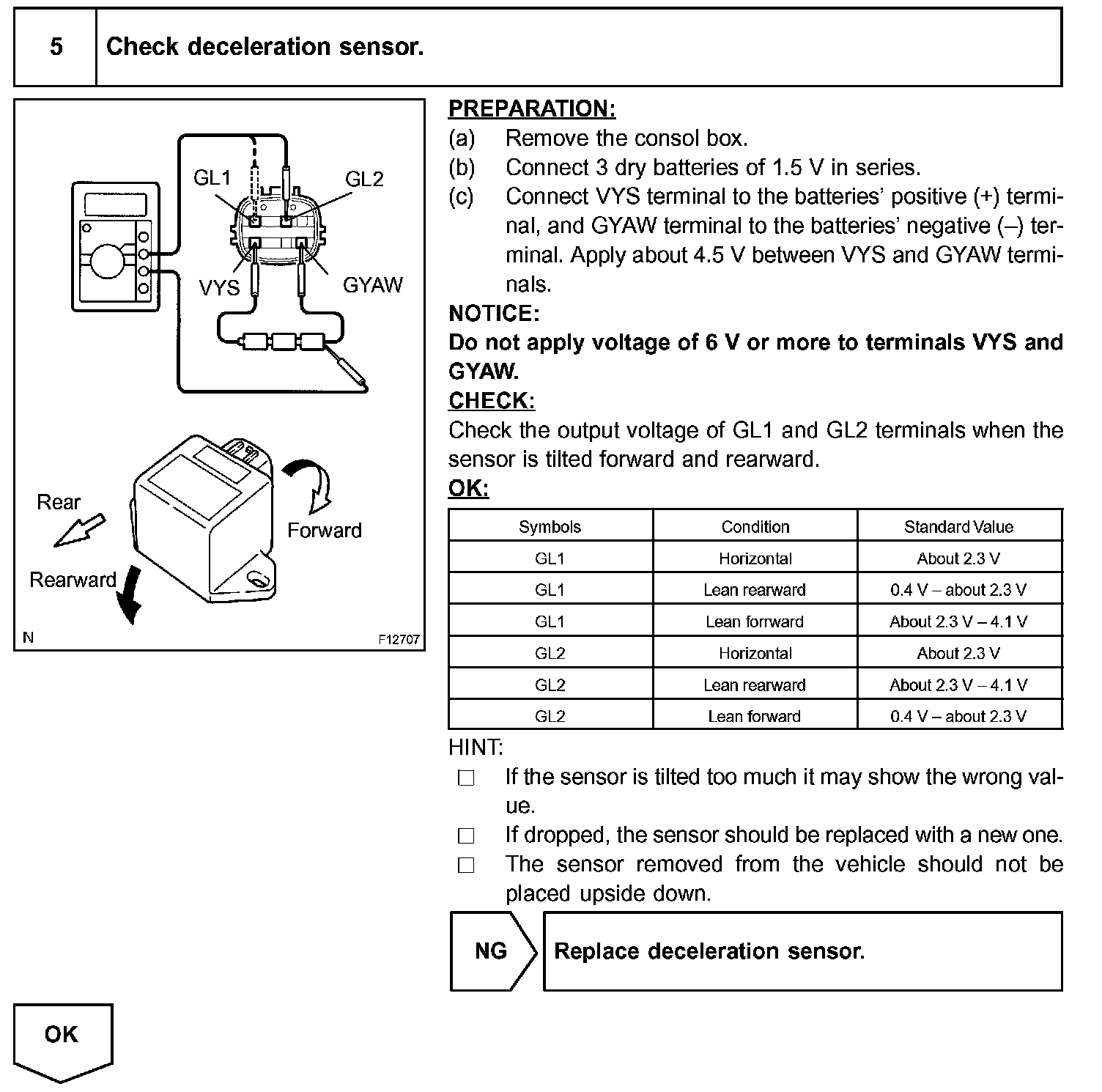

Step 5:

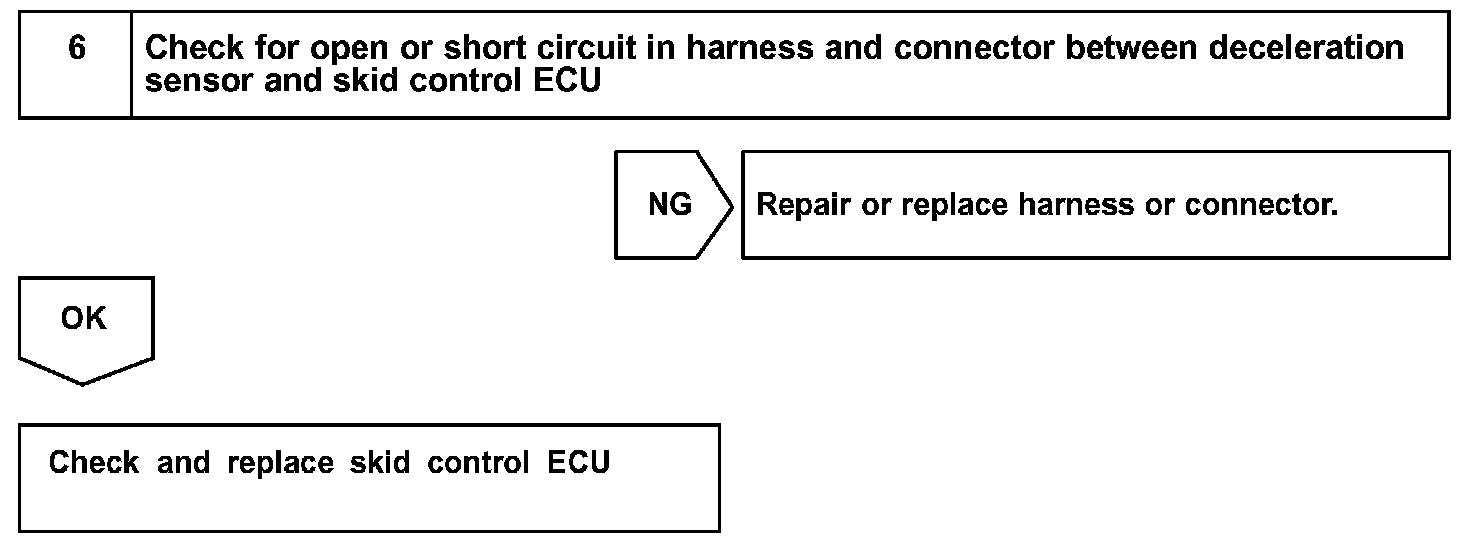

Step 6:

INSPECTION PROCEDURE

HINT: After step 1 and 2, go to step 3 in case of using the hand-held tester, and go to step 5 in case of not using the hand-held tester.
