ABS W/EBD & BA & TRAC System
ABS W/EBD & BA & TRAC System
DTC C1241 IG Power Source Circuit

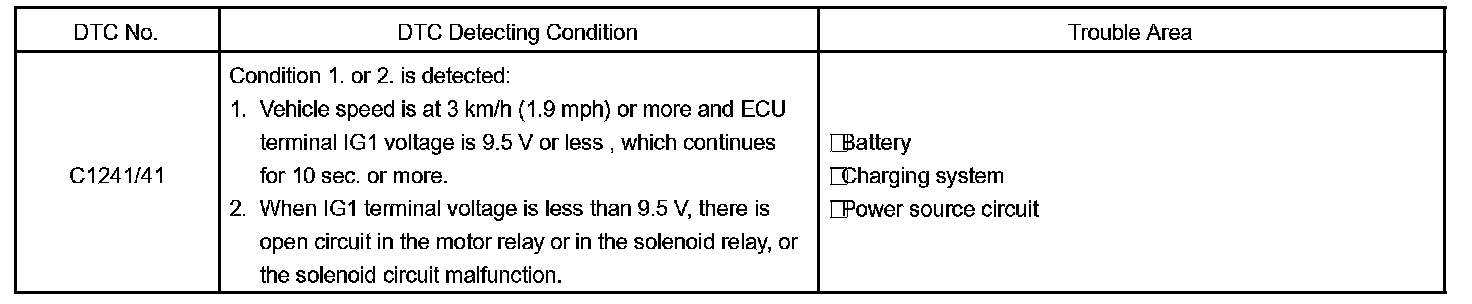

DTC Detecting Condition:
CIRCUIT DESCRIPTION

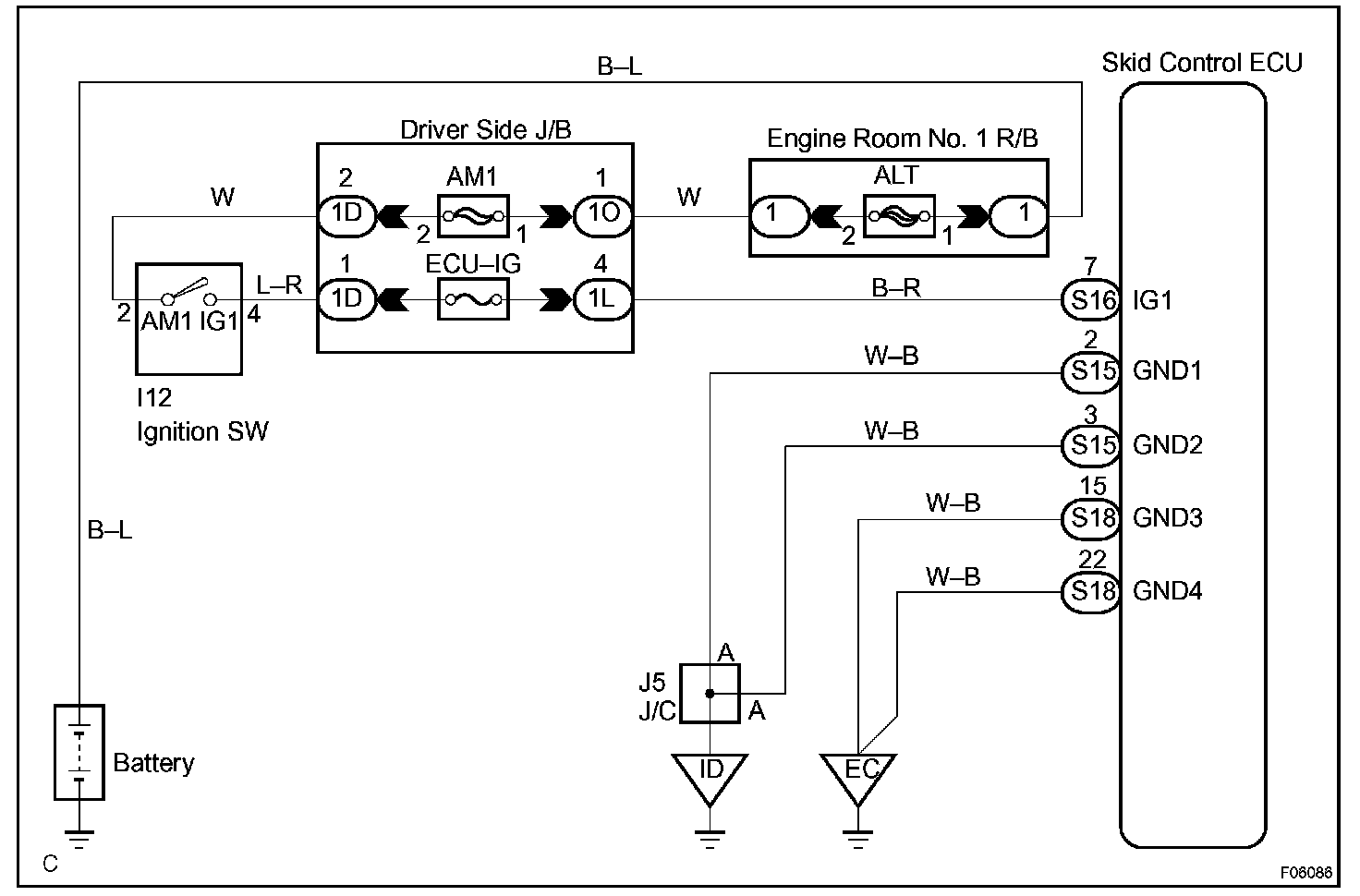

Wiring Diagram:

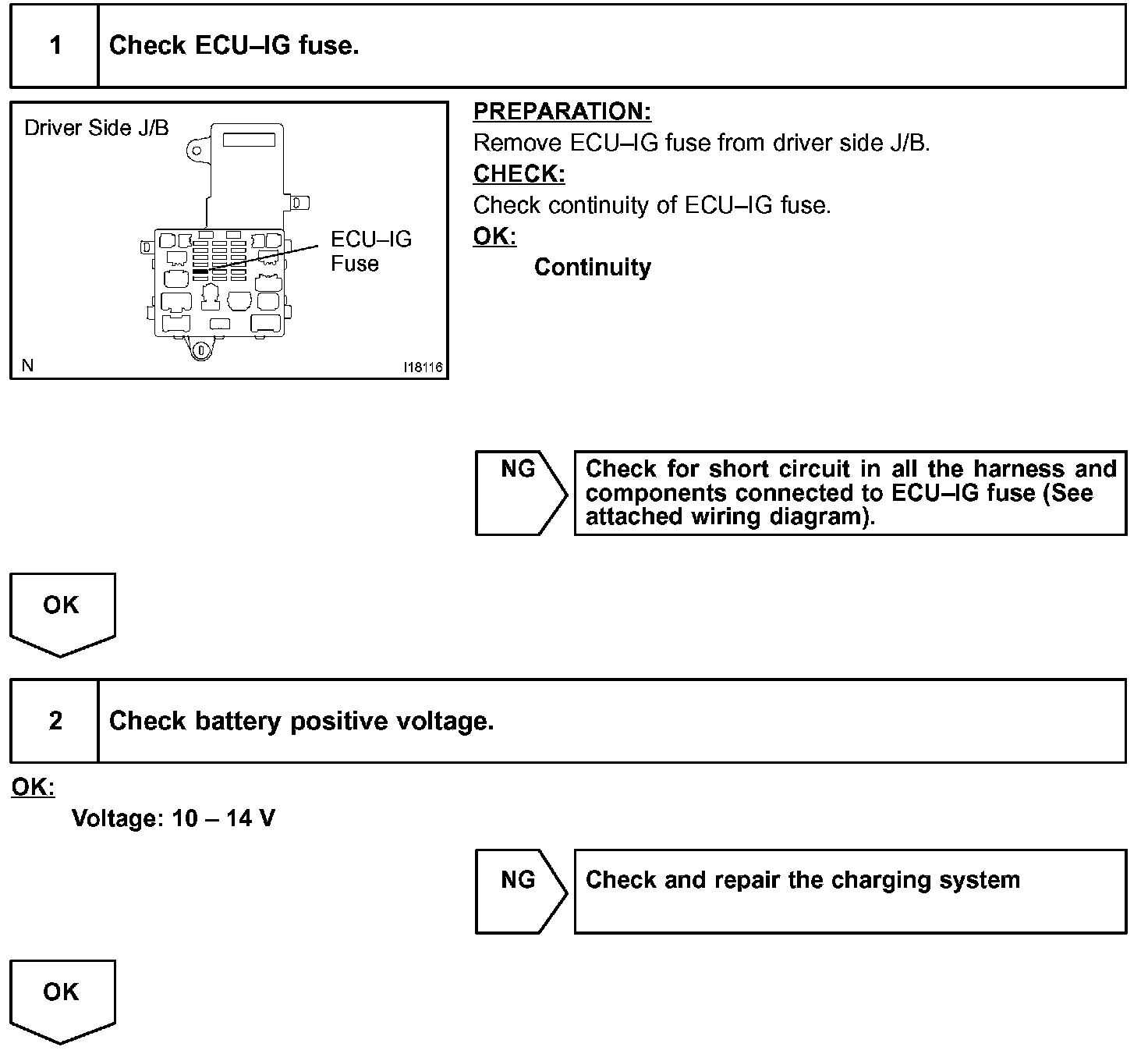

Step 1 - 2:

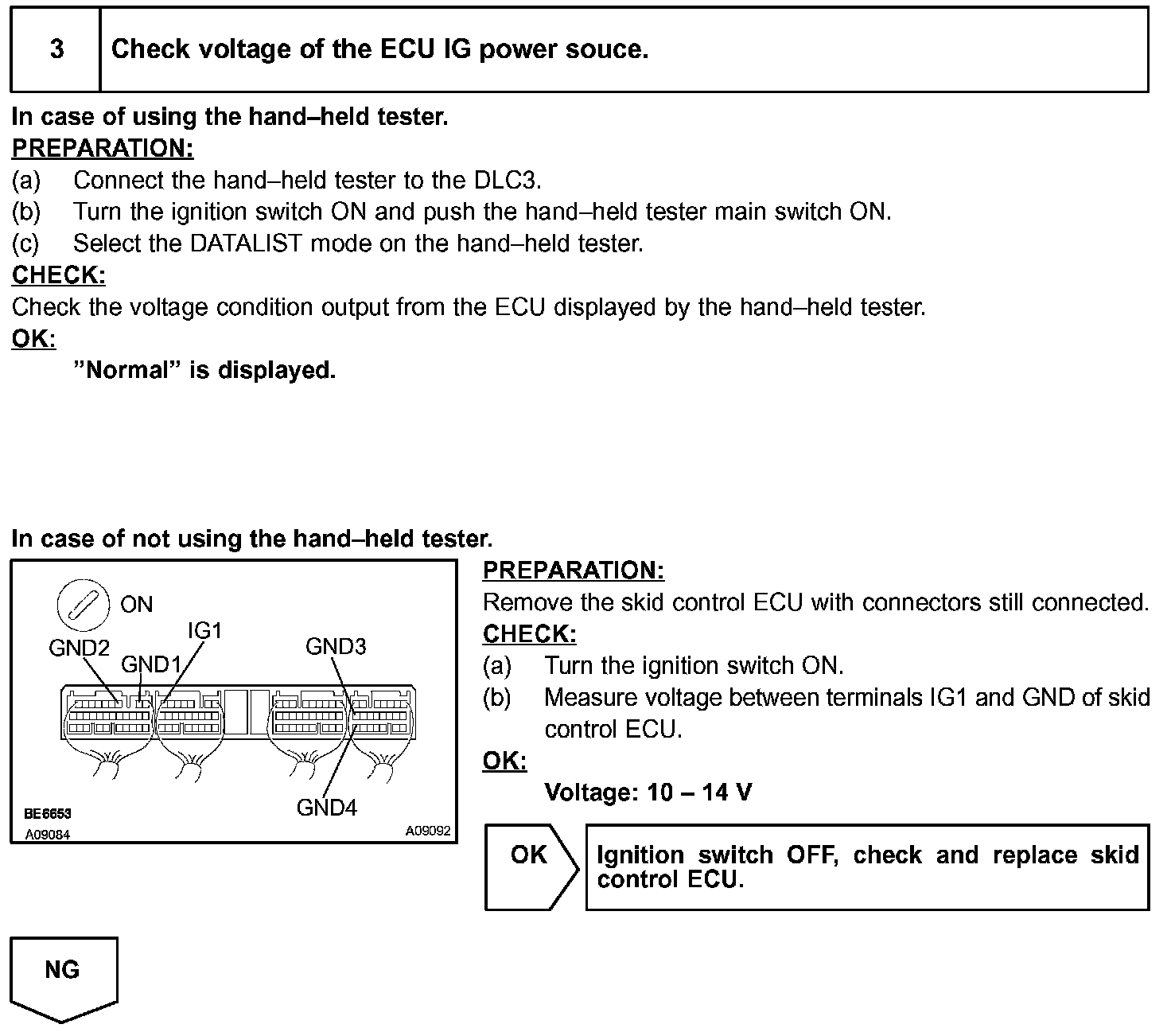

Step 3:

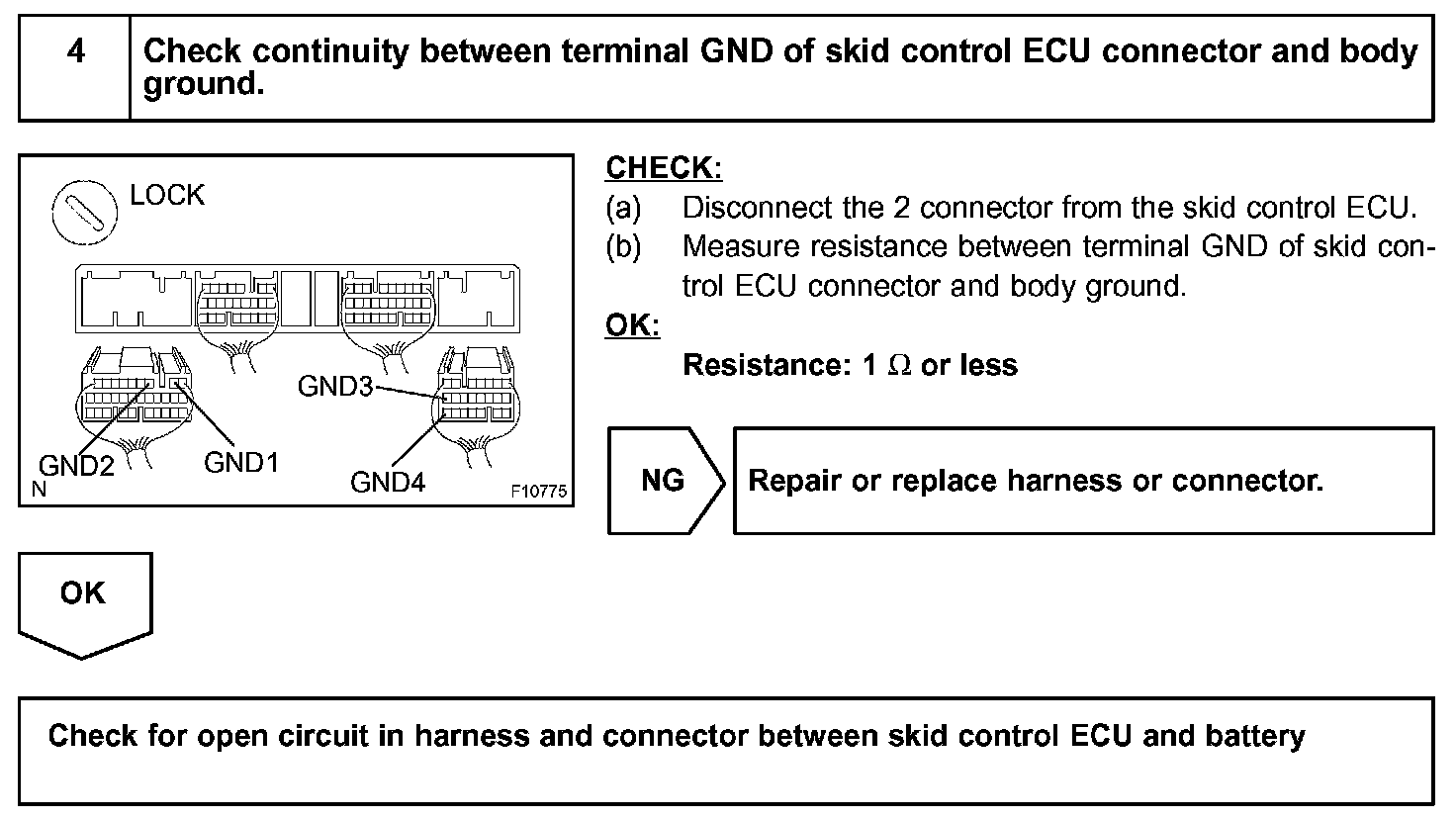

Step 4:
INSPECTION PROCEDURE
