DTC C1233 Yaw Rate Sensor Circuit

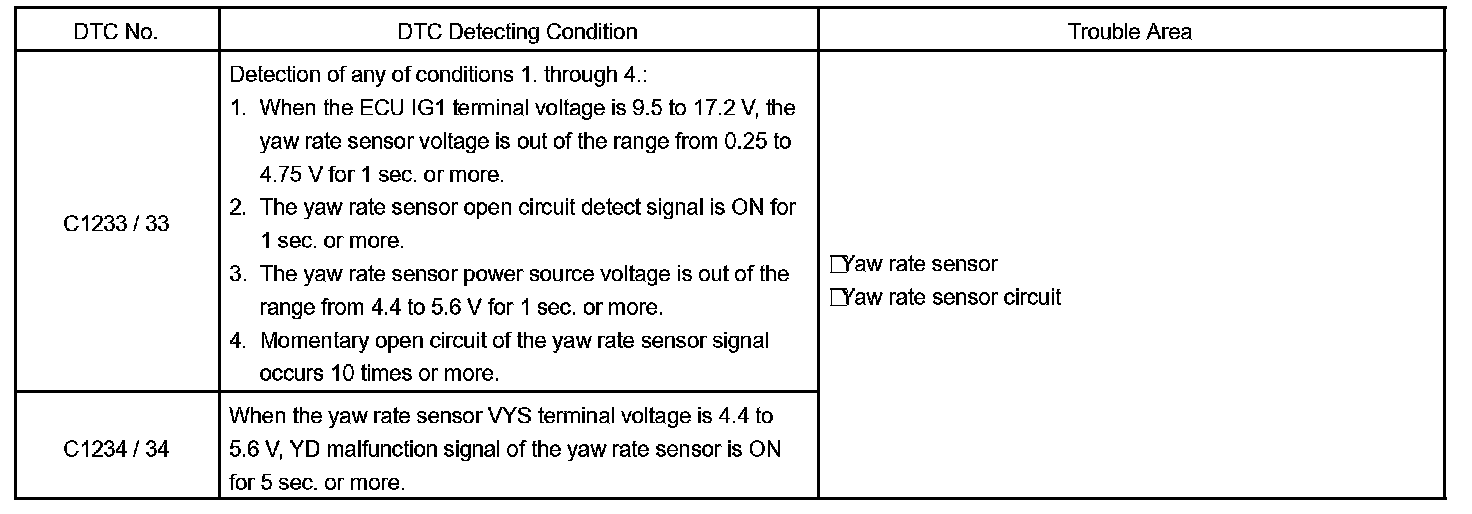

DTC Detecting Condition:
CIRCUIT DESCRIPTION

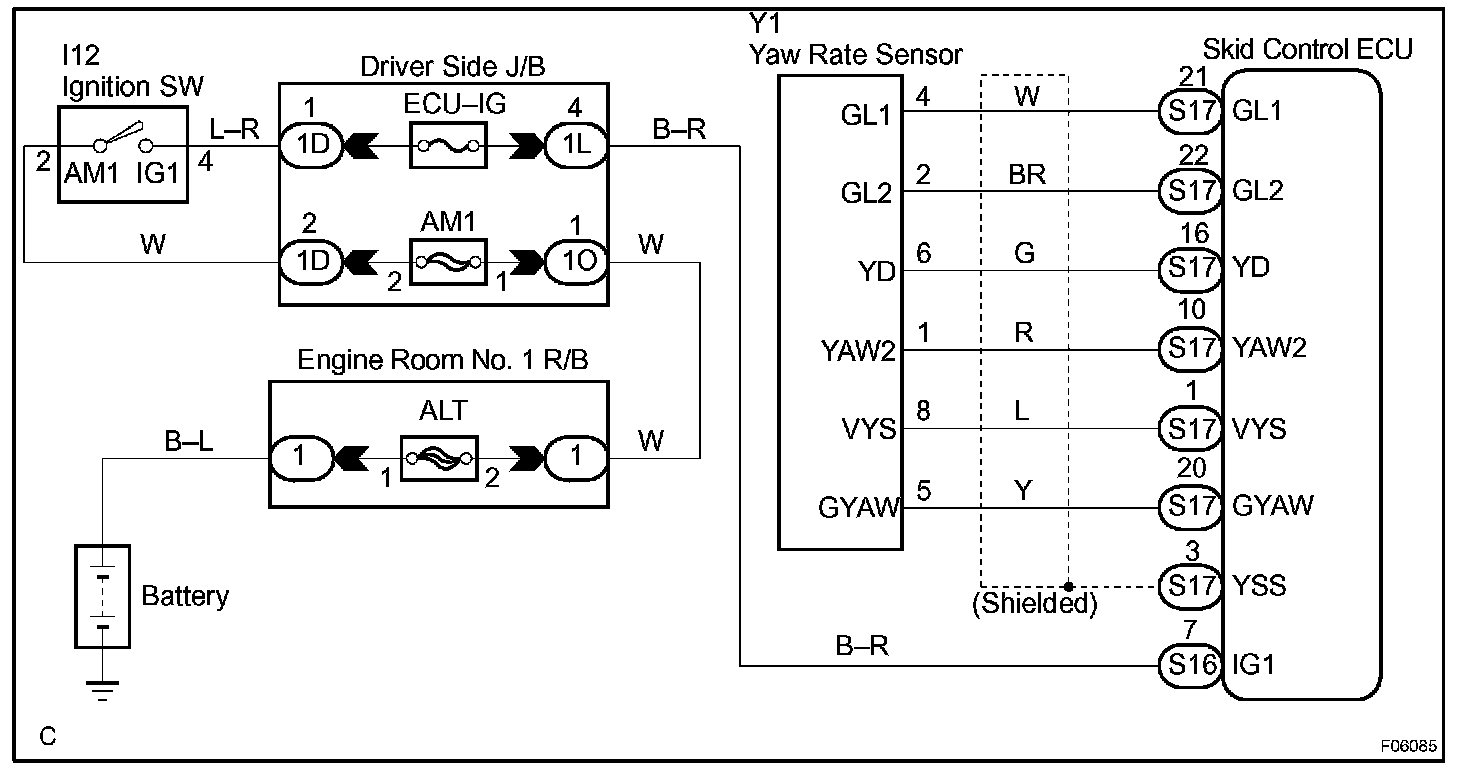

Wiring Diagram:

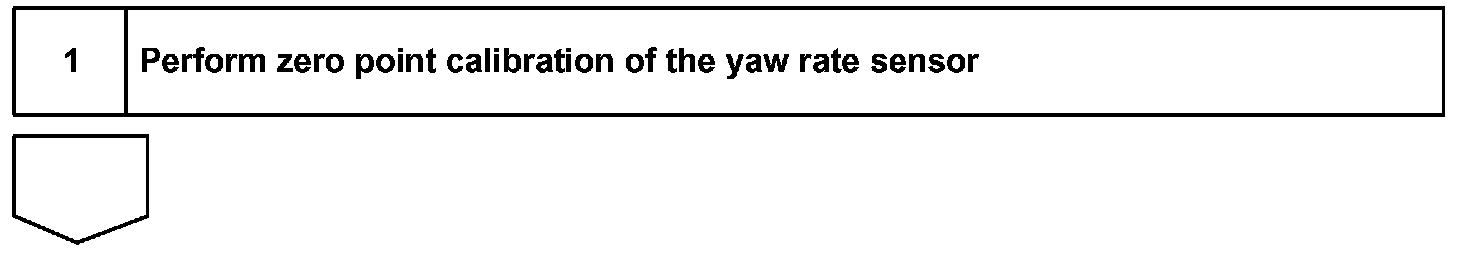

Step 1:

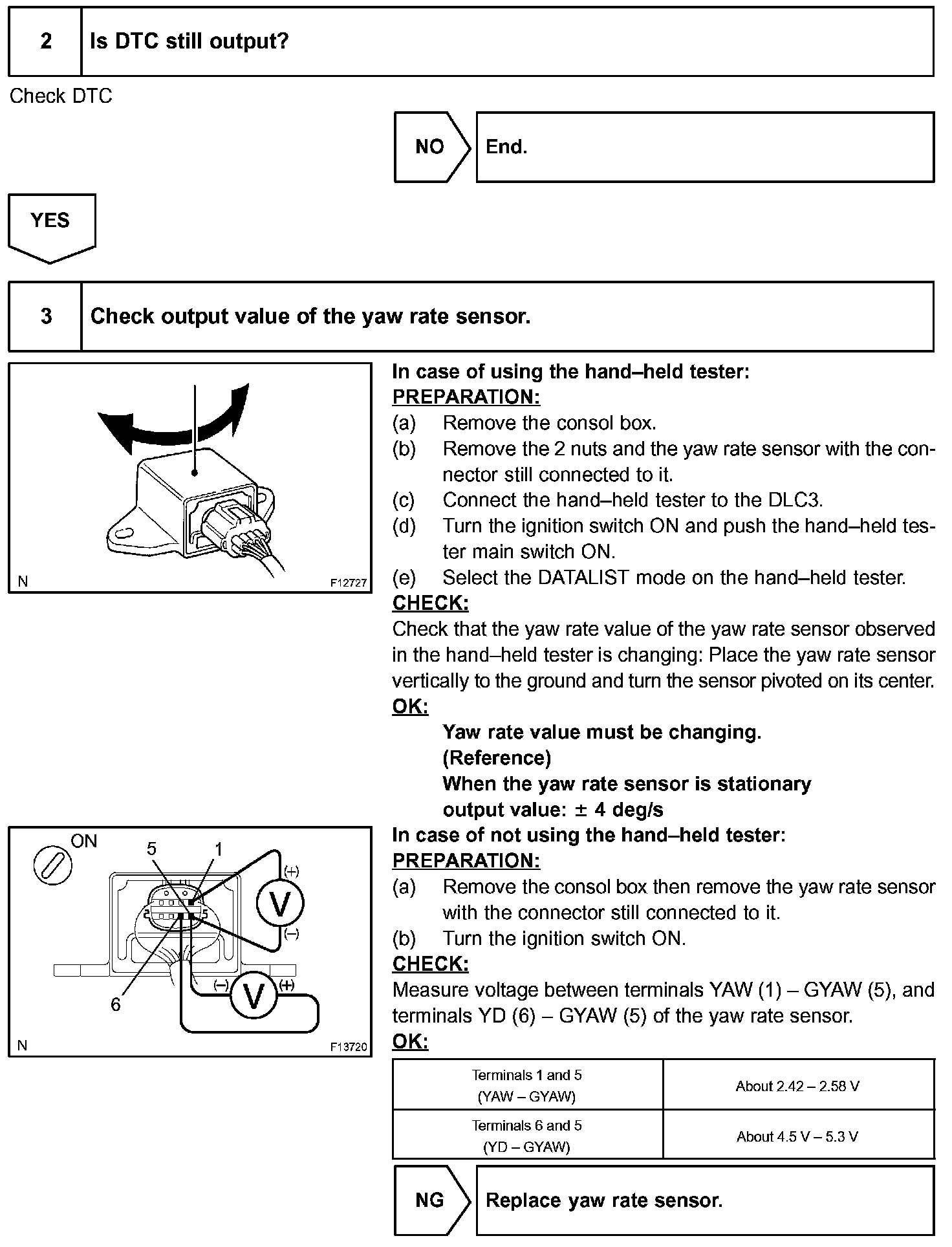

Step 2 - 3:

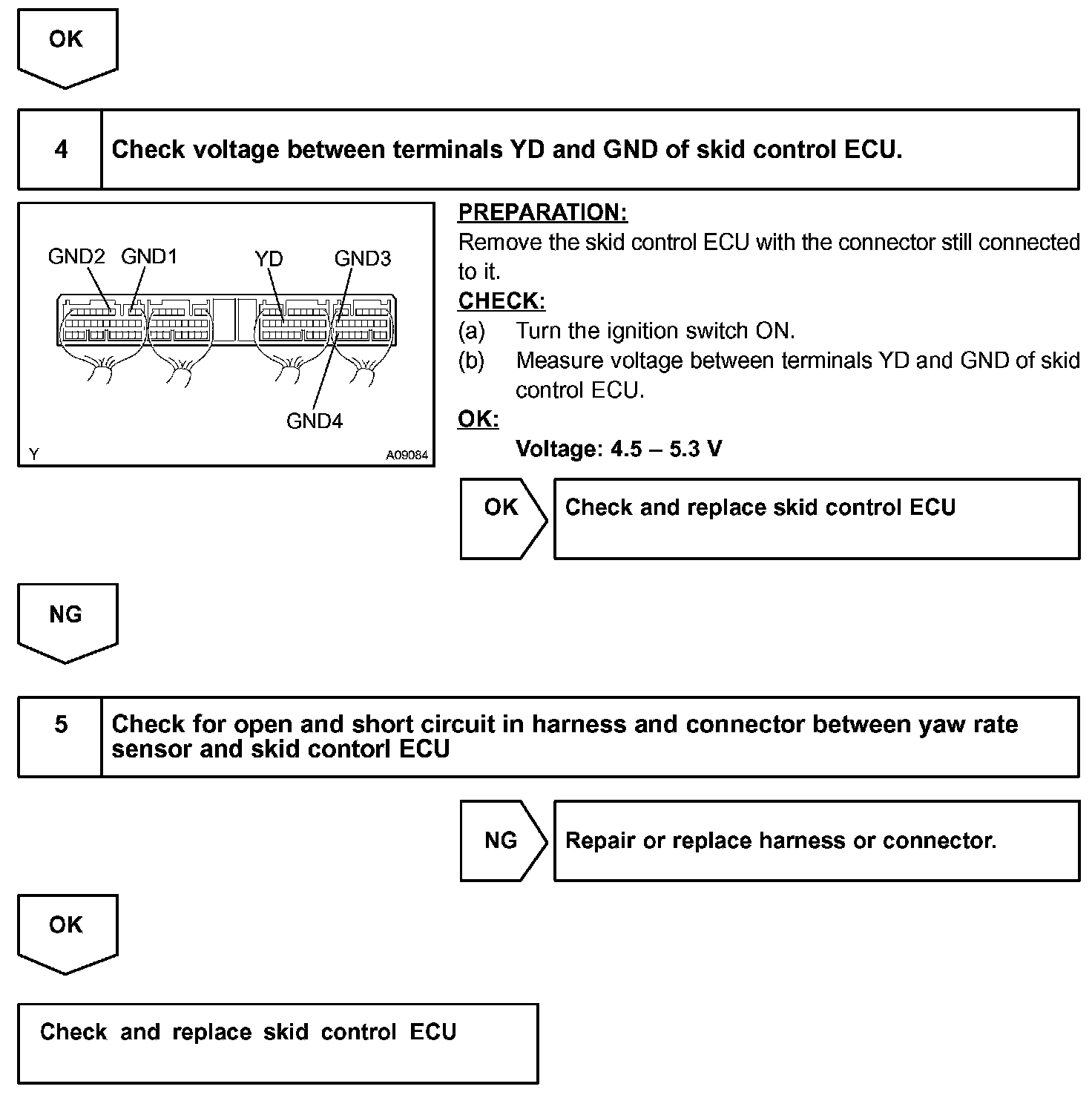

Step 3 (Contd.) - 5:
INSPECTION PROCEDURE
