ABS W/EBD & BA & TRAC & VSC System

DTC C1202 Brake Fluid Warning Switch Circuit

CIRCUIT DESCRIPTION

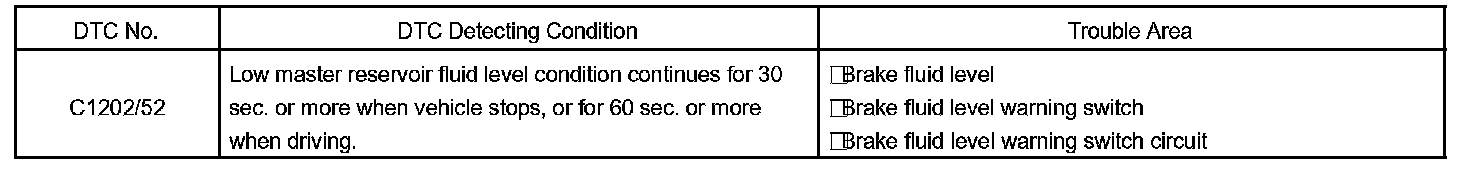

DTC Detecting Condition:

The brake fluid level warning switch sends the appropriate signal to the ECU when the brake fluid level drops.

HINT: Pull the parking brake lever also turns on the brake warning light but does not diagnose DTC No. C1202 / 52.

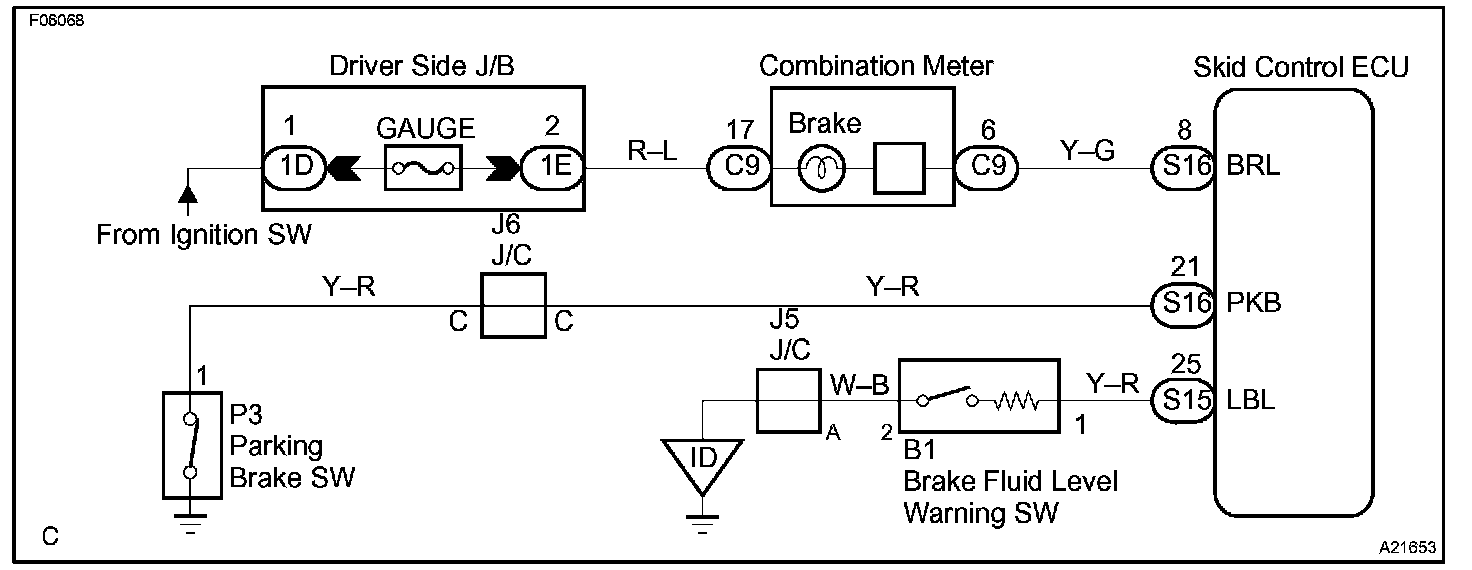

Wiring Diagram:

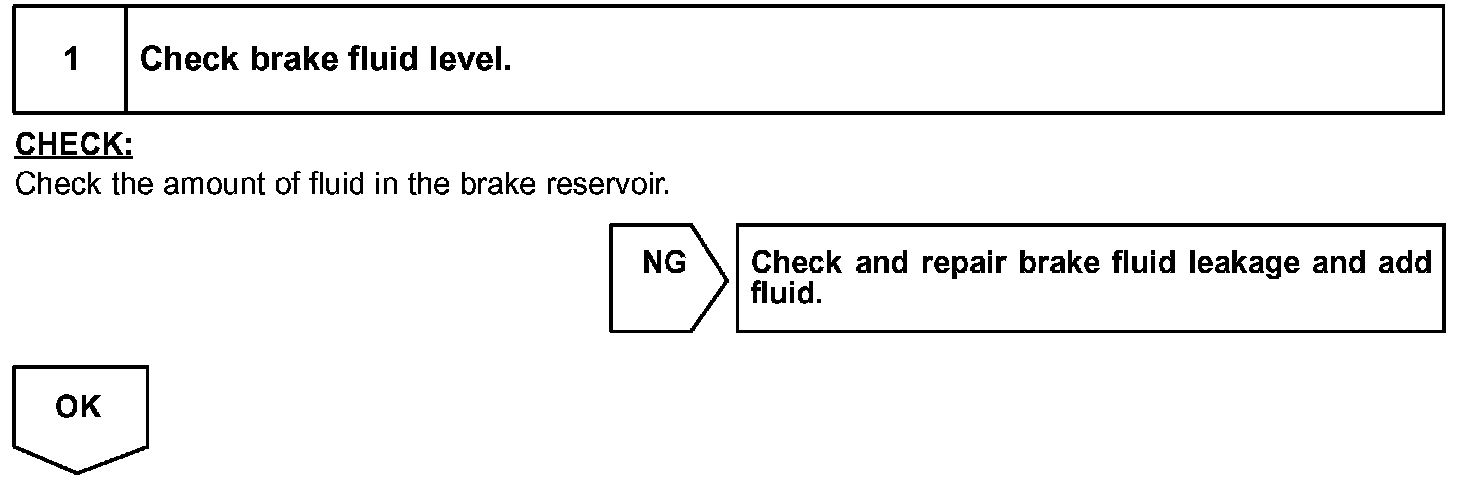

Step 1:

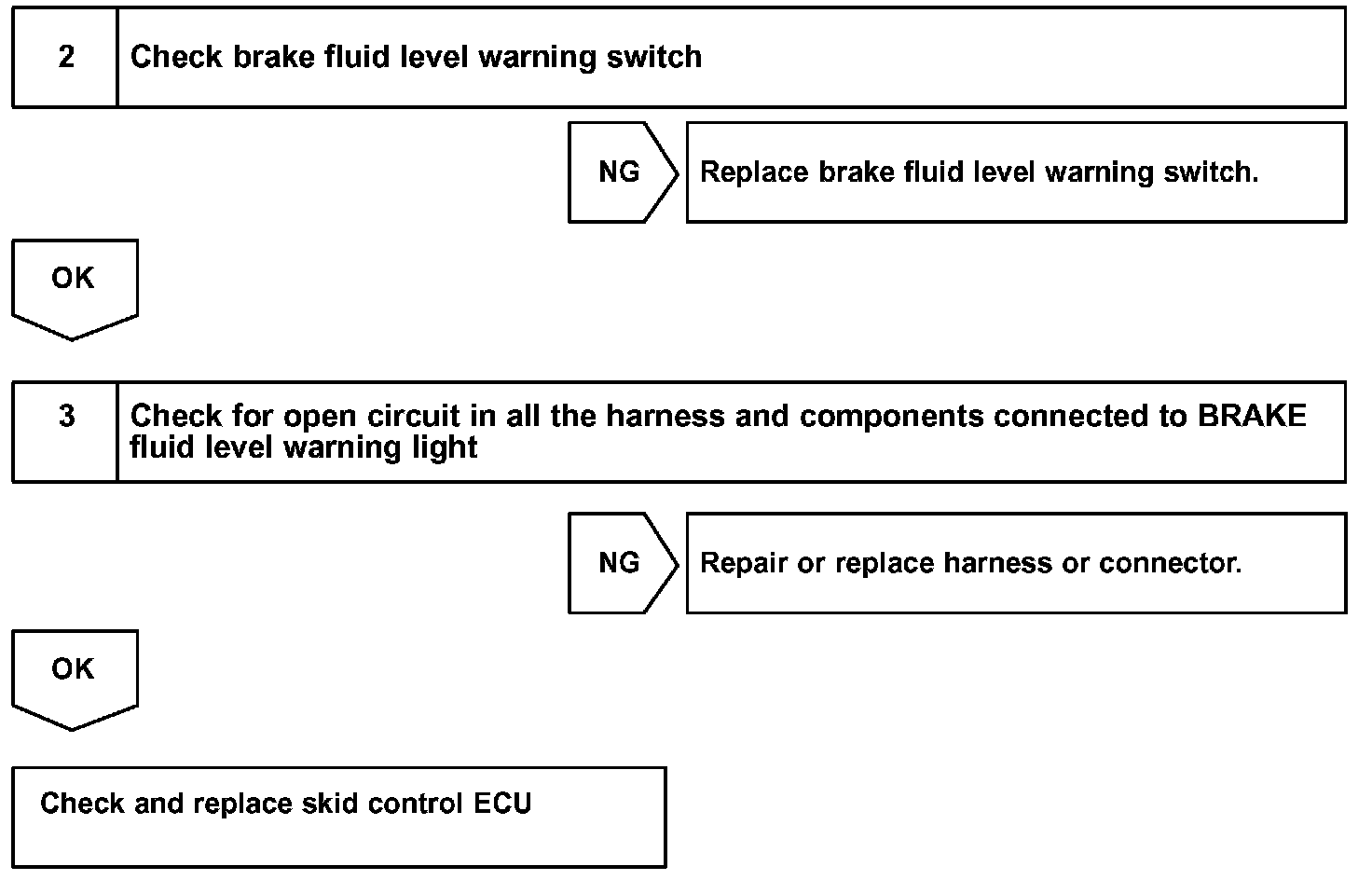

Step 2 - 3:

INSPECTION PROCEDURE
