B1443

DTC B1443 Air Outlet Damper Control Servomotor Circuit

CIRCUIT DESCRIPTION

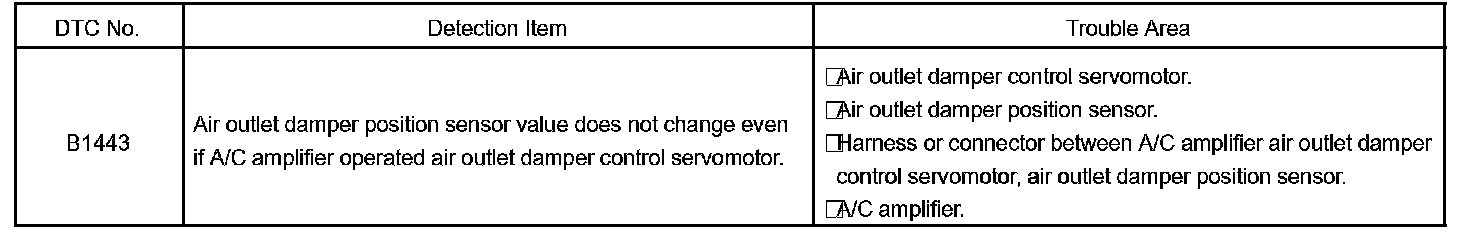

Detection Item:

This circuit turns the servomotor and changes each mode damper position by the signals from the A/C amplifier. When the AUTO switch is on, the A/C amplifier changes the mode automatically among (FACE), (BI-LEVEL) and (FOOT) according to the temperature setting.

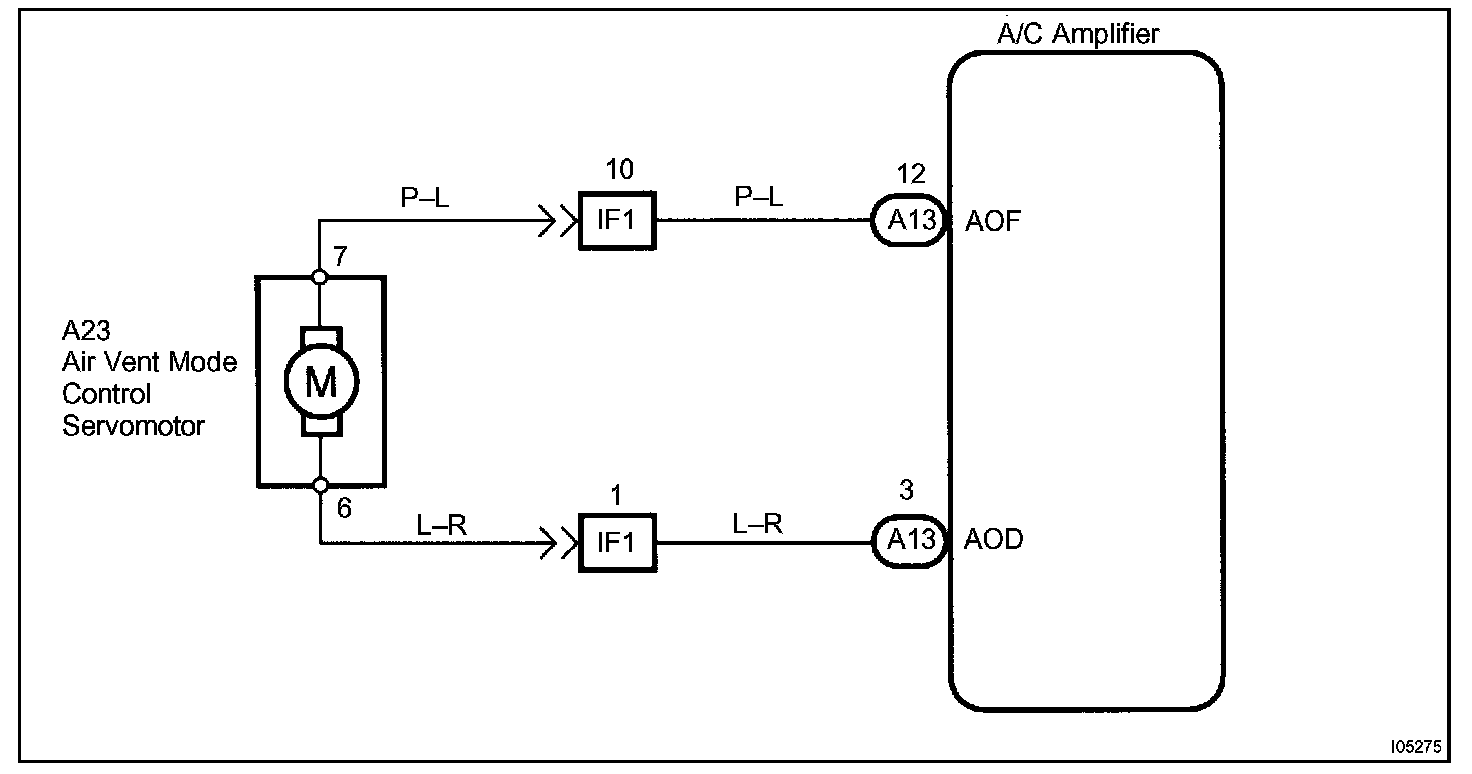

Wiring Diagram:

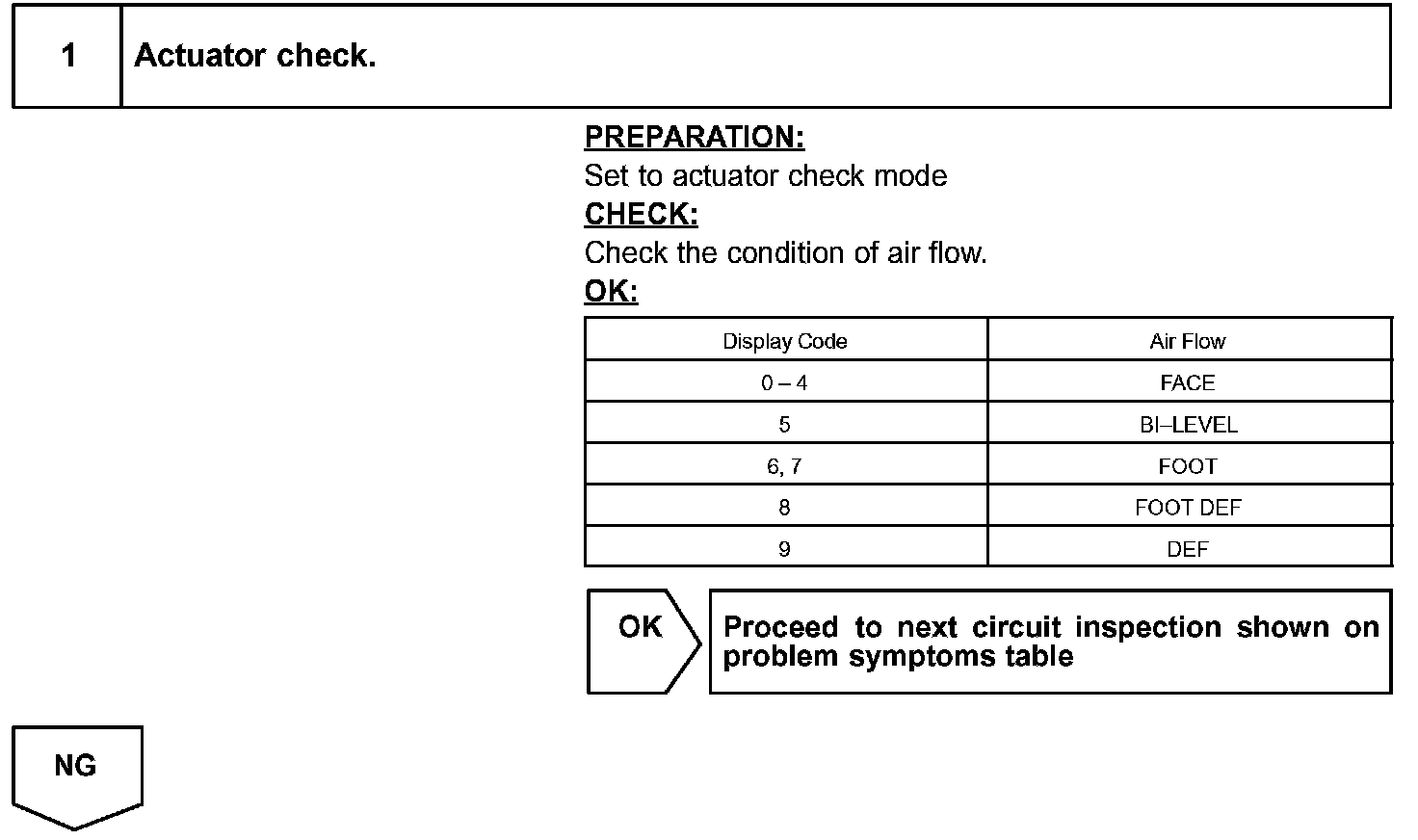

Step 1:

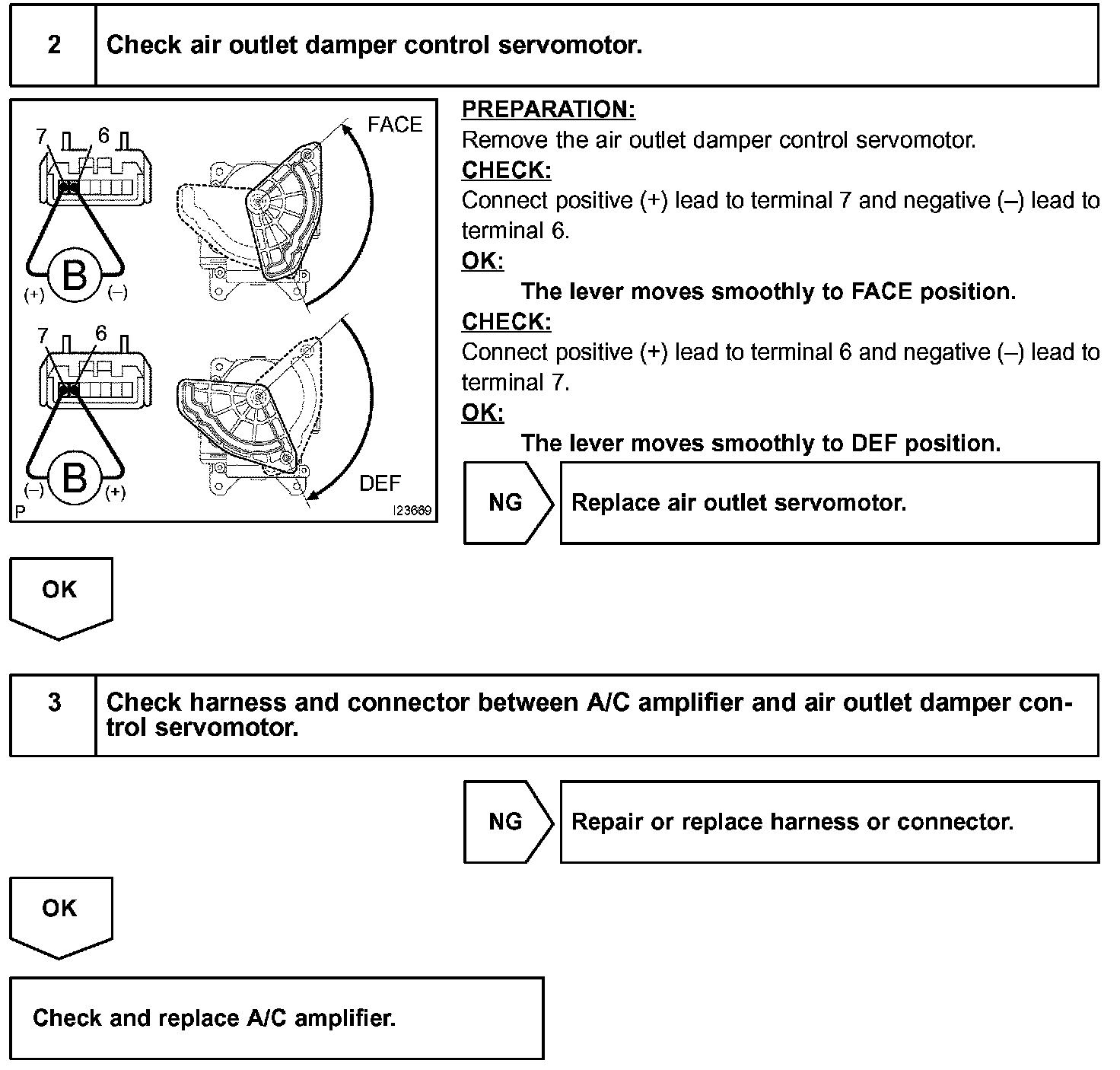

Step 2 - 3:

INSPECTION PROCEDURE
