DTC B1168 Short in Curtain Shield Squib (LH) Circuit (to B+)

CIRCUIT DESCRIPTION

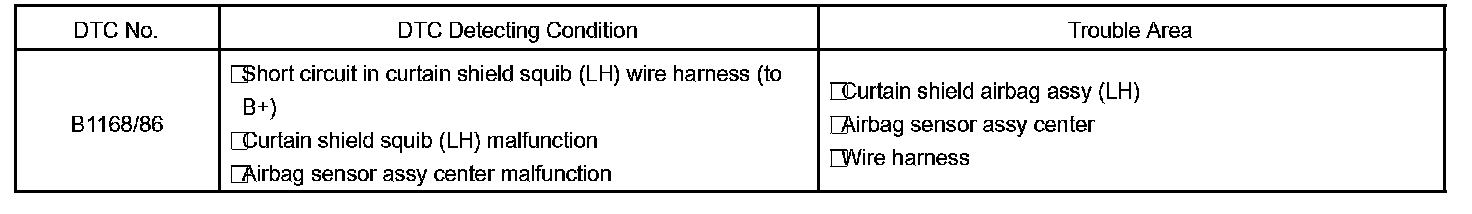

DTC Detecting Condition:

The curtain shield squib (LH) circuit consists of the airbag sensor assembly center and curtain shield airbag assembly (LH).

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B1168/86 is recorded when a B+ short is detected in the curtain shield squib (LH) circuit.

Wiring Diagram:

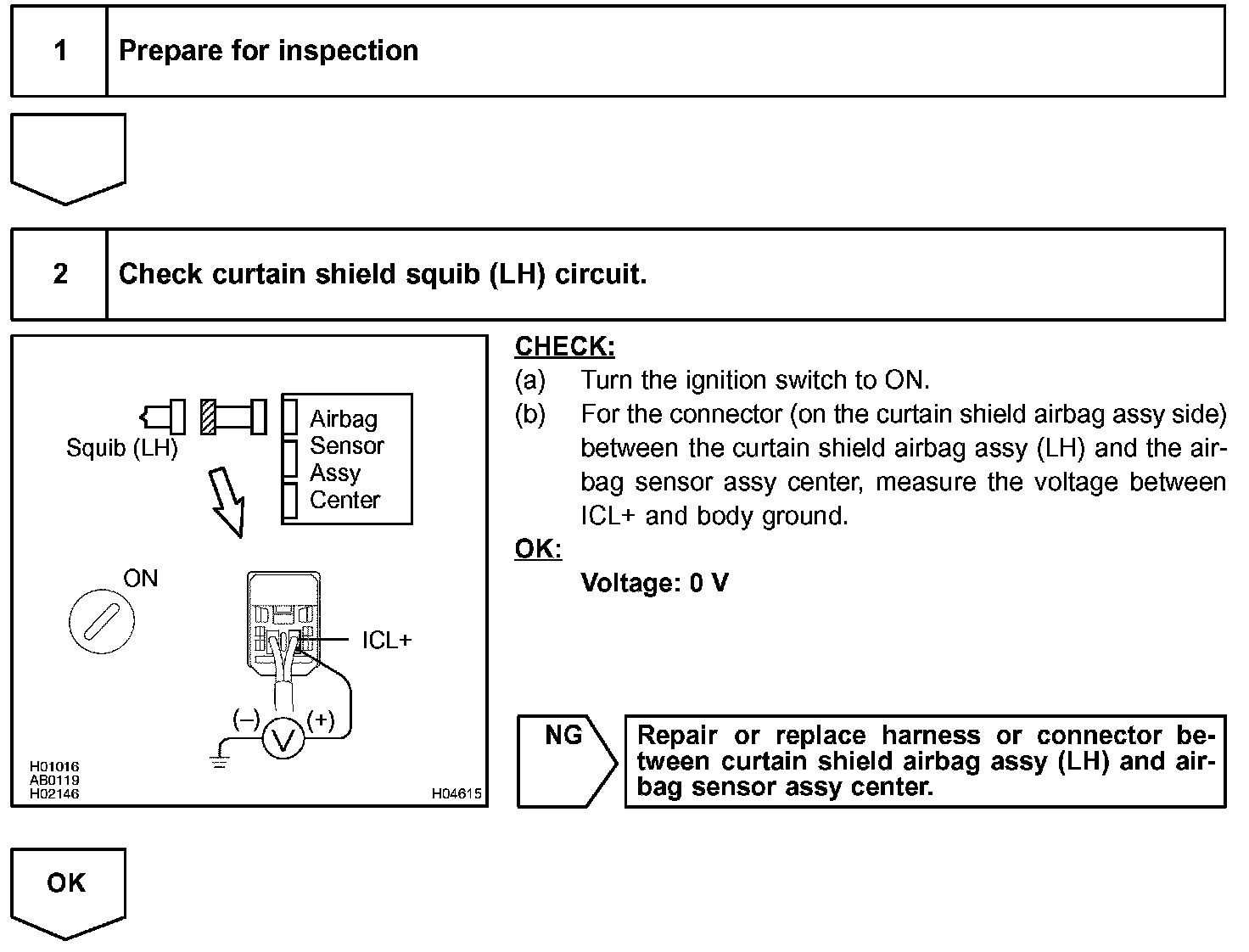

Step 1 - 2:

Step 3:

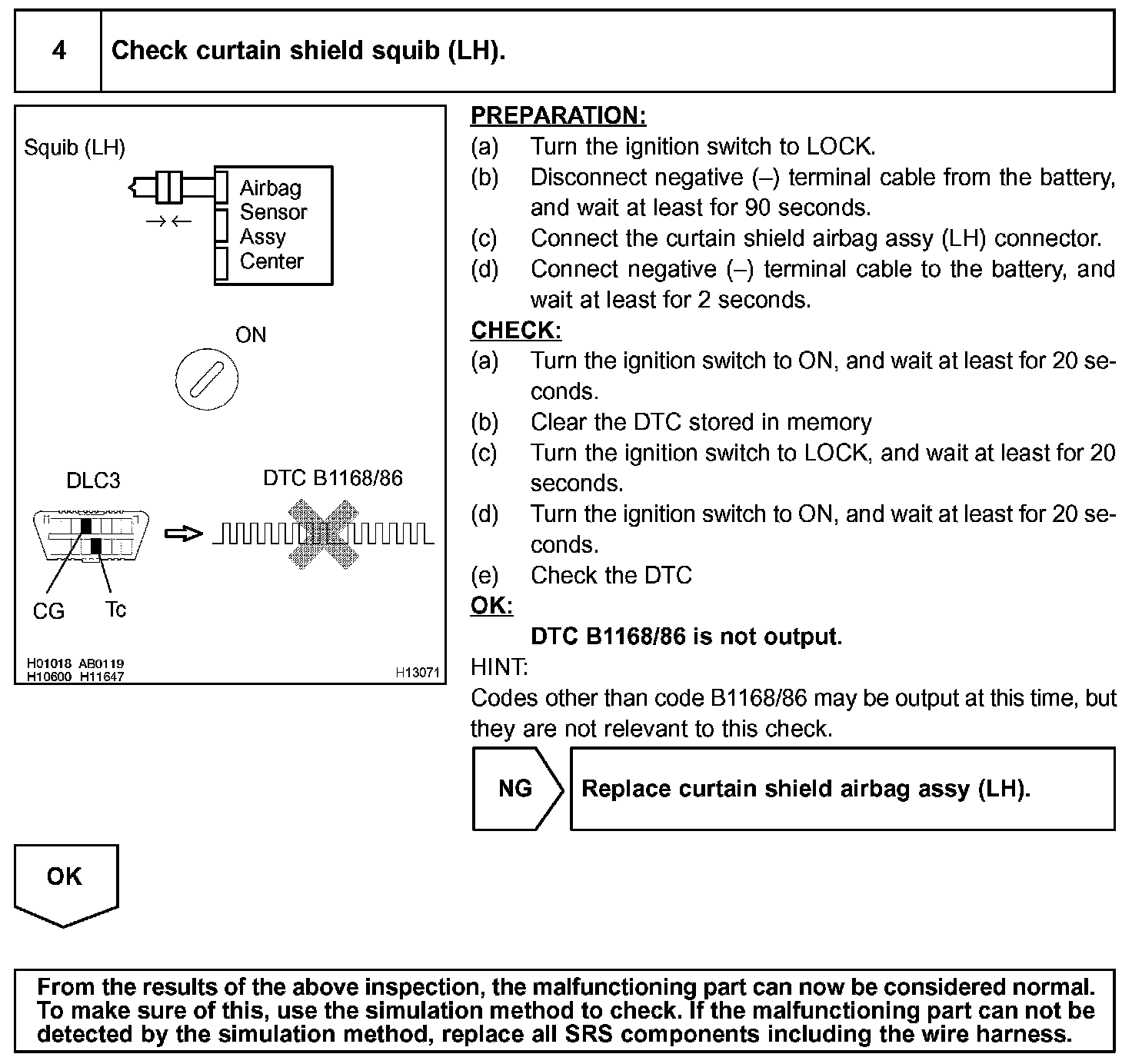

Step 4:

INSPECTION PROCEDURE
