Transmission Shift Switch Circuit

Transmission Shift Switch Circuit

CIRCUIT DESCRIPTION
When shifting the shift lever to the M position, using the transmission shift switch, it is possible to shift to the 2 to 5 positions.

Pressing "Up switch" once shifts up 1 position, and pressing "Down switch" once shifts down 1 position respectively.

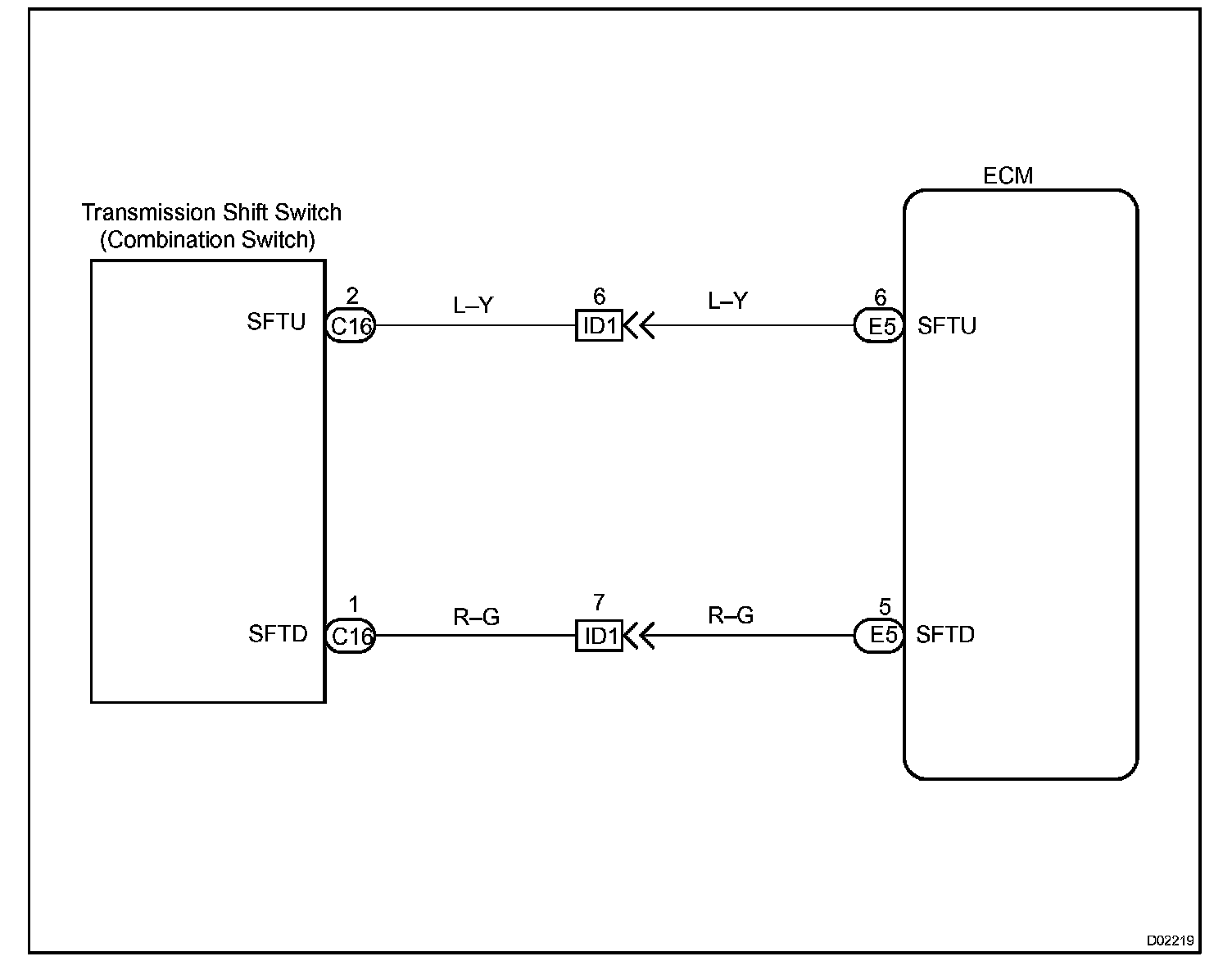

Wiring Diagram:






Step 1:

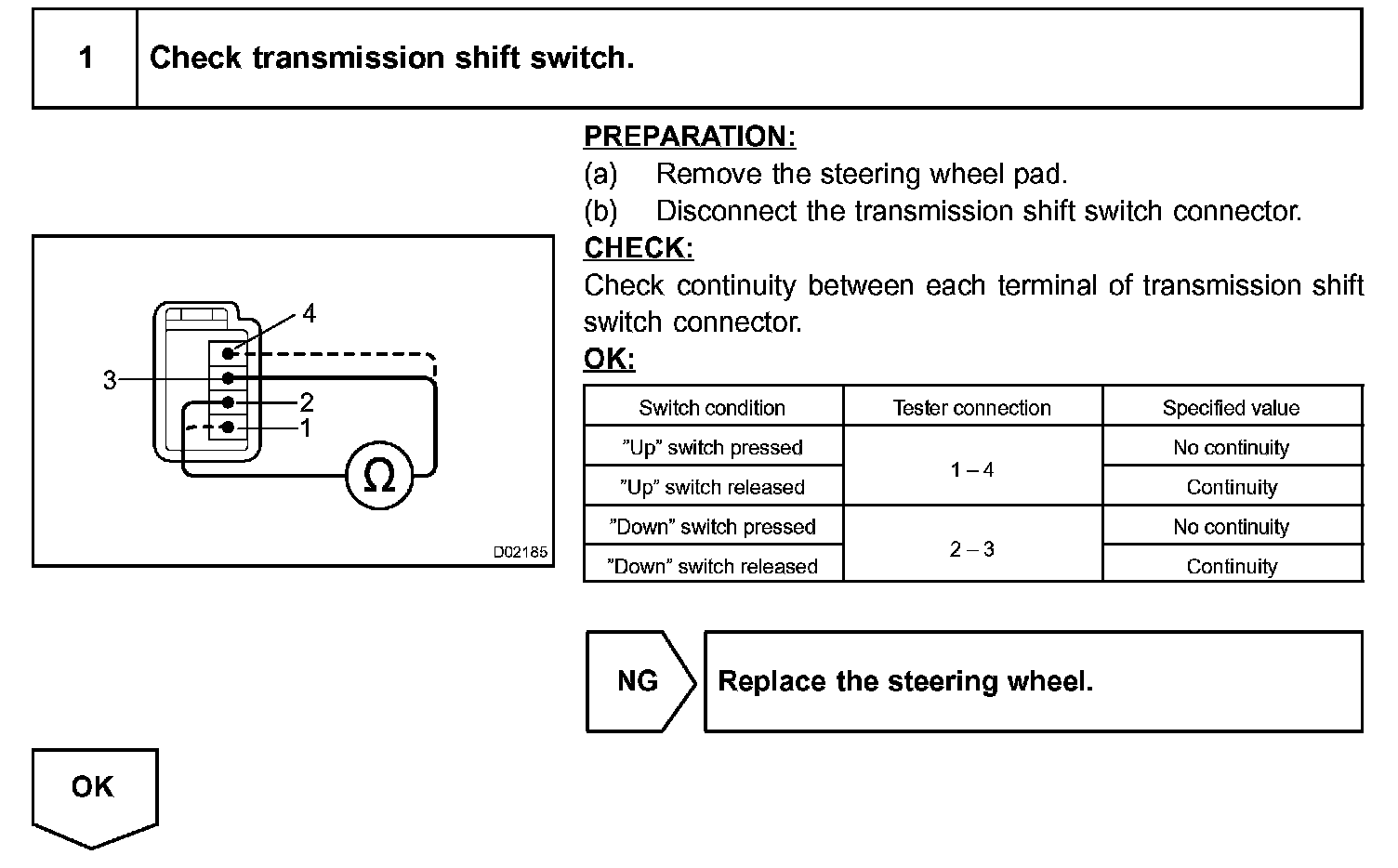

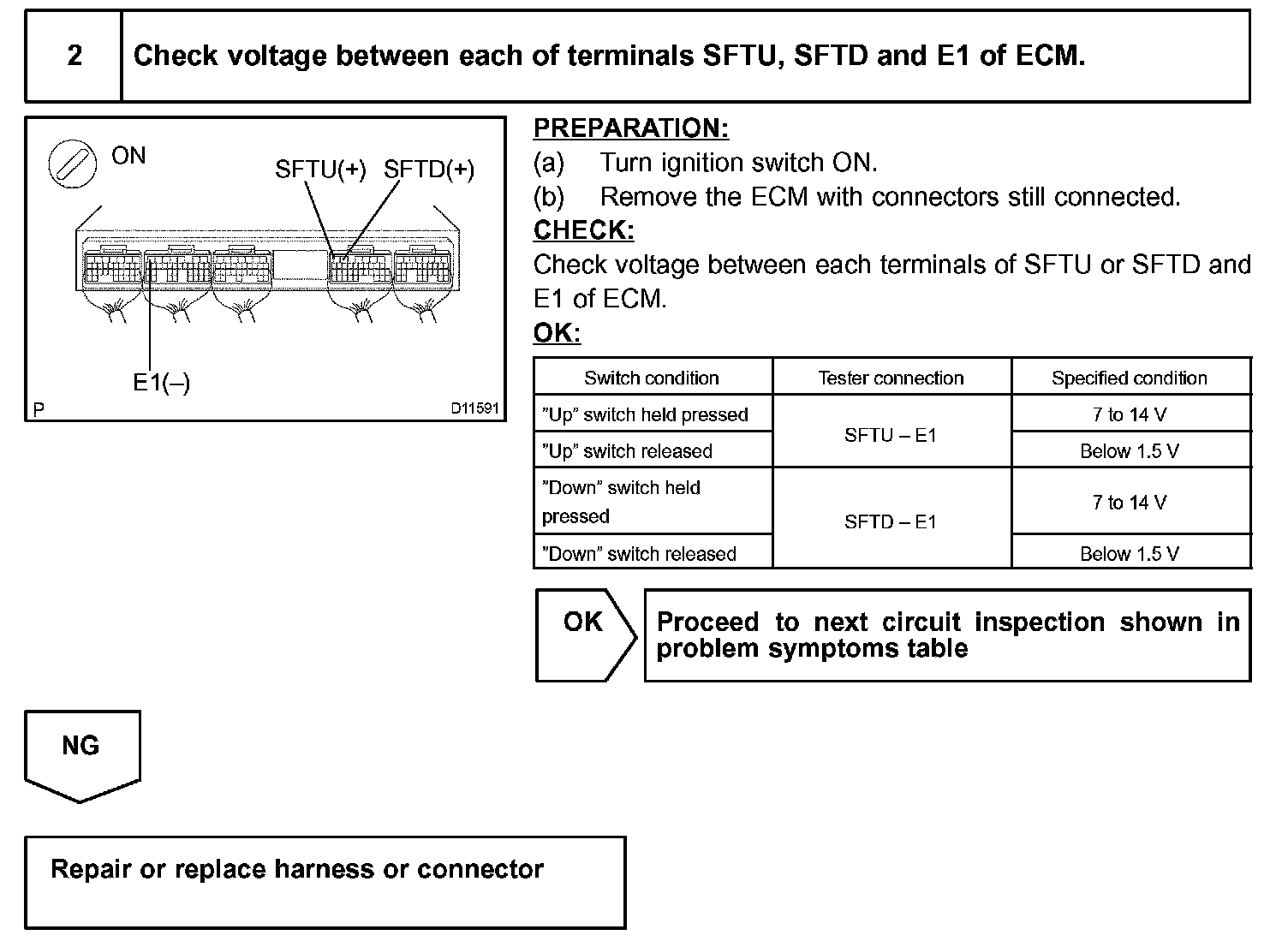

Step 2:




INSPECTION PROCEDURE
