Part and System Name List

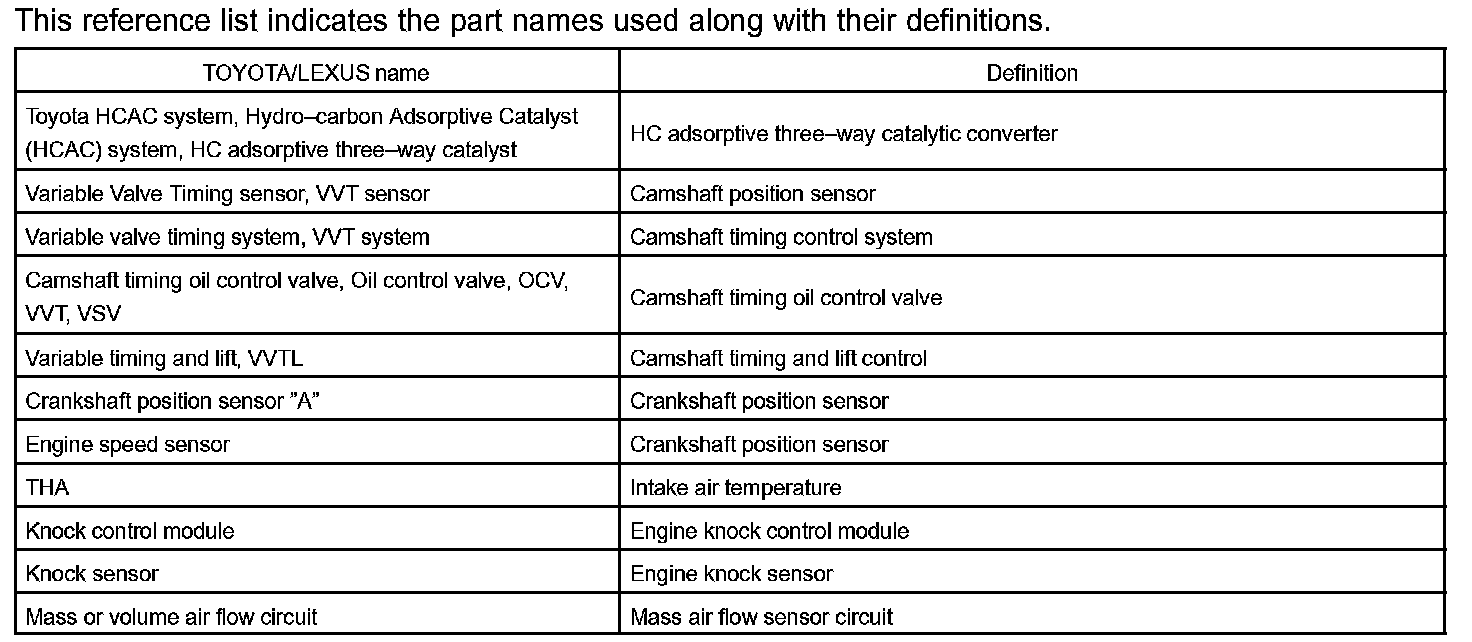

LEXUS Part And System Name List Part 1:

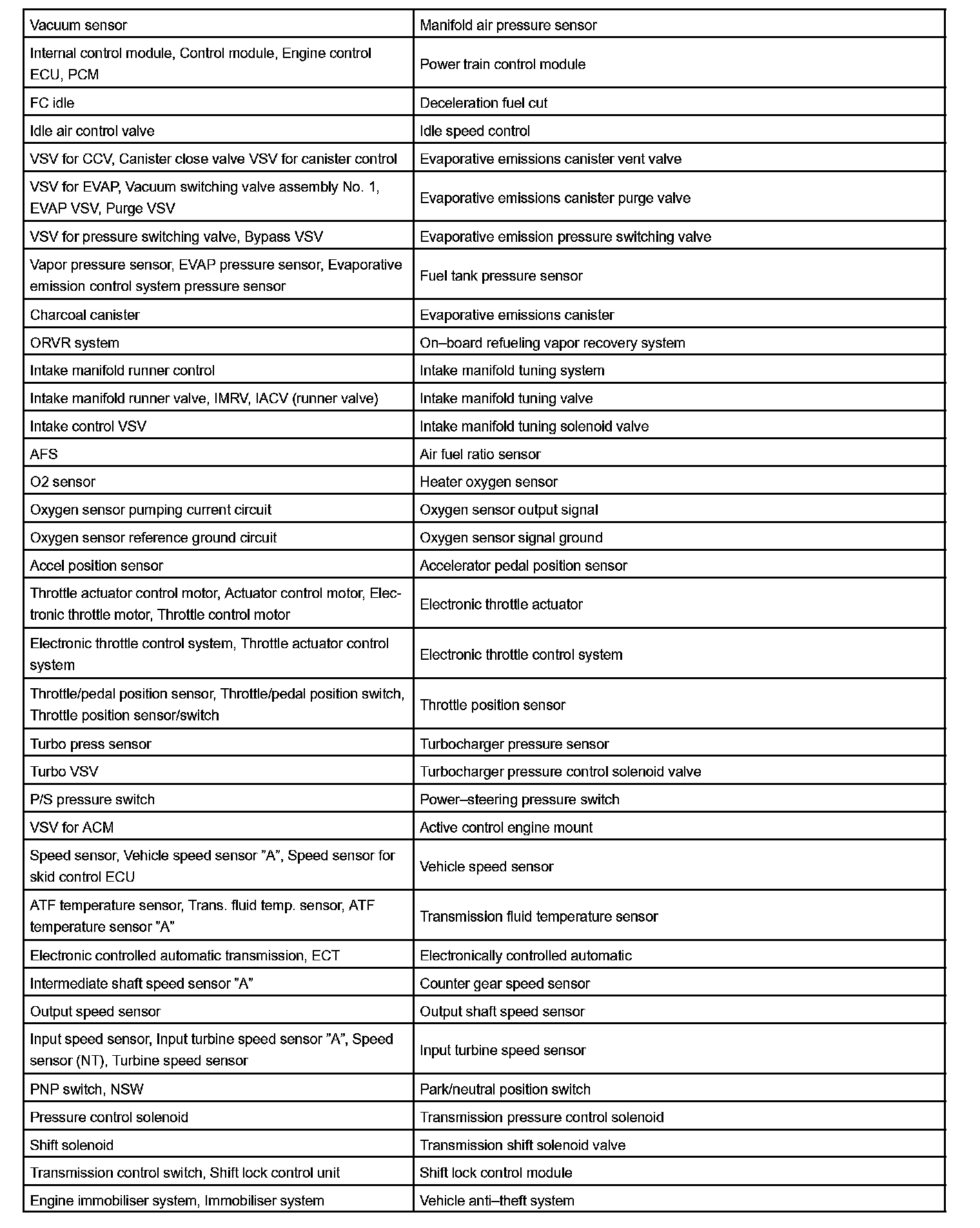

LEXUS Part And System Name List Part 2:
