Removal and Installation

REMOVAL





1. REMOVE ENGINE UNDER COVER
Remove the 16 bolts and engine under cover.
2. REMOVE DRIVE BELT

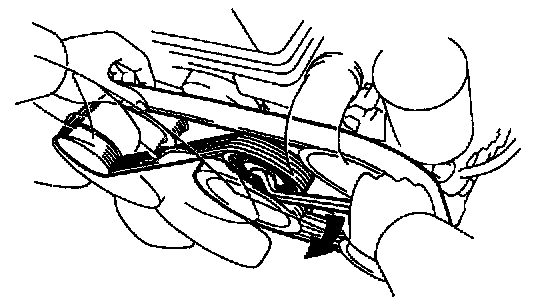

Loosen the drive belt tension by turning the drive belt tensioner clockwise, and remove the drive belt.
3. REMOVE RETURN HOSE
Remove the clip and disconnect the return hose.
4. REMOVE PRESSURE FEED TUBE
Remove the union bolt, gasket and pressure feed tube.

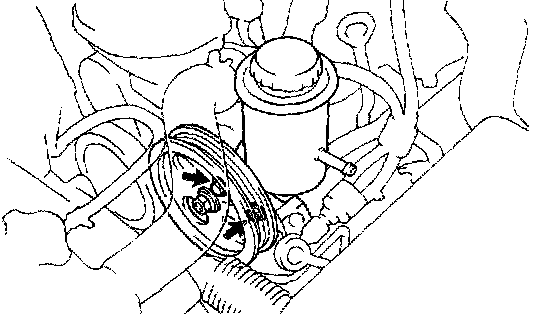

5. REMOVE PS VANE PUMP ASSEMBLY
a. Disconnect the connector.
b. Remove the 2 bolts and PS vane pump assembly.

INSTALLATION





1. INSTALL PS VANE PUMP ASSEMBLY
a. Install the PS vane pump assembly with the 2 bolts.
Torque: 58 Nm (590 kgf-cm, 43 ft. lbs.)
b. Connect the connector.





2. CONNECT PRESSURE FEED TUBE
Connect the pressure feed tube and a new gasket with the union bolt

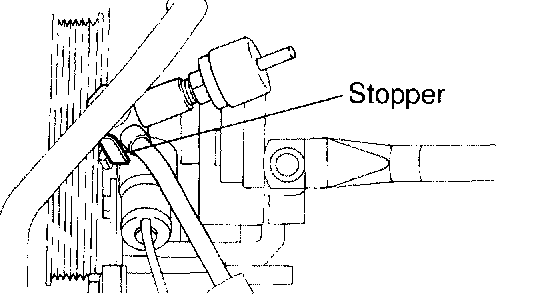

HINT: Make sure that the stopper of the tube is touching the PS vane pump body, as shown, before torquing the bolt.

Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
3. CONNECT RETURN HOSE
Connect the hose with the clip.





4. INSTALL DRIVE BELT
Loosen the drive belt tension by turning the drive belt tensioner clockwise, and install the drive belt.
5. INSTALL ENGINE UNDER COVER
Install the engine under cover with the 16 bolts.
6. BLEED POWER STEERING SYSTEM
