System Specifications

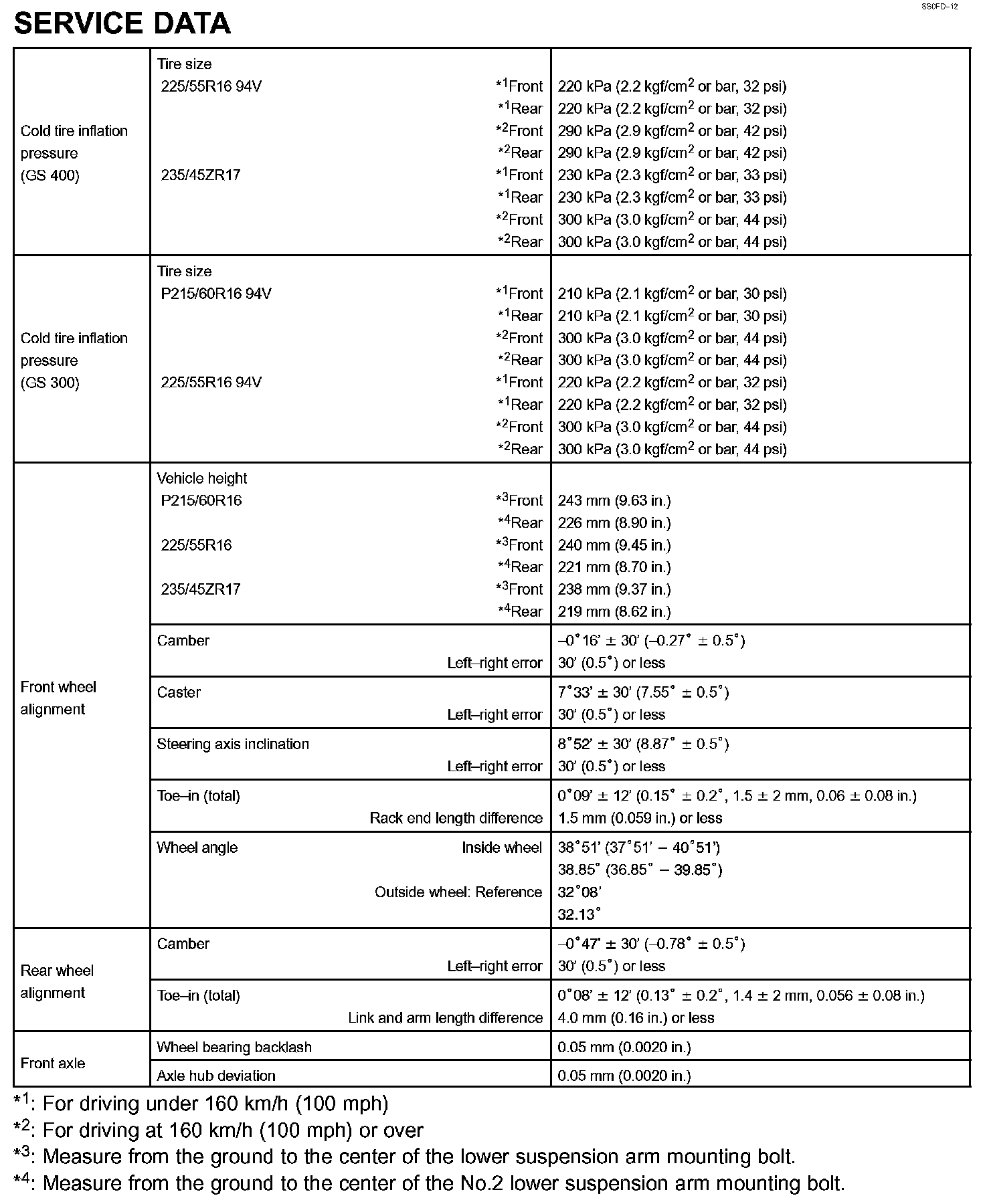

Suspension And Axle - Service Data Part 1:

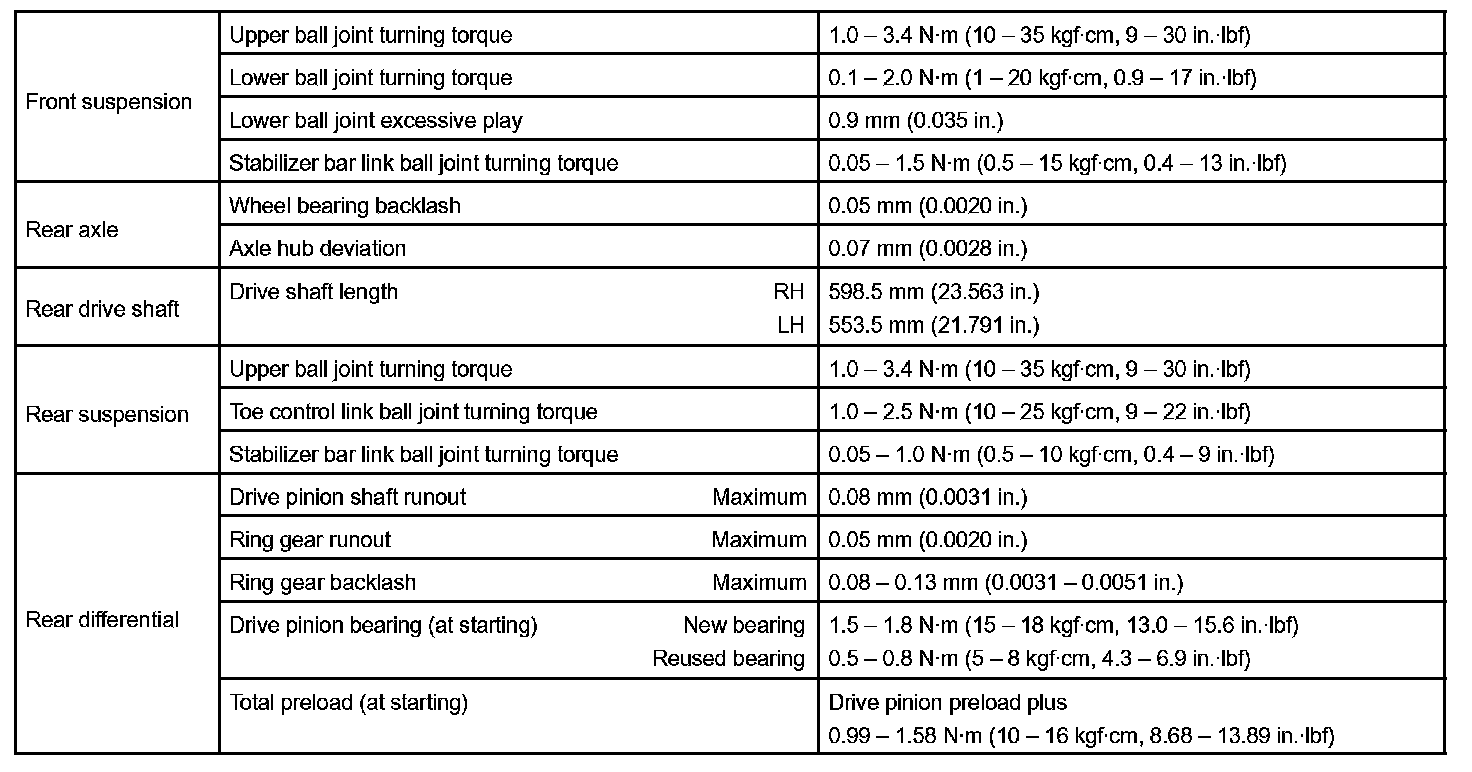

Suspension And Axle - Service Data Part 2:

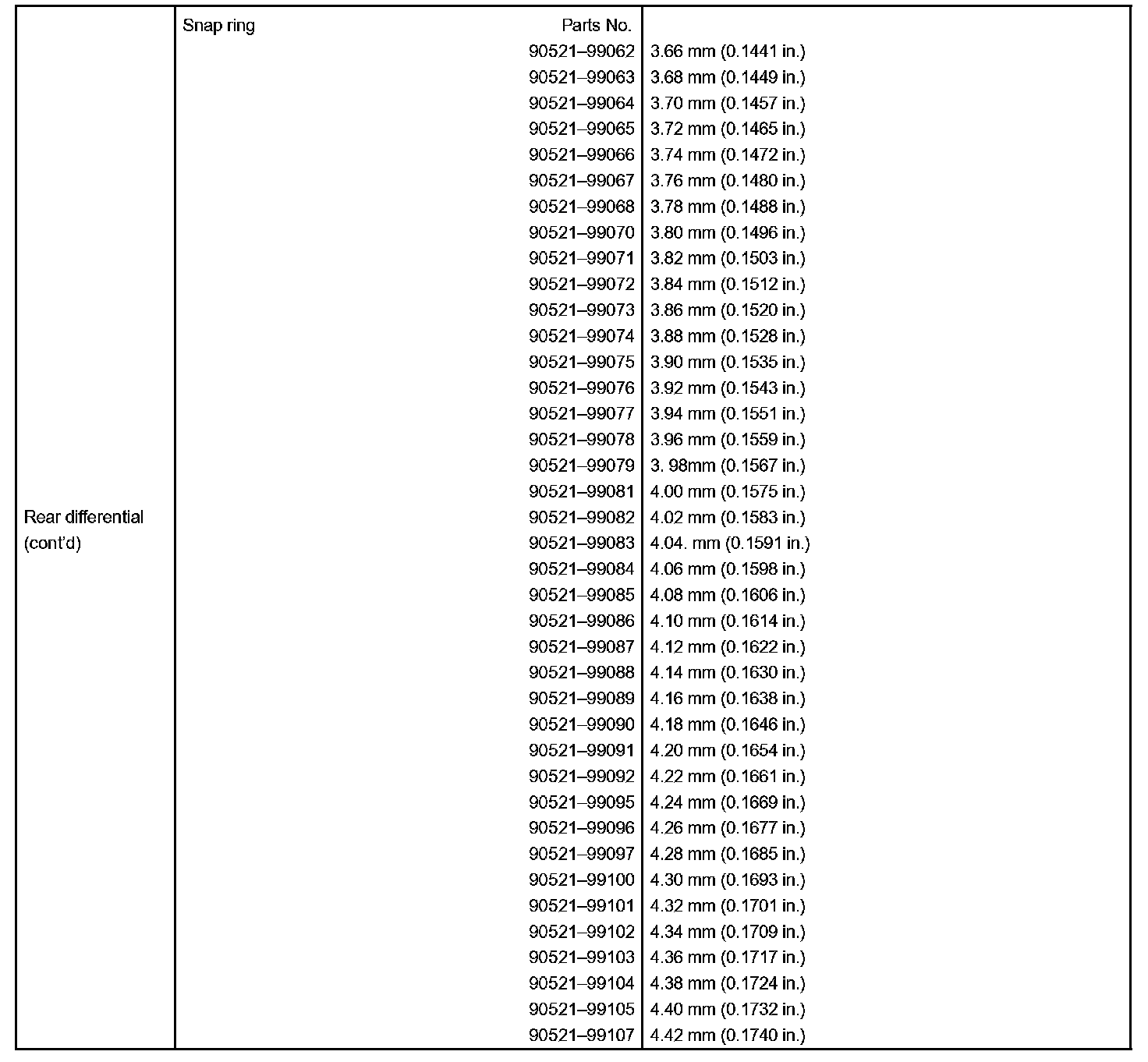

Suspension And Axle - Service Data Part 3:

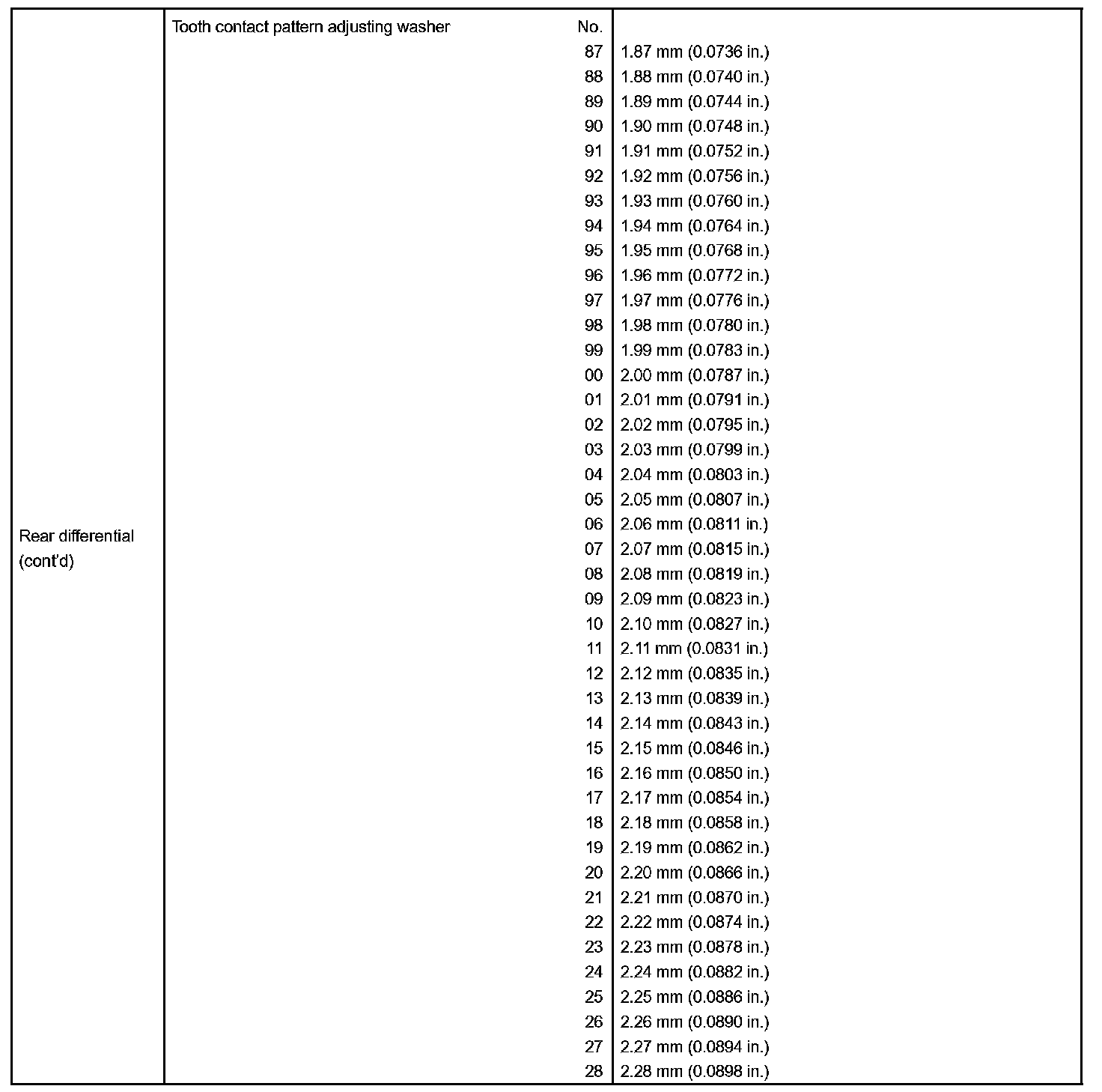

Suspension And Axle - Service Data Part 4:

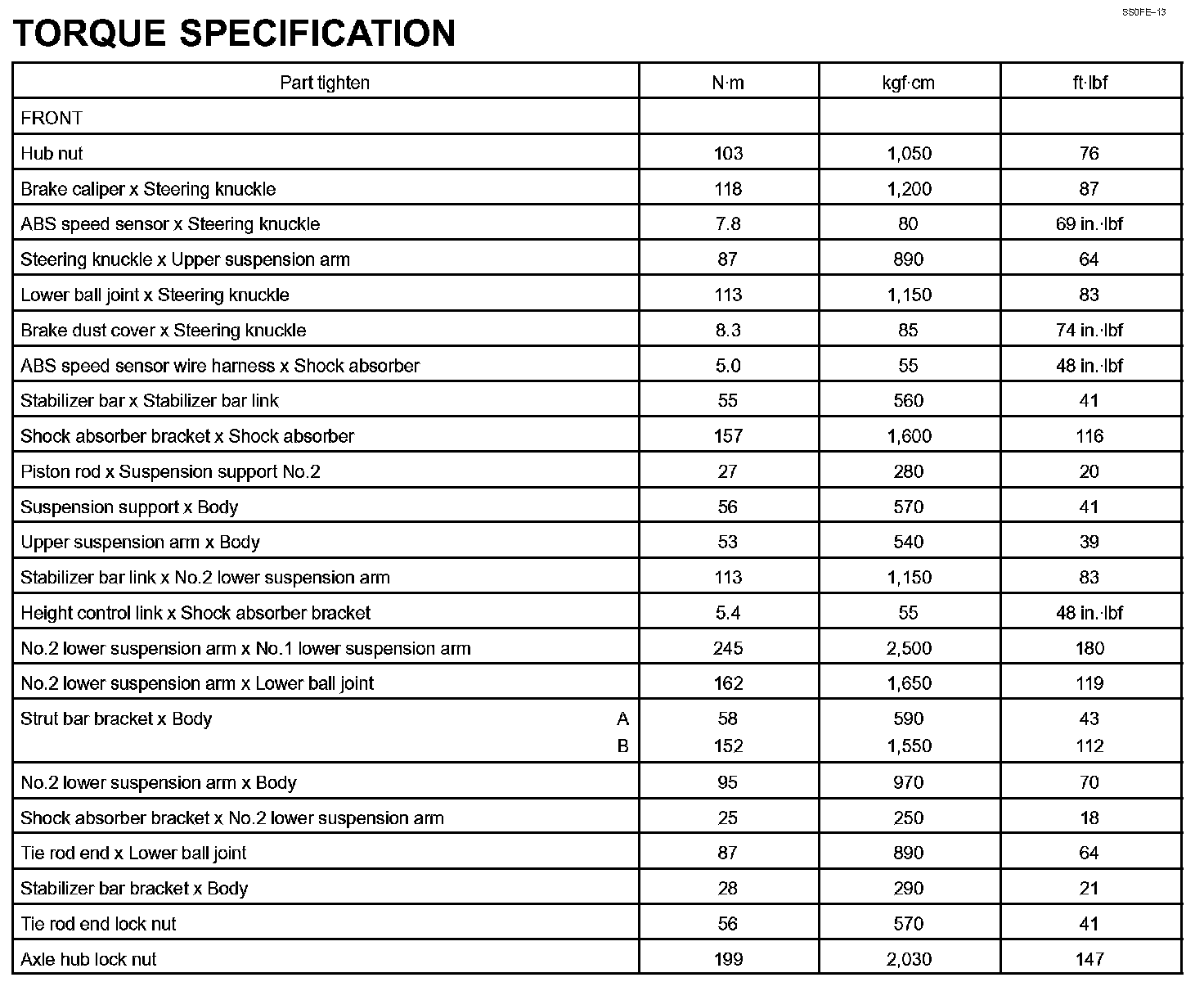

Suspension And Axle - Torque Specification Part 1:

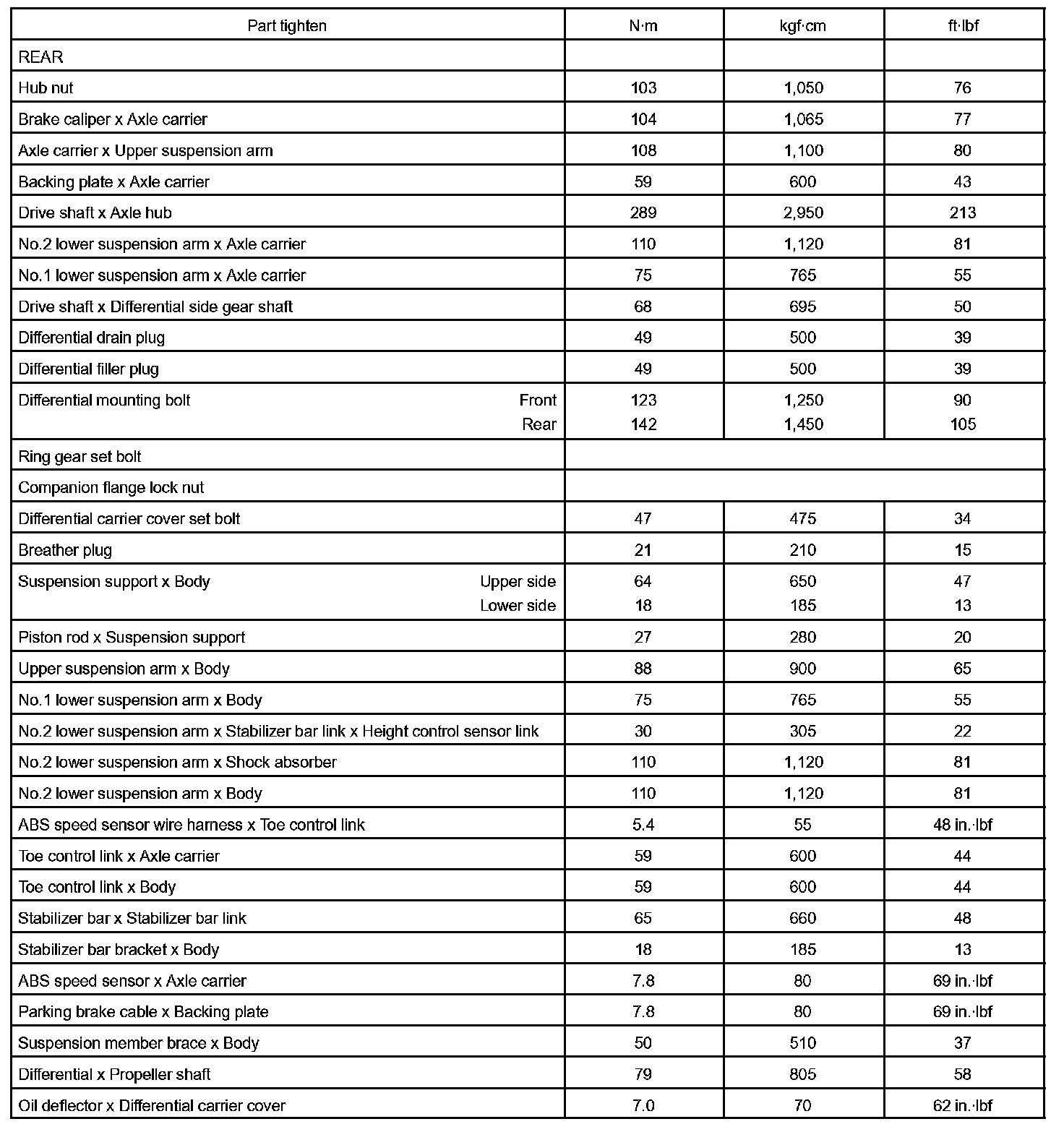

Suspension And Axle - Torque Specification Part 2:
