Home >> Lexus >> 2005 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Repairs and Inspections Required After a Collision >> Service and Repair >> Component Inspections >> Curtain Shield Airbag Assembly >> Replacement Requirements

Replacement Requirements

REPLACEMENT

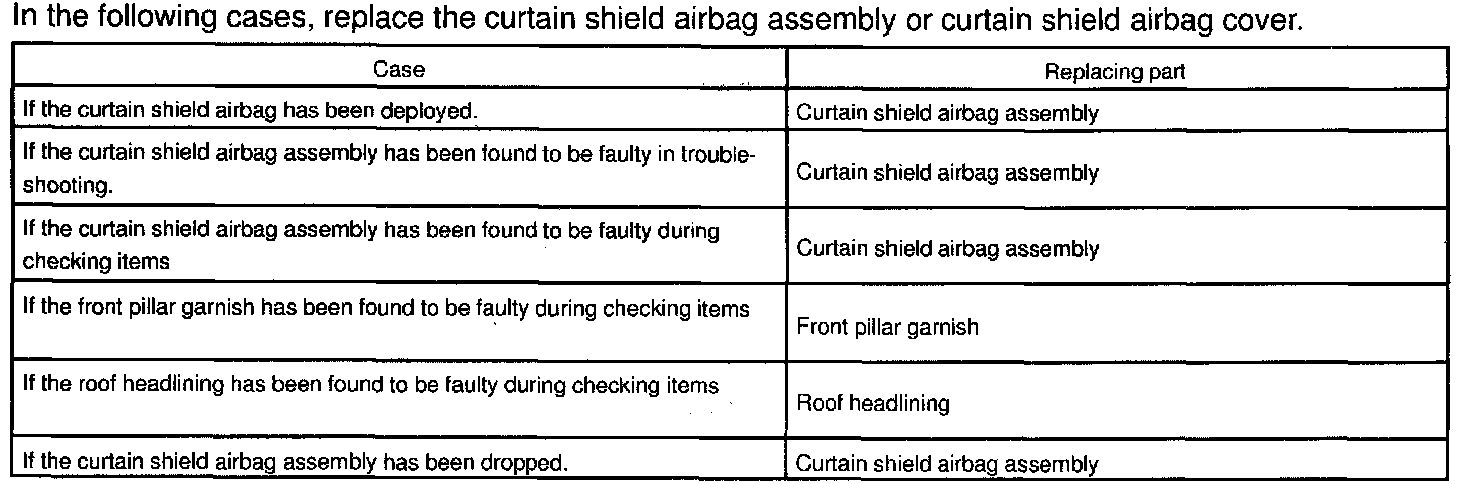

In the following cases, replace the curtain shield airbag assembly or curtain shield airbag cover.

CAUTION: For removal and installation of the curtain shield airbag assembly. Be sure to follow the correct procedure.
