Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

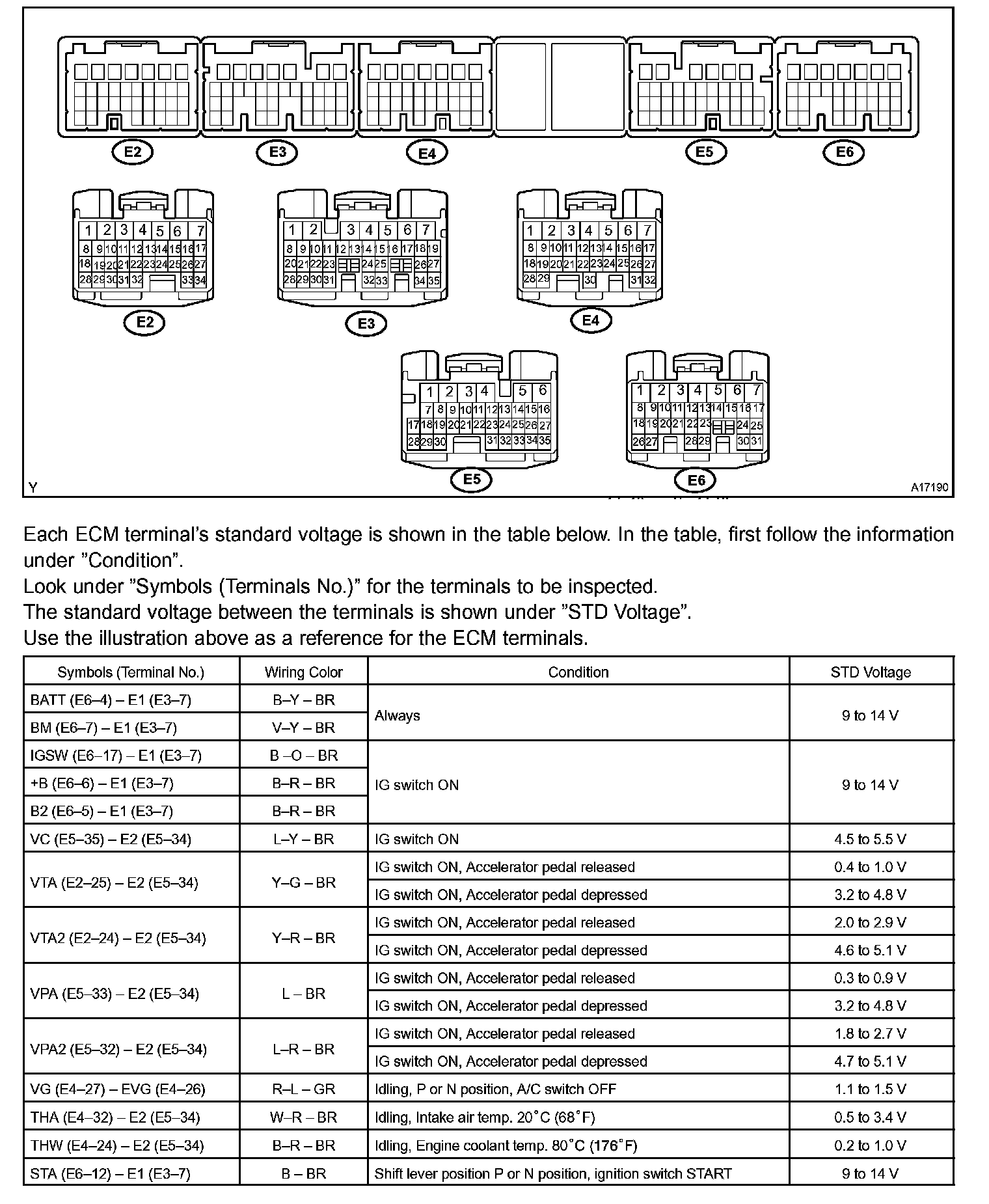

Terminals Of ECM/Pinouts Part 1:

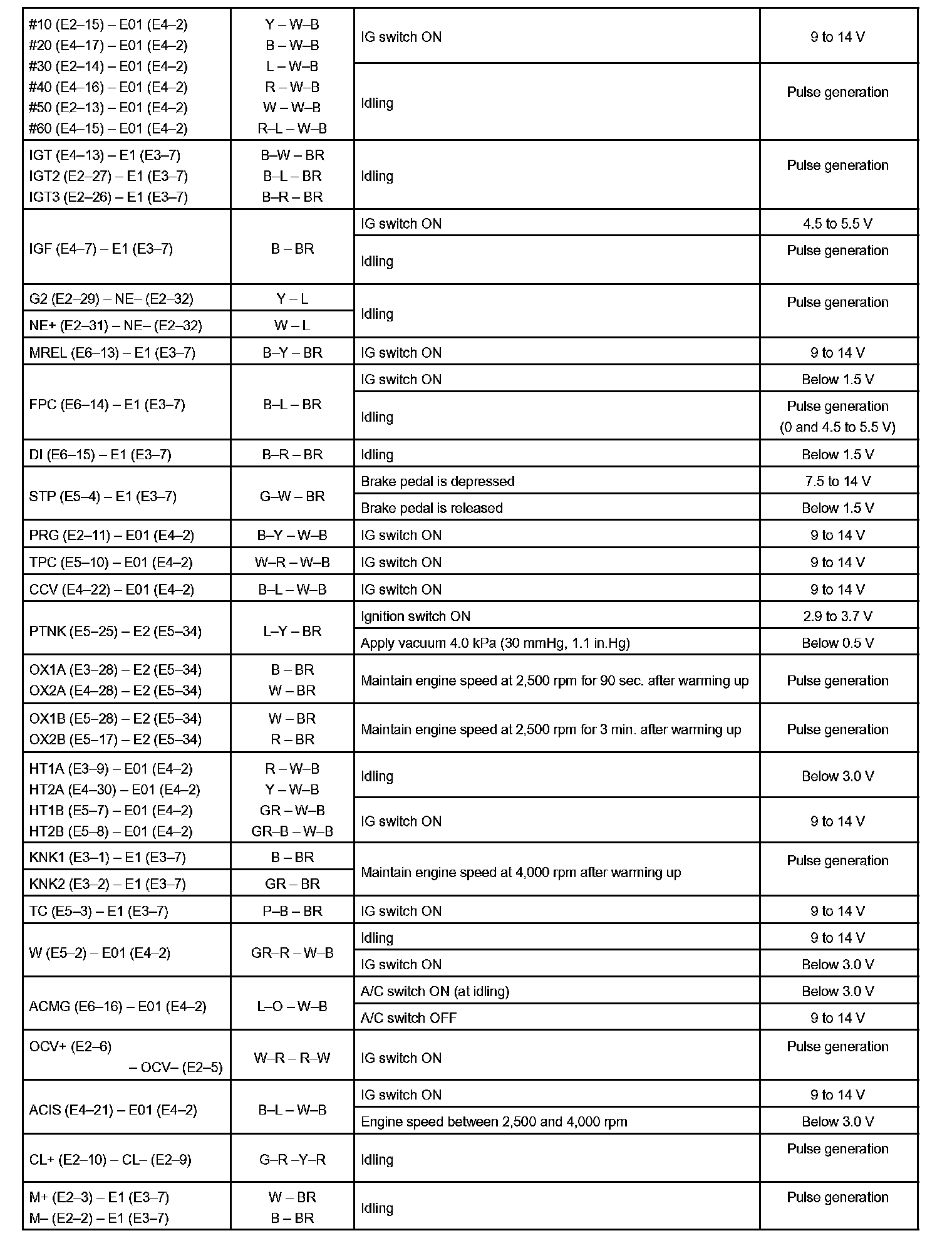

Terminals Of ECM/Pinouts Part 2:

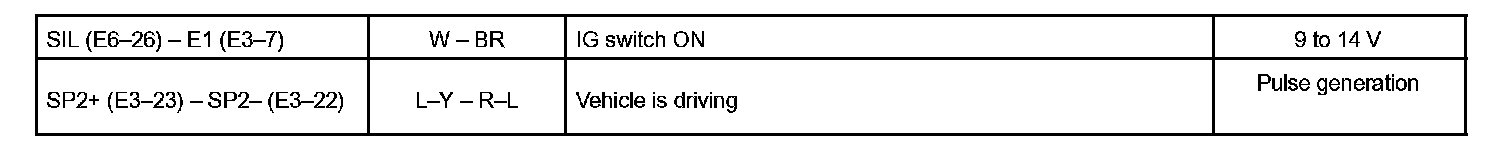

Terminals Of ECM/Pinouts Part 3:
