Monitor Disablement List

THE MONITOR WILL RUN WHENEVER THE FOLLOWING DTCS ARE NOT PRESENT (MONITOR DISABLEMENT LIST)

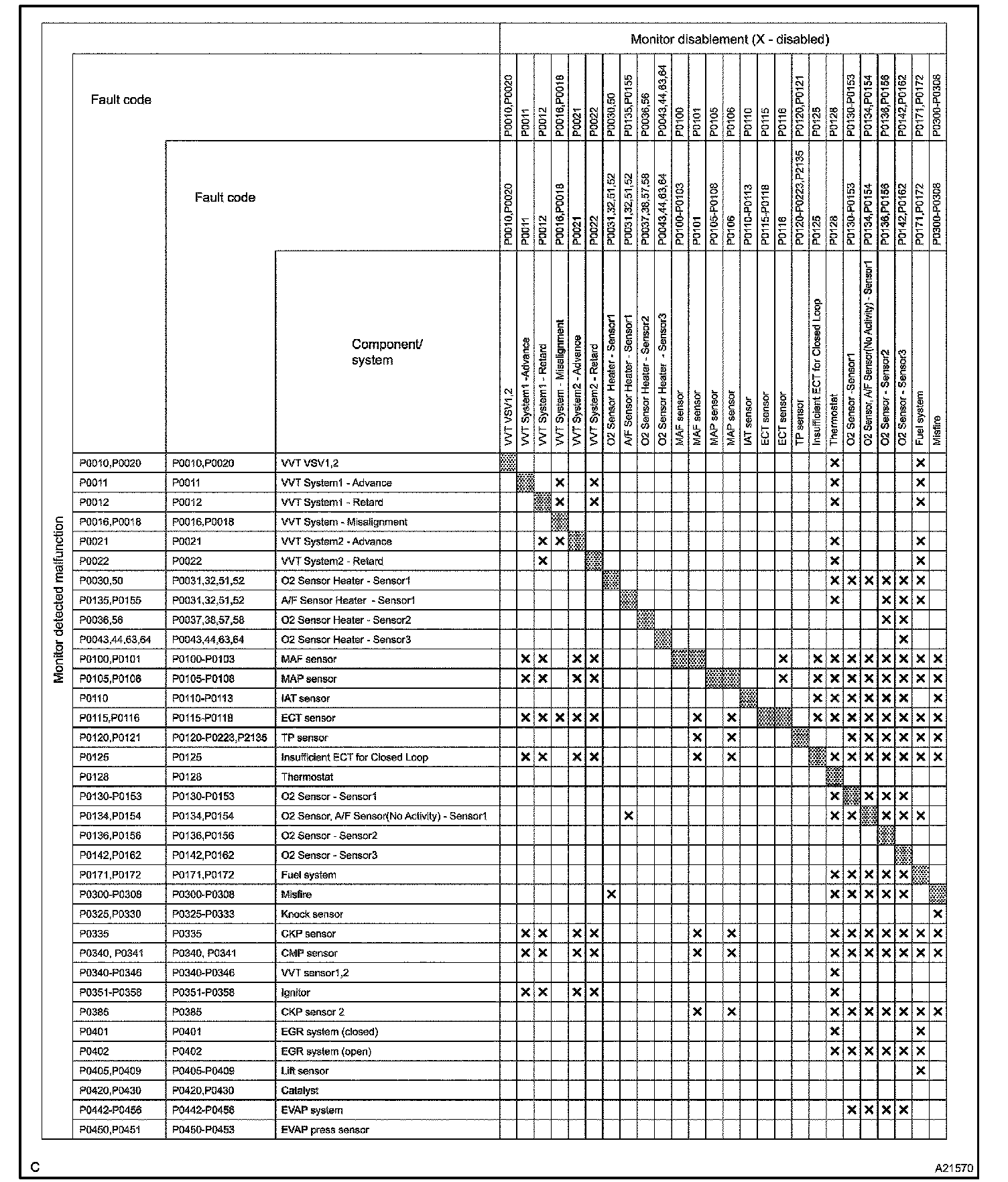

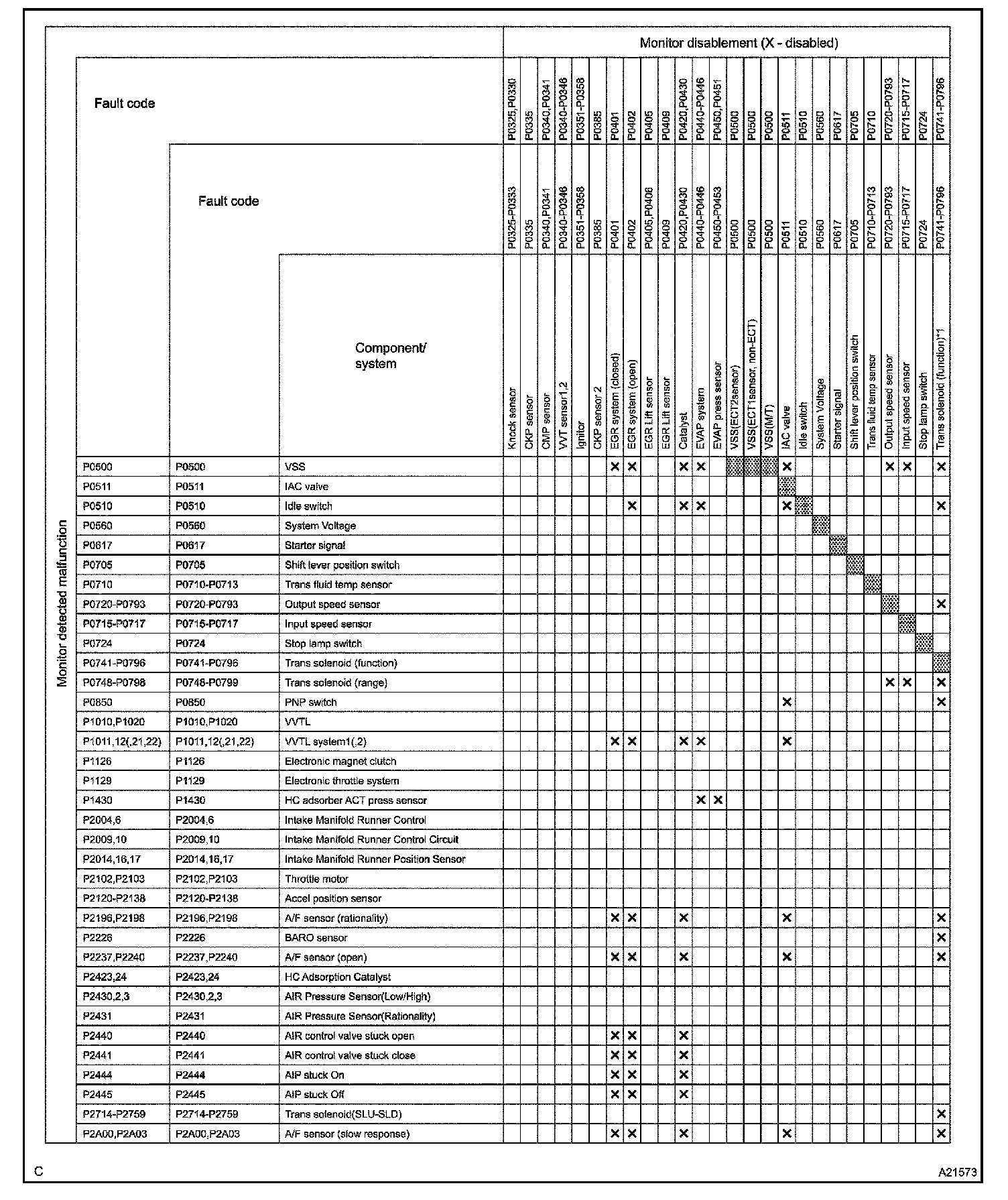

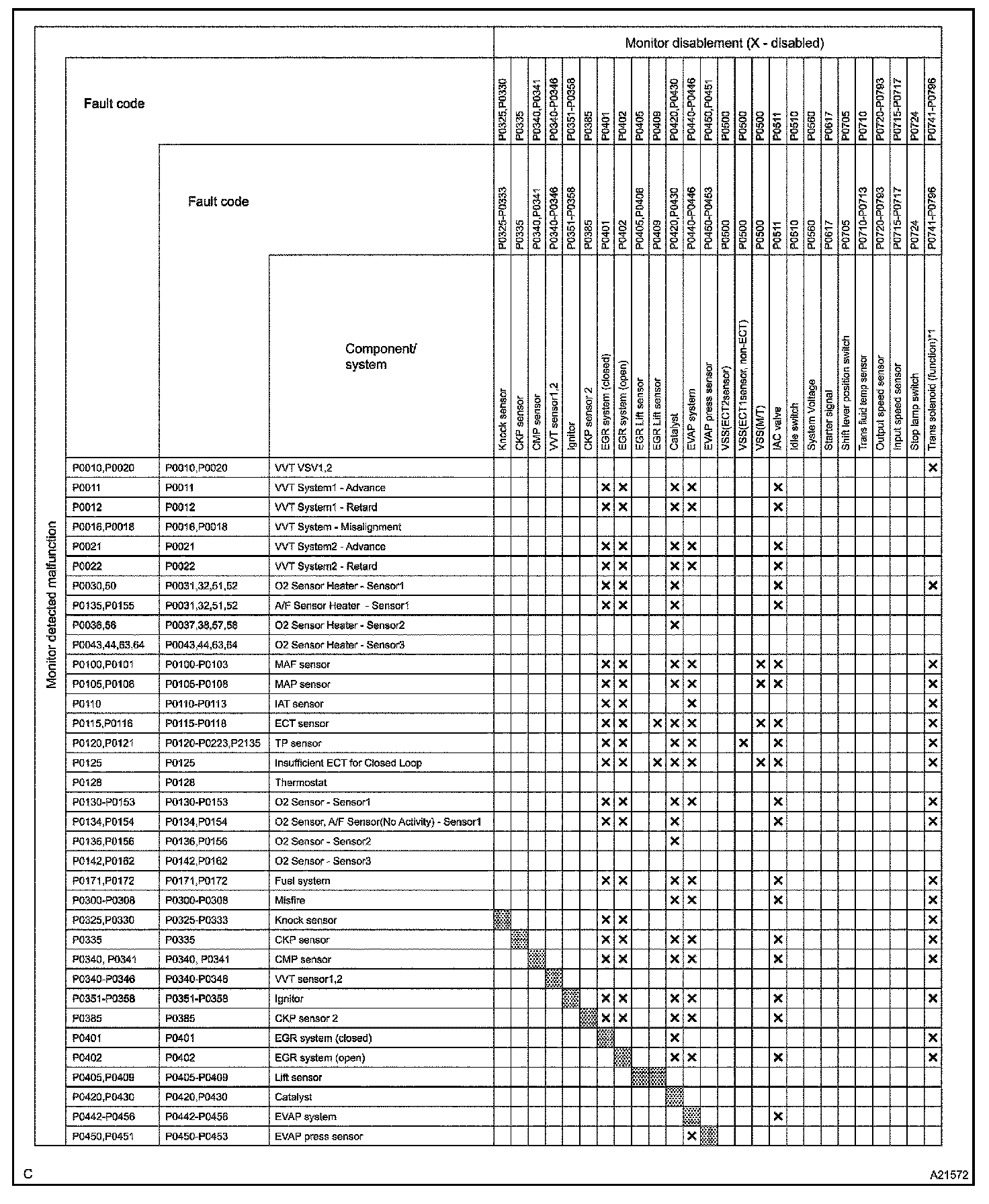

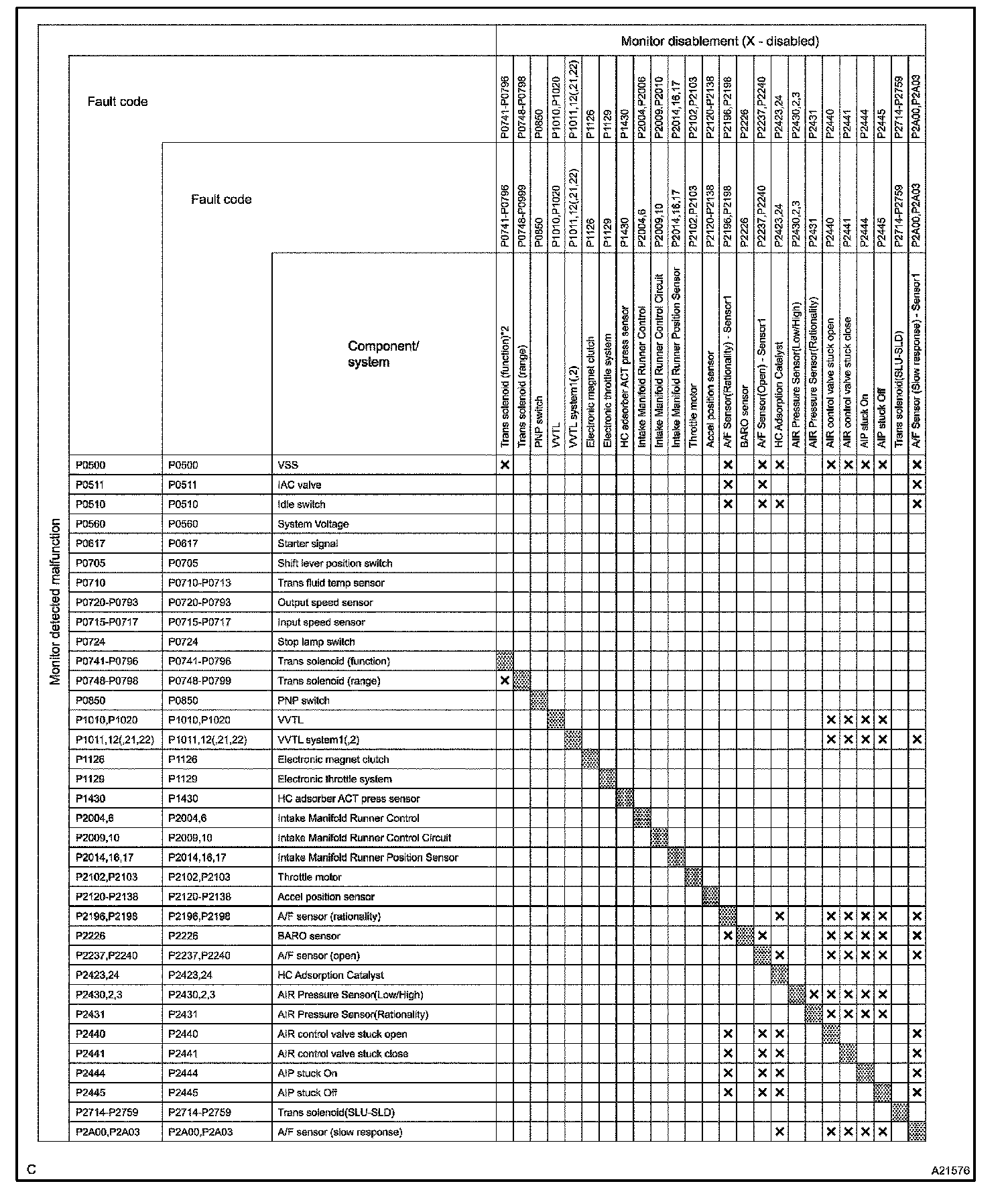

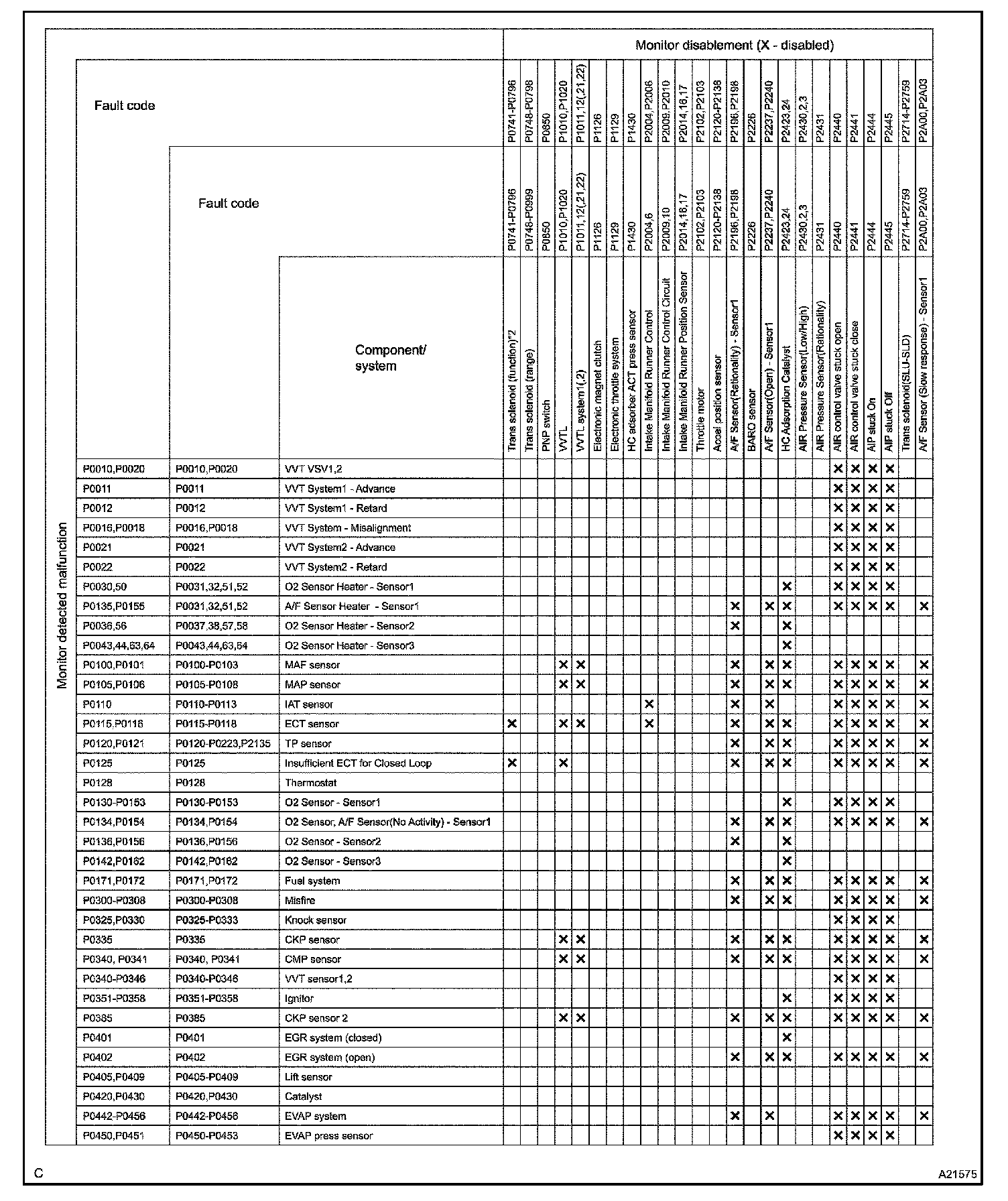

HINT: This table indicates ECM monitoring status for the items in the upper columns if the DTCs in each line are being set.

As for the "X" mark, when the DTC is stored, detection of the DTC in the upper column is not performed.
