MIL Circuit

MIL Circuit Malfunction

CIRCUIT DESCRIPTION
The MIL is used to indicate the ECM's detection of a vehicle malfunction.

The instrument panel IG2 fuse provides circuit power and the ECM provides the circuit ground that illuminates the MIL.

MIL operations should be checked visually:
The MIL should be illuminated when the ignition is first turned on. If the MIL is always ON or OFF, use the hand-held tester or OBD II scan tool and follow the procedures to determine the cause of the problem.

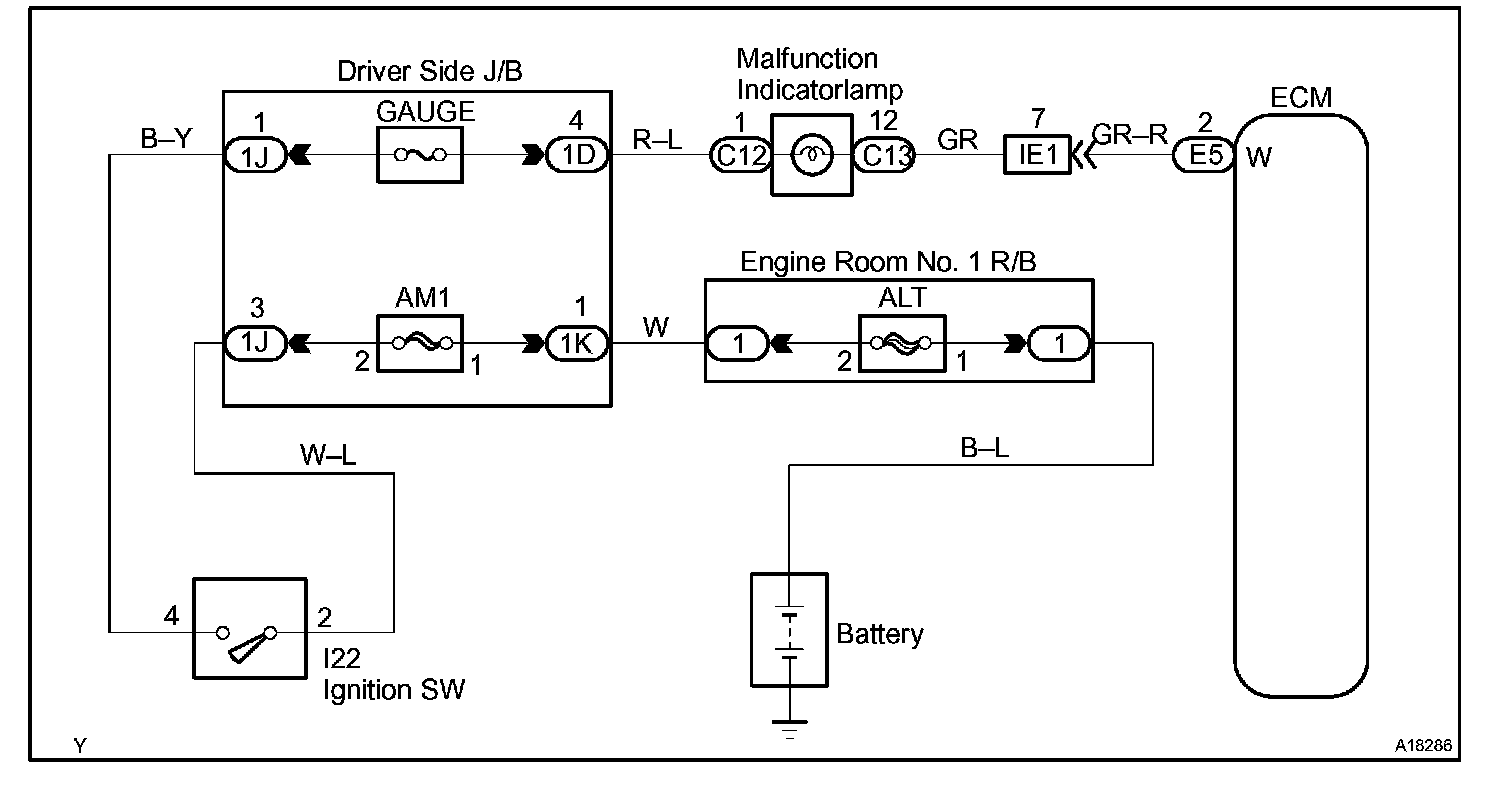

Wiring Diagram:

INSPECTION PROCEDURE

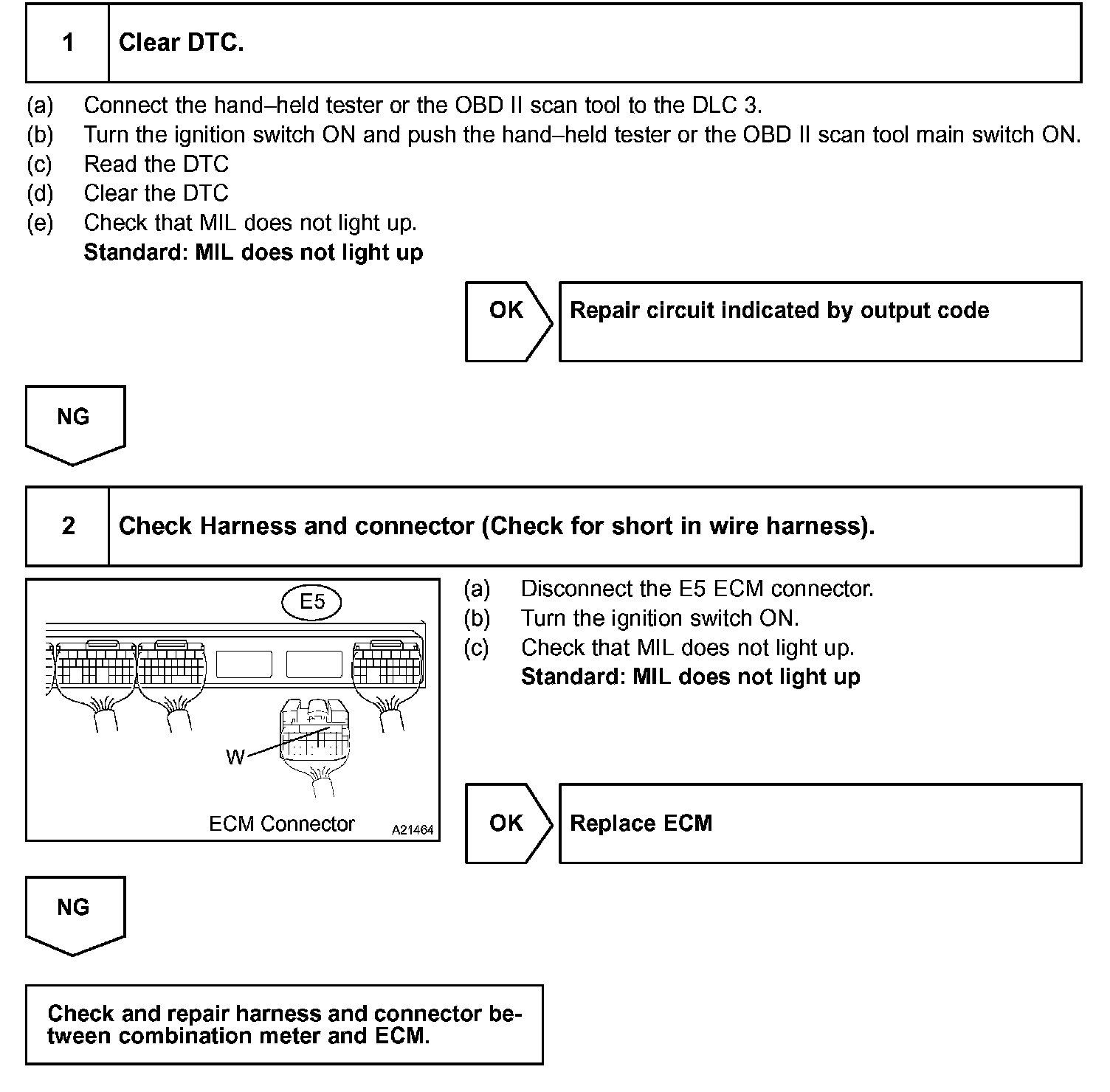

Step 1 - 2:

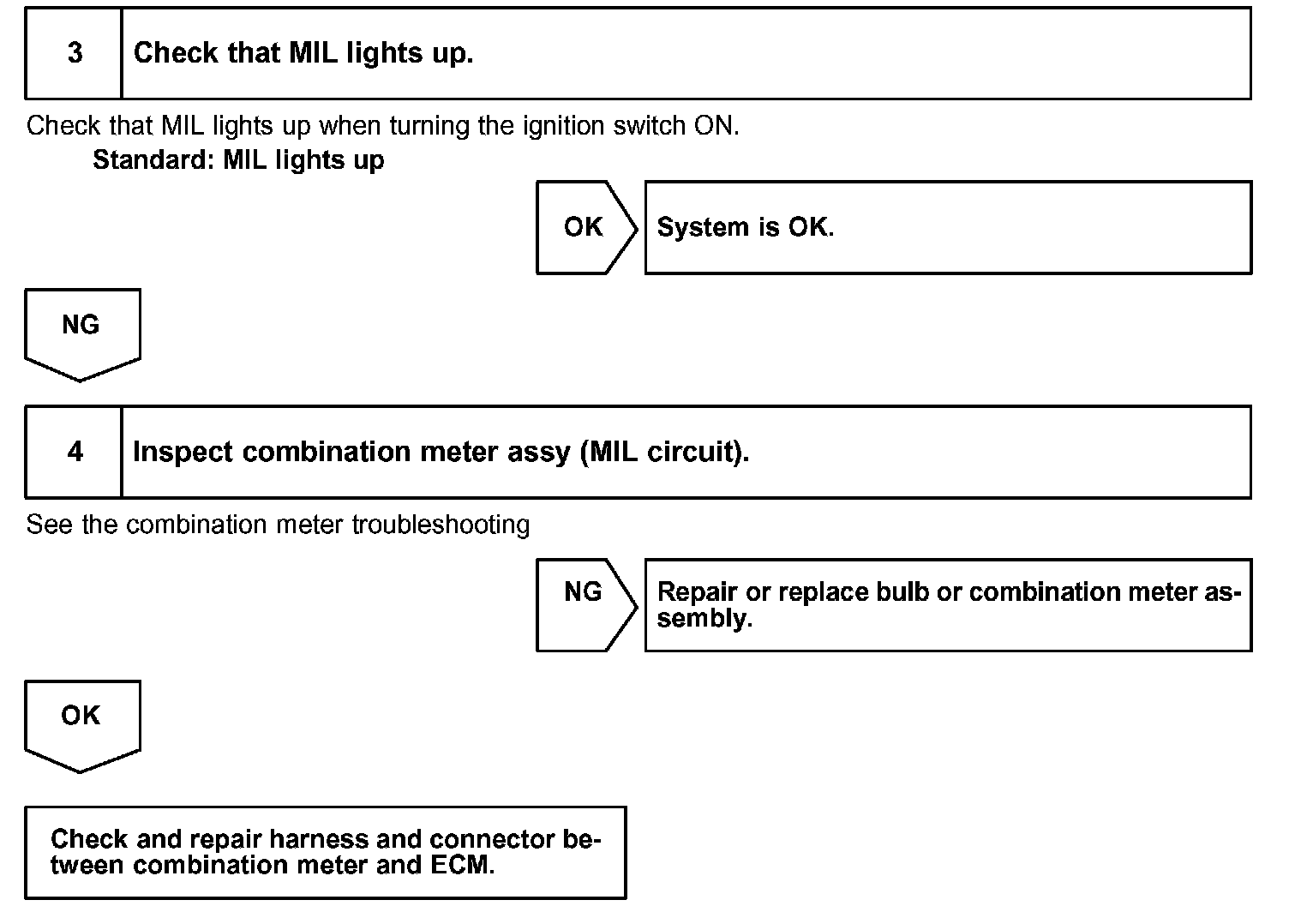

Step 3 - 4:

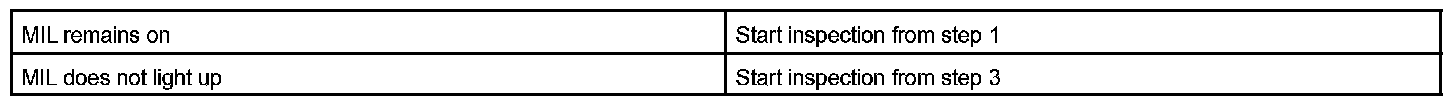

HINT: Troubleshoot each trouble symptom in accordance with the chart.
