Pinout Values and Diagnostic Parameters

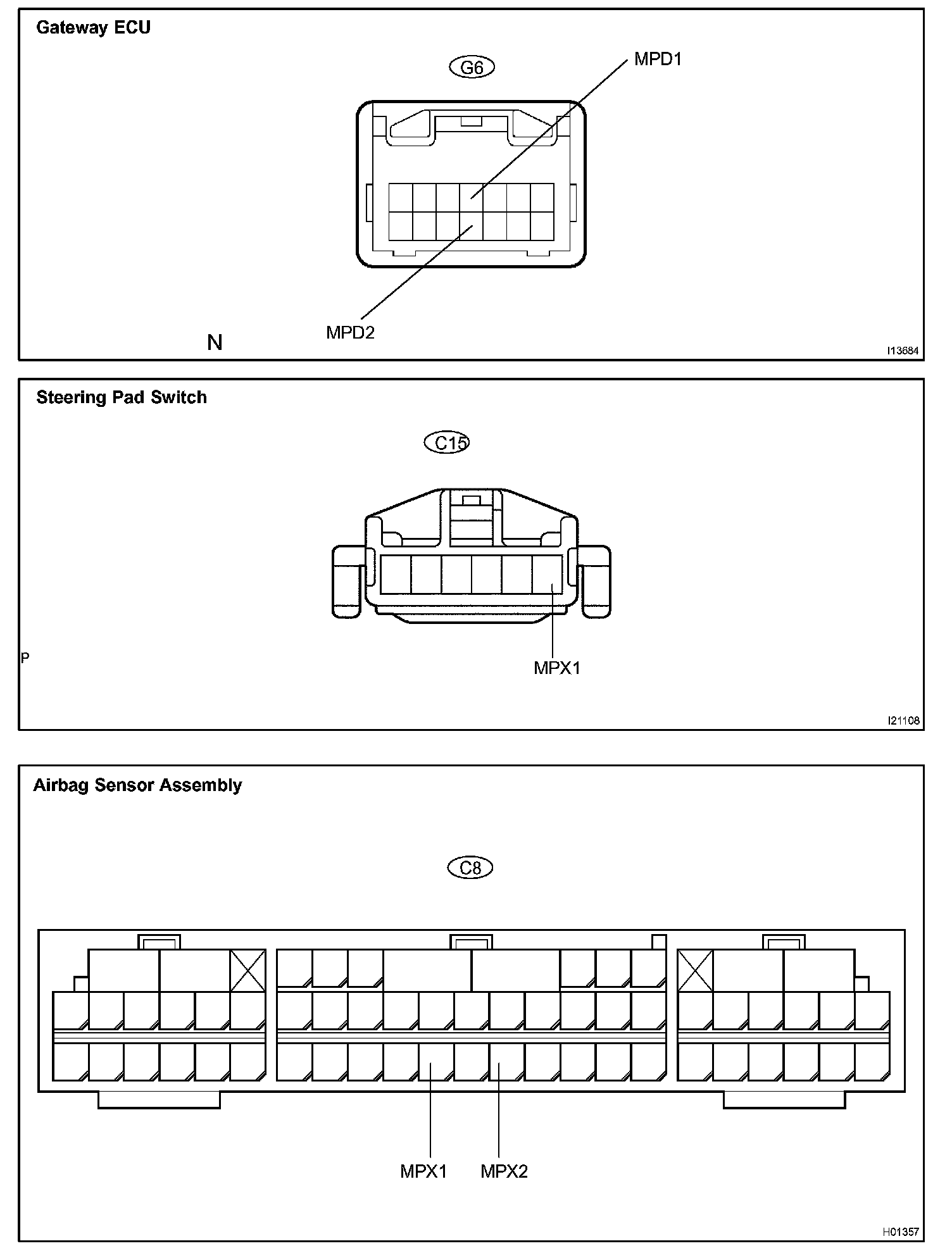

Terminals of Control Module/Pinouts Part 1:

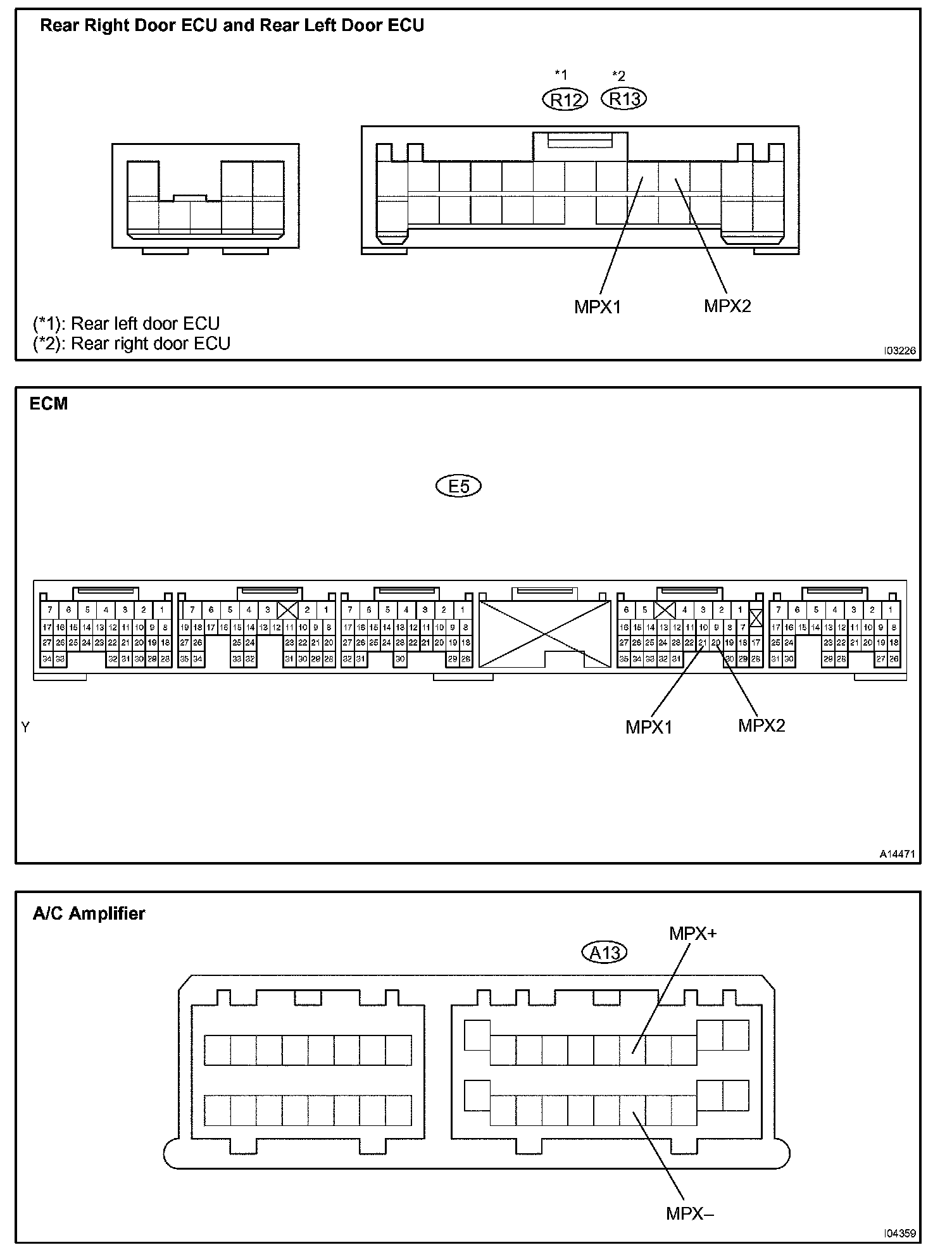

Terminals Of Control Module/Pinouts Part 2:

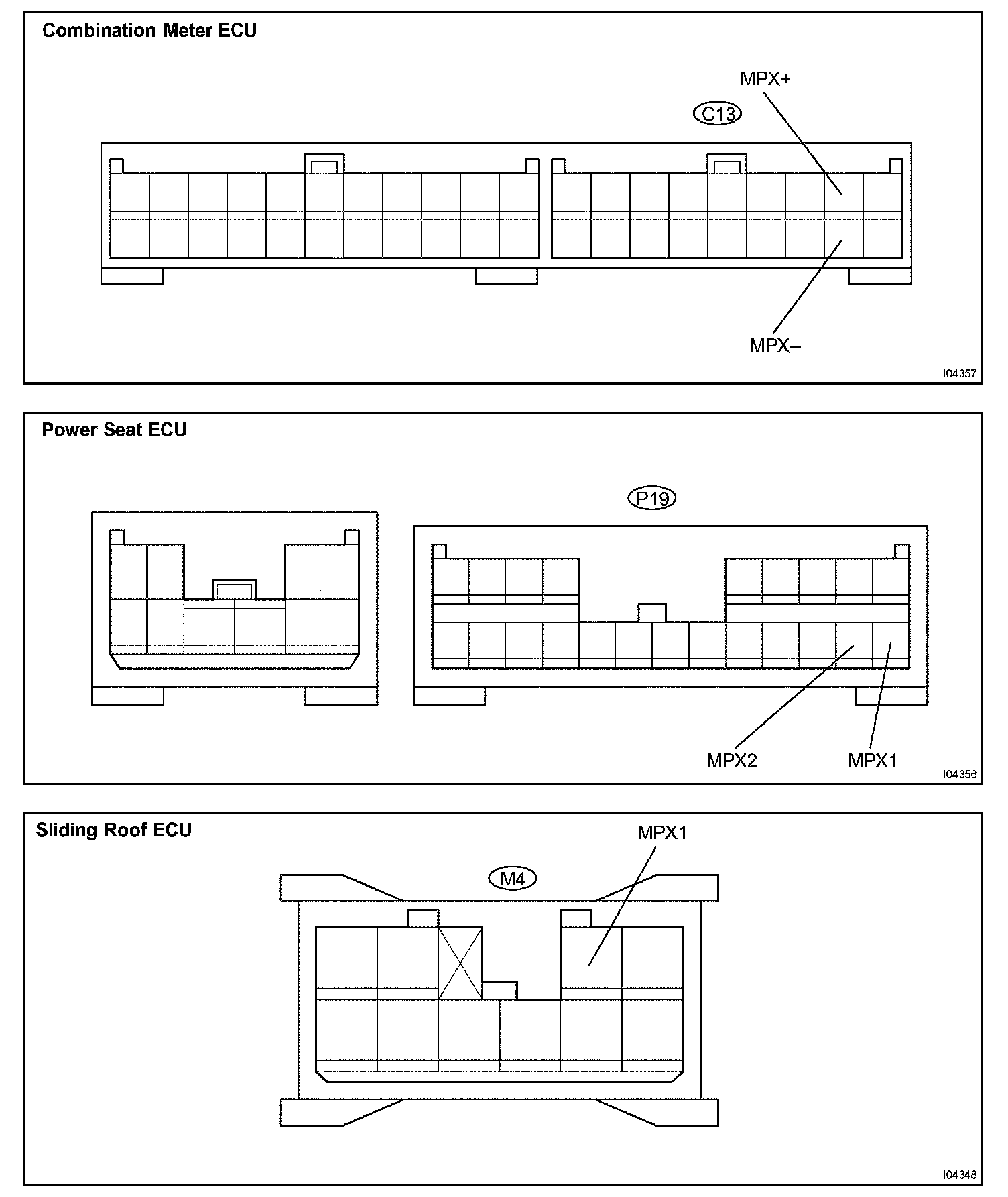

Terminals Of Control Module/Pinouts Part 3:

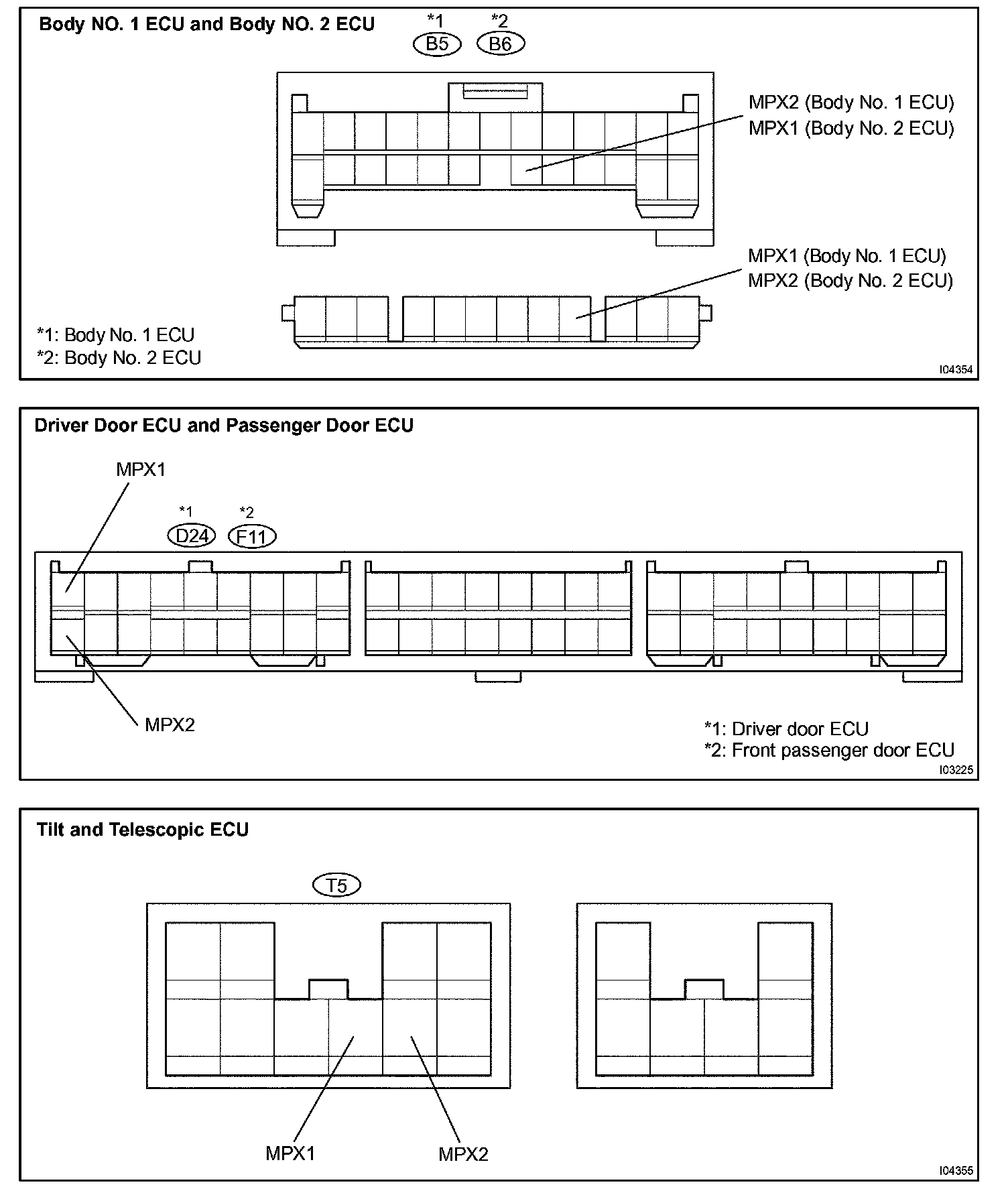

Terminals Of Control Module/Pinouts Part 4:
