Cabin Air Filter / Purifier: Service and Repair

Cabin Air Filter

1. When you replace the filter be sure to turn the fan off.





2. Open the glove box and remove the two covers.

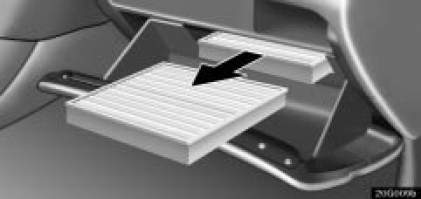

3. Take out the filter.
4. Take the filter out of the case and replace with a new one.

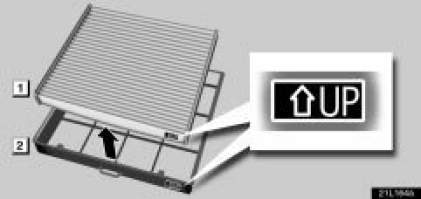

NOTICE: When setting the filter to the filter case, the UP marks shown on the filter and filter case should be noted and fitted as shown.


5. Install it in reverse order of removal.
