Engine Coolant Temperature Gauge

Engine Coolant Temperature Gauge

INSPECTION PROCEDURE

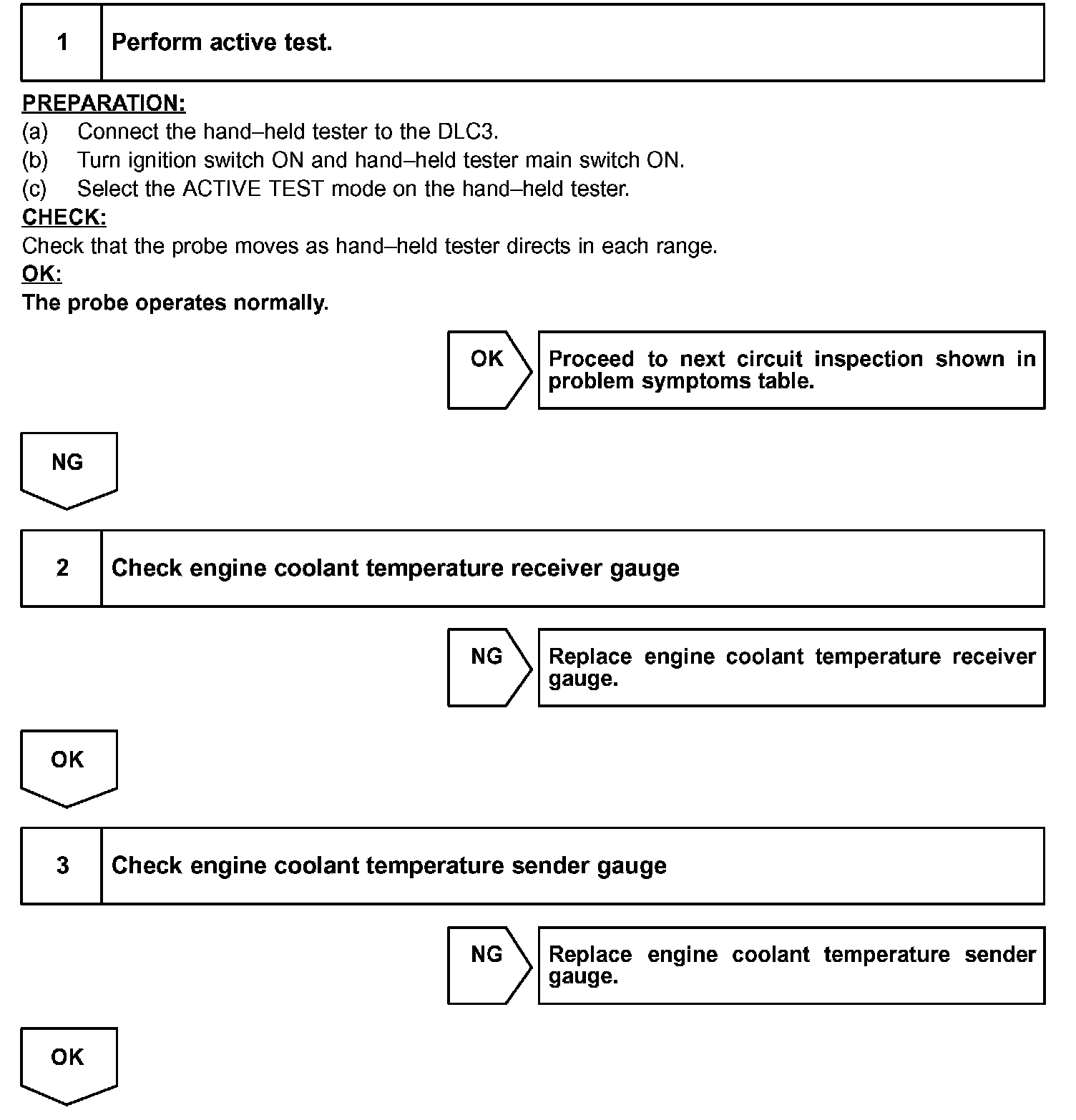

Step 1 - 3:

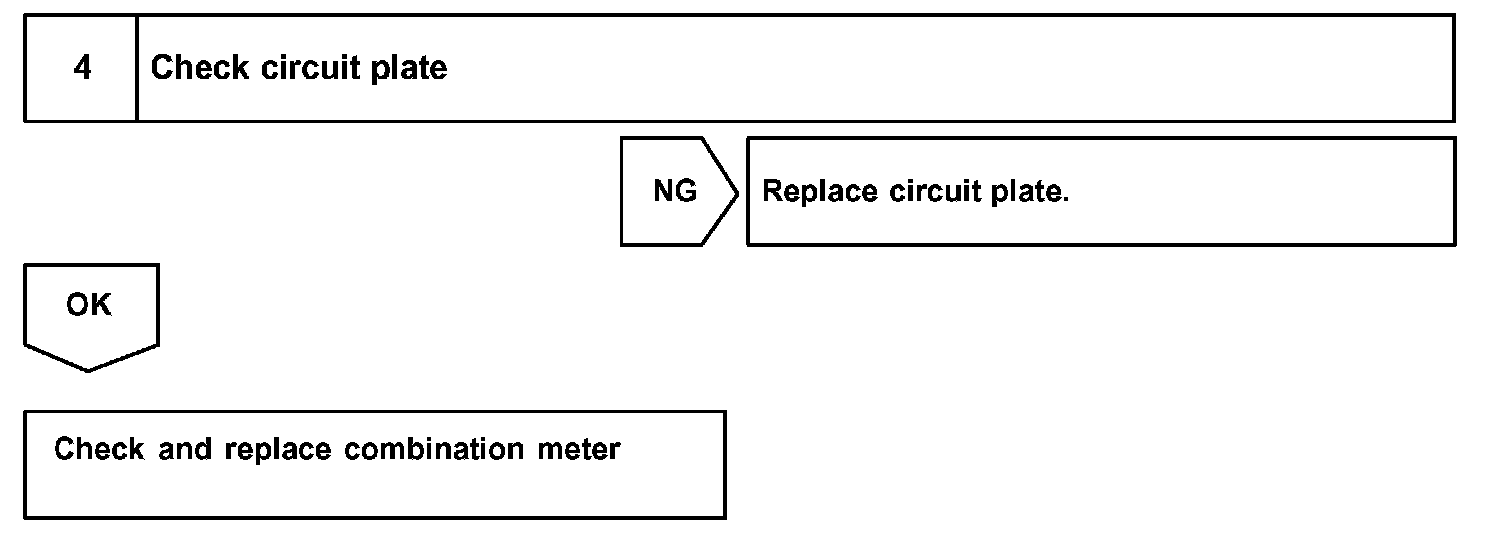

Step 4:






HINT: If there is not the hand-held tester, begin with STEP 2.
