Compass: Testing and Inspection

INSPECTION







INSPECT INNER MIRROR (Compass) CIRCUIT

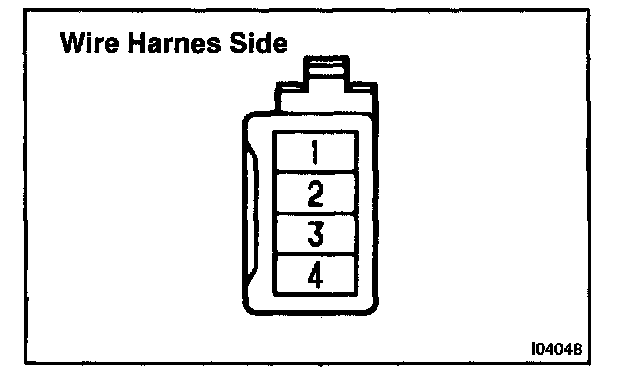

Disconnect the connector from the mirror and inspect the connector on the wire harness side, as shown.

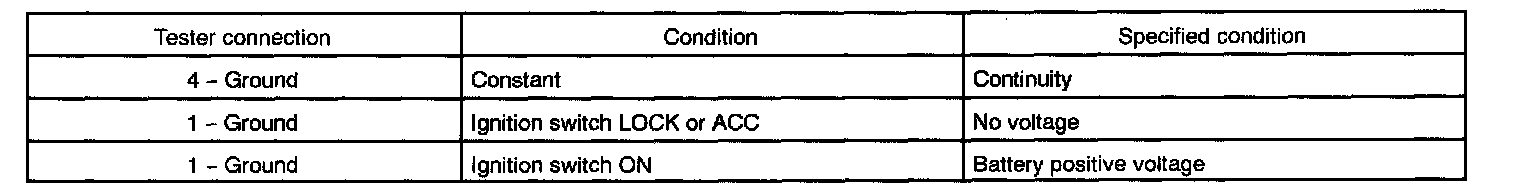

If circuit is not as specified, inspect the circuits connected to other parts.
