Actuator Check

LIST OF OPERATION METHODS

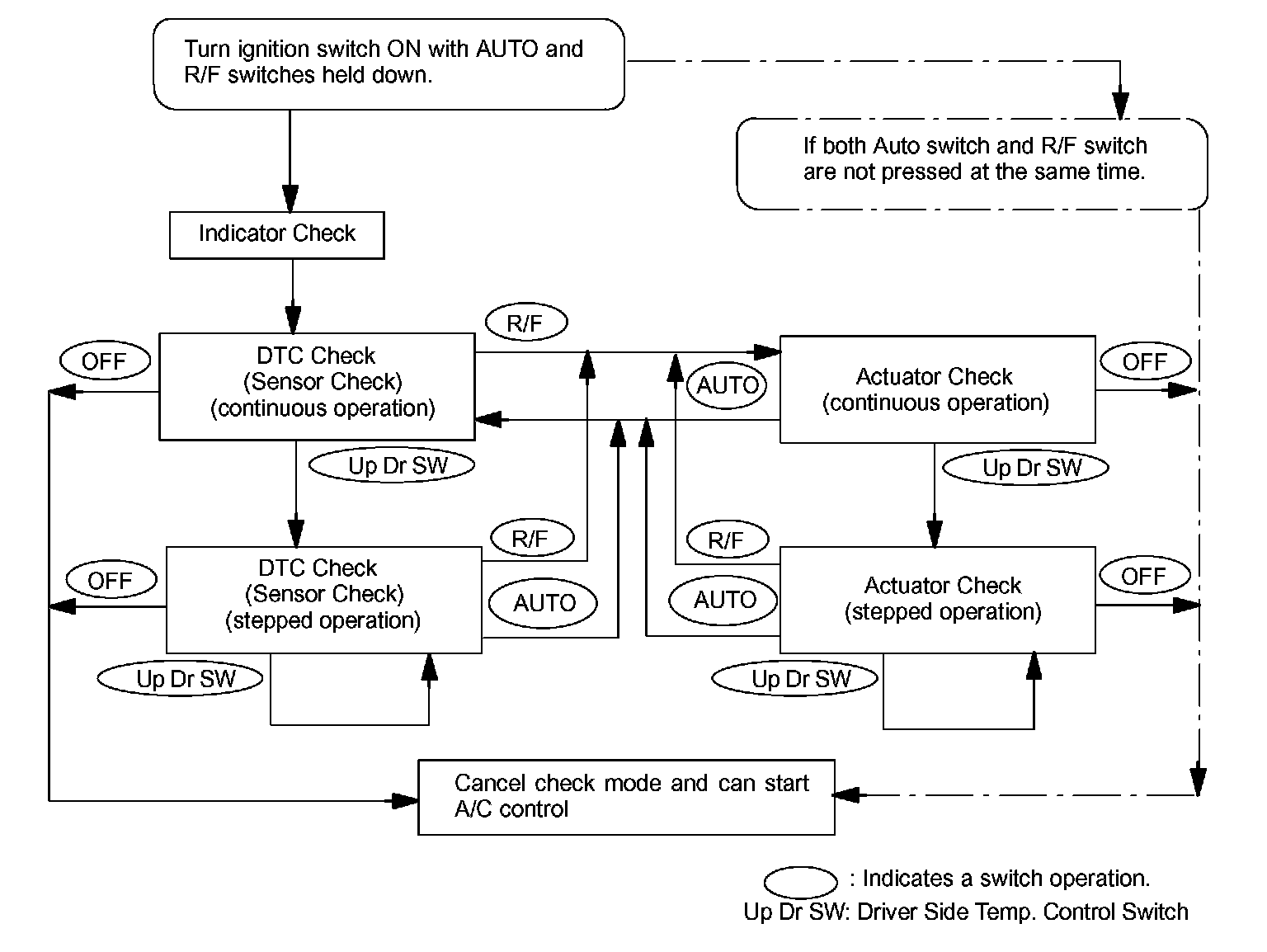

By operating each of the A/C control switches as shown in the diagram, it is possible to enter the diagnosis check mode.

ACTUATOR CHECK

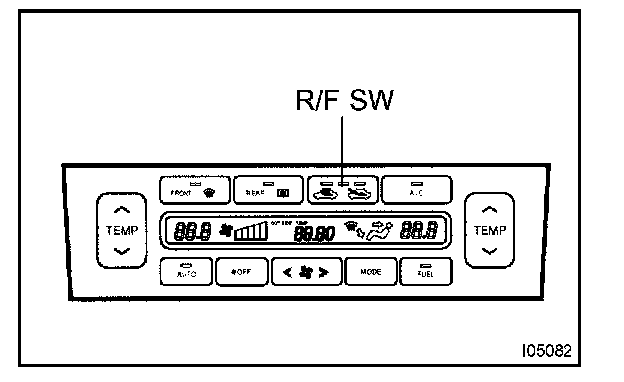

a. After entering the sensor check mode, press the R/F switch.

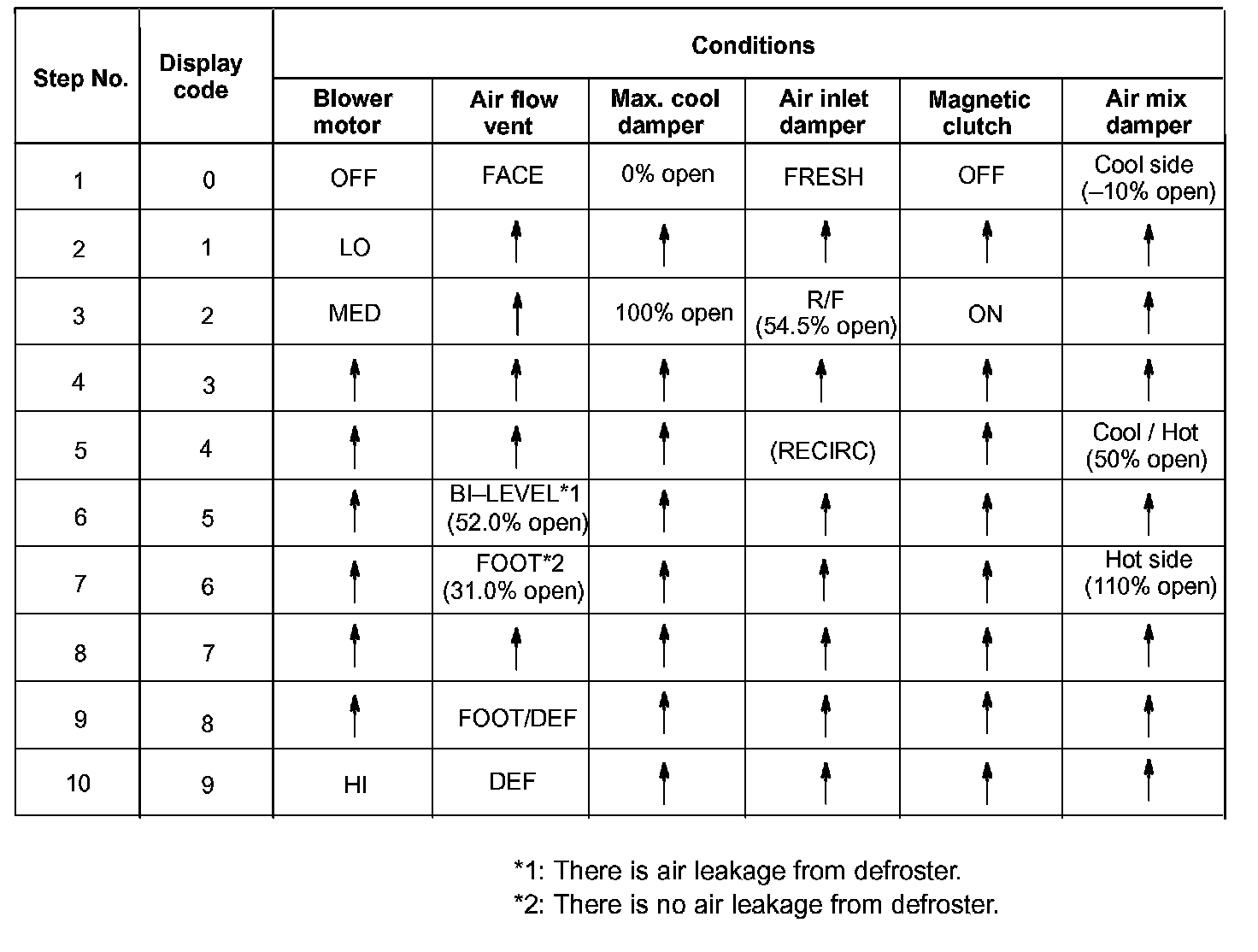

b. Since each damper, motor and relay automatically operates at 1 second intervals beginning in order from 20 in the temperature display, check the temperature and air flow visually and manually.

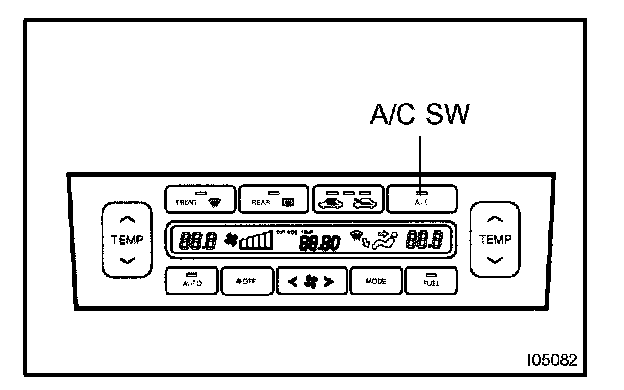

If a slower display is desired, press the A/C switch and change it to step operation. Every time the A/C switch is pressed, the display changes by 1 step.









HINT:
- The buzzer sounds when the display trouble code changes.
- Codes are displayed in order from the smaller to the larger numbers.
- To cancel the check mode, press the OFF switch.
