Home >> Lexus >> 2005 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> Service Data

Service Data

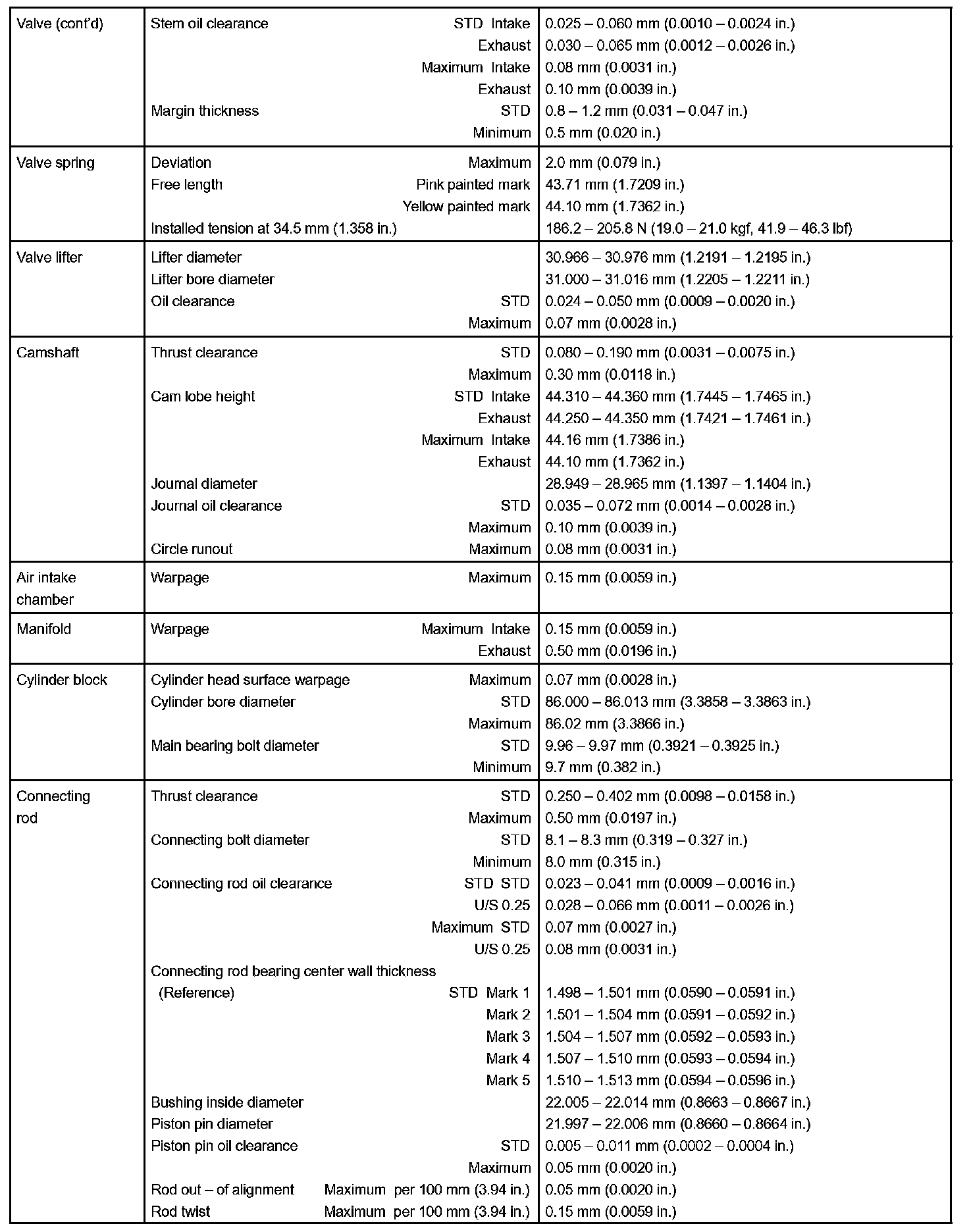

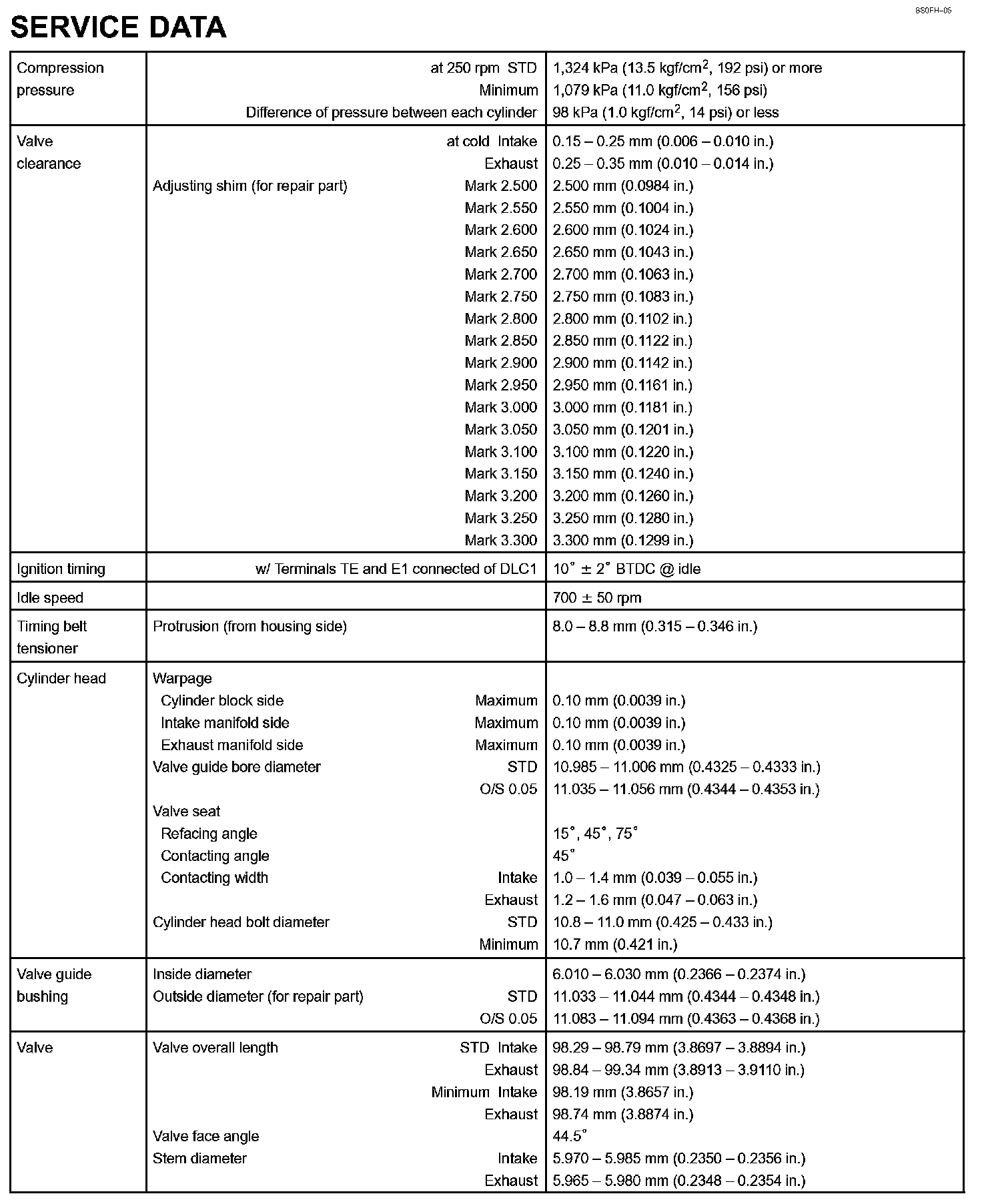

Engine Mechanical - Service Data Part 1:

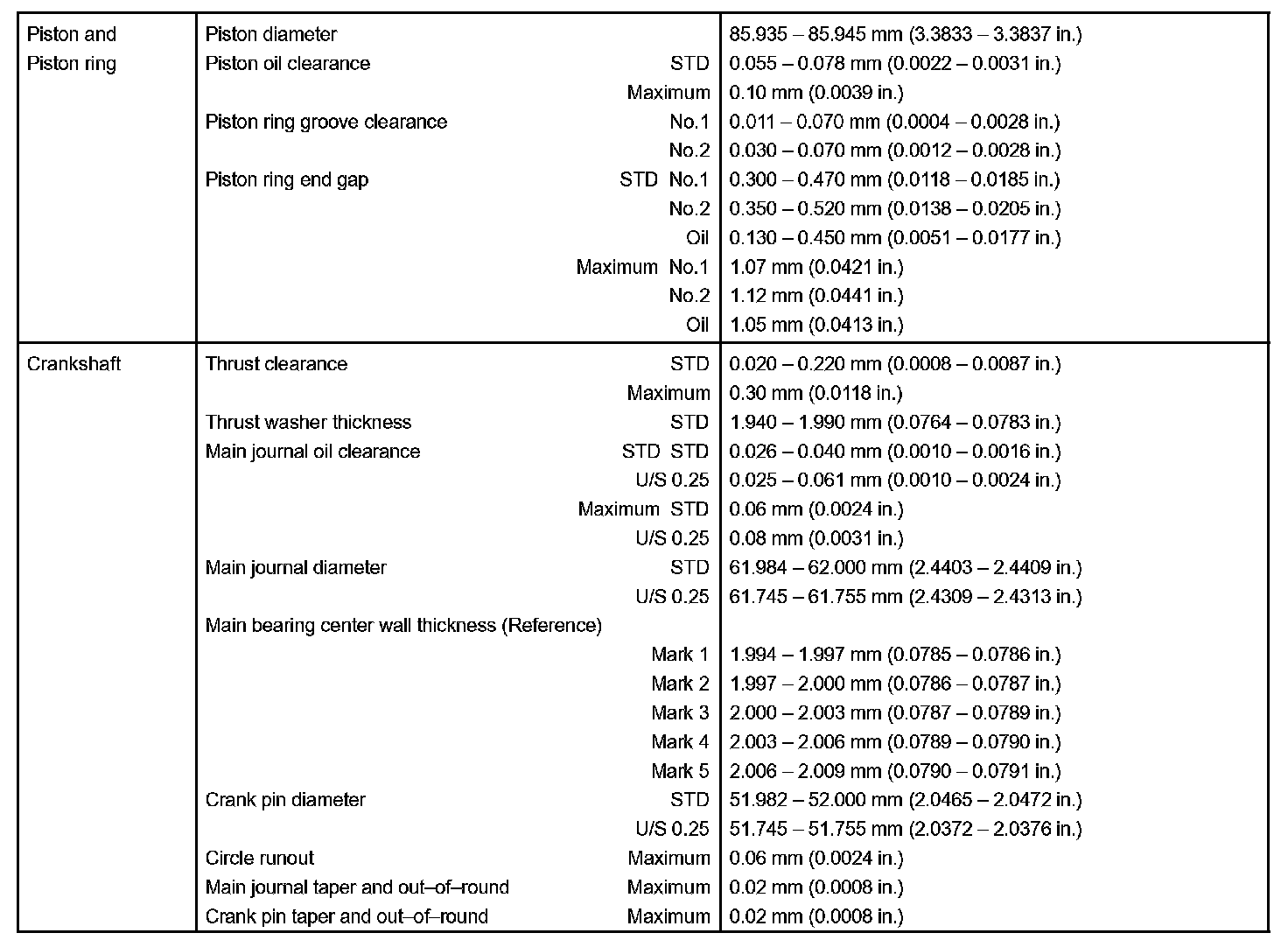

Engine Mechanical - Service Data Part 2:




Engine Mechanical - Service Data Part 3:
