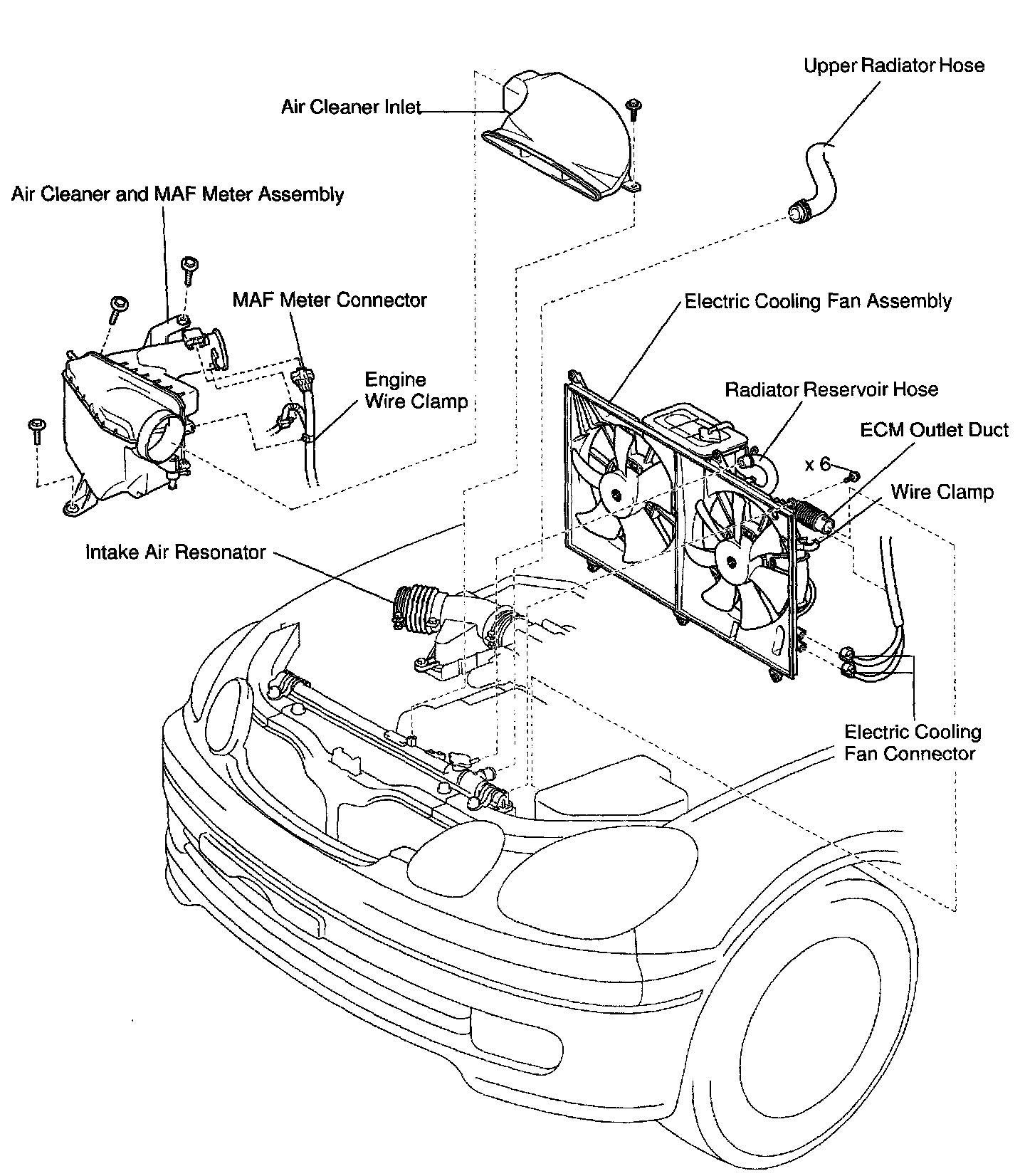

Disassembly and Reassembly

Part 1 Of 2:

Part 2 Of 2:

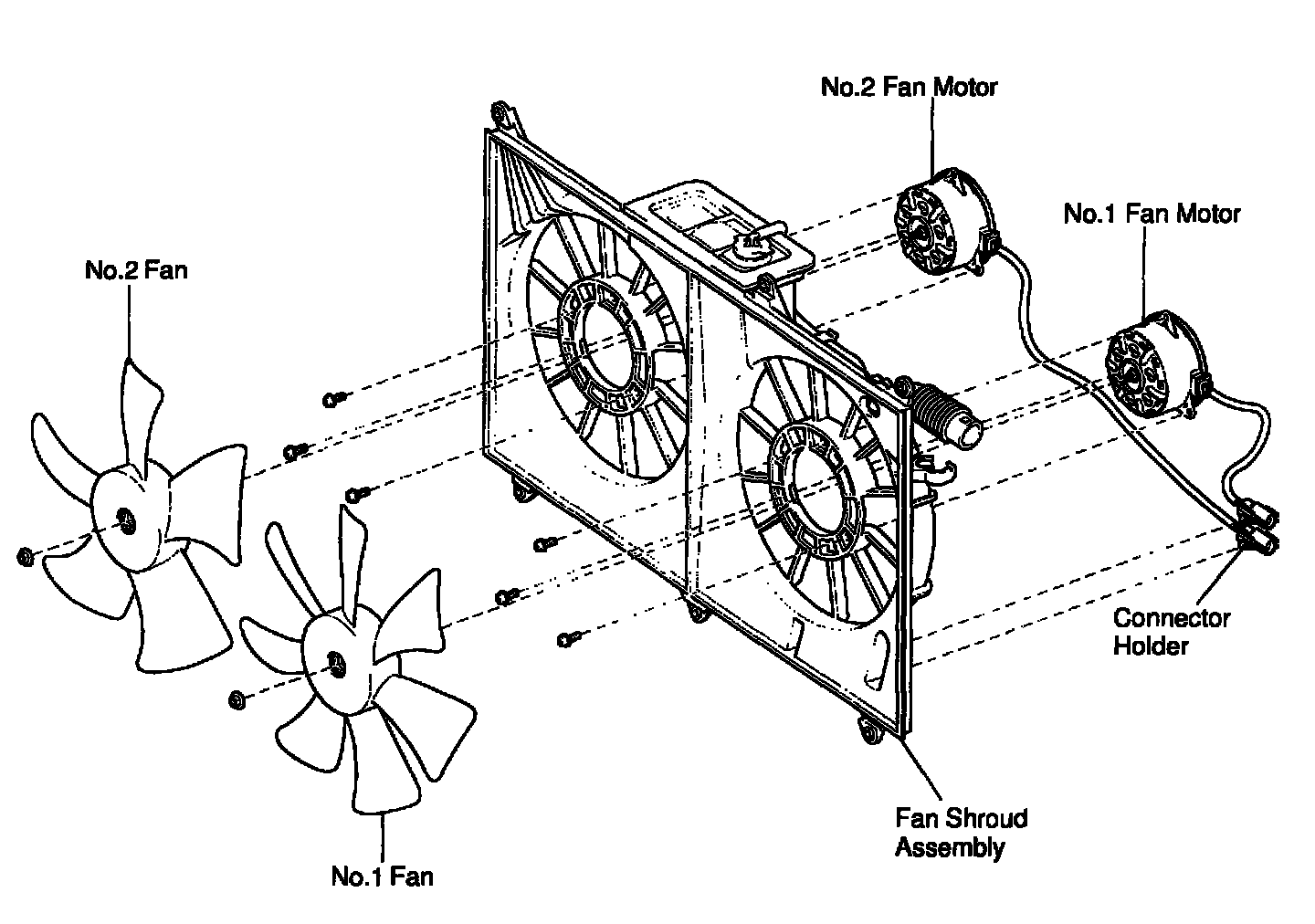

DISASSEMBLY





1. REMOVE FANS

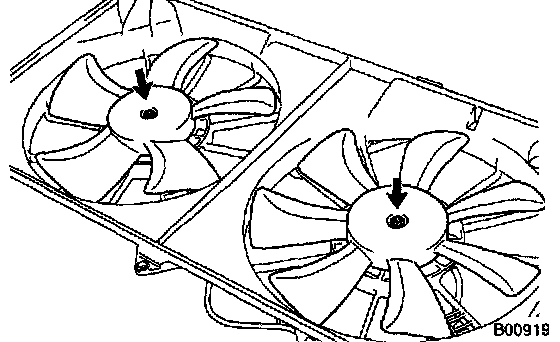

Remove the nut and fan. Remove the 2 fans.





2. REMOVE FAN MOTORS
a. Disconnect the wires and connector holders from the fan shroud.

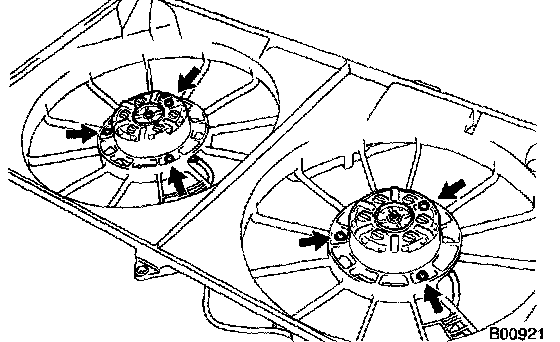

b. Remove the 3 screws and fan motor. Remove the 2 fan motors.

REASSEMBLY
1. INSTALL FAN MOTORS





a. Install the fan motor with the 3 screws. Install the 2 fan motors.

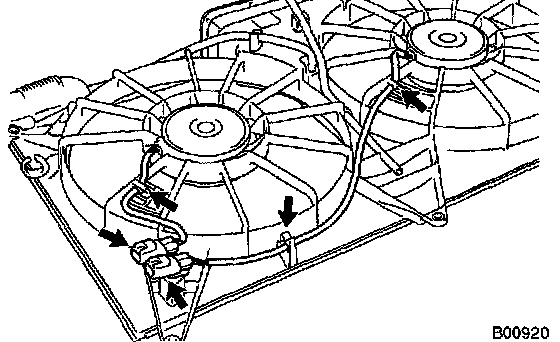

b. install the wires and connector holders to the fan shroud as shown in the illustration.





2. INSTALL FANS

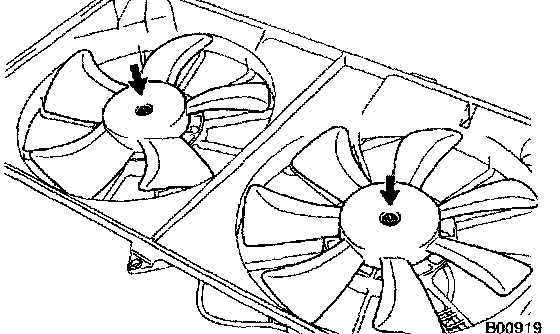

Install the fan with the nut. Install the 2 fans.
