Home >> Lexus >> 2005 >> GS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Wheel Hub

Wheel Hub

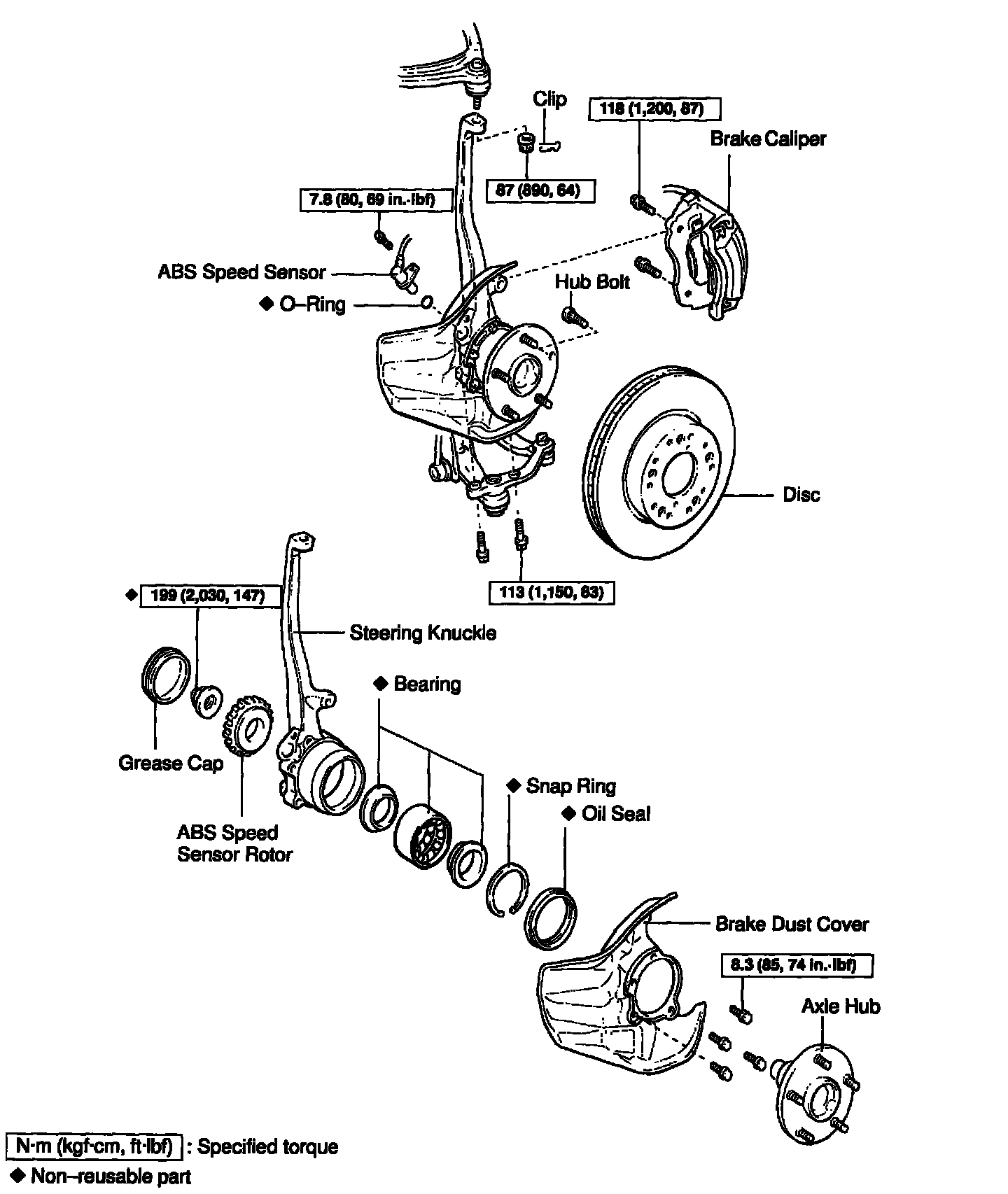

FRONT AXLE HUB REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
