Rear Differential Side Gear Shaft Oil Seal

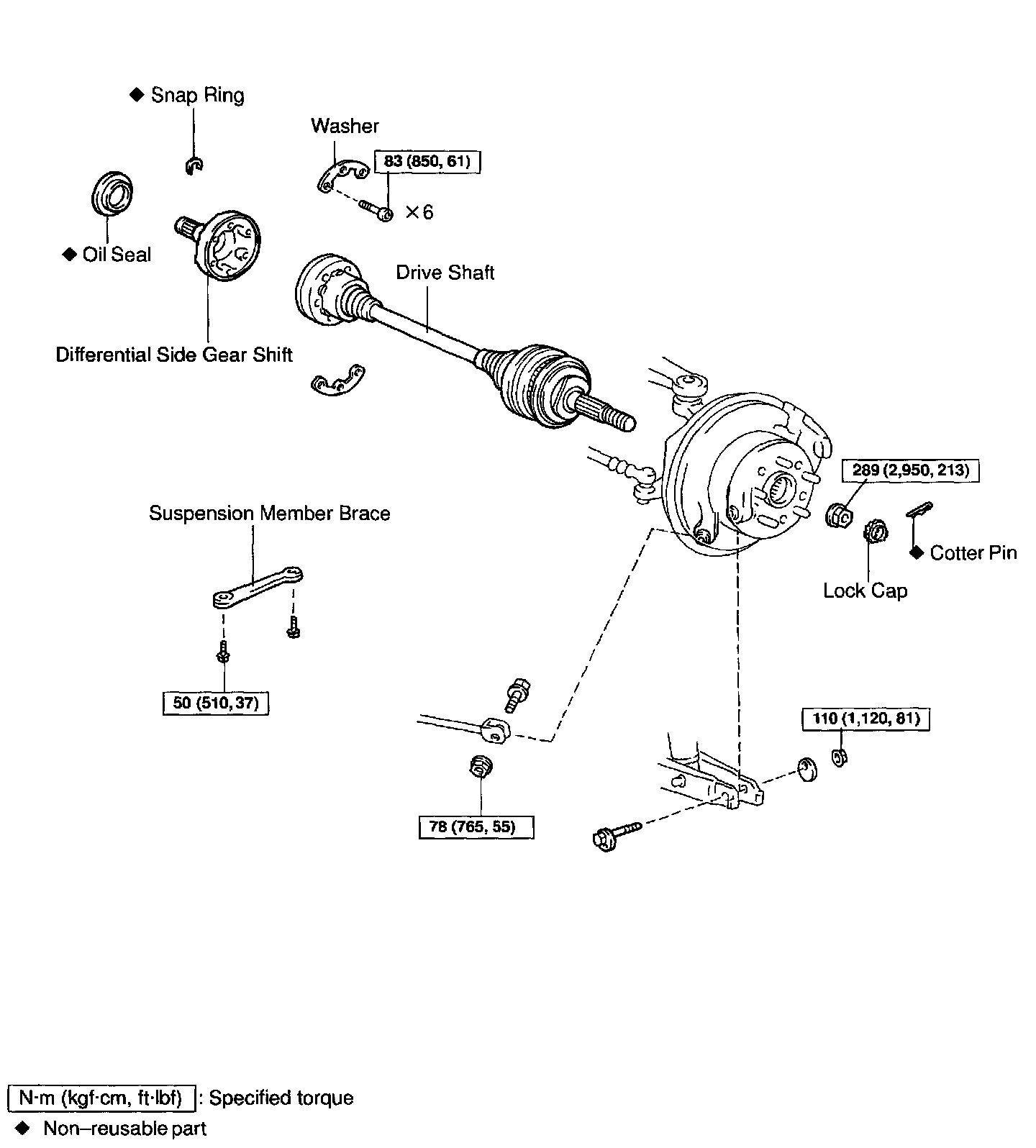

REAR DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL REPLACEMENT W/ RELATED COMPONENTS
