Multiplex Communication System - Communication Bus

Multiplex Communication System Includes Following Systems

- Automatic Air Conditioning
- Automatic Light Control
- Charging
- Combination Meter
- Cruise Control
- Door Lock Control
- Electronically Controlled Transmission and A/T Indicator
- Engine Control
- Headlight
- Interior Light
- Key Reminder
- LEXUS Navigation System
- Light Auto Turn Off System
- Mirror Heater
- Moon Roof
- Power Seat (Driver's Seat w/ Driving Position Memory)
- Power Tilt and Power Telescopic
- Power Window
- Rear Window Defogger
- Remote Control Mirror
- Seat Belt Warning
- SRS
- Stop Light
- Taillight
- Theft Deterrent
- VSC
- Wireless Door Lock Control

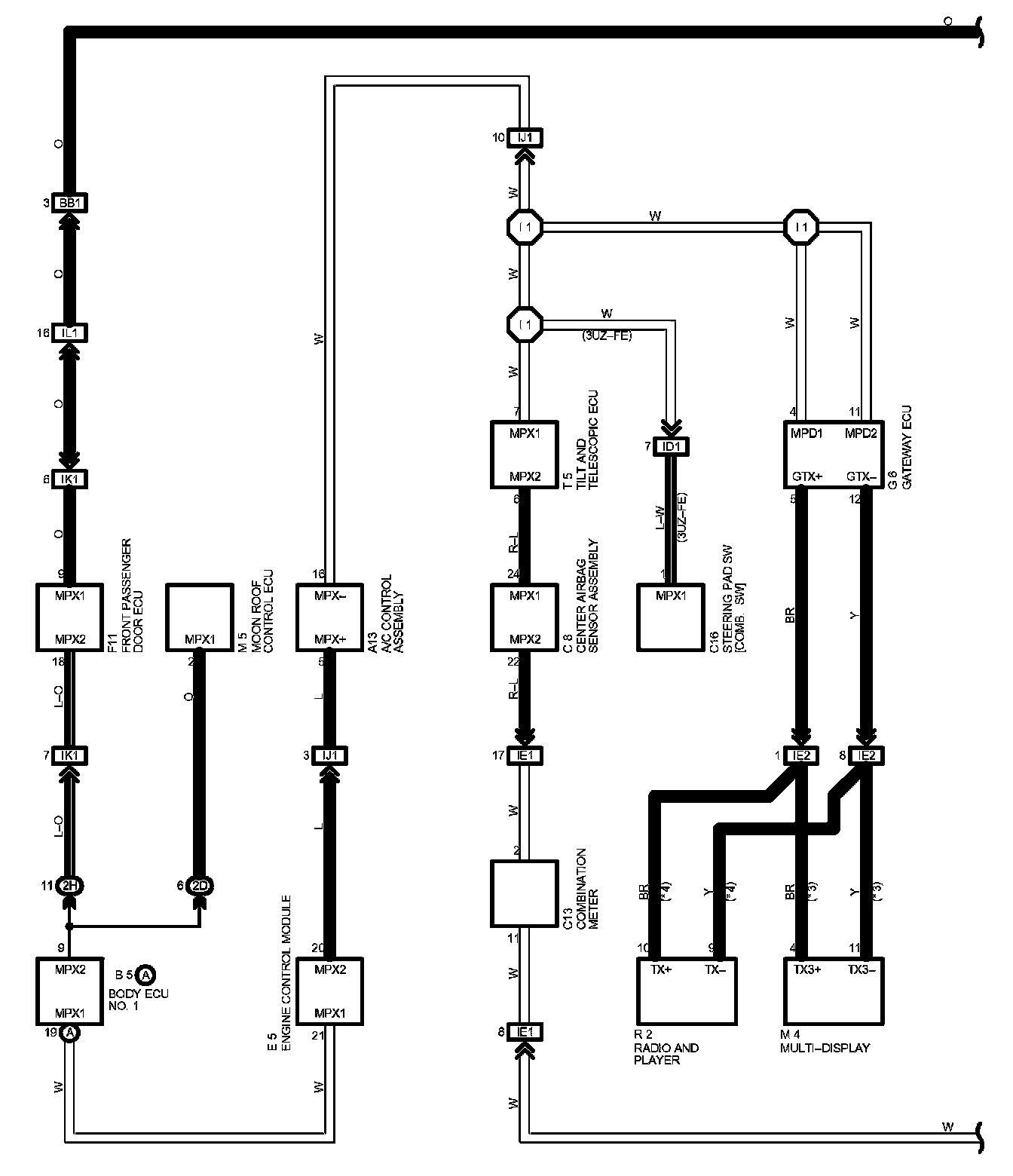

Multiplex Communication System - Communication Bus Part 1:

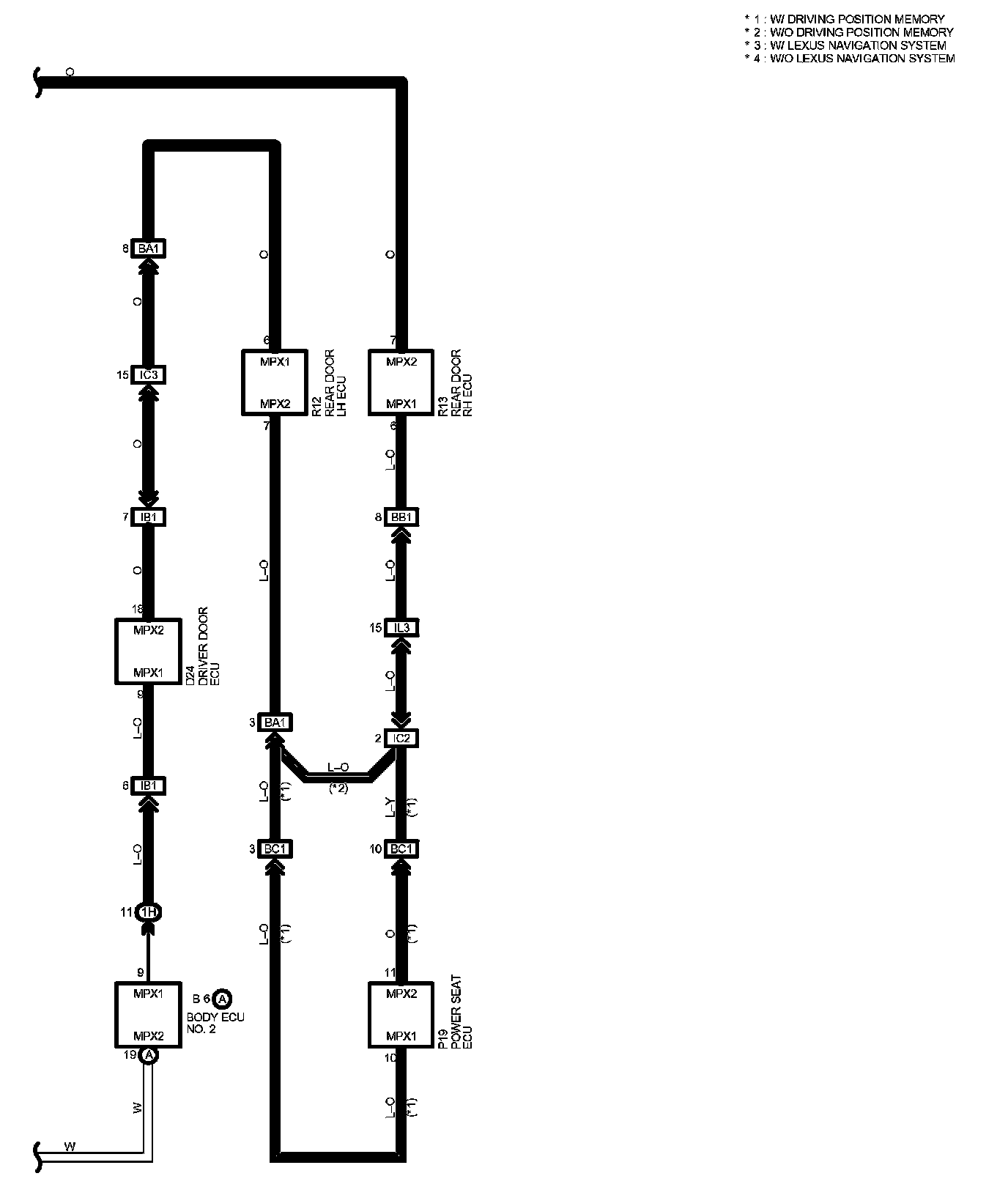

Multiplex Communication System - Communication Bus Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
