Cruise Main Indicator Light Circuit

CRUISE MAIN Indicator Light Circuit

CIRCUIT DESCRIPTION
When the cruise control main switch is turned ON, CRUISE MAIN indicator light lights up.

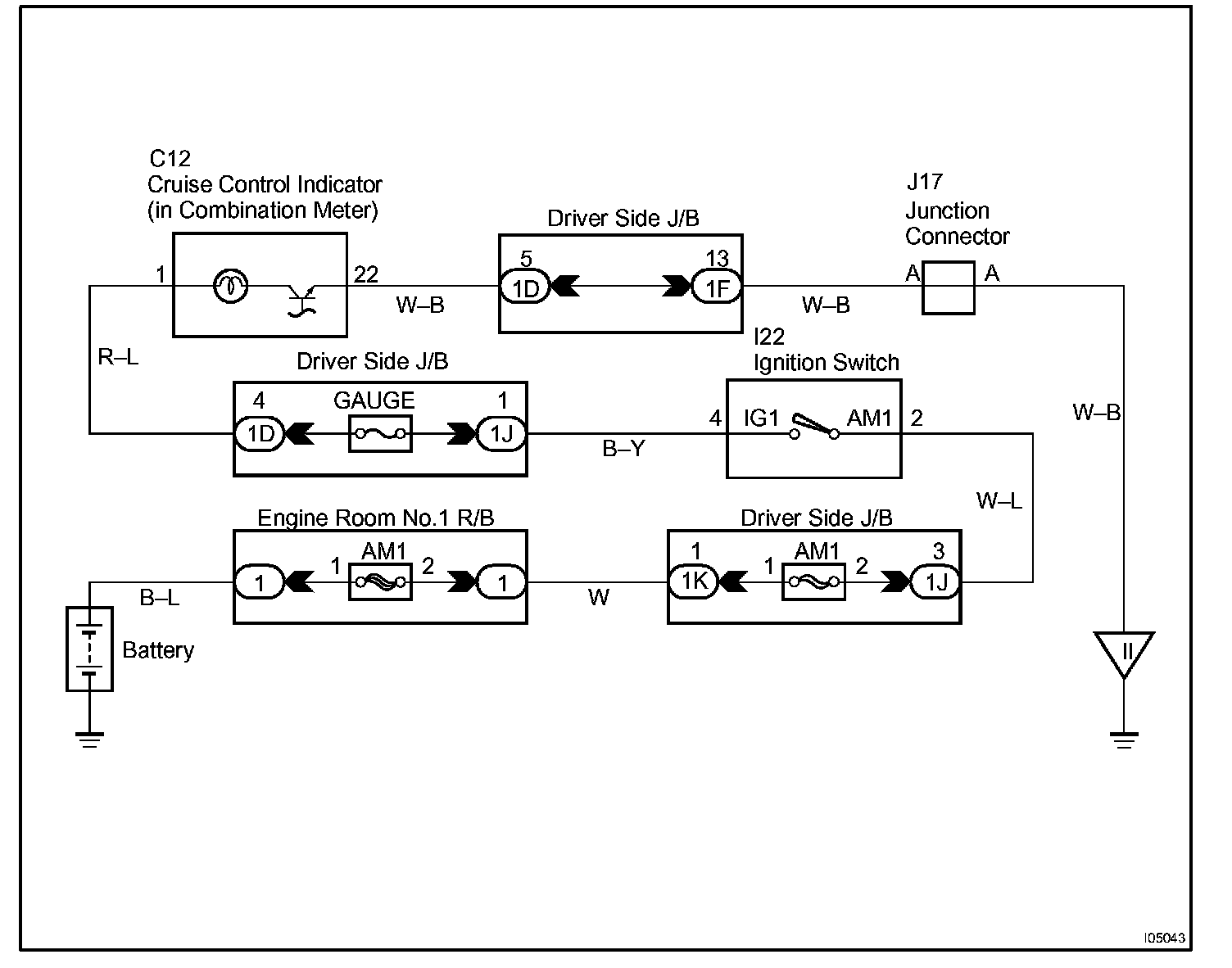

Wiring Diagram:






Step 1:

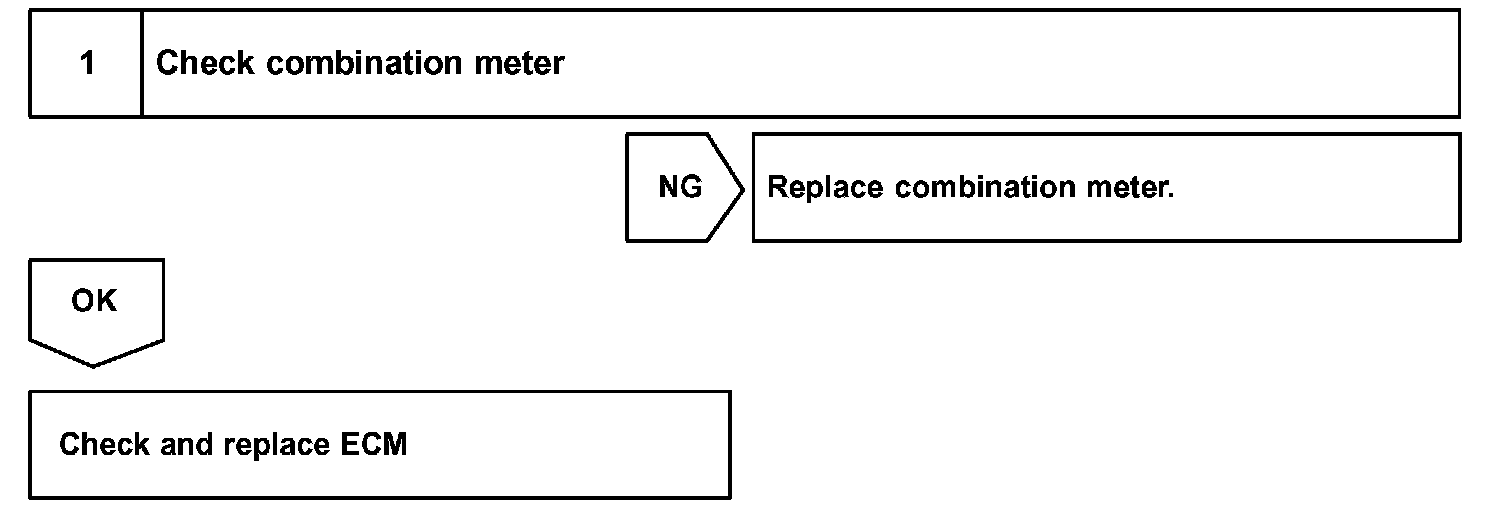

INSPECTION PROCEDURE
