ABS W/BA & VSC System
ABS W/BA & VSC System

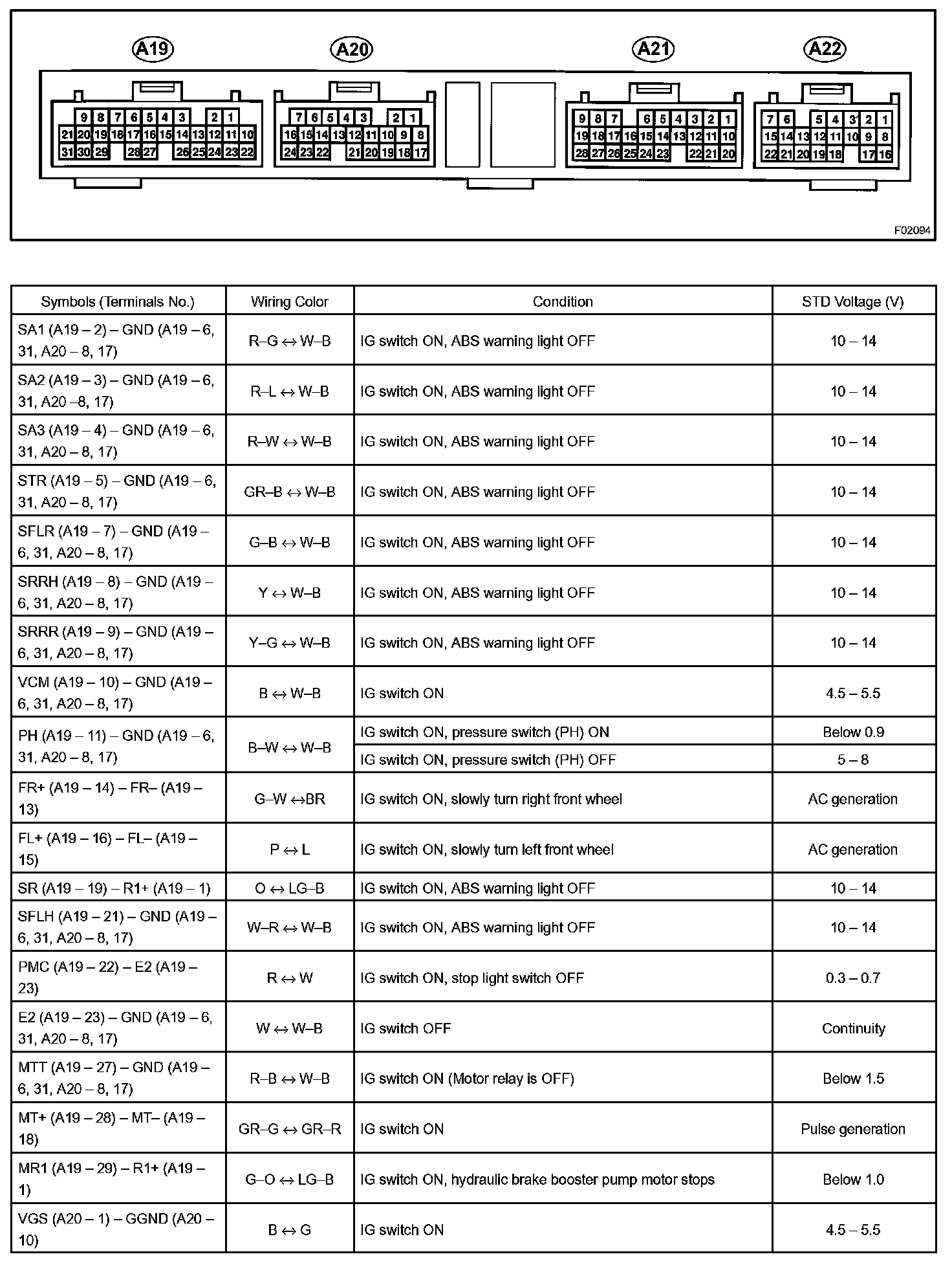

Terminals Of Control Module/Pinouts Part 1:

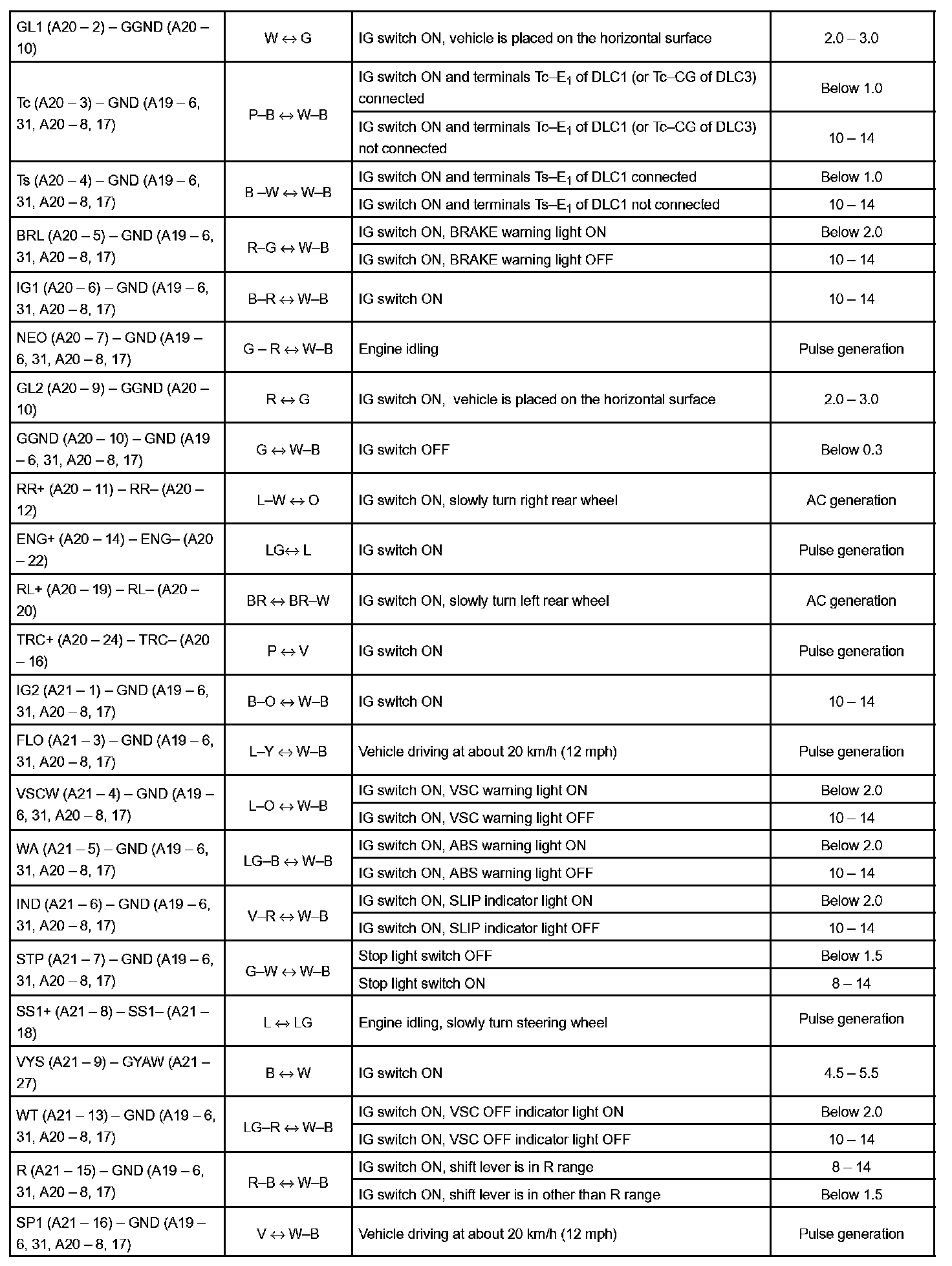

Terminals Of Control Module/Pinouts Part 2:

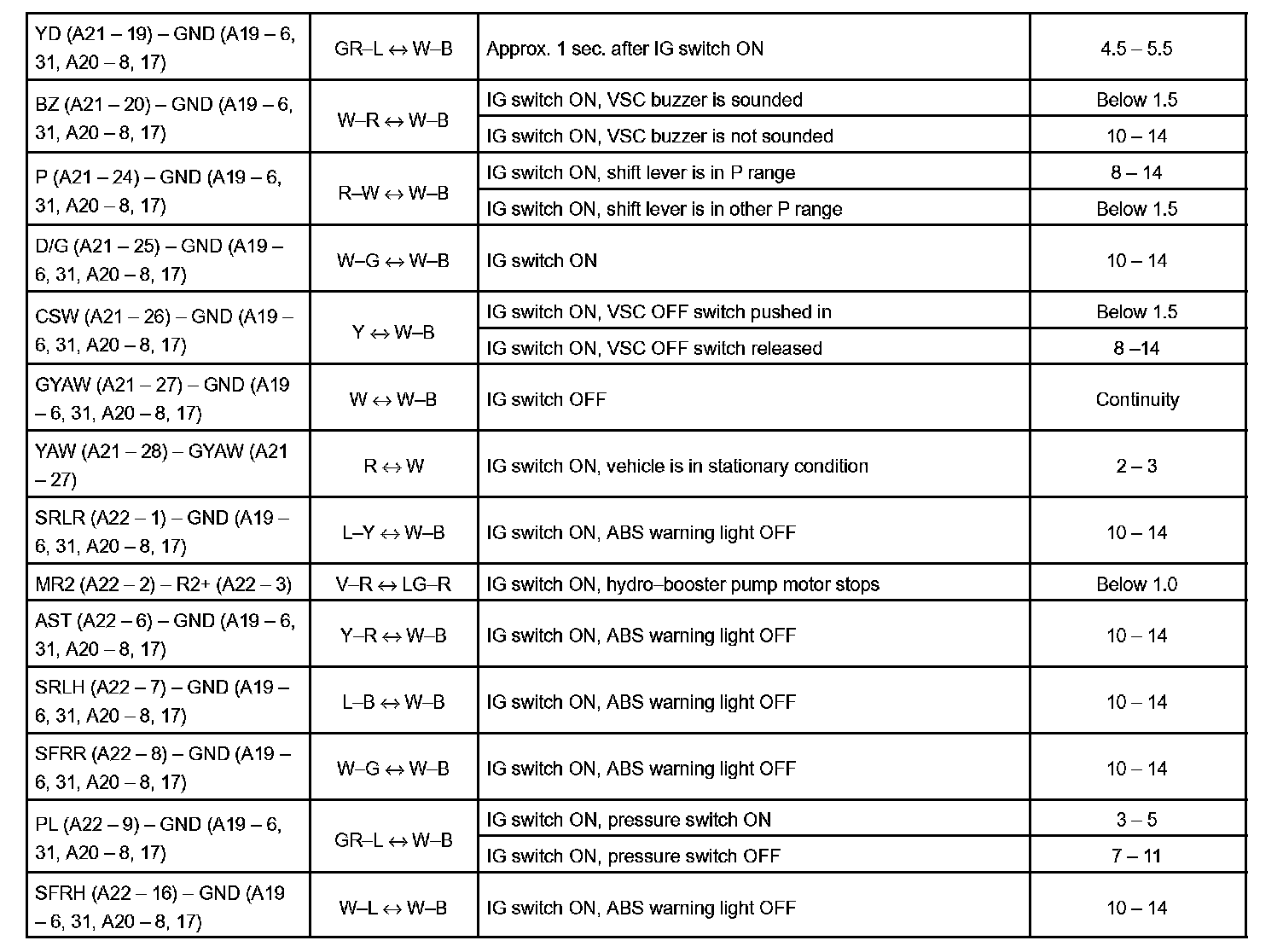

Terminals Of Control Module/Pinouts Part 3:
