Brake Warning Light Circuit

BRAKE Warning Light Circuit

CIRCUIT DESCRIPTION
The BRAKE warning light lights up while the brake fluid is insufficient and when ECU detects malfunction of hydraulic brake booster system.

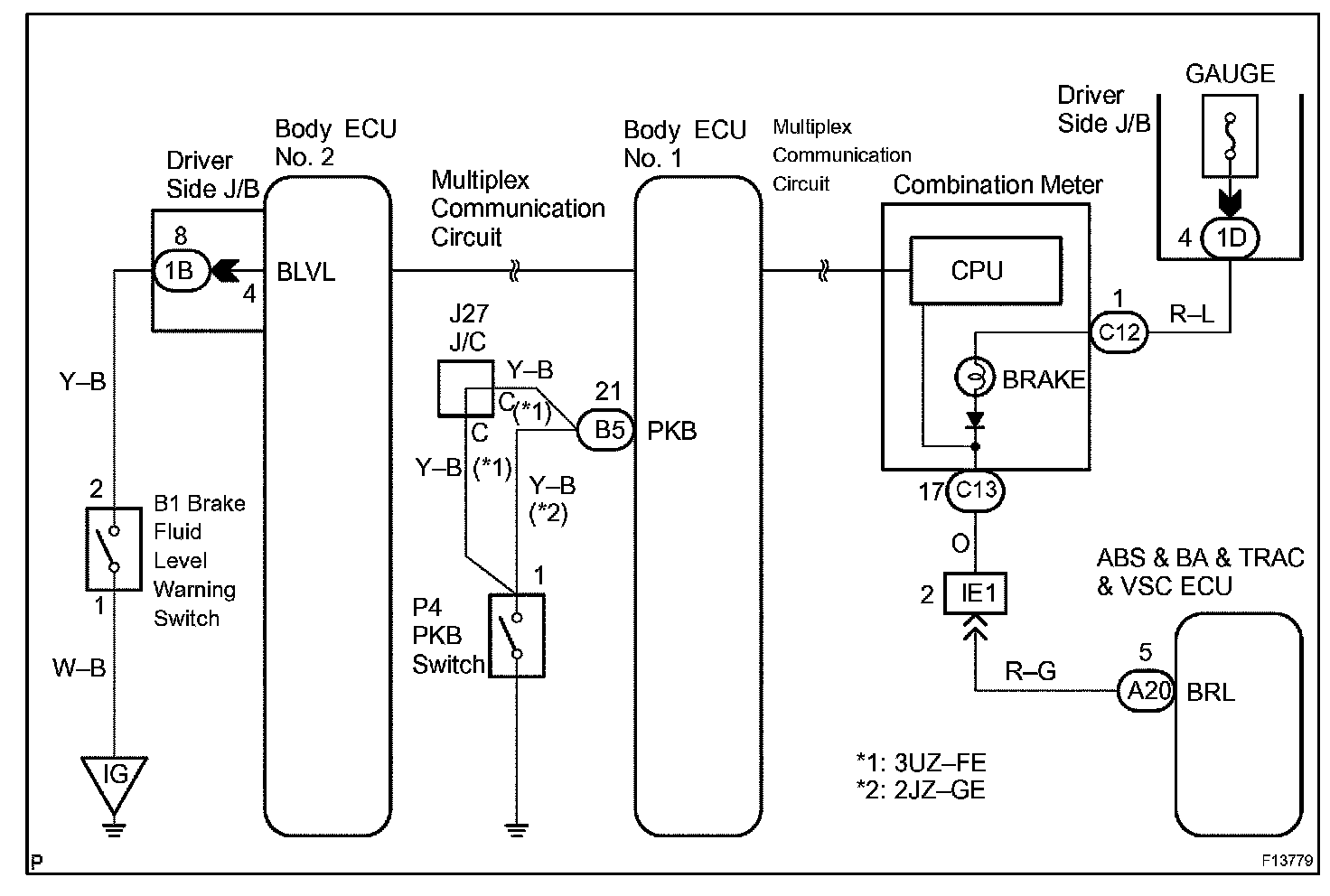

Wiring Diagram:

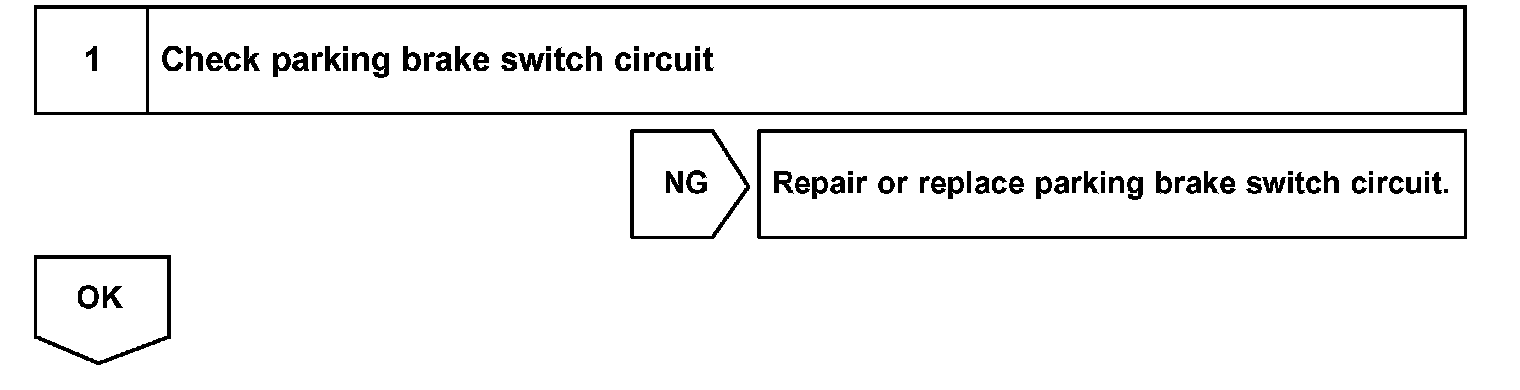

Step 1:

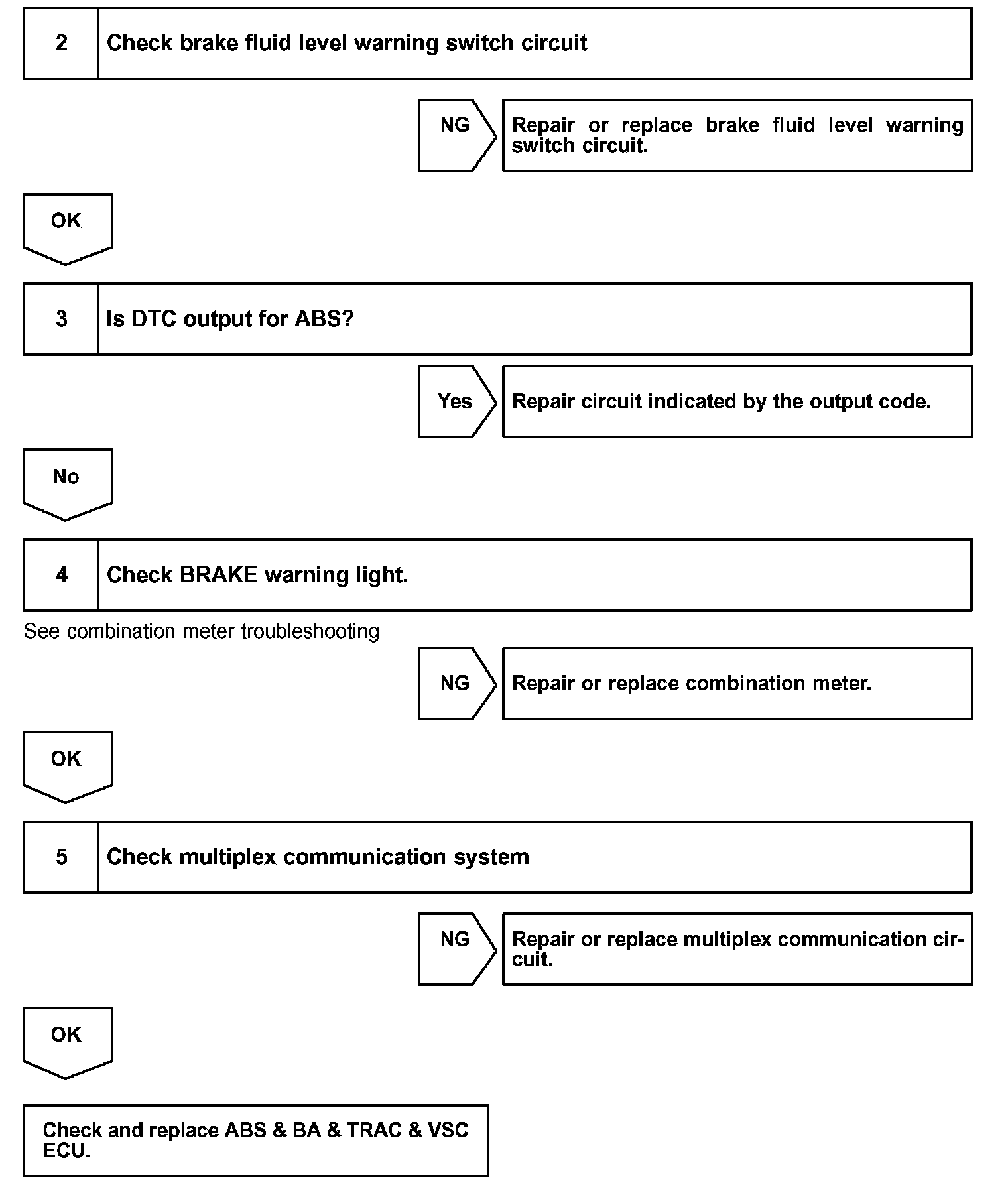

Step 2 - 5:




INSPECTION PROCEDURE
