VSC Warning Light Circuit

VSC Warning Light Circuit

CIRCUIT DESCRIPTION
If the ECU stores DTC, the VSC warning light lights on the combination meter.

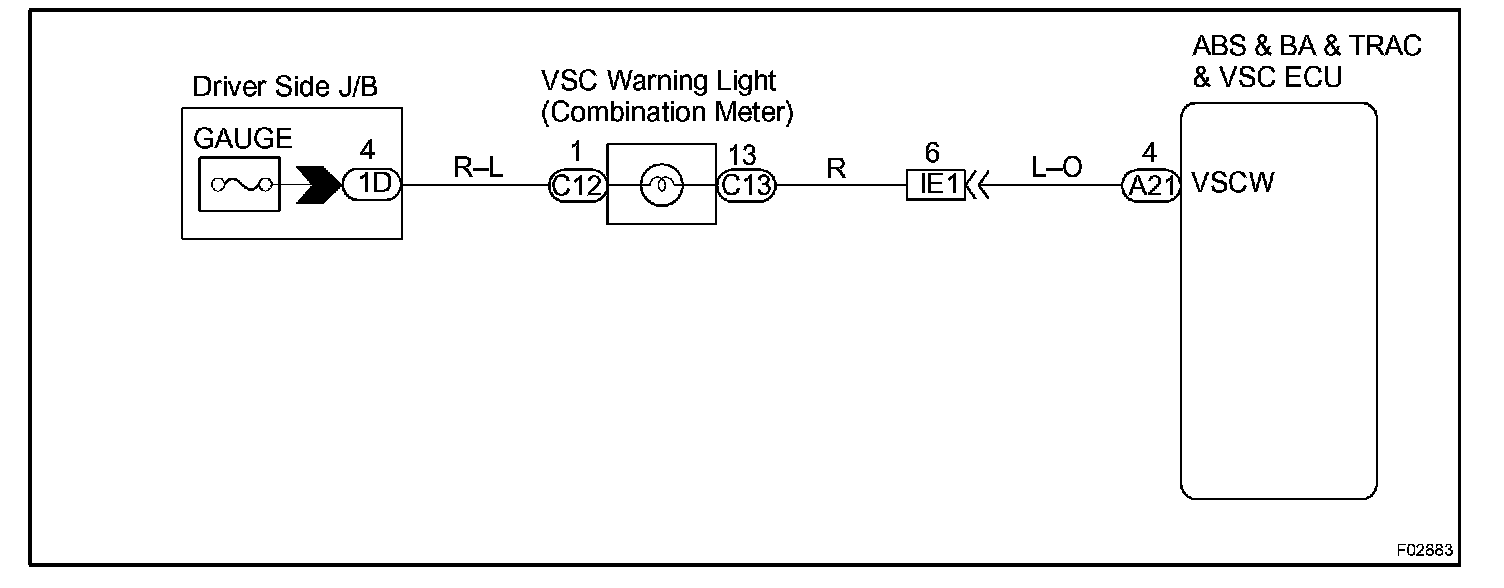

Wiring Diagram:

INSPECTION PROCEDURE

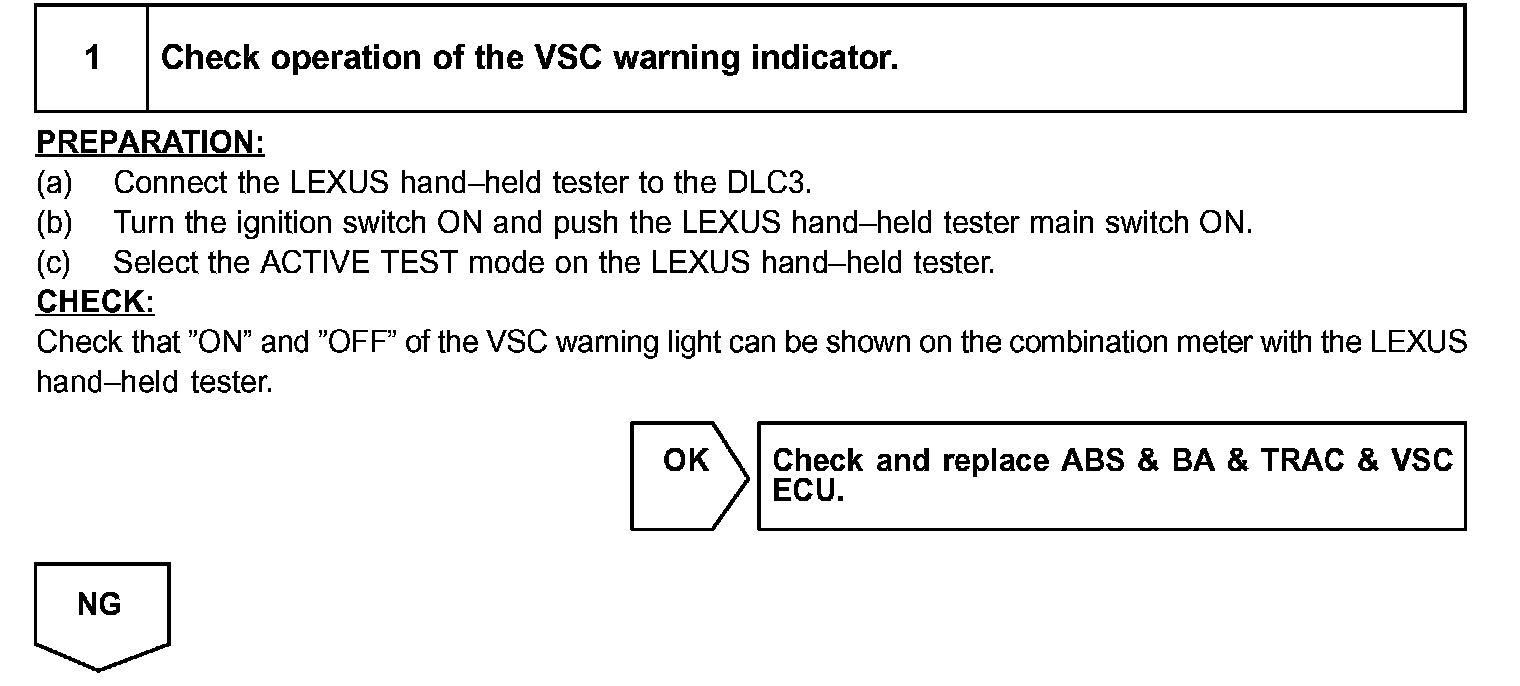

Step 1:

Step 2 - 4:

HINT: Start the inspection from step 1 in case of using the LEXUS hand-held tester and start from step 2 in case of not using the LEXUS hand-held tester.
