Power Source Circuit

ECU Power Source Circuit

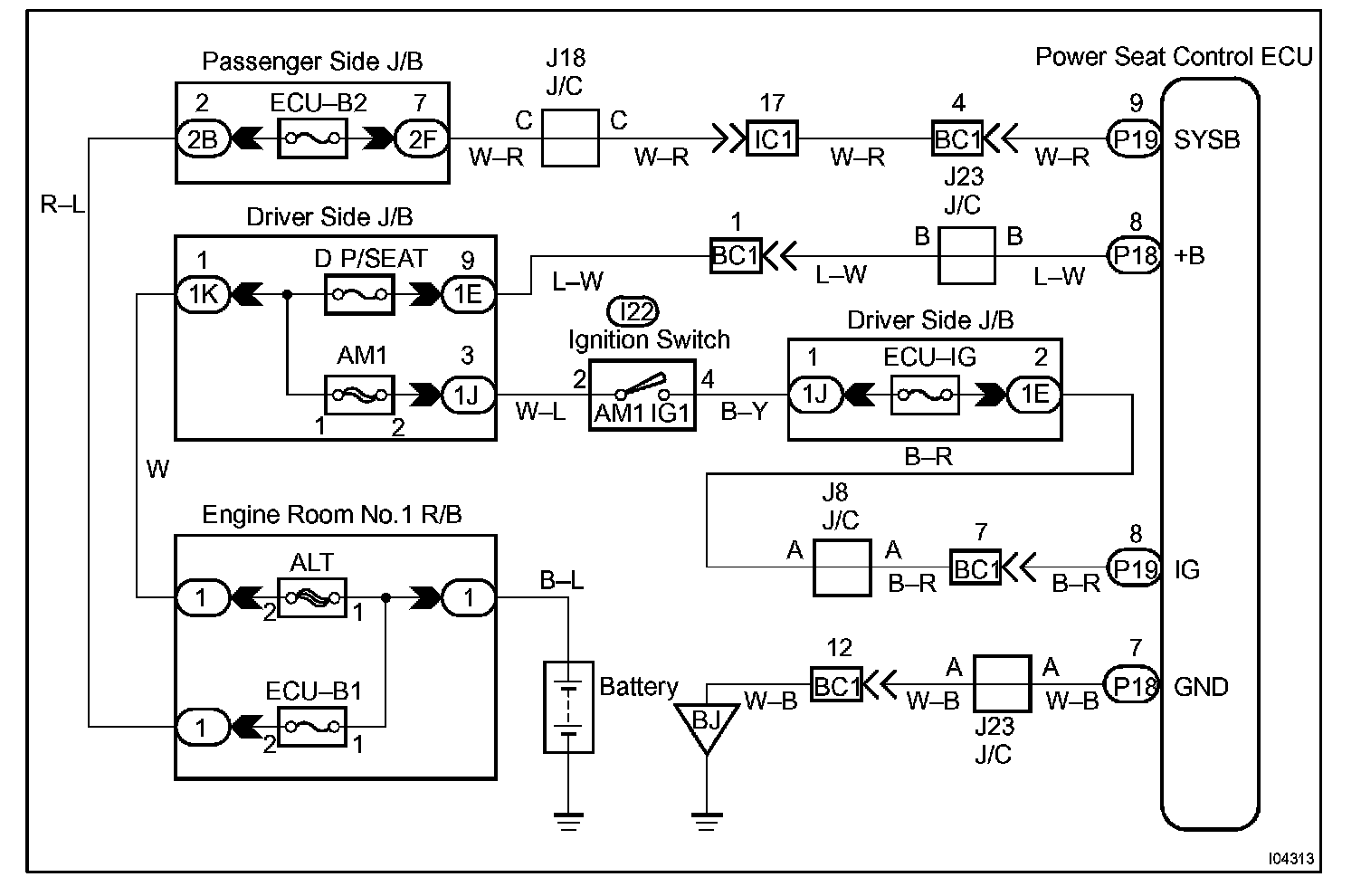

Wiring Diagram:






Step 1 - 2:

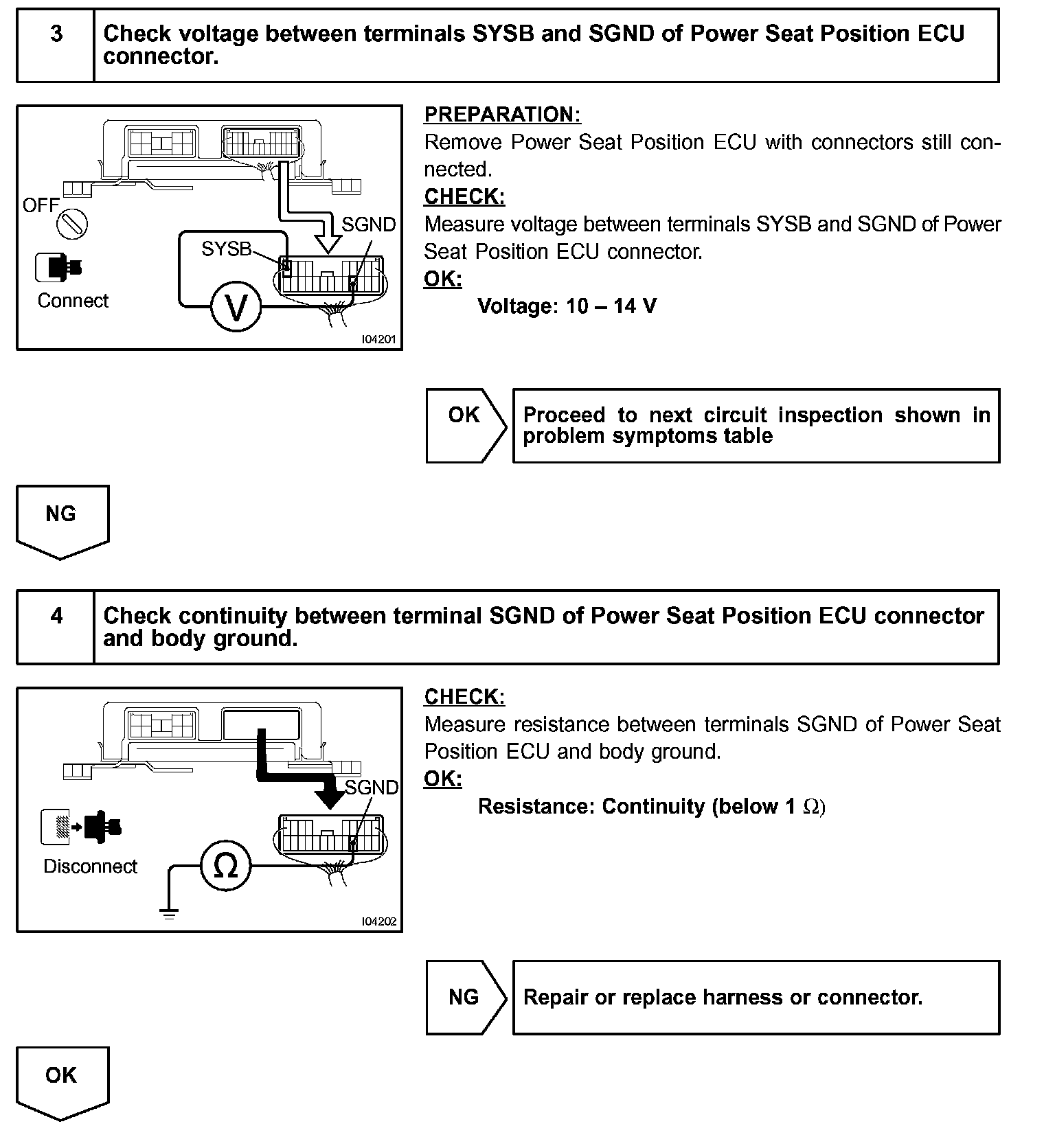

Step 3 - 4:

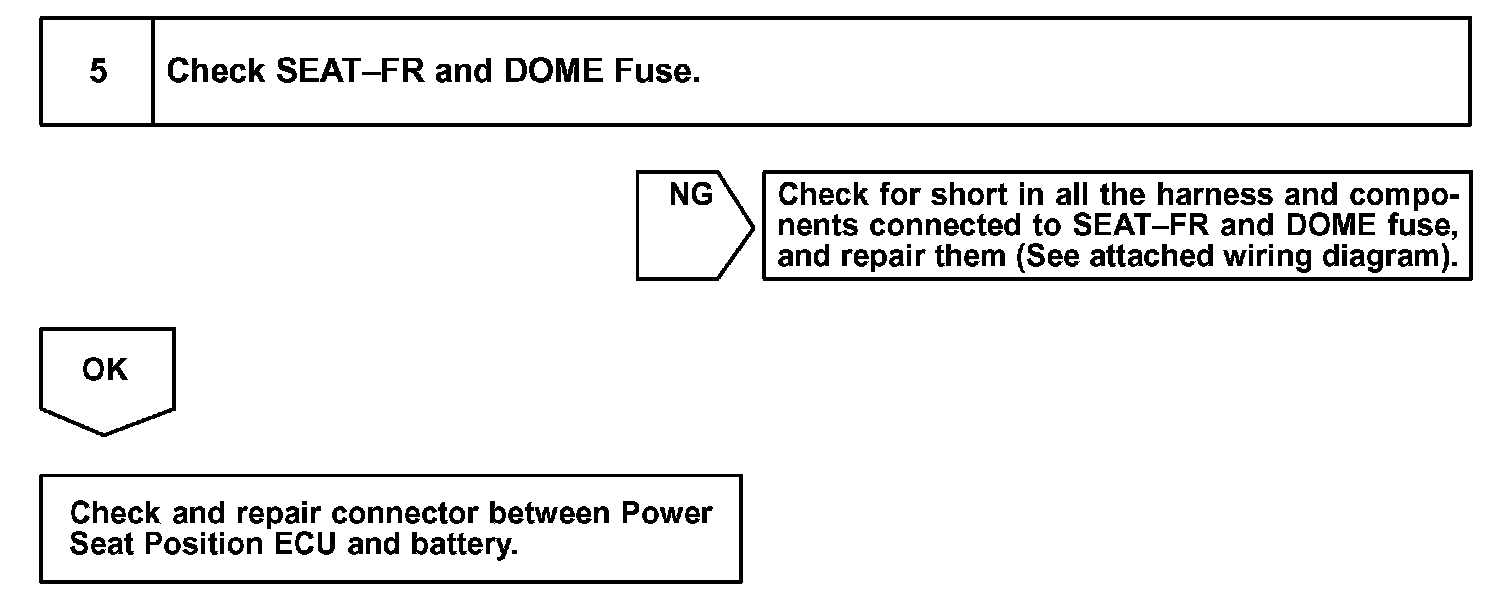

Step 5:




INSPECTION PROCEDURE
