Power Seat Motor
Power Seat Motor
Power Seat Motor

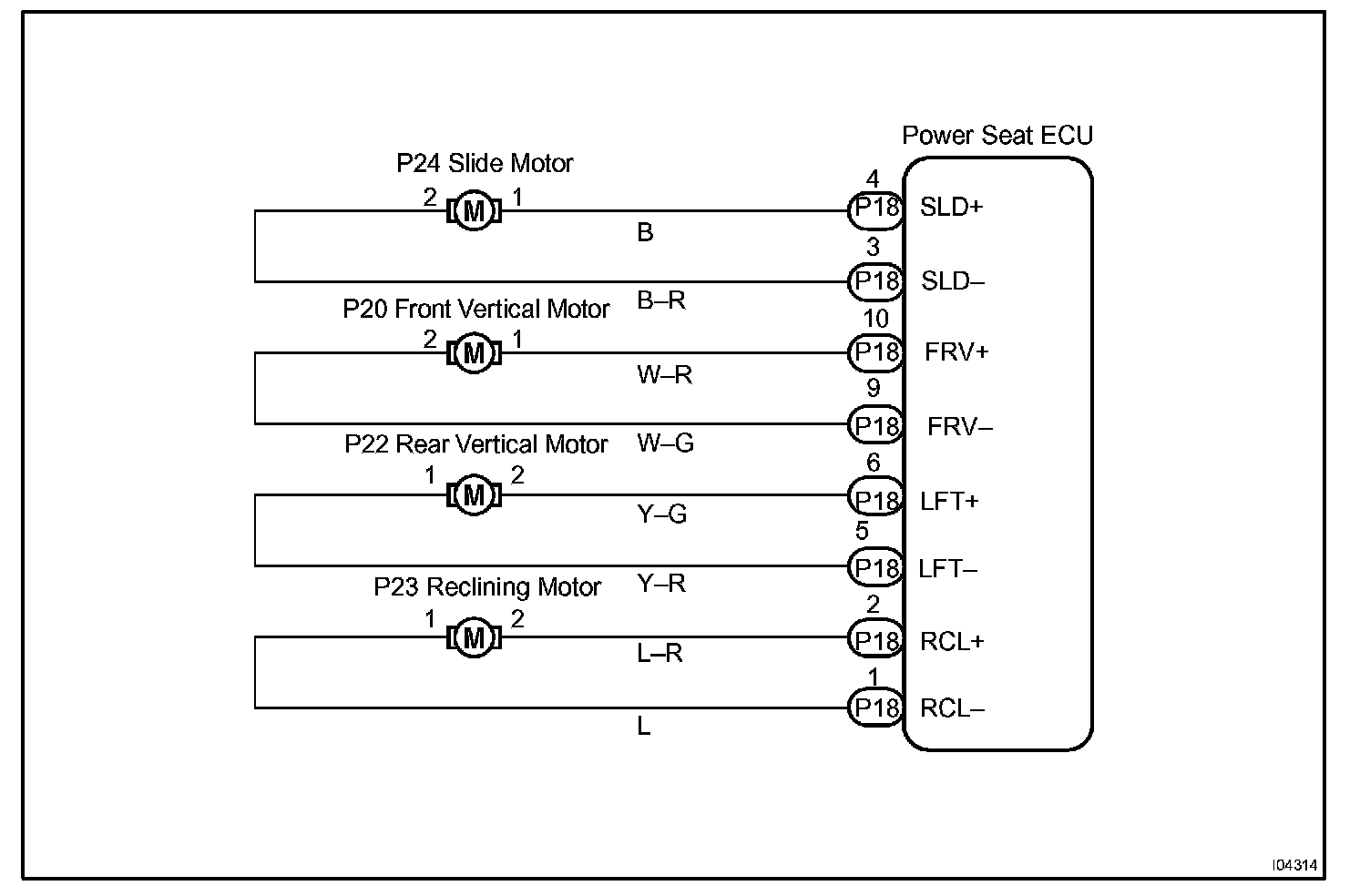

Wiring Diagram:

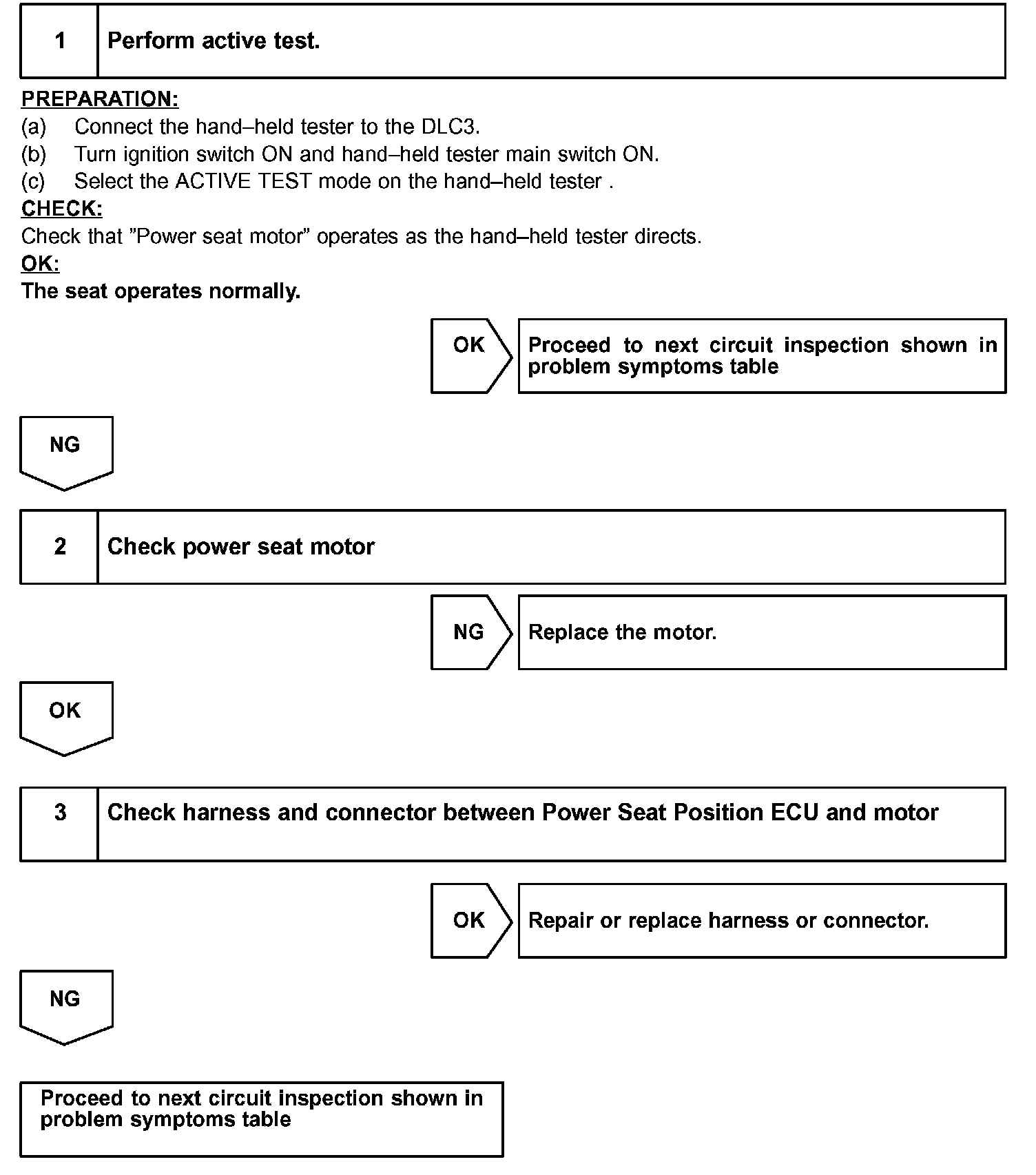

INSPECTION PROCEDURE
Step 1 - 3:
HINT:
If there is not the hand-held tester, begin with STEP 2.
