Position Sensor Circuit

Position sensor circuit

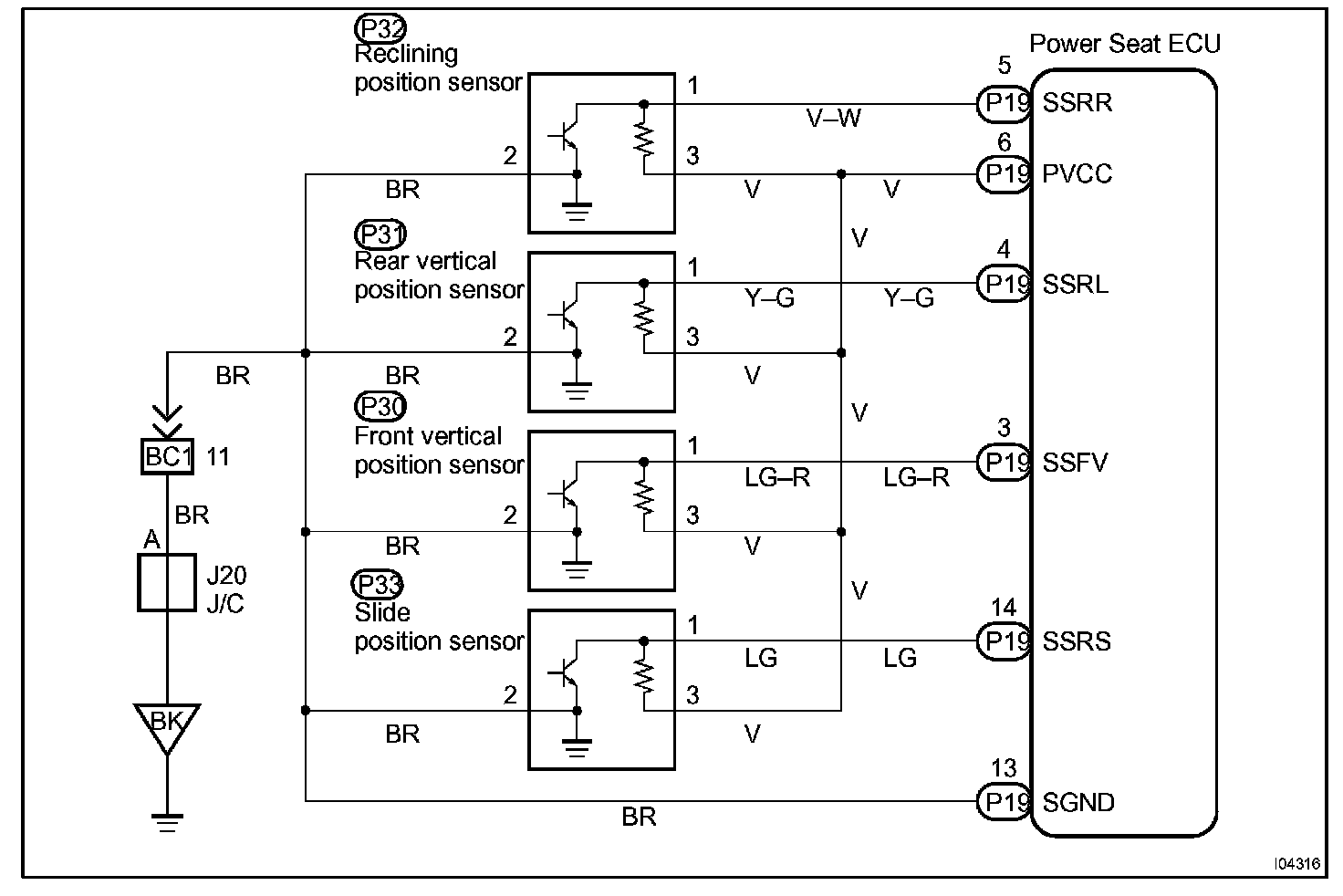

Wiring Diagram:






INSPECTION PROCEDURE

Step 1:

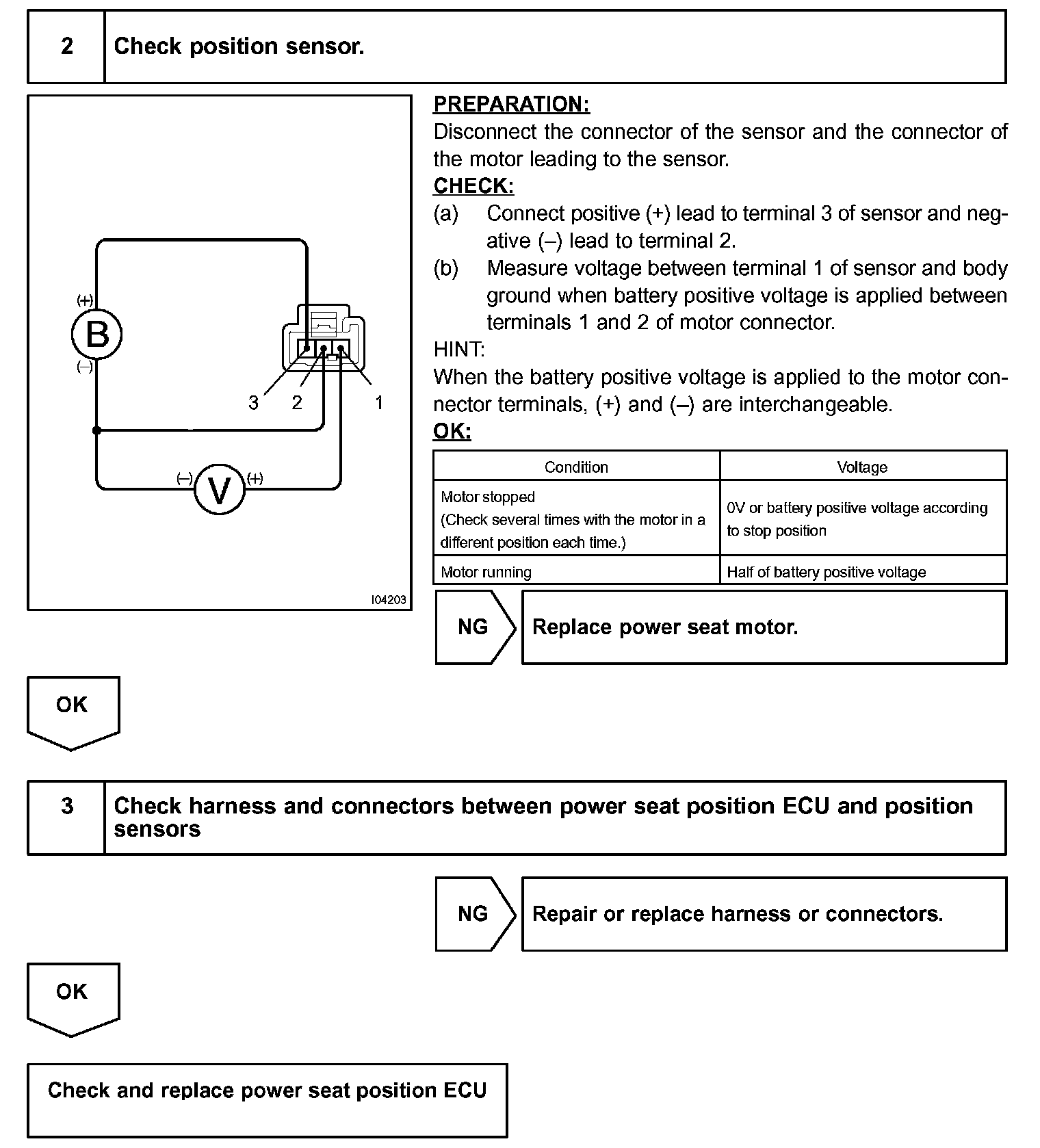

Step 2 - 3:






HINT: If there is not the hand-held tester, begin with STEP 2.
