Sliding Roof Pulse Plate Circuit

Sliding Roof Pulse Plate Circuit

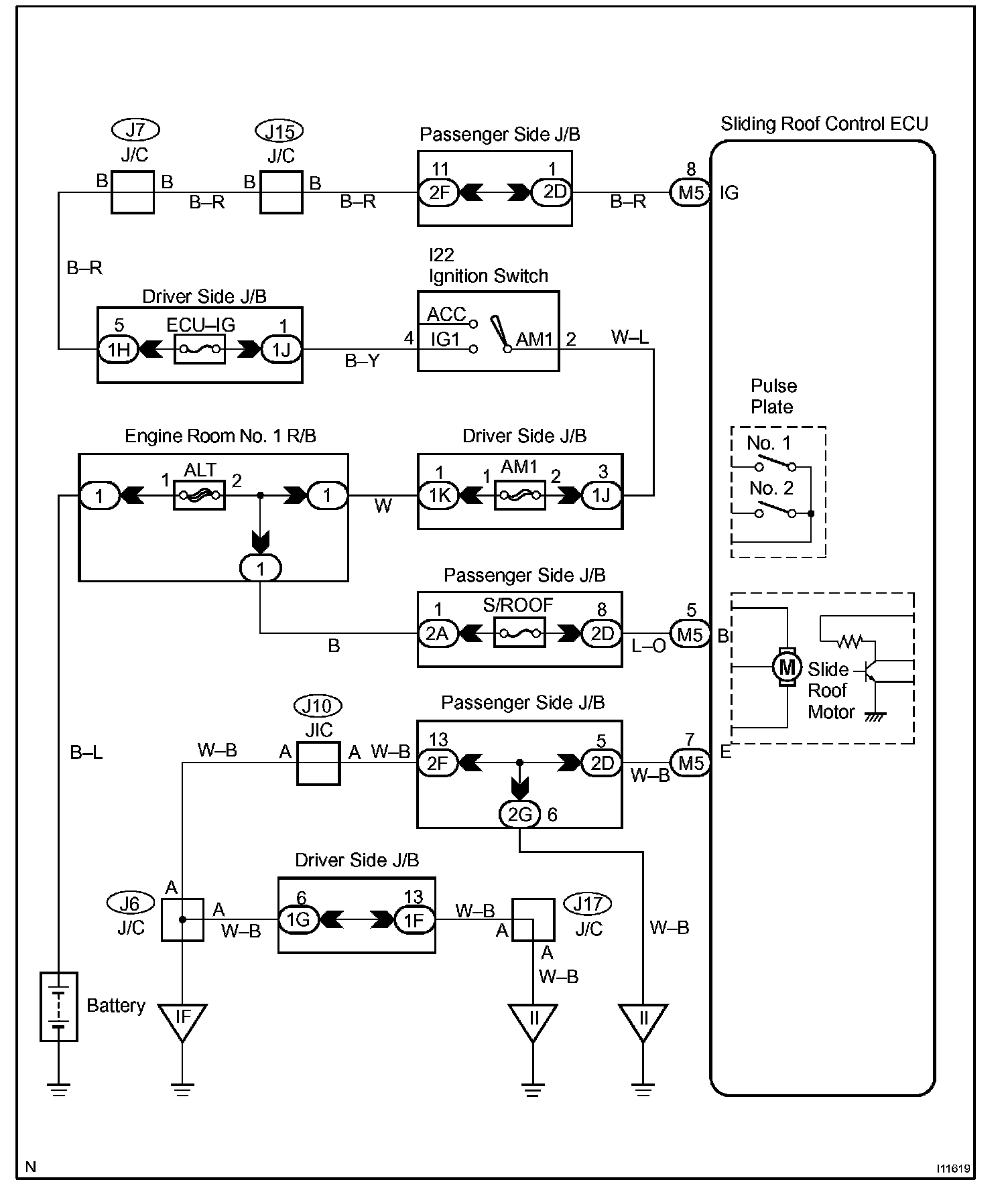

Wiring Diagram:

INSPECTION PROCEDURE

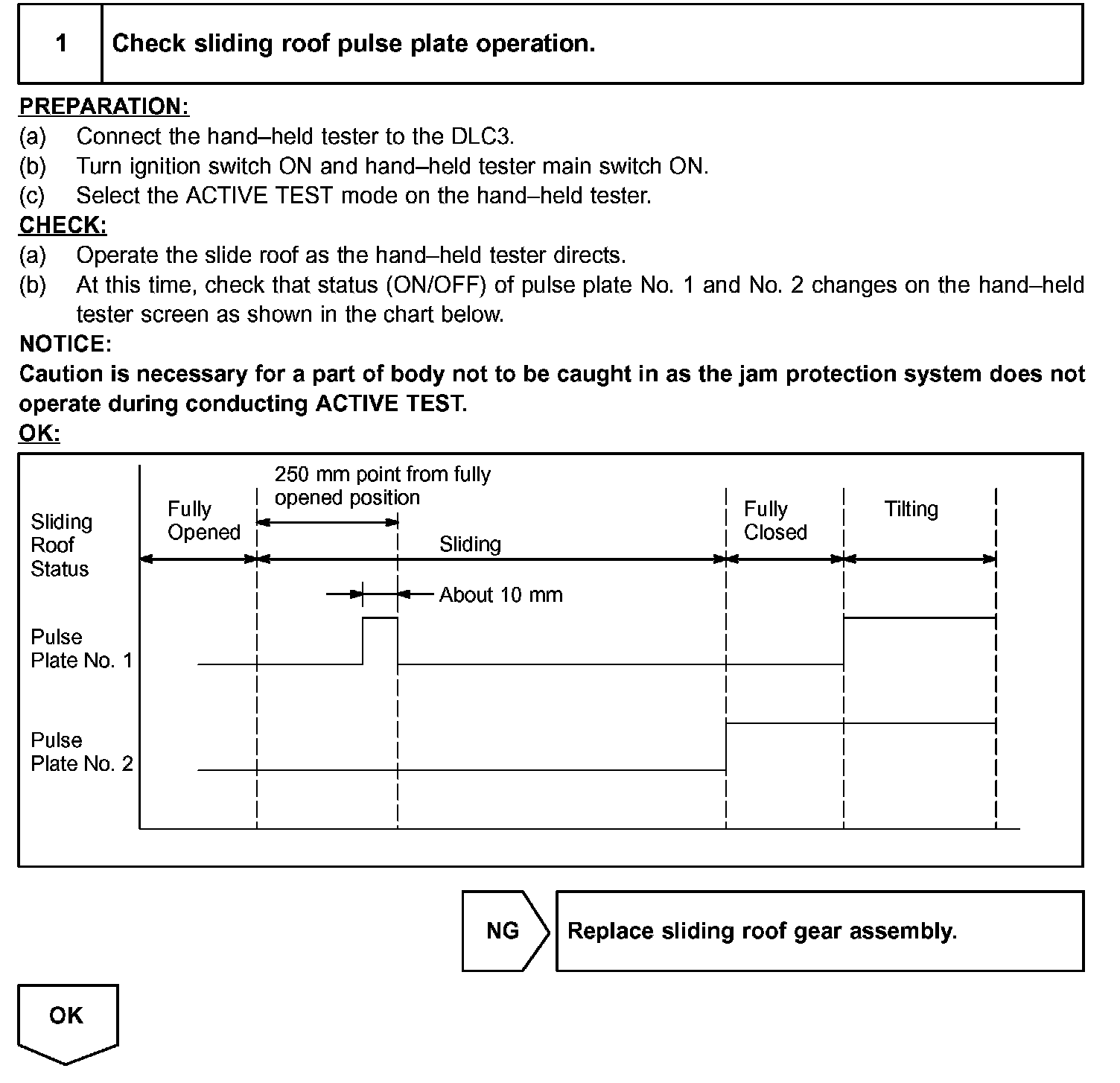

Step 1:

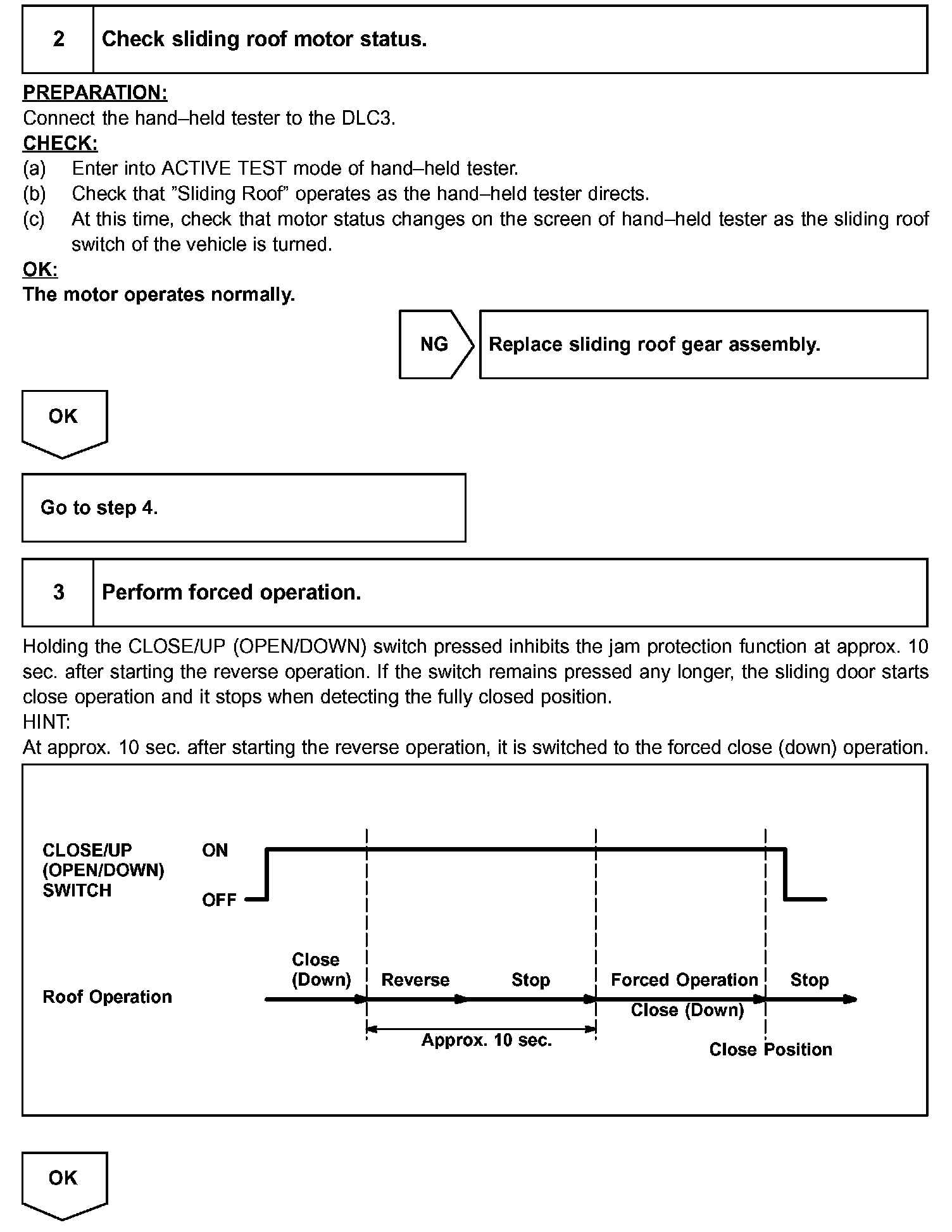

Step 2 - 3:

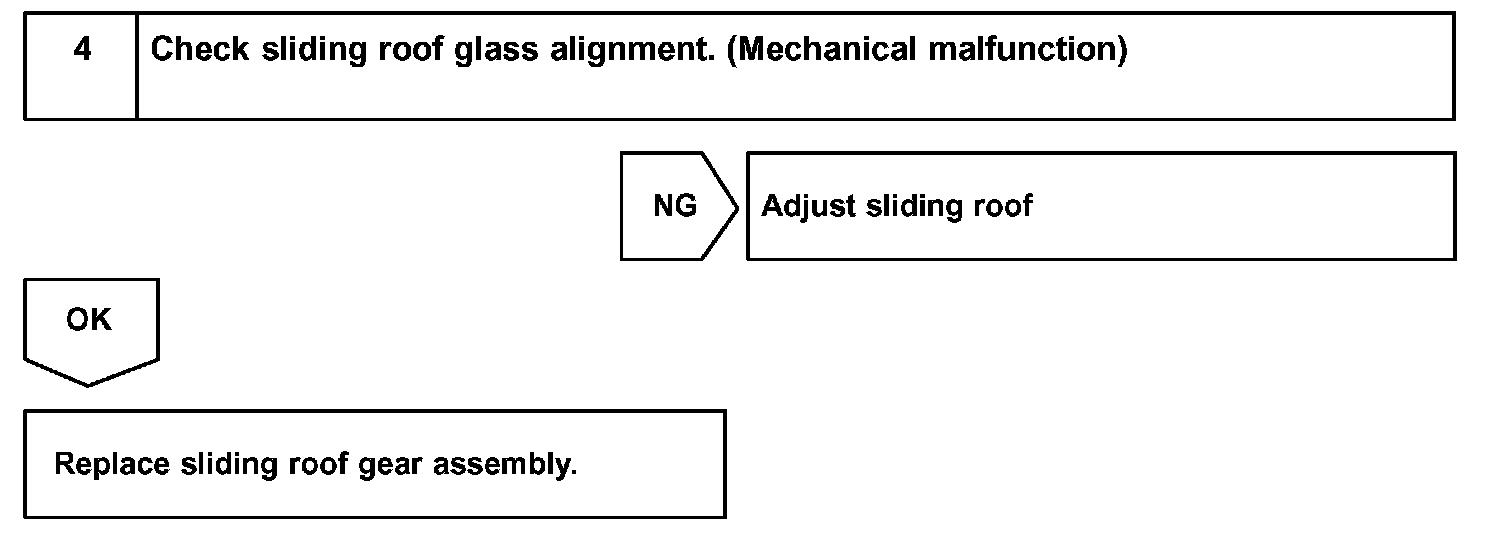

Step 4:

HINT: If there is not the hand-held tester, begin with STEP 3.
