Power Window Switch Circuit

Power window switch circuit

CIRCUIT DESCRIPTION
Power window switch circuit can be checked using DTC check.

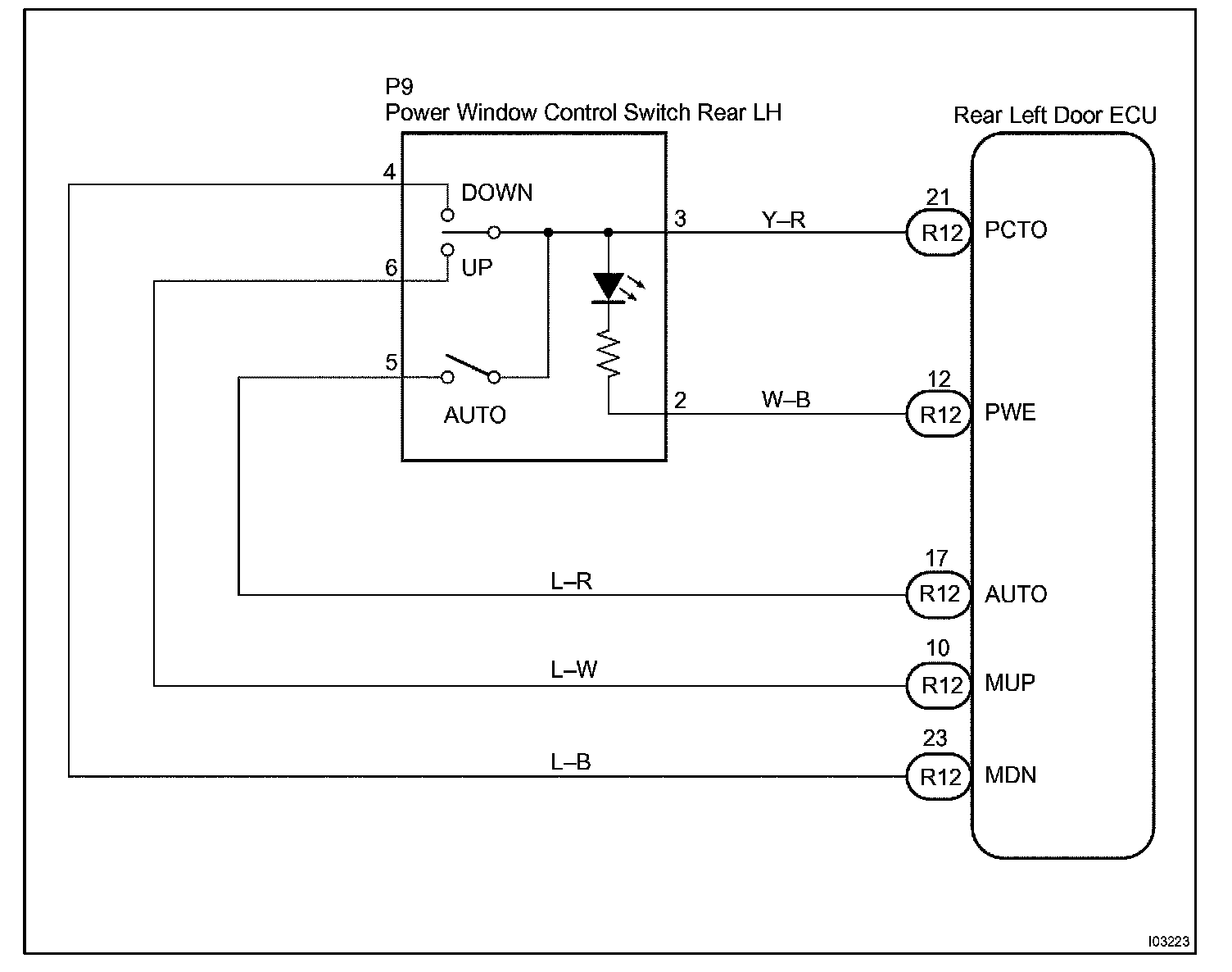

Wiring Diagram:






Step 1 - 4:

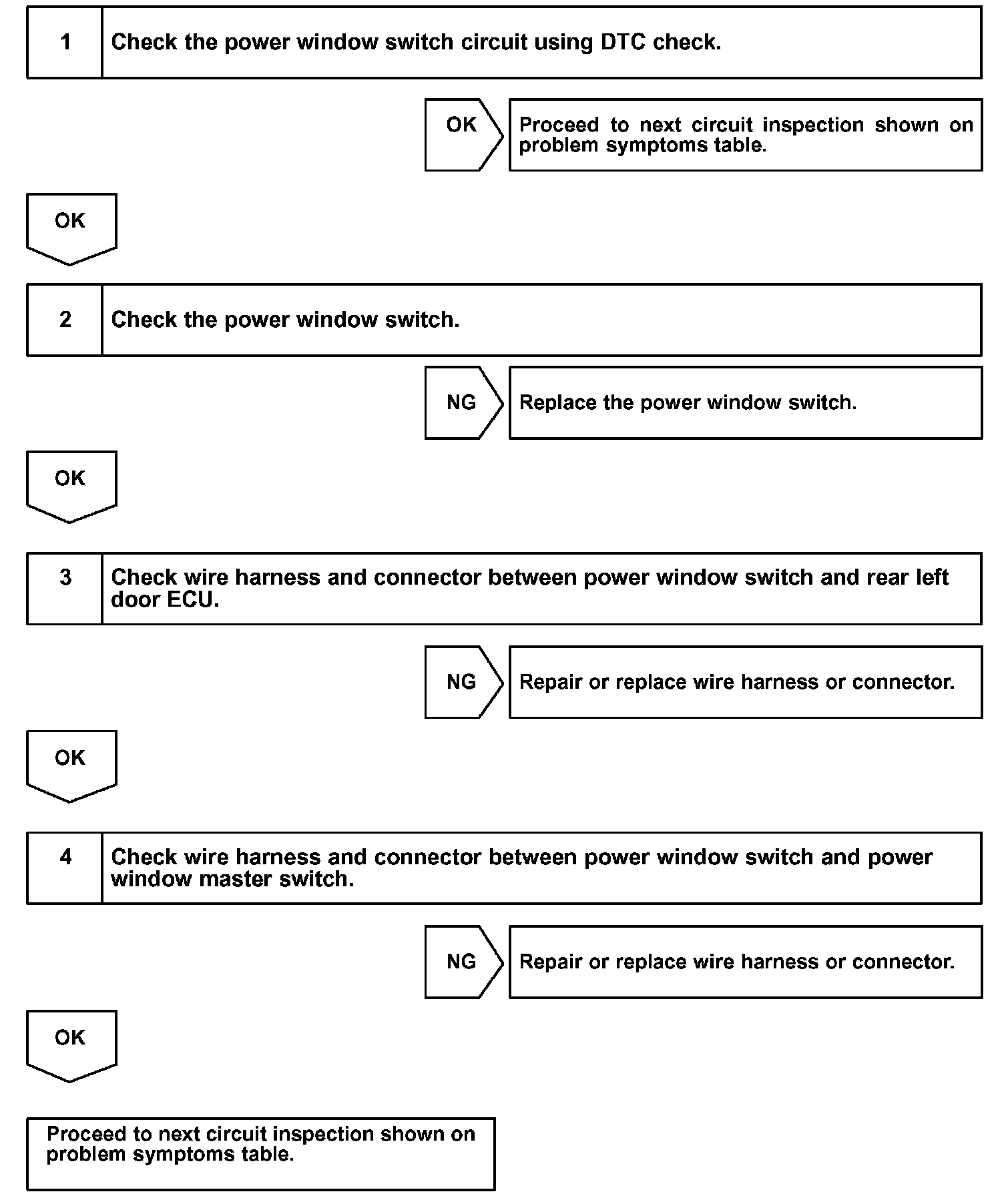

INSPECTION PROCEDURE
