Door Lock Motor Circuit

Door lock motor circuit

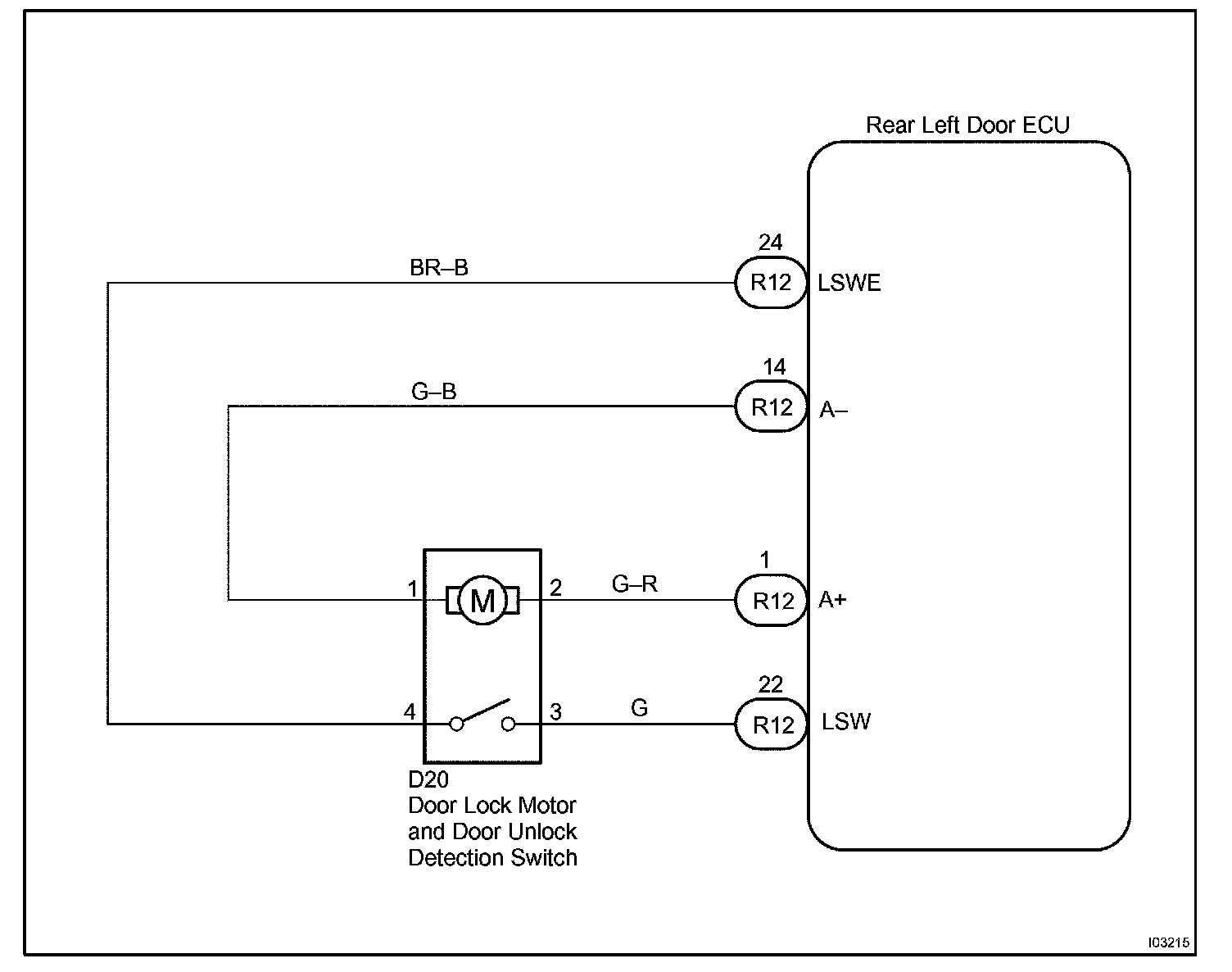

Wiring Diagram:






Step 1 - 2:

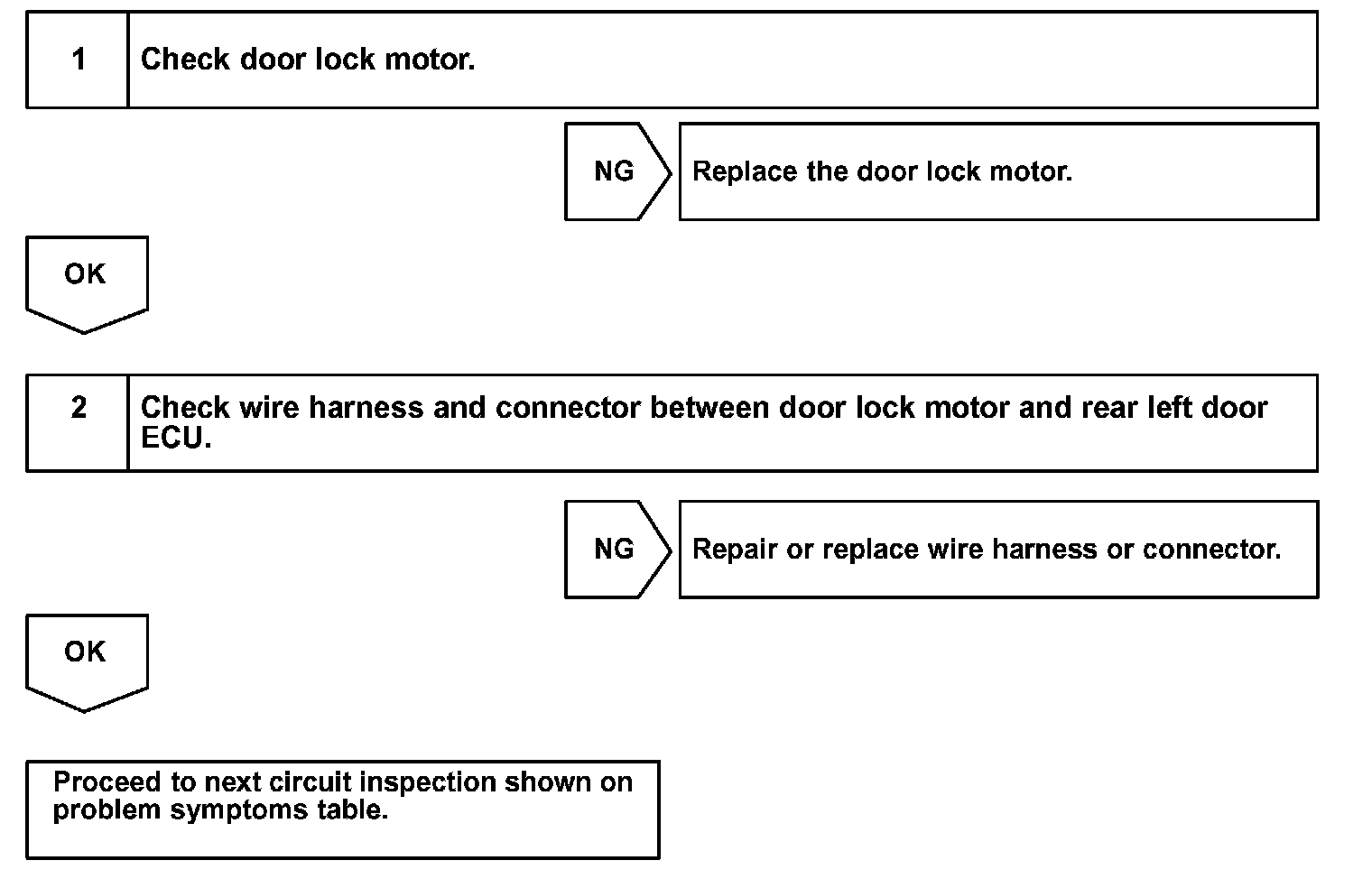

INSPECTION PROCEDURE
