Door Courtesy Light and Courtesy Switch Circuit

Door courtesy light and courtesy switch circuit

CIRCUIT DESCRIPTION
The door courtesy switch goes on when the door is opened and goes off when door is closed.

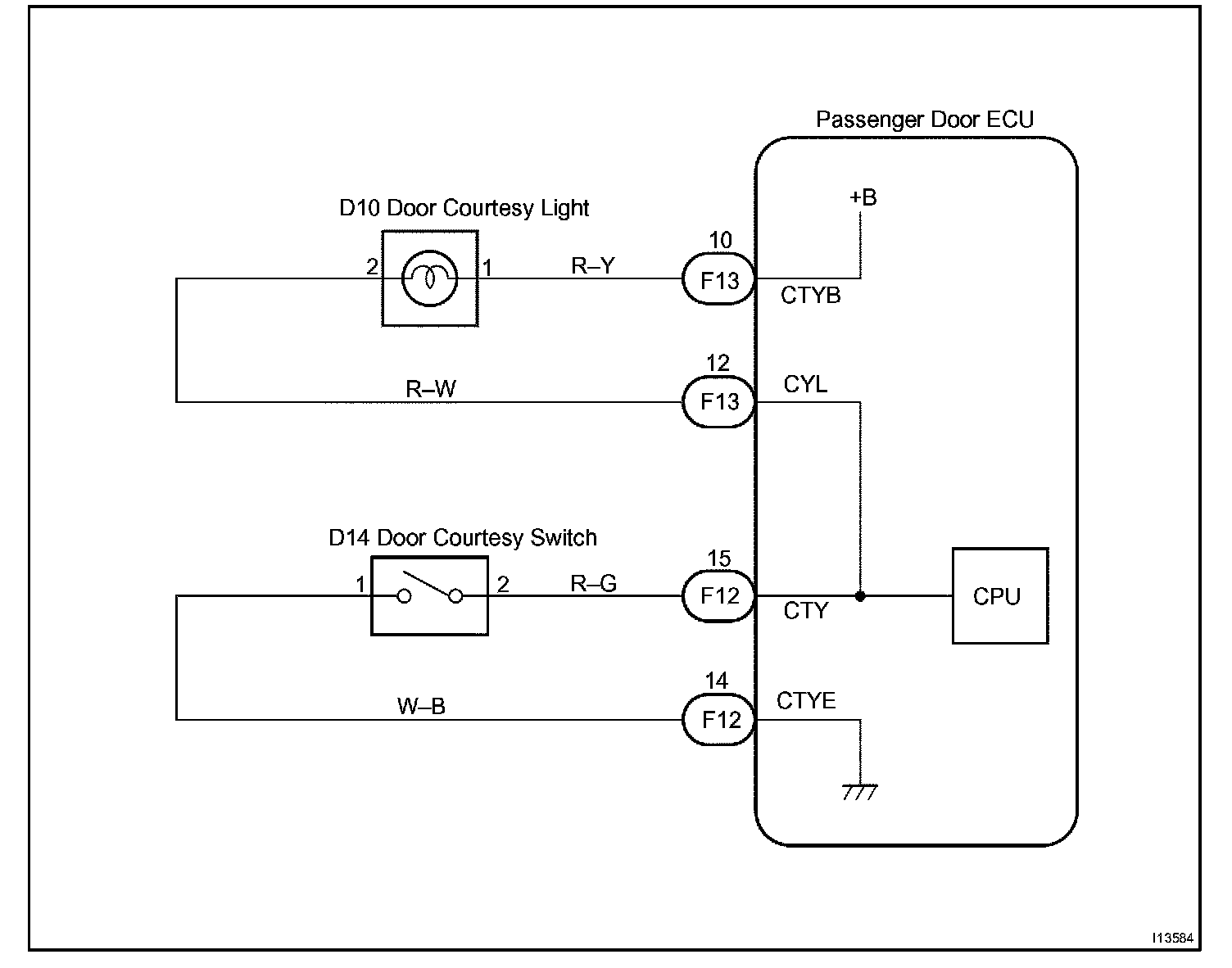

Wiring Diagram:

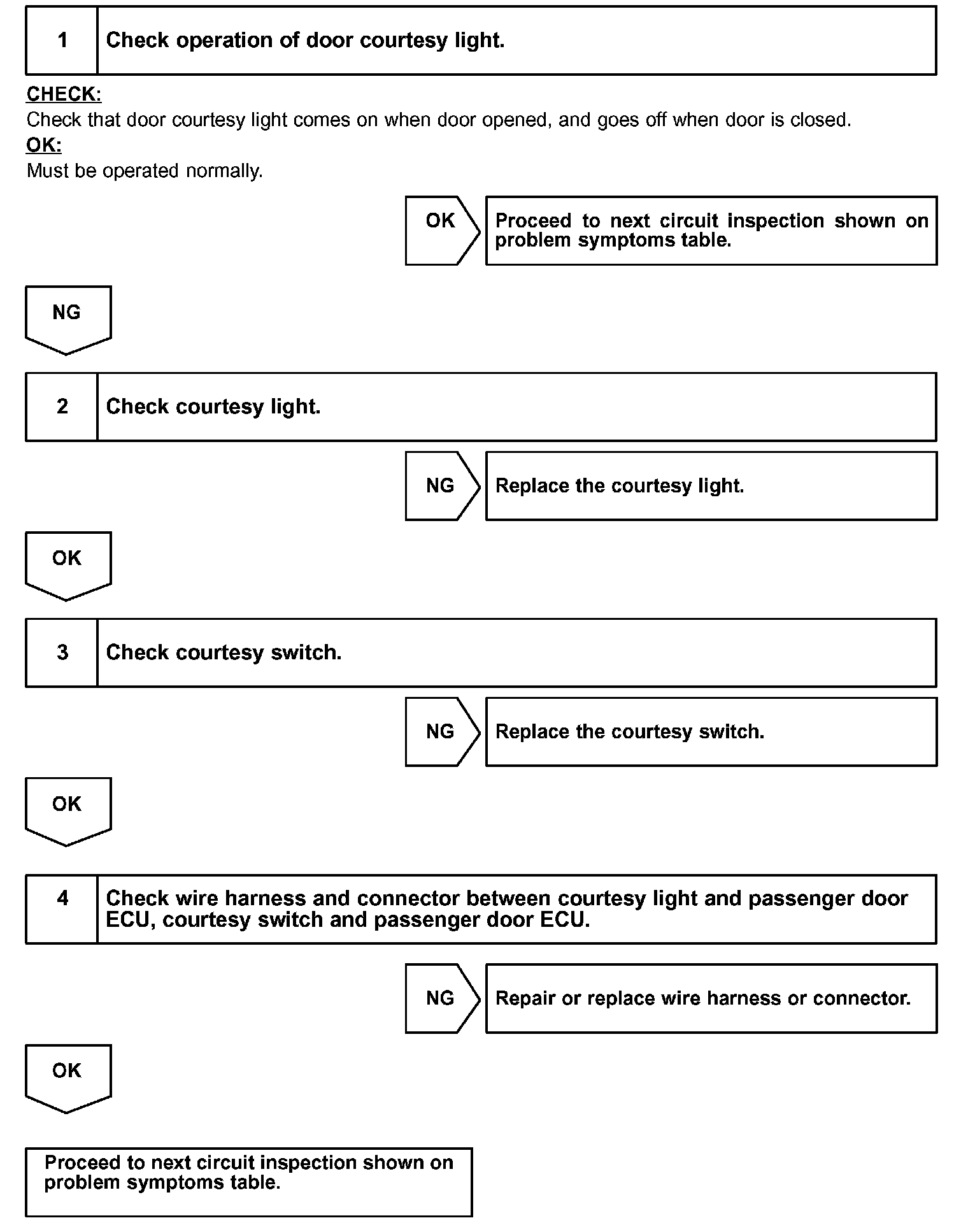

Step 1 - 4:

INSPECTION PROCEDURE
