Power Window Master Switch Circuit

Power window master switch circuit

CIRCUIT DESCRIPTION
Power window master switch circuit can be checked using DTC check.

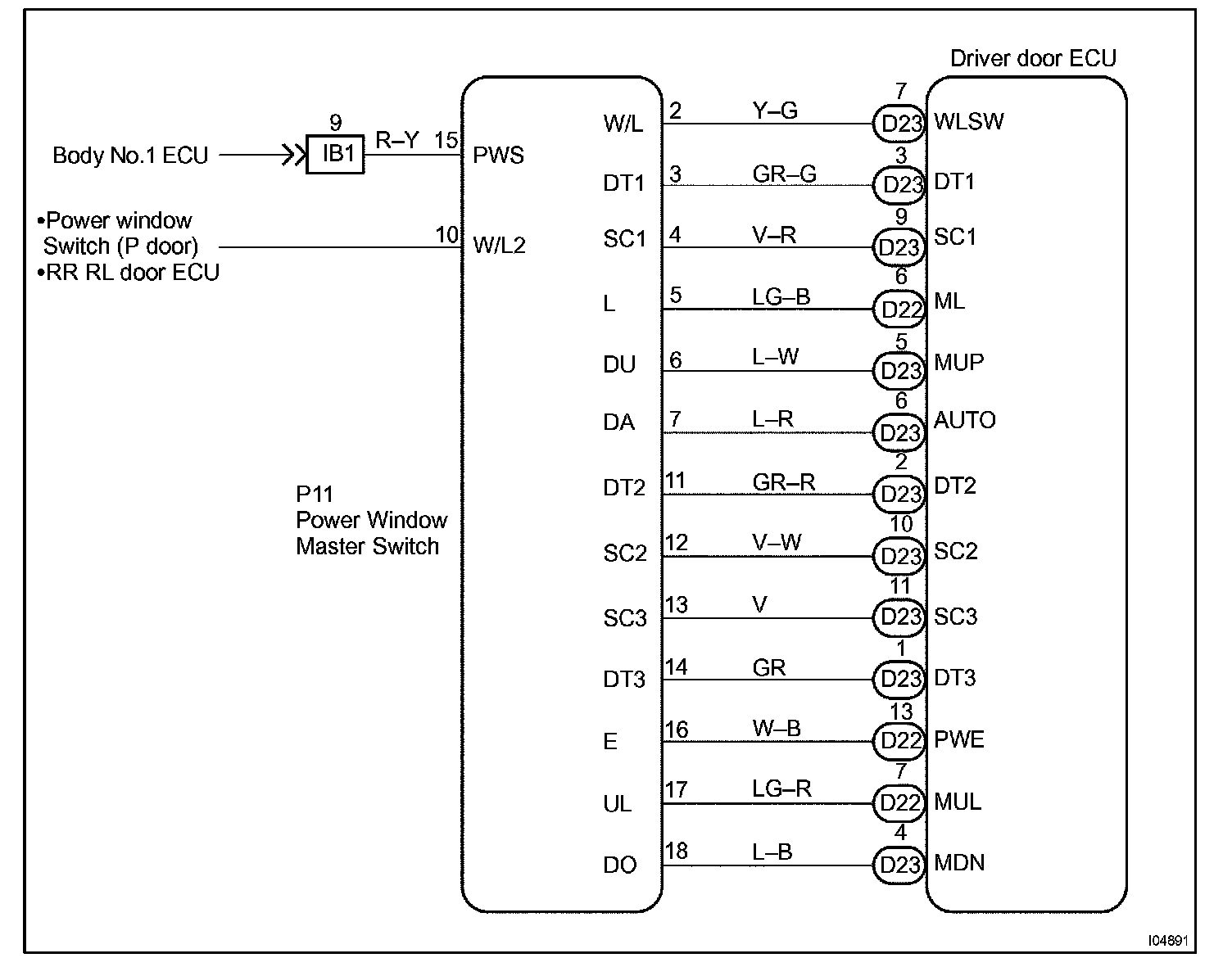

Wiring Diagram:






Step 1 - 3:

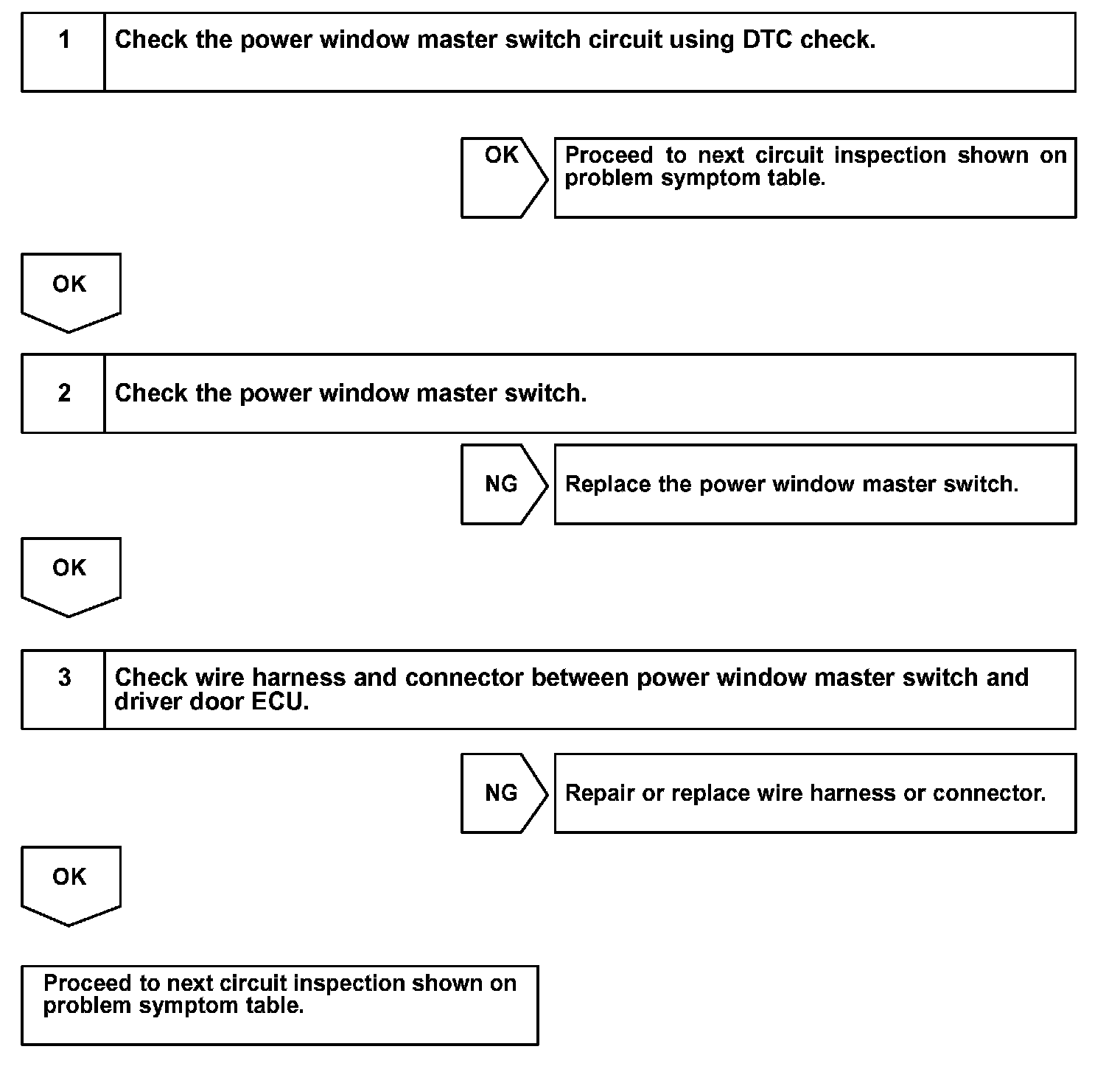

INSPECTION PROCEDURE
