Mirror Retract Motor Circuit (Taiwan Only)

Mirror retract motor circuit (TAIWAN only)

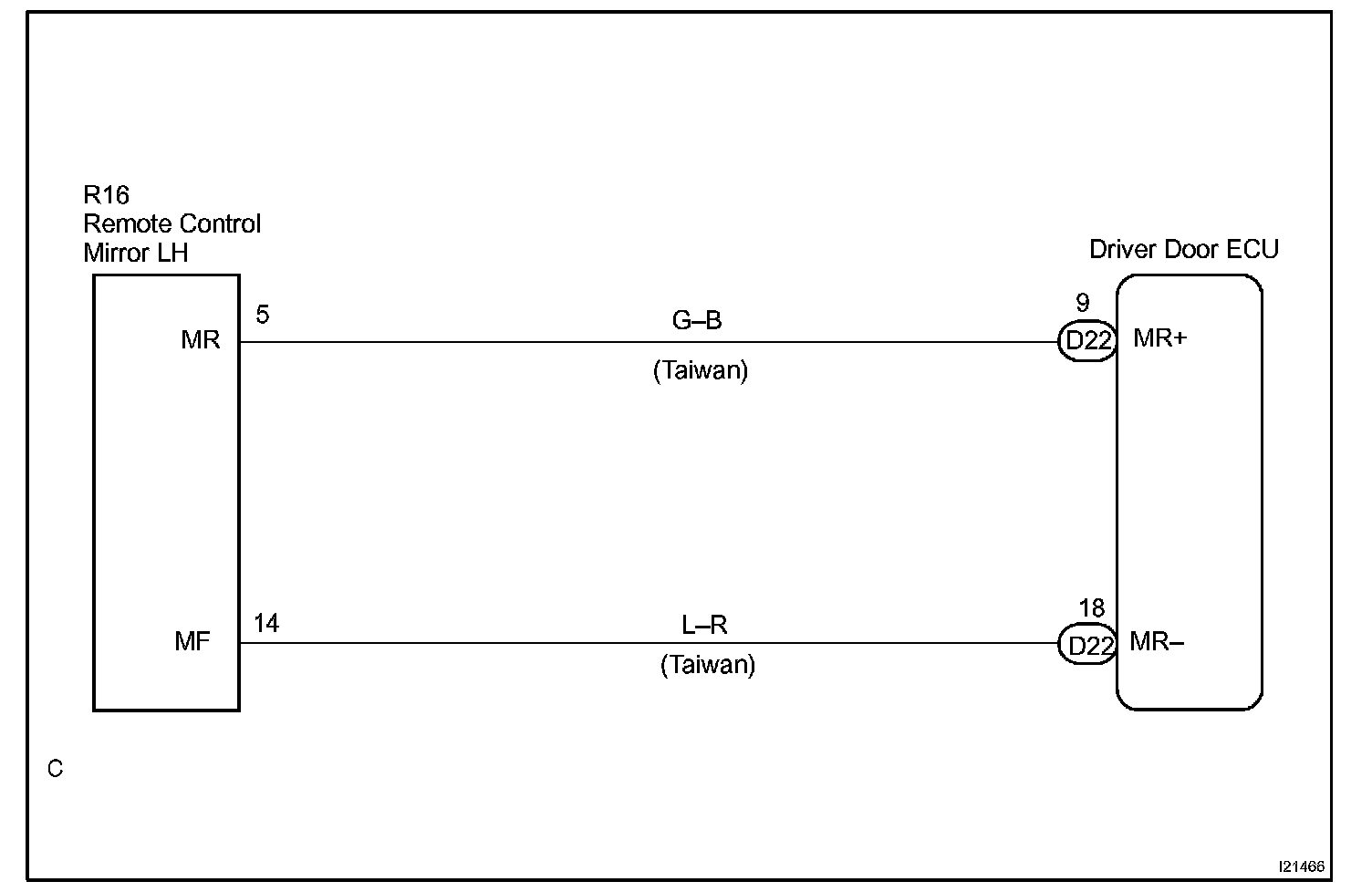

Wiring Diagram:

INSPECTION PROCEDURE

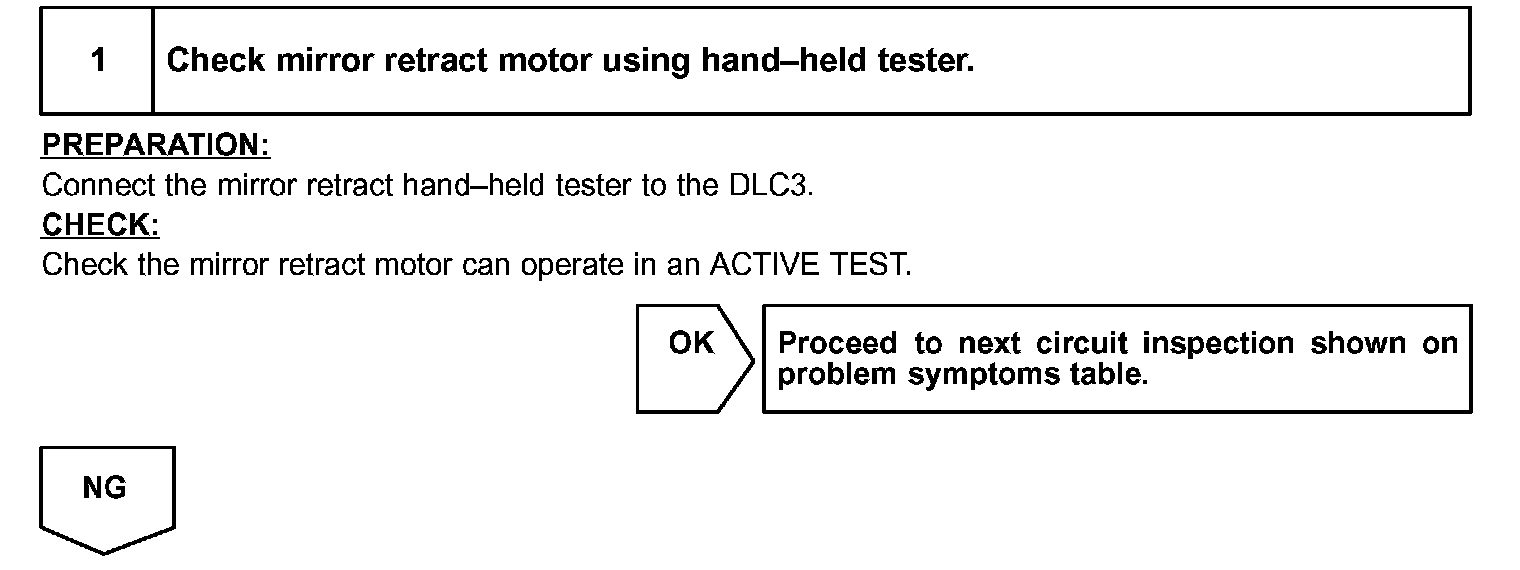

Step 1:

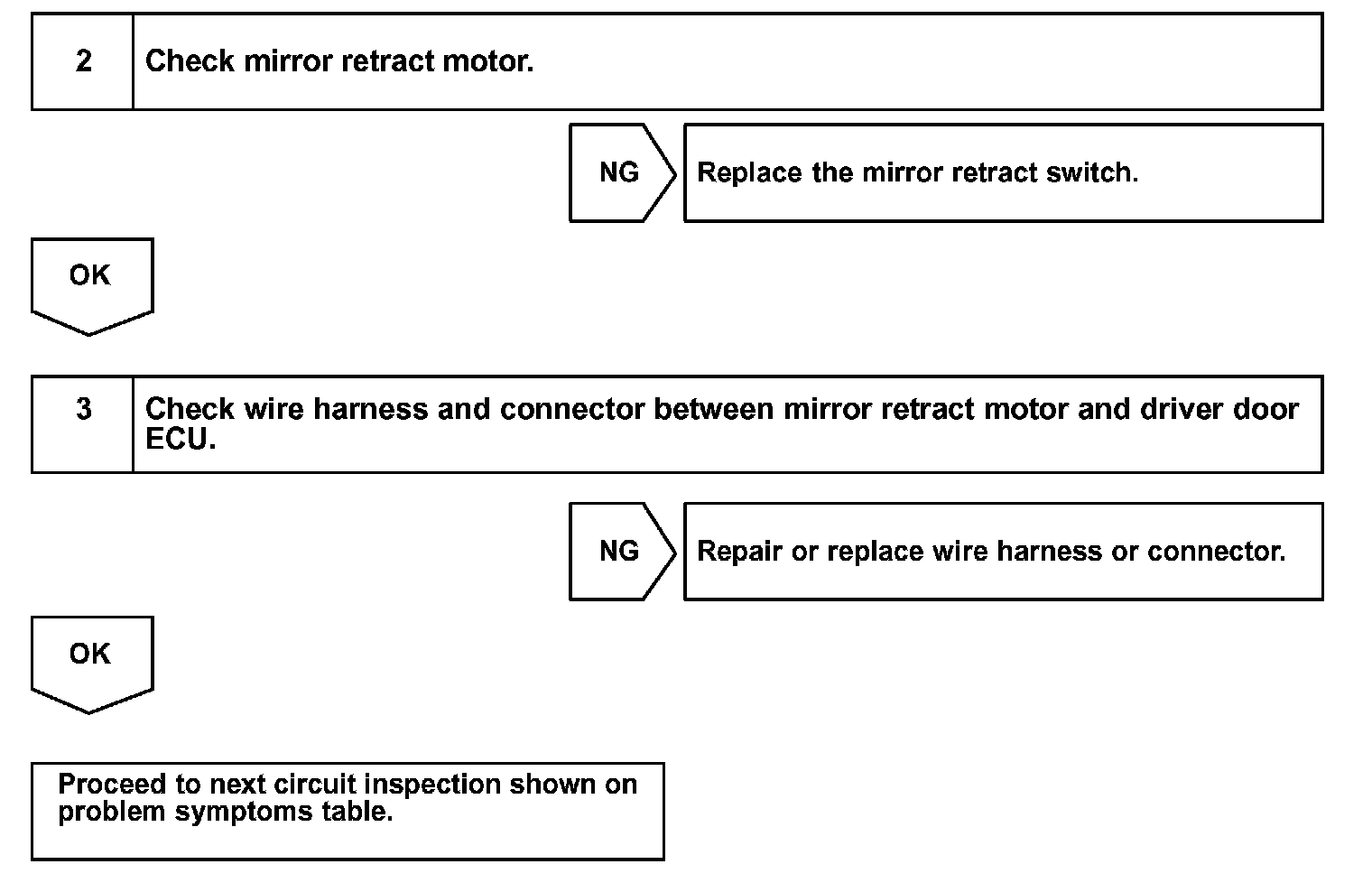

Step 2 - 3:

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
