Memory Switch Circuit (W/Memory)

Memory switch circuit (W/ memory)

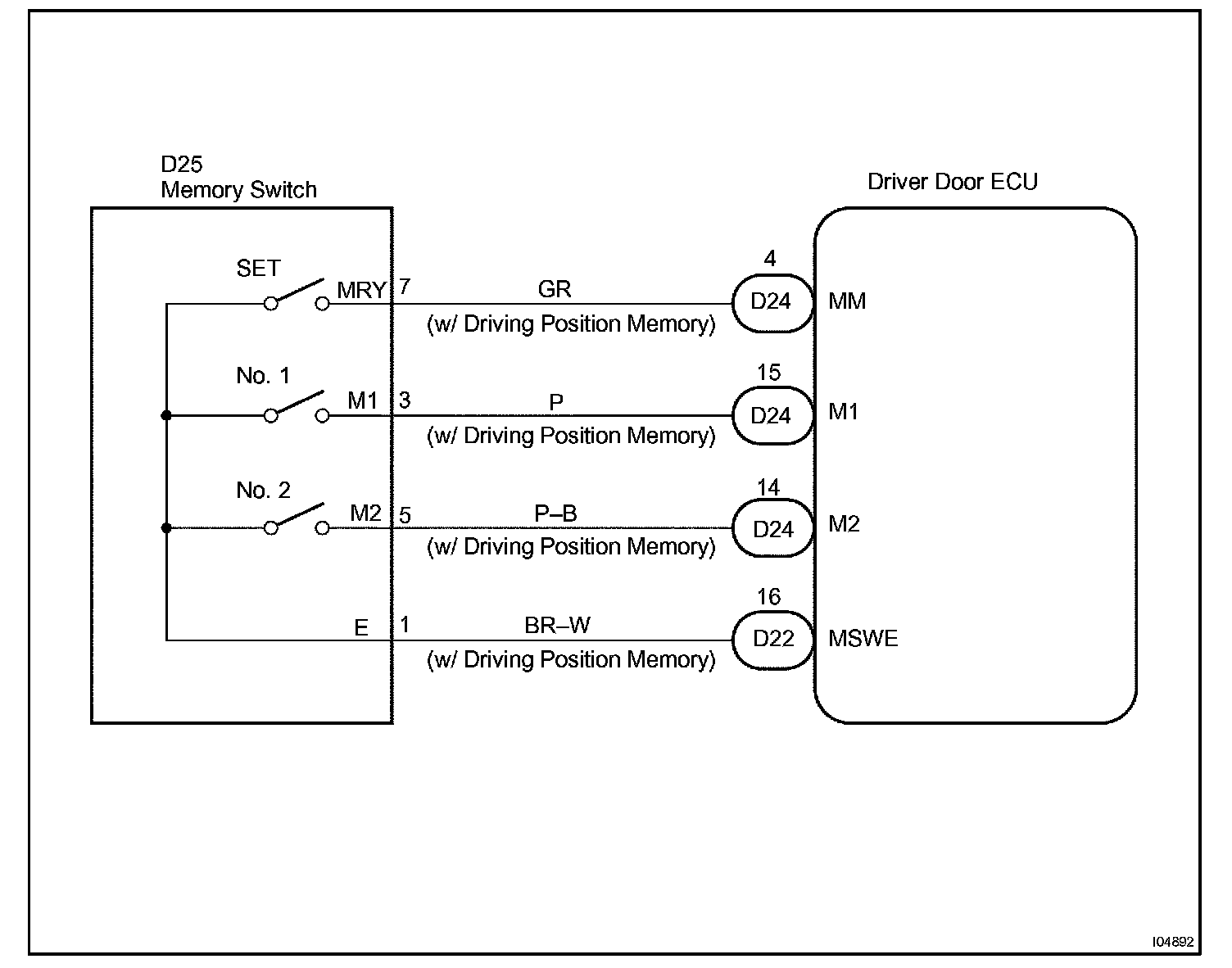

Wiring Diagram:

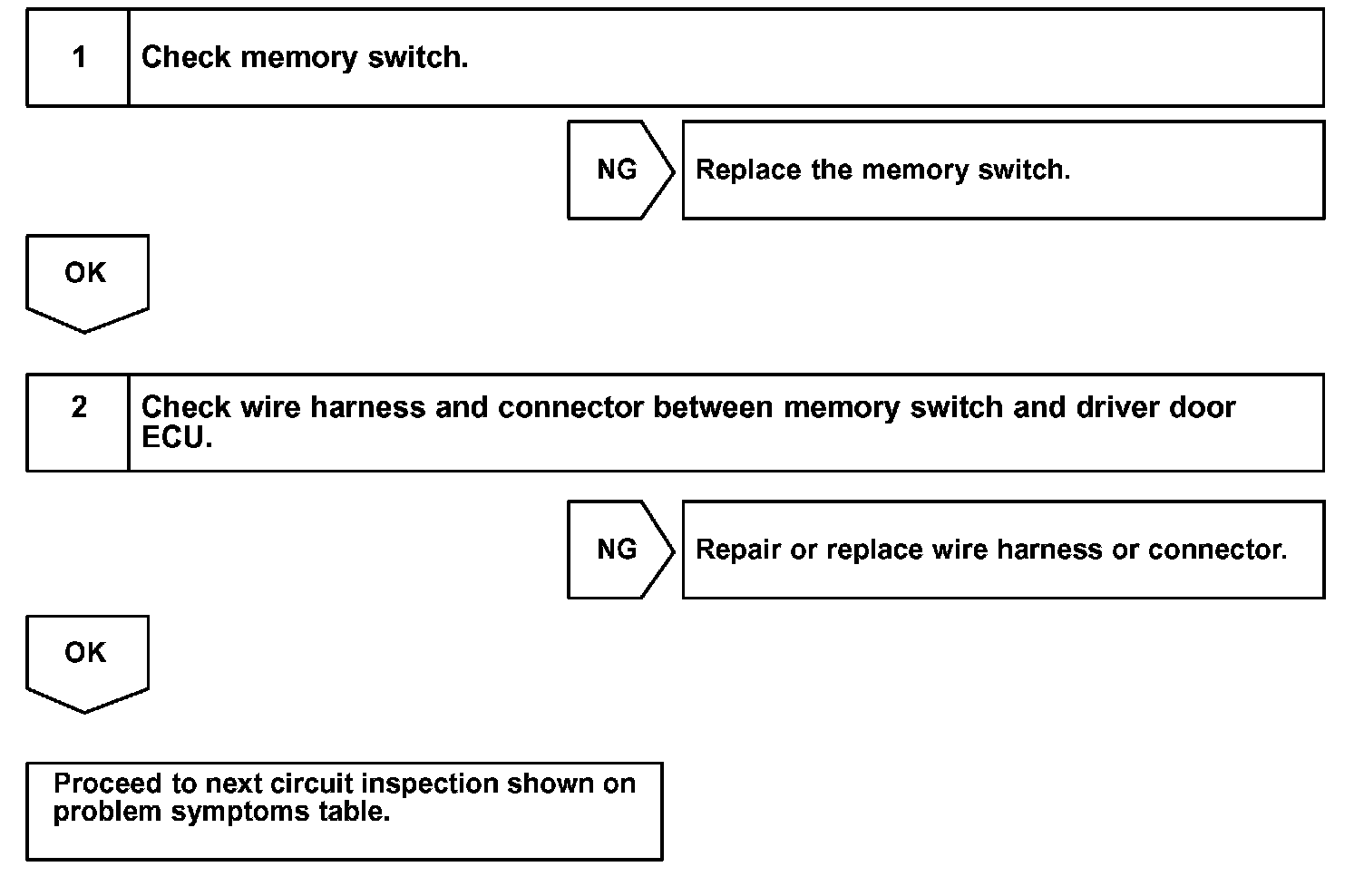

Step 1 - 2:




INSPECTION PROCEDURE
