Taillight Relay Circuit

Taillight relay circuit

CIRCUIT DESCRIPTION
Taillight relay will be "ON" by operating the tail light switch. The transistor which activates the tail light relay has two sorts: one activates by the tail light switch for fail safe and the other activates by CPU.

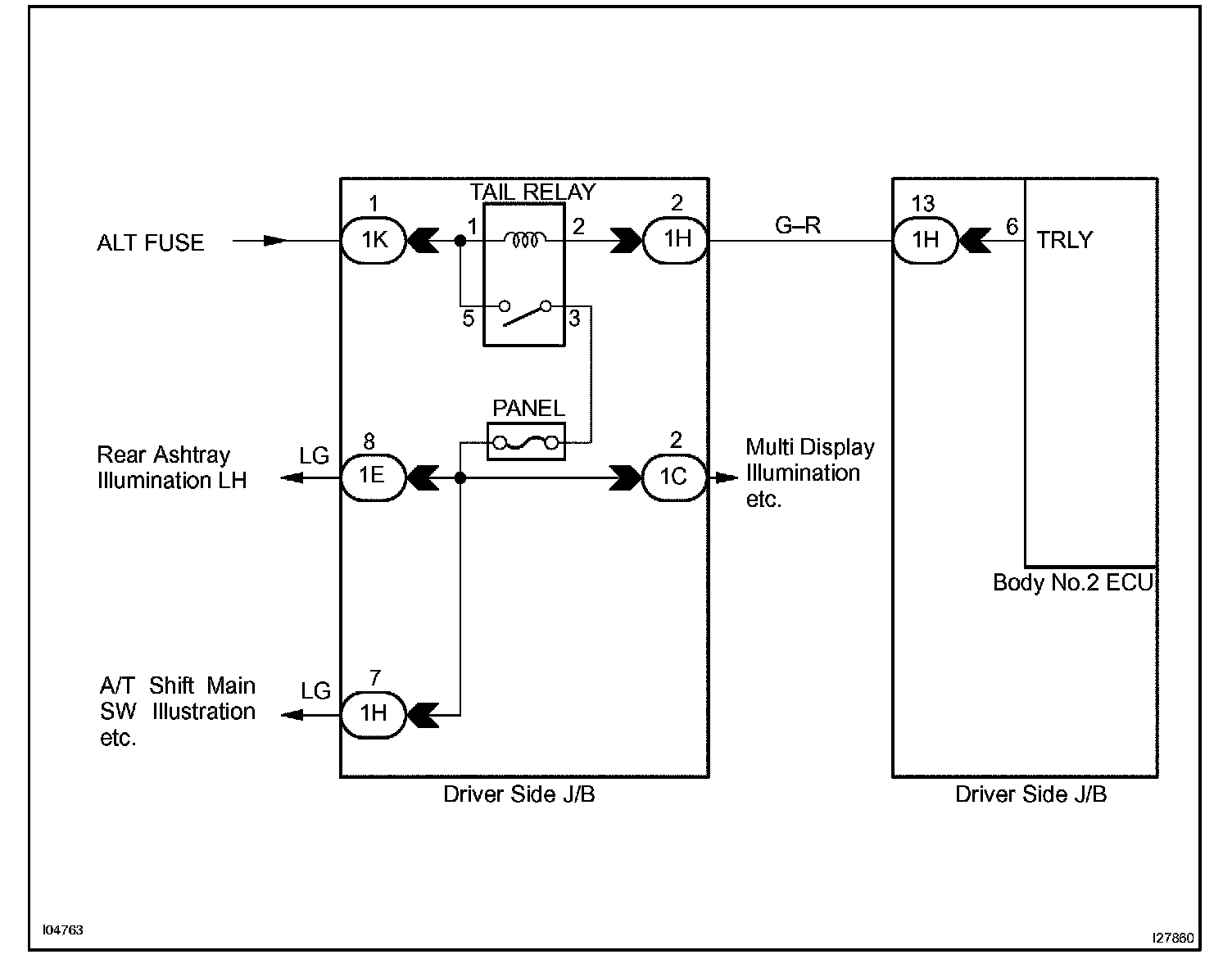

Wiring Diagram:

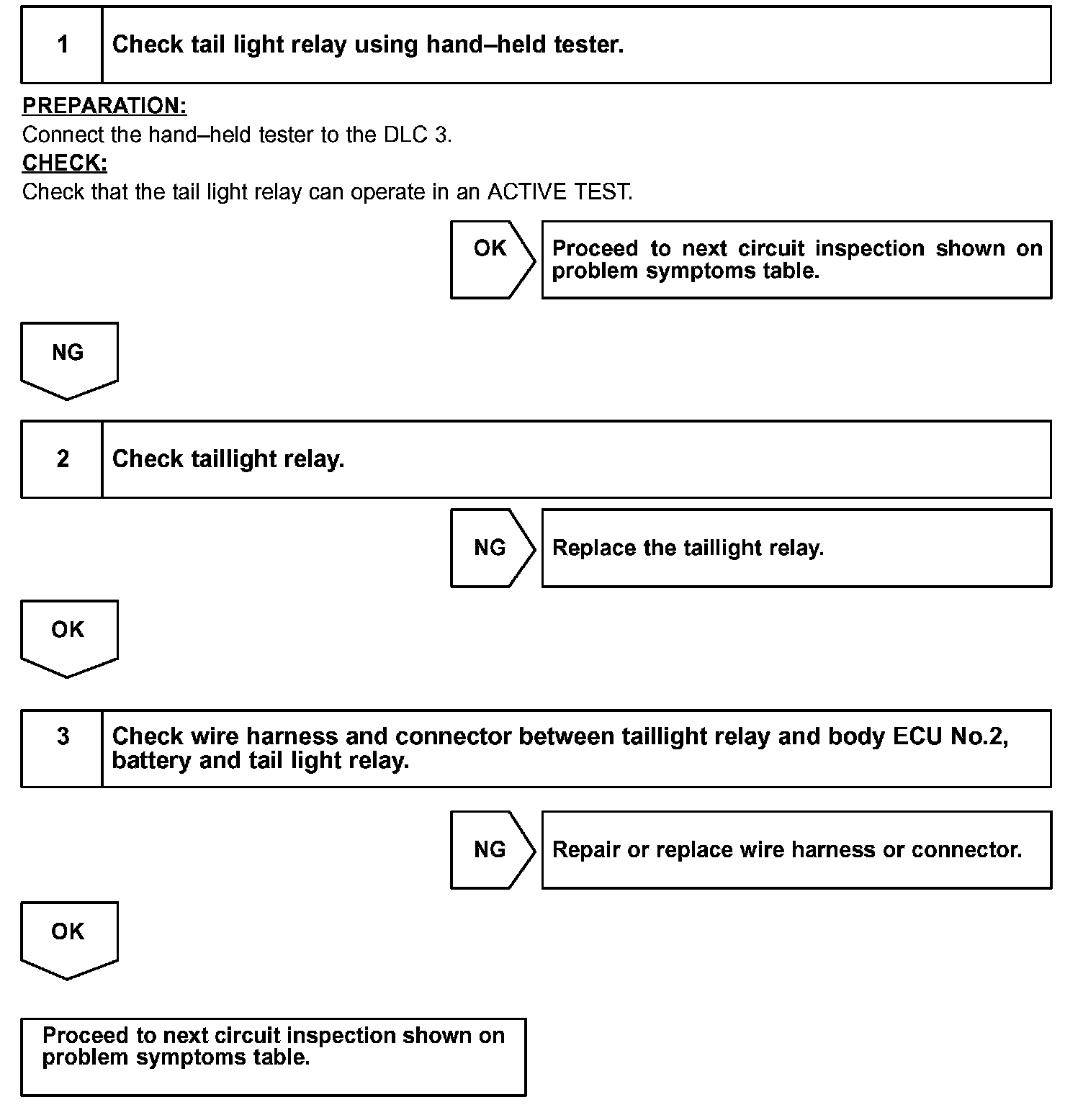

INSPECTION PROCEDURE

Step 1 - 3:

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
