Stop Light Switch Circuit

Stop light switch circuit

CIRCUIT DESCRIPTION
The Body ECU No. 2 is detecting the condition of the stop light switch.

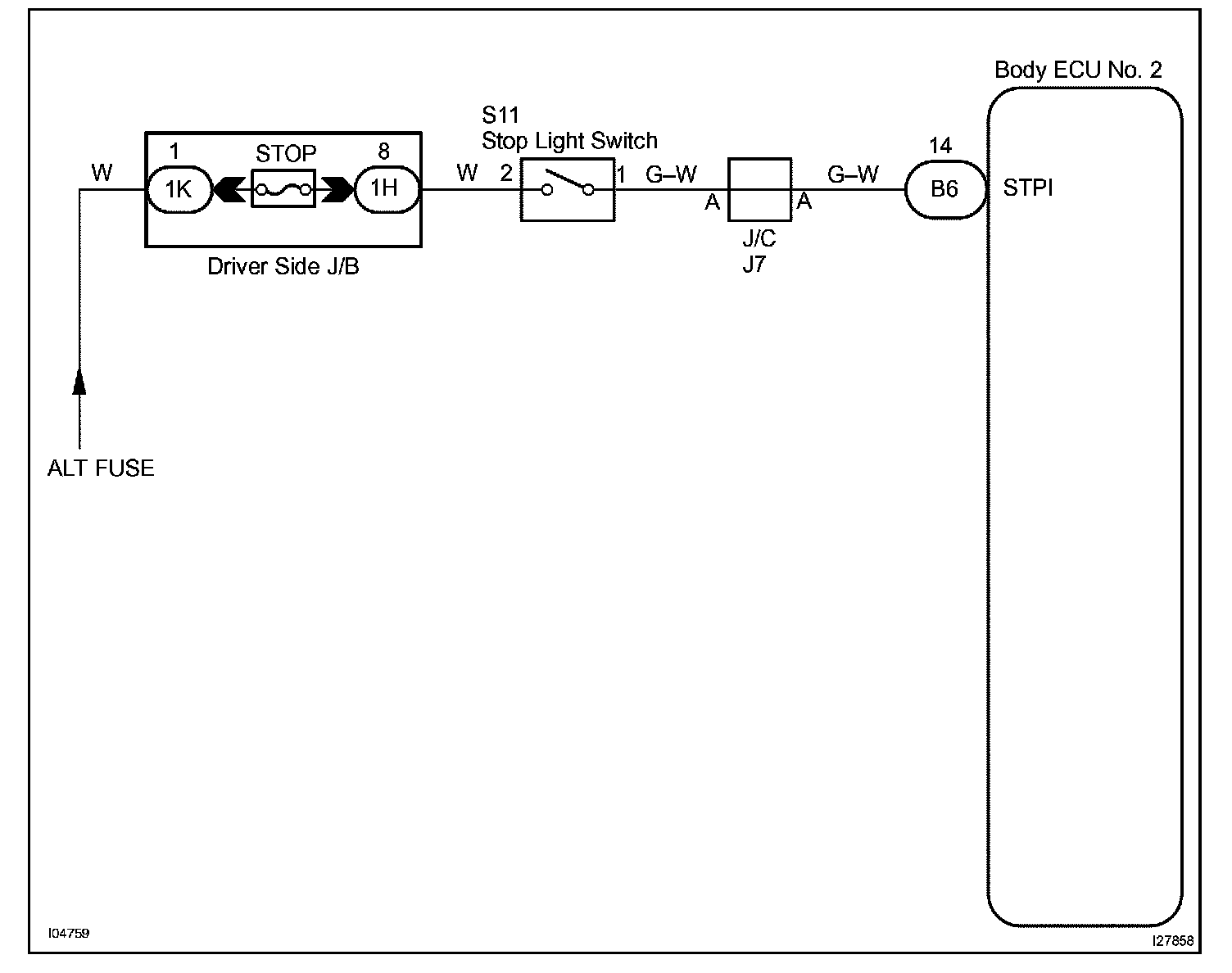

Wiring Diagram:

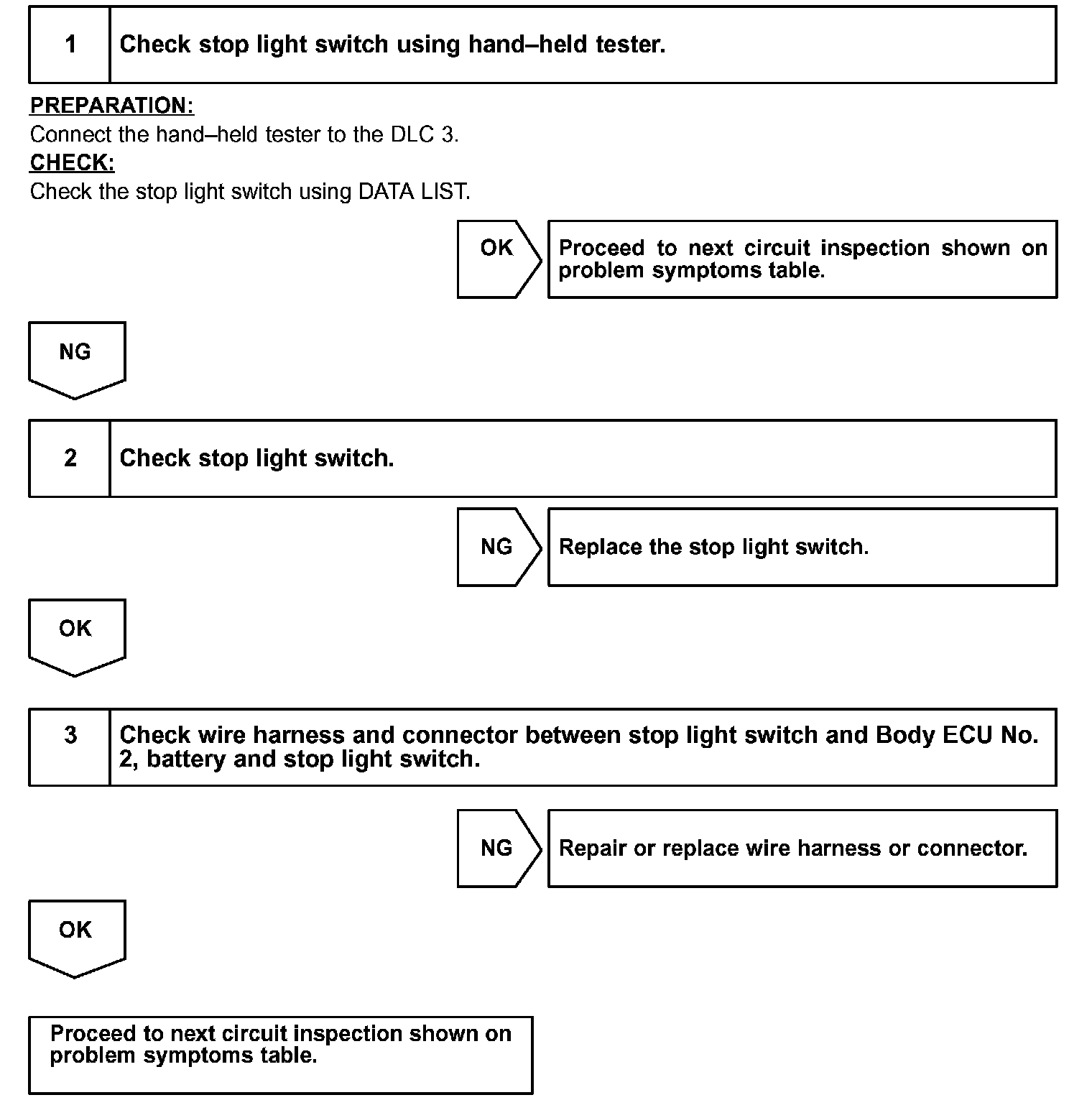

INSPECTION PROCEDURE

Step 1 - 3:






HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
