Light Control Switch Circuit

Light control switch circuit

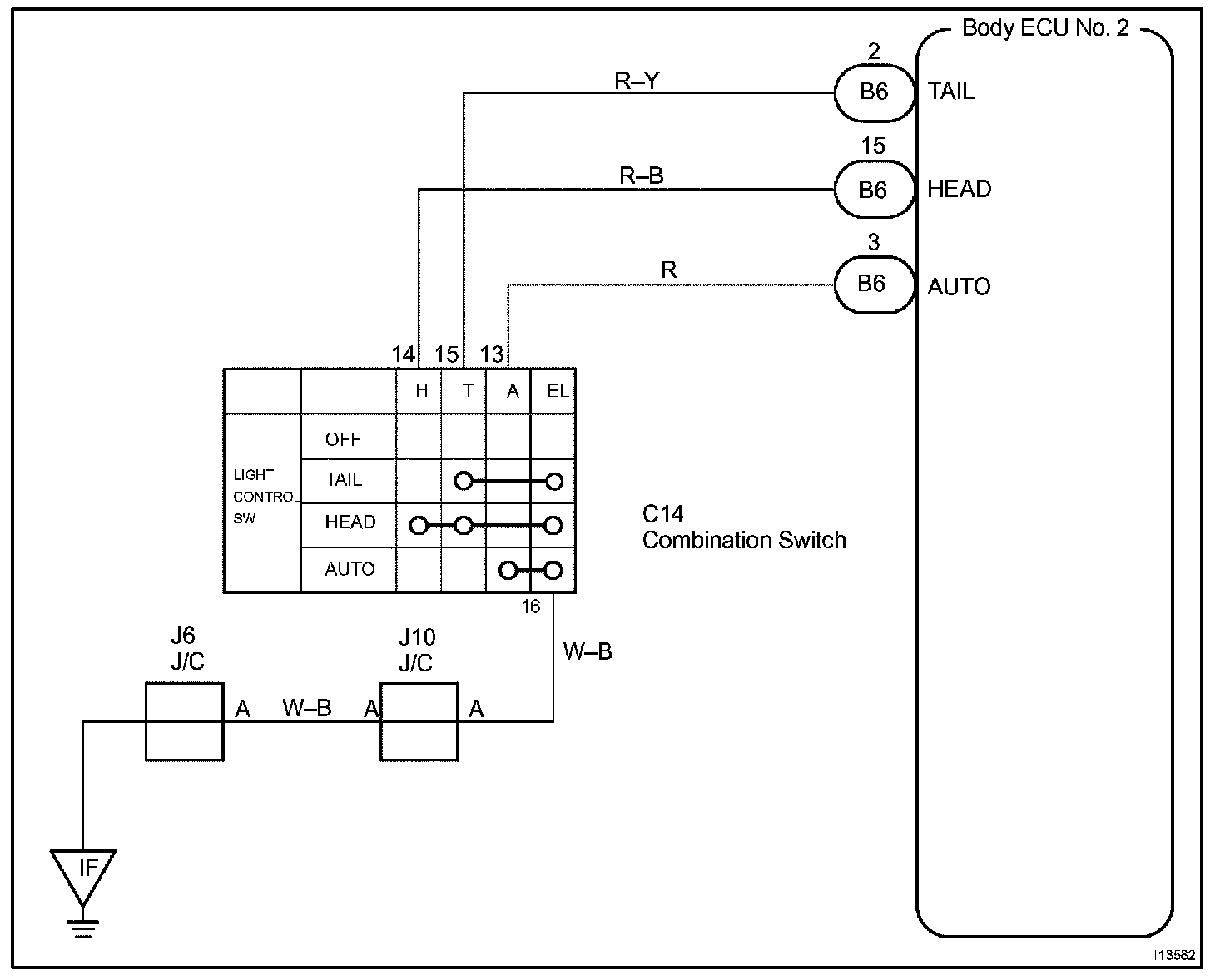

Wiring Diagram:






INSPECTION PROCEDURE

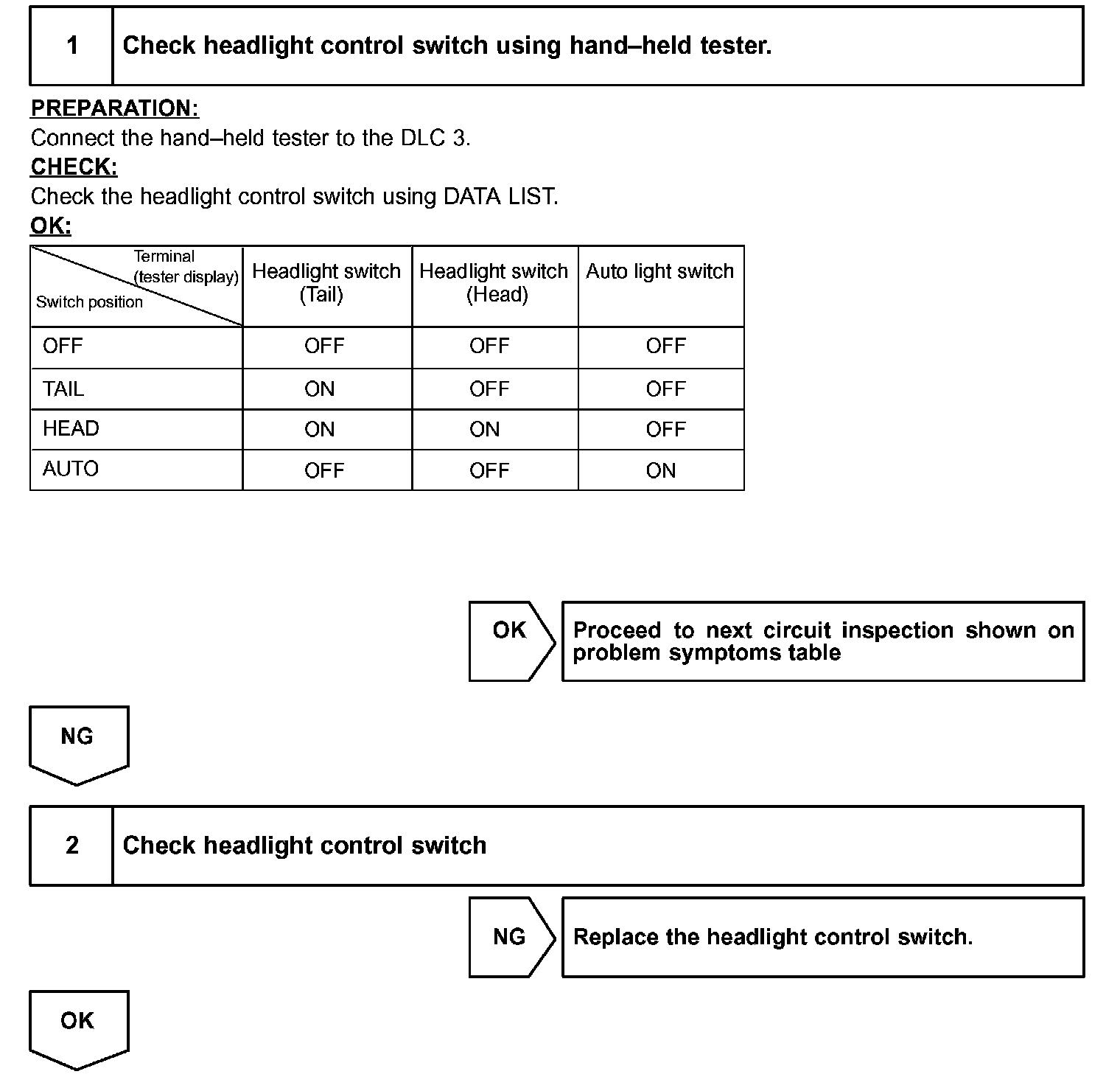

Step 1 - 2:

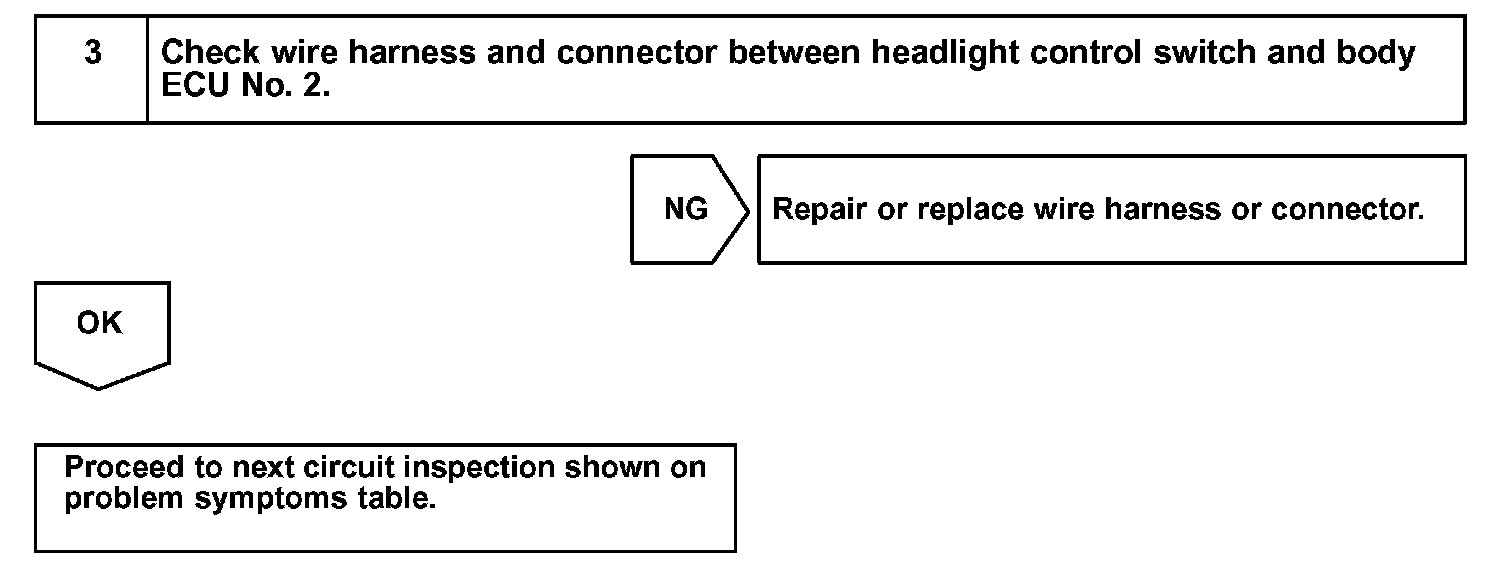

Step 3:






HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
