Clock Circuit
Clock circuitCIRCUIT DESCRIPTION
Body ECU No. 2 will send the light deterioration signal to the clock and deteriorate the light.

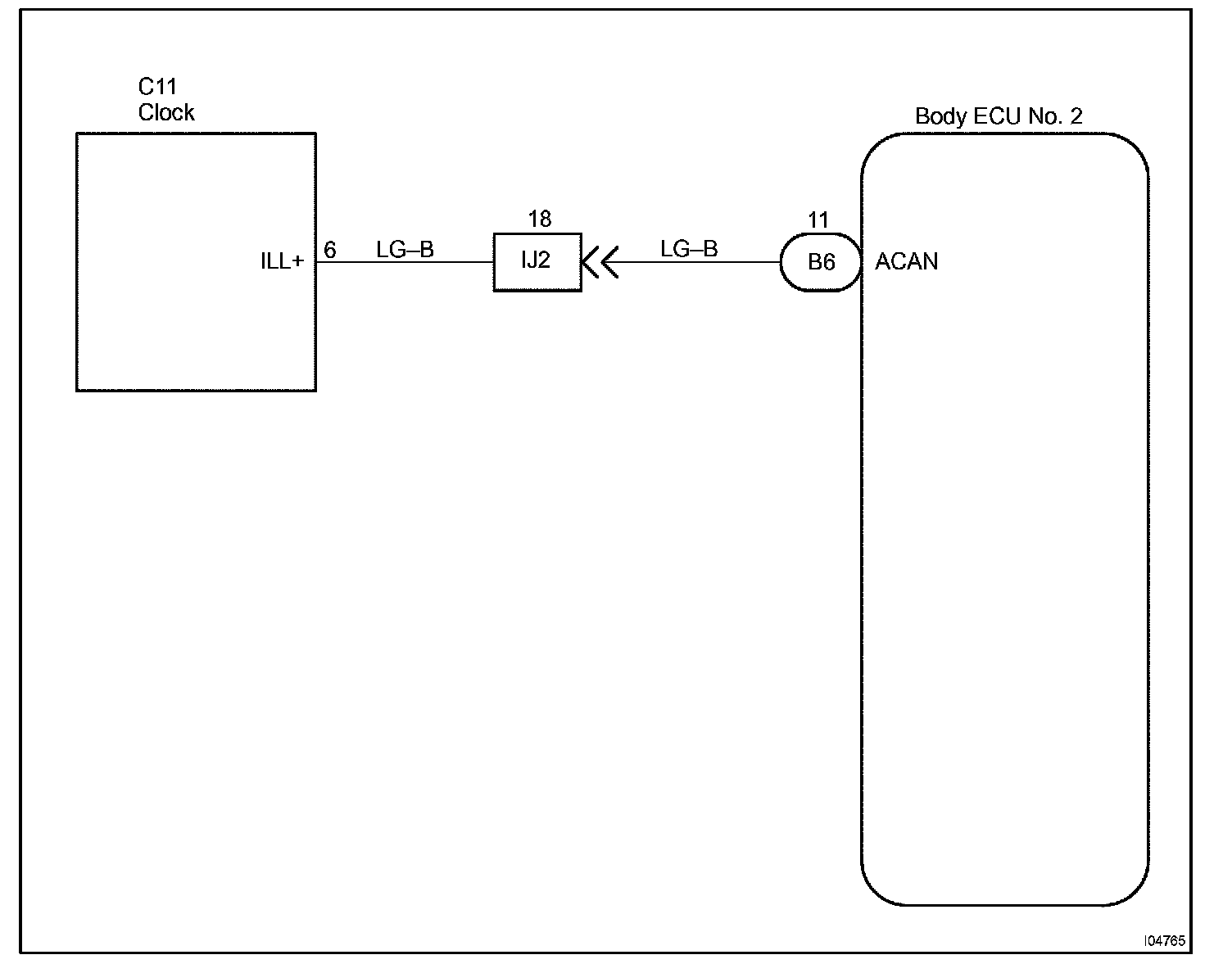

Wiring Diagram:

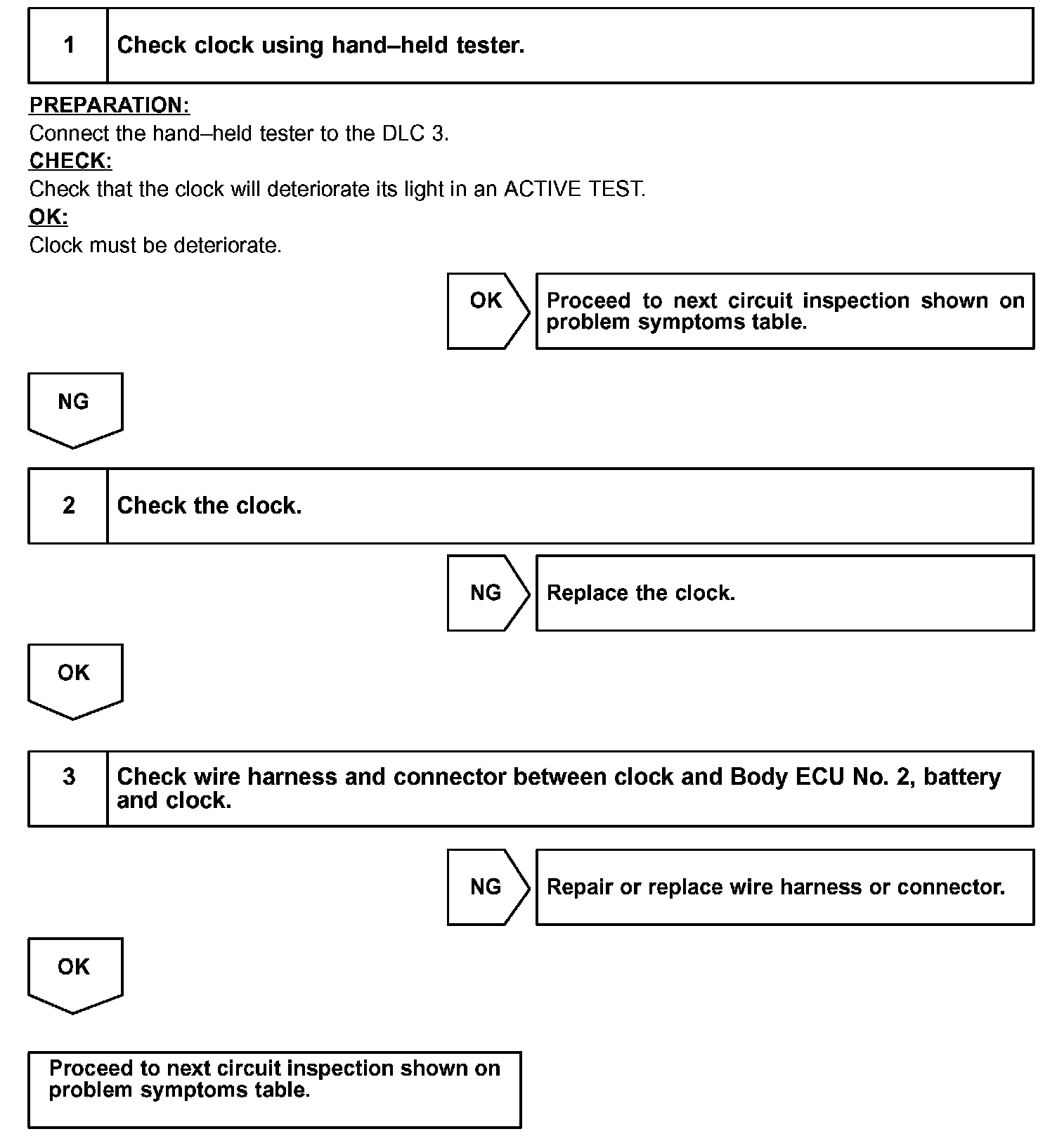

INSPECTION PROCEDURE
Step 1 - 3:
HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
