Brake Fluid Level Warning Switch Circuit

Brake fluid level warning switch circuit

CIRCUIT DESCRIPTION
To detect abnormality of the brake fluid level.

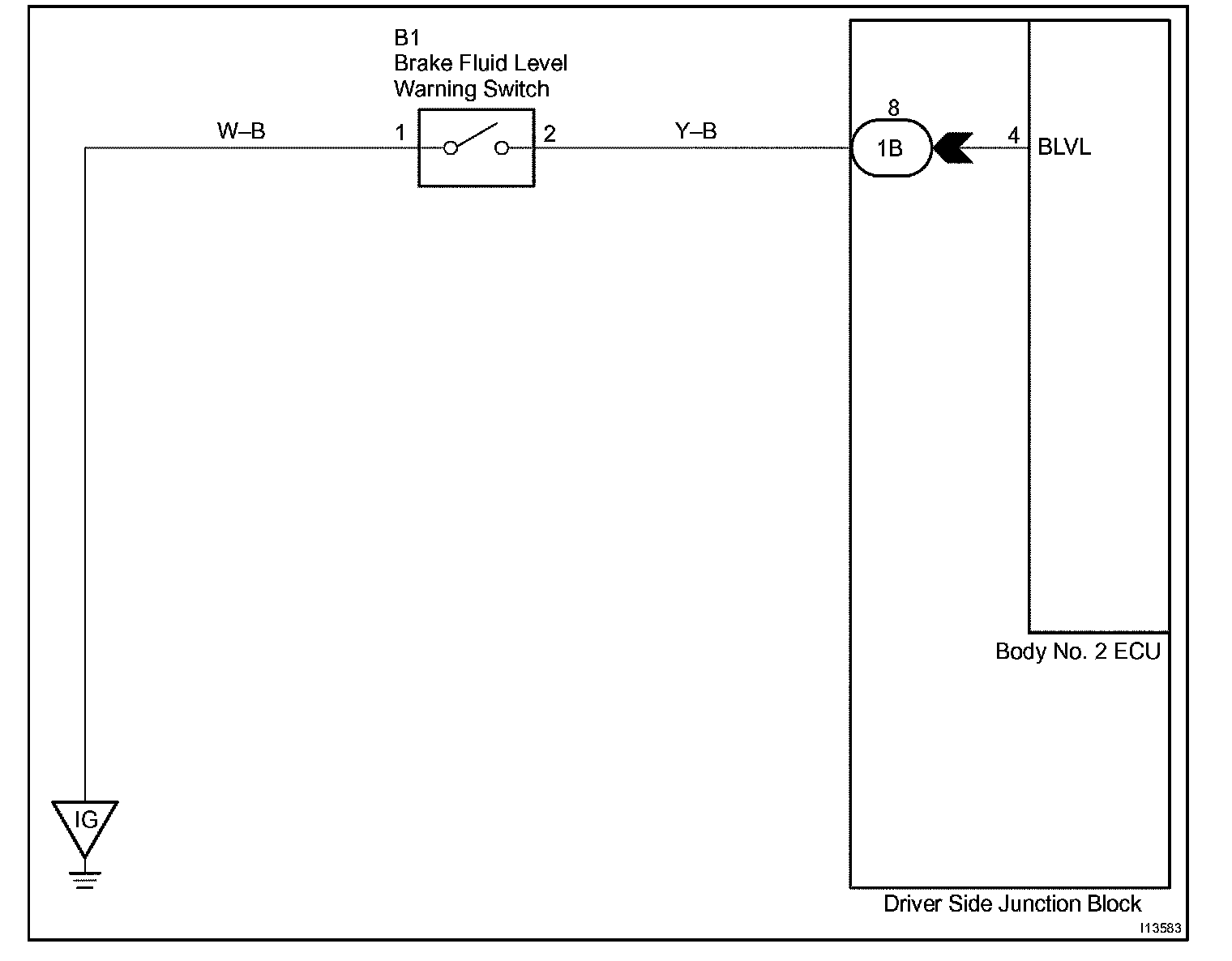

Wiring Diagram:

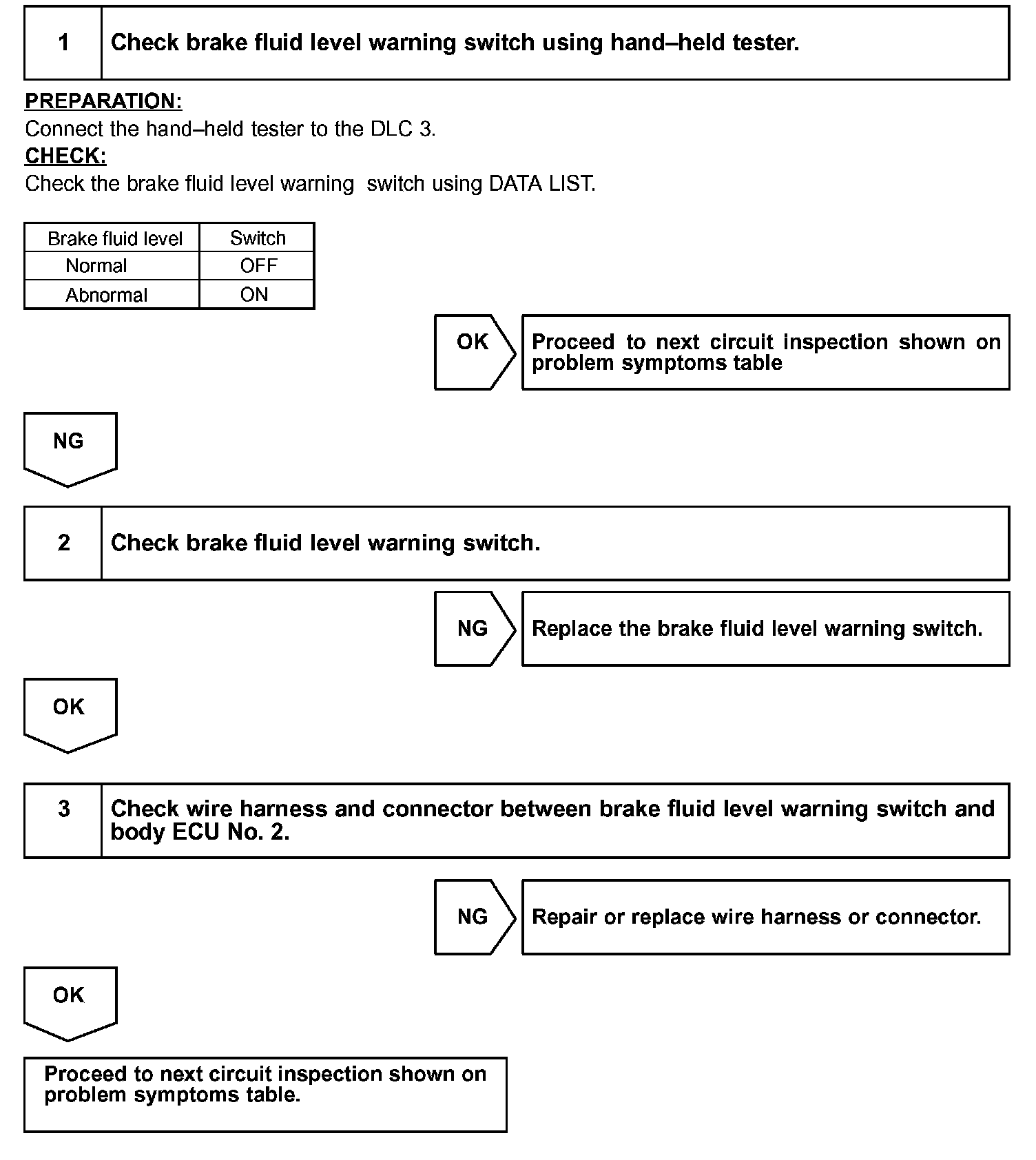

INSPECTION PROCEDURE

Step 1 - 3:

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
