Wireless Door Lock Tuner Circuit
Wireless door lock tuner circuitCIRCUIT DESCRIPTION
The pressure of magnetic wave signals which sent from the transmitter is checked in RSSI line.
The RCO line is used to transmit the signals which control power supply of the transmitter.

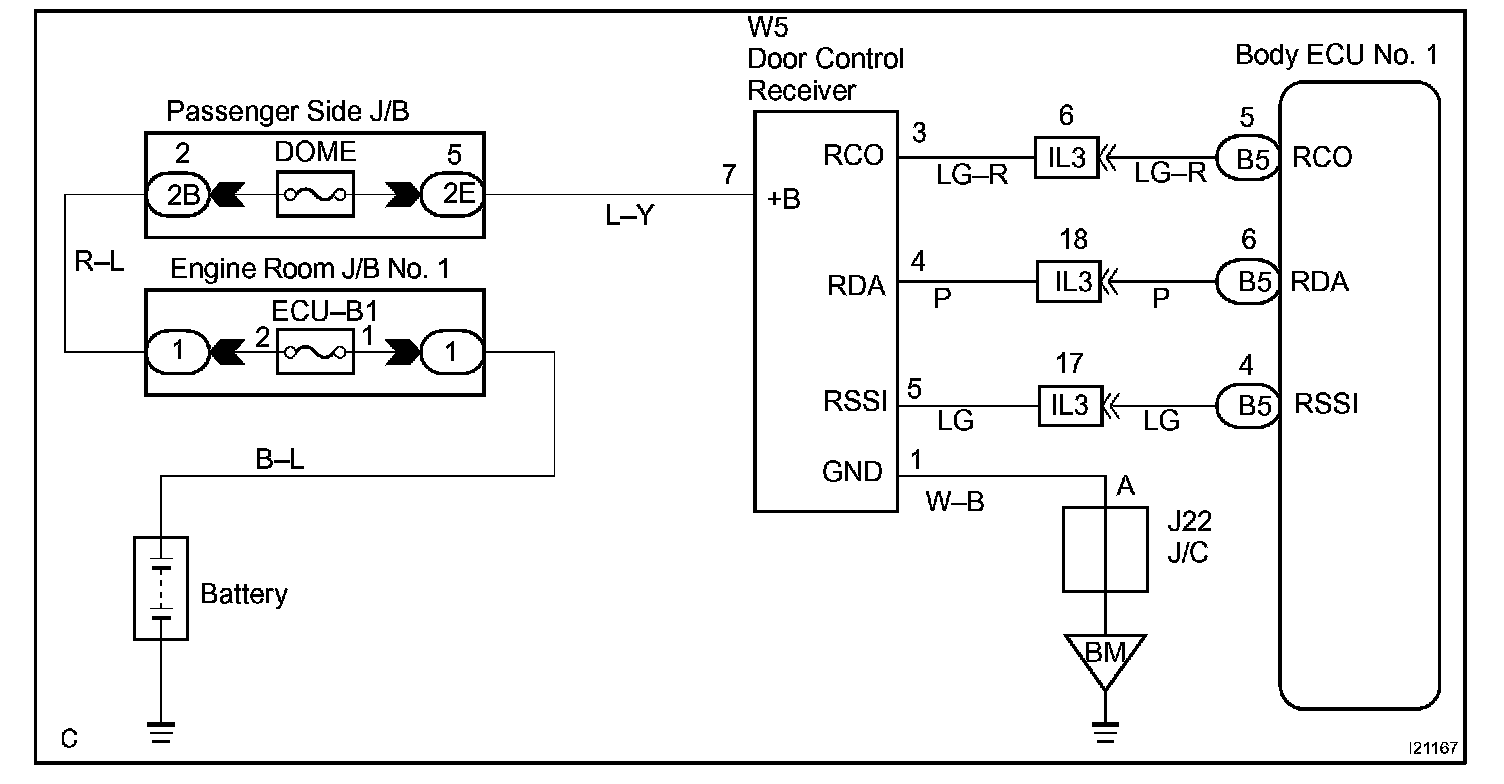

Wiring Diagram:

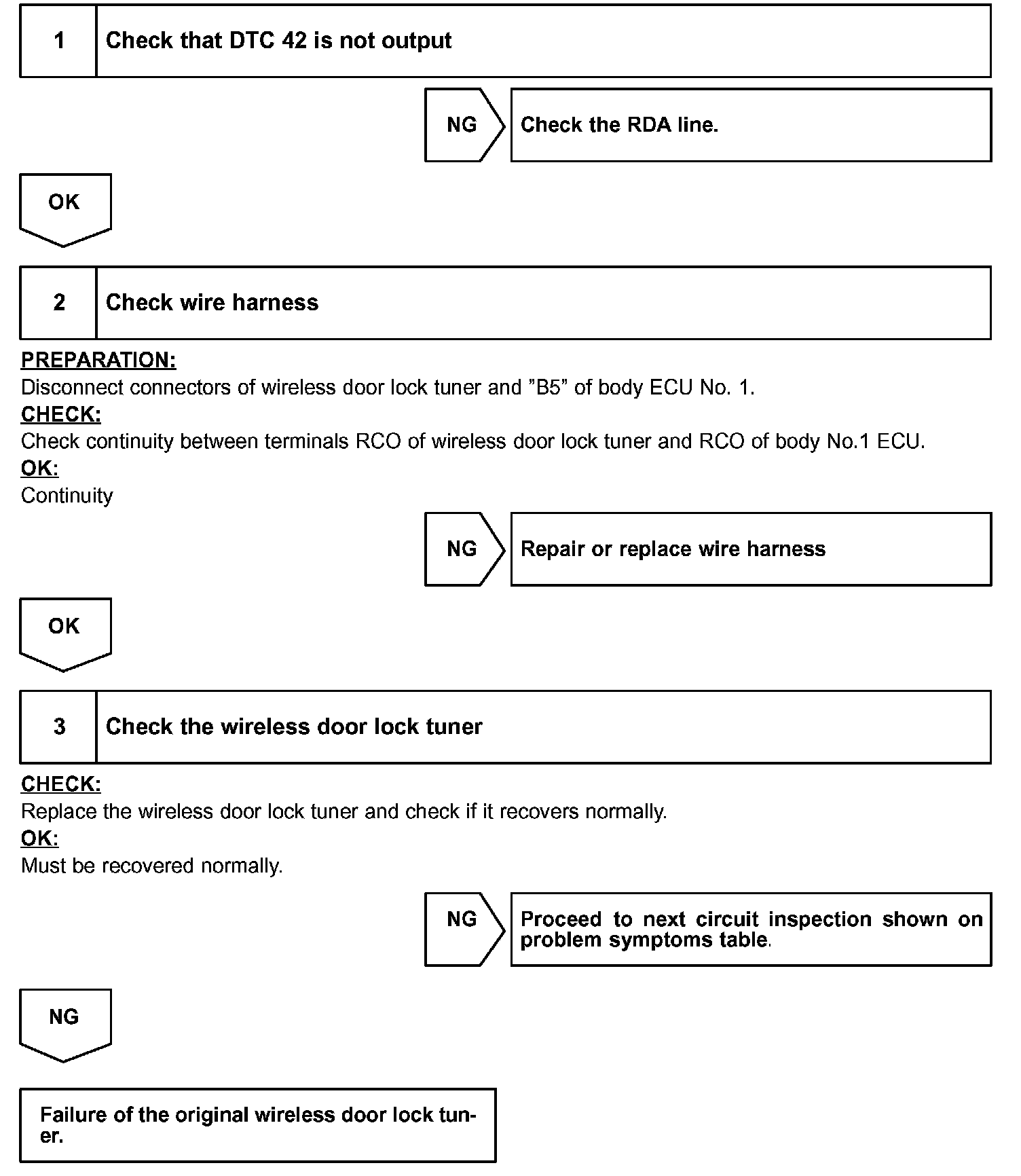

Step 1 - 3:
INSPECTION PROCEDURE
