Wireless Door Lock Buzzer Circuit

Wireless door lock buzzer circuit

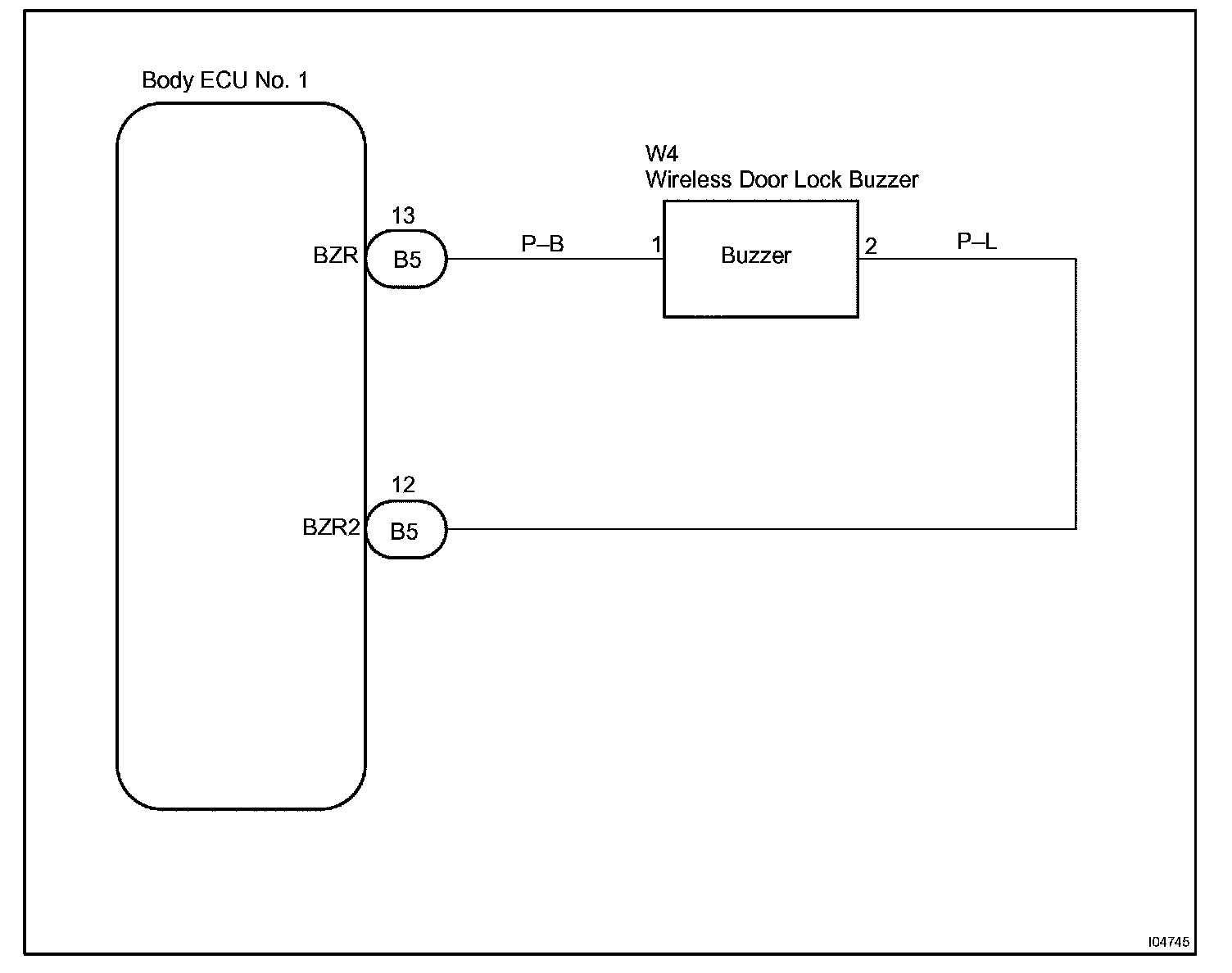

Wiring Diagram:

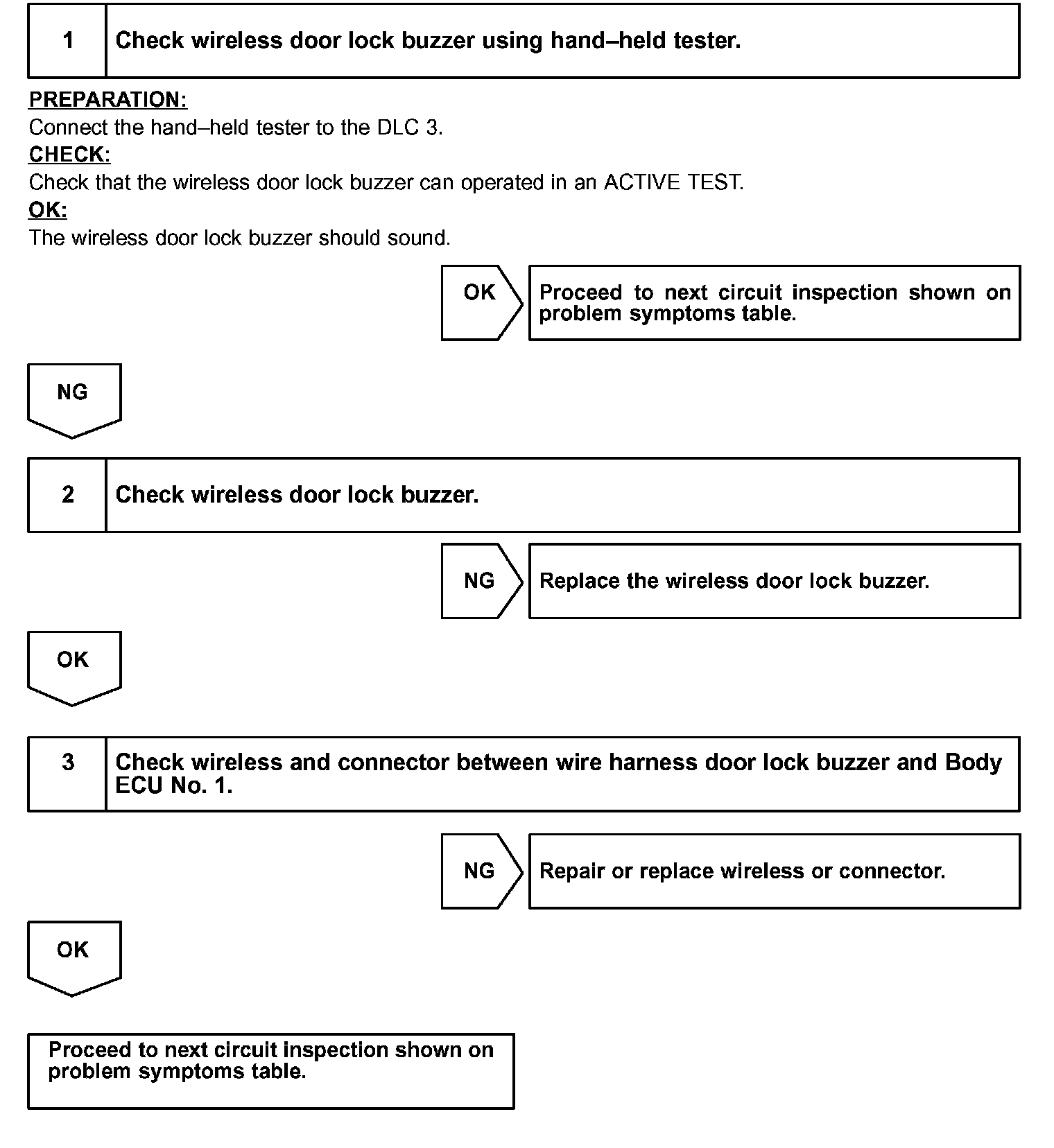

INSPECTION PROCEDURE

Step 1 - 3:

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-tester, start from step 2.
