Theft Deterrent Horn Circuit

Theft deterrent horn circuit

CIRCUIT DESCRIPTION
During warning of the theft deterrent system, the Body ECU No. 1 activates the theft deterrent horn.

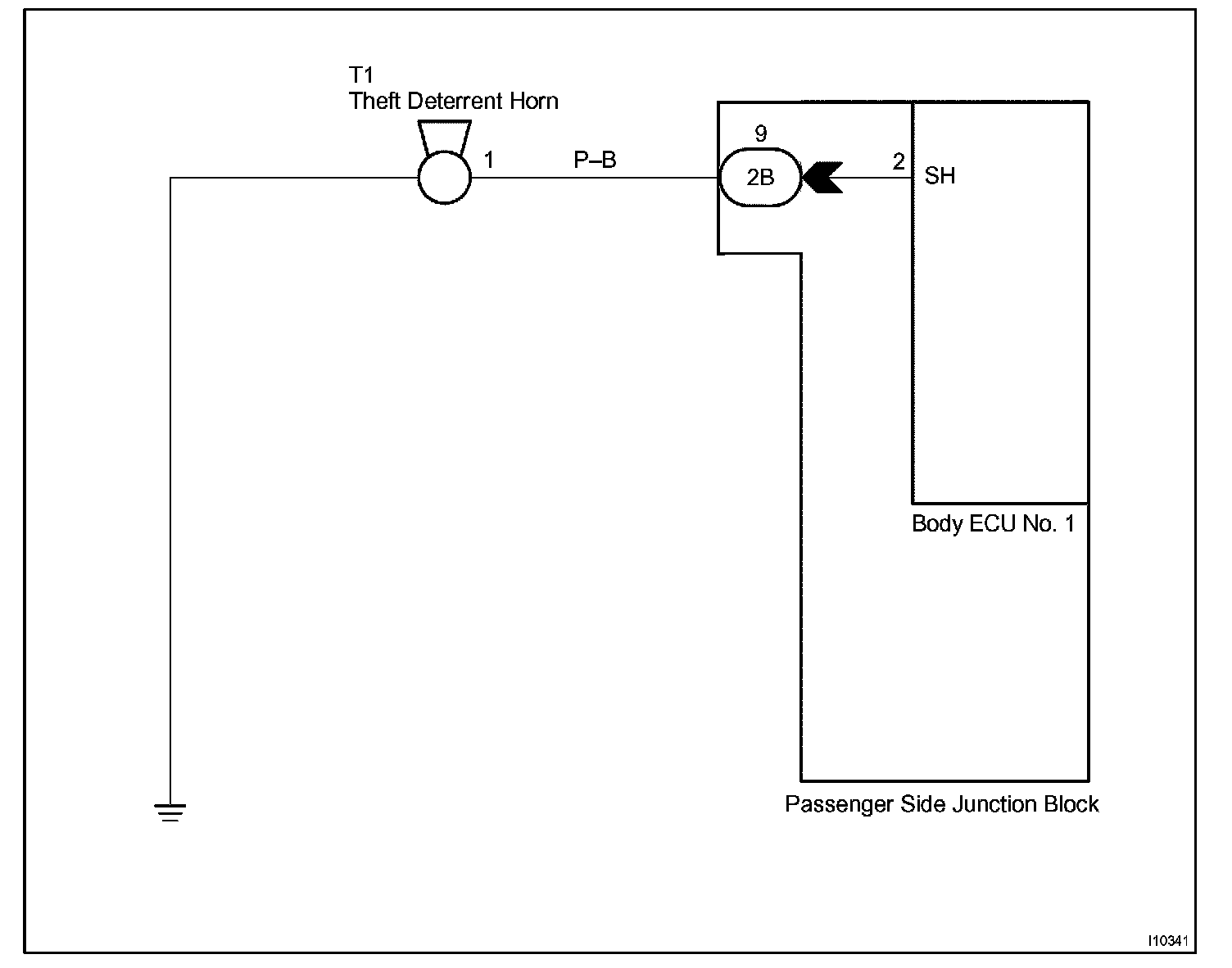

Wiring Diagram:

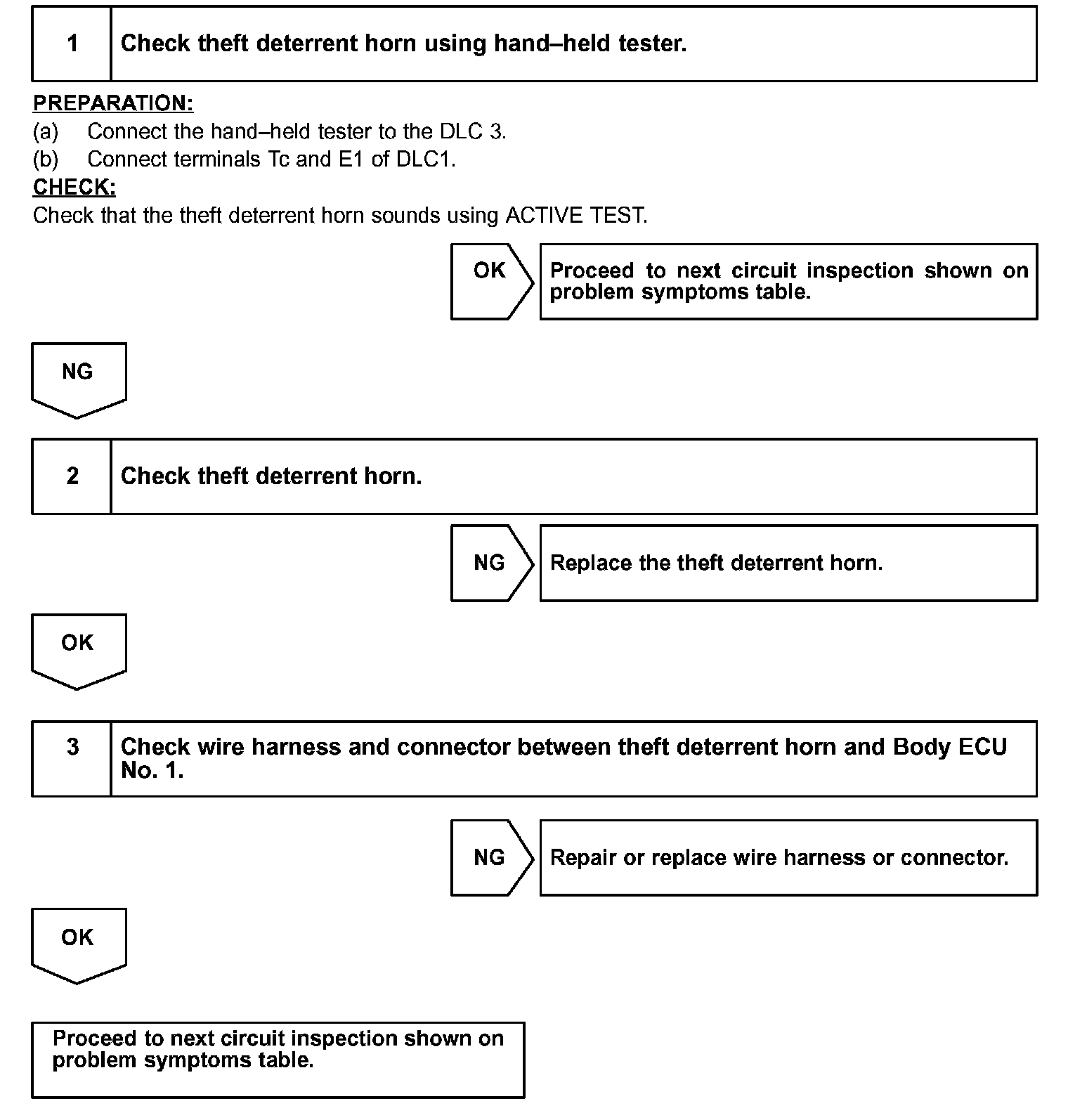

INSPECTION PROCEDURE

Step 1 - 3:

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
