Rear Defogger Relay Circuit

Rear defogger relay circuit

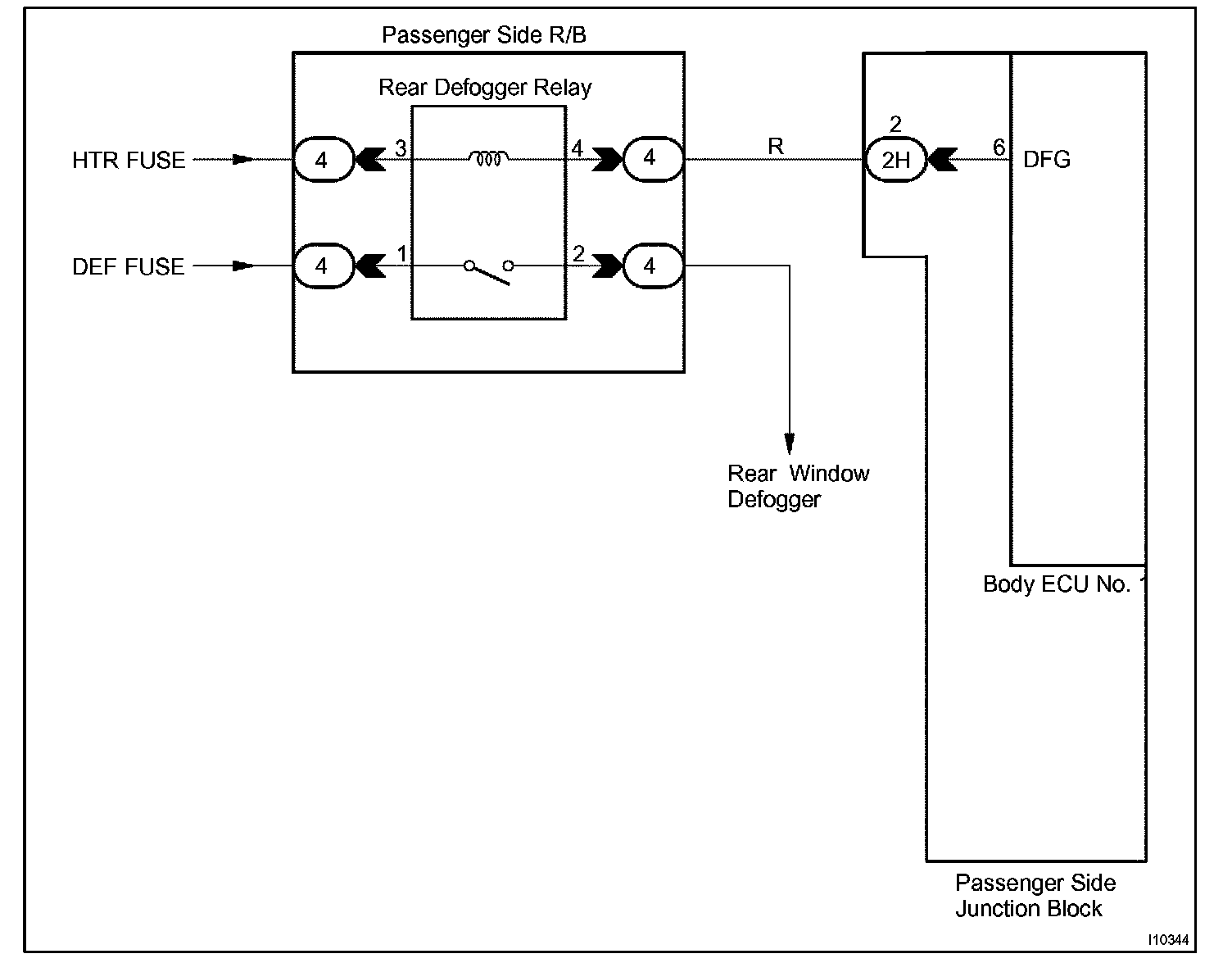

Wiring Diagram:

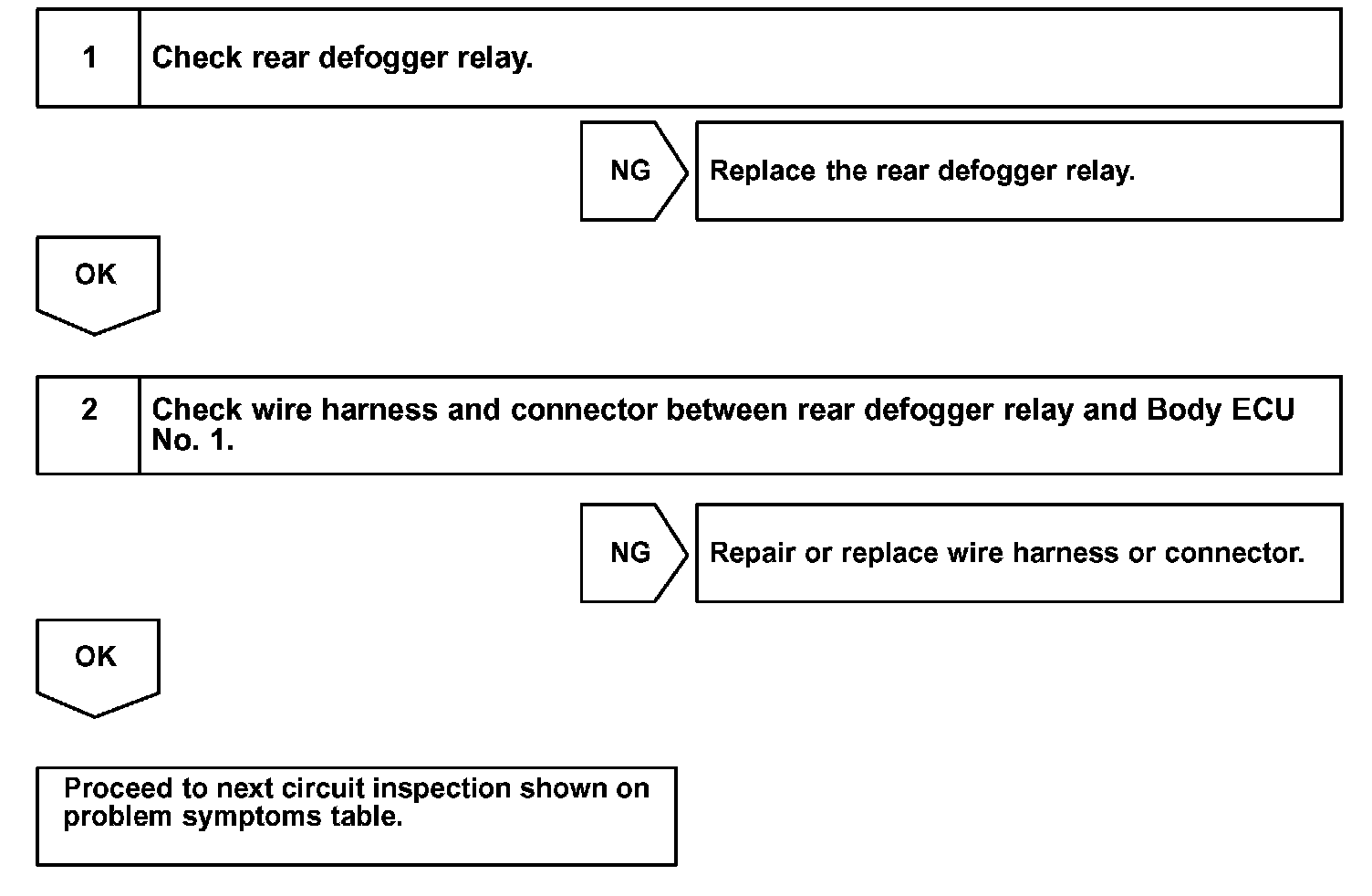

Step 1 - 2:




INSPECTION PROCEDURE
