Power Source Circuit

Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to operate the Body ECU No. 1.

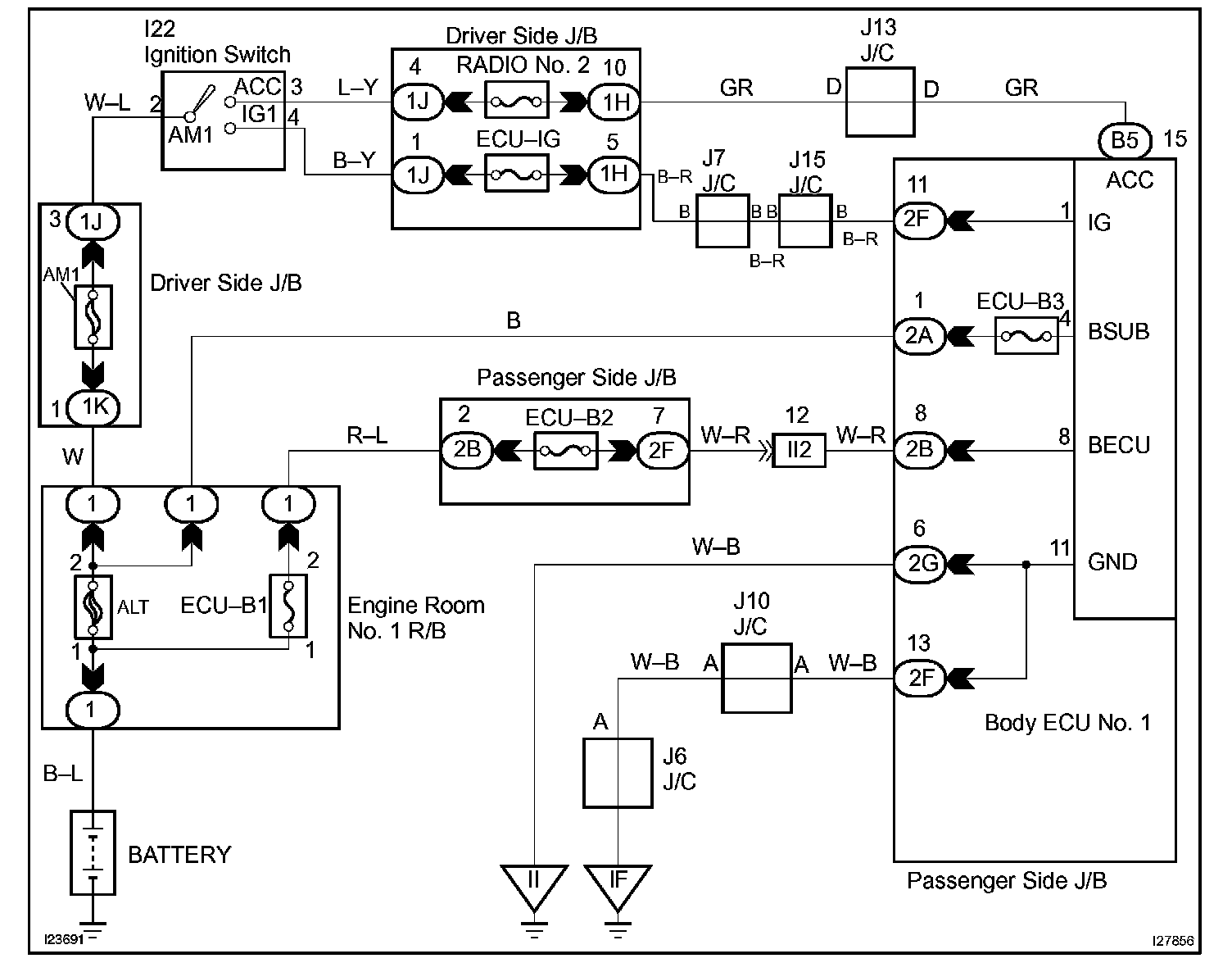

Wiring Diagram:

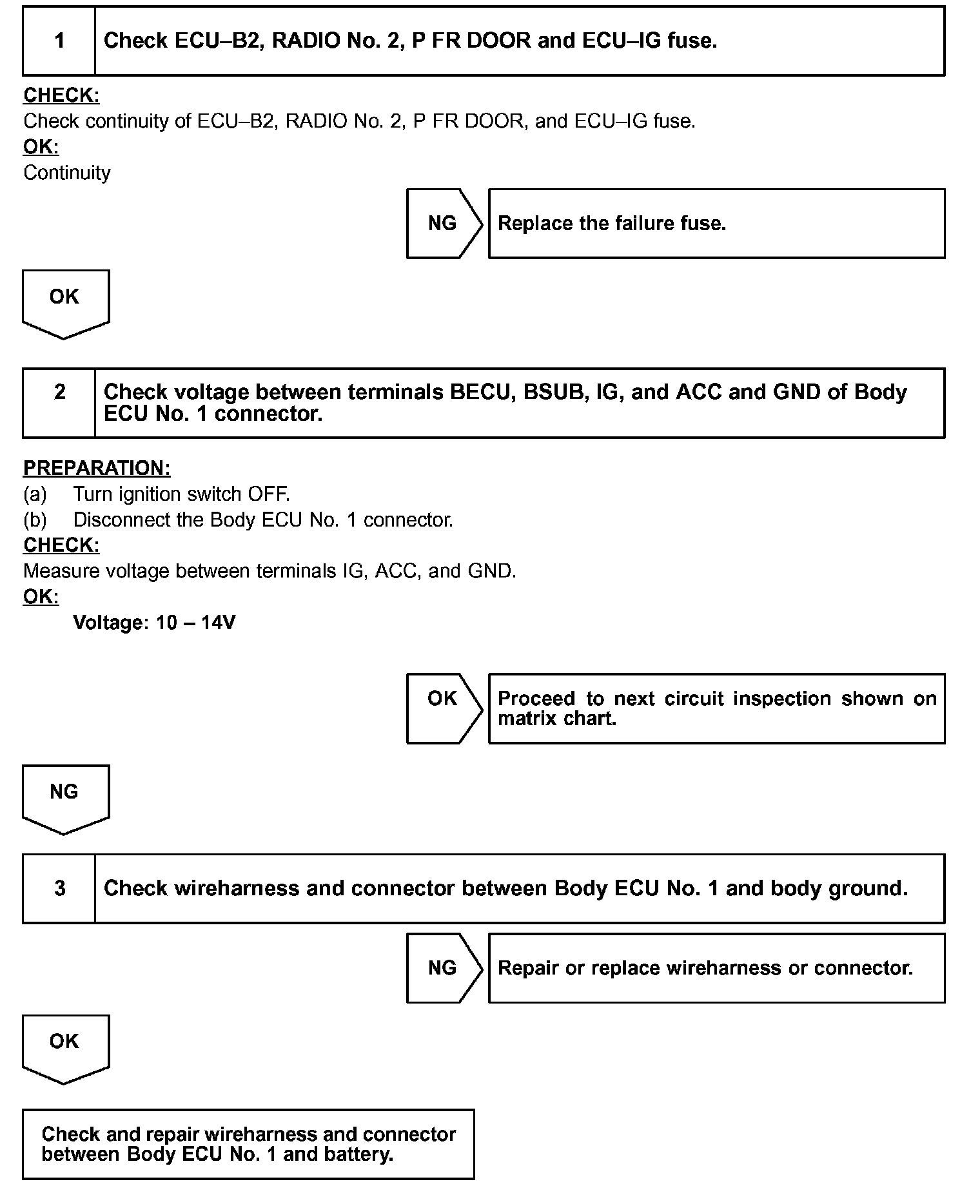

Step 1 - 3:




INSPECTION PROCEDURE
