PWS Circuit

PWS circuit

CIRCUIT DESCRIPTION
This circuit is the power source of the master switch for the driver's door and the door lock switch for the passenger's doors.

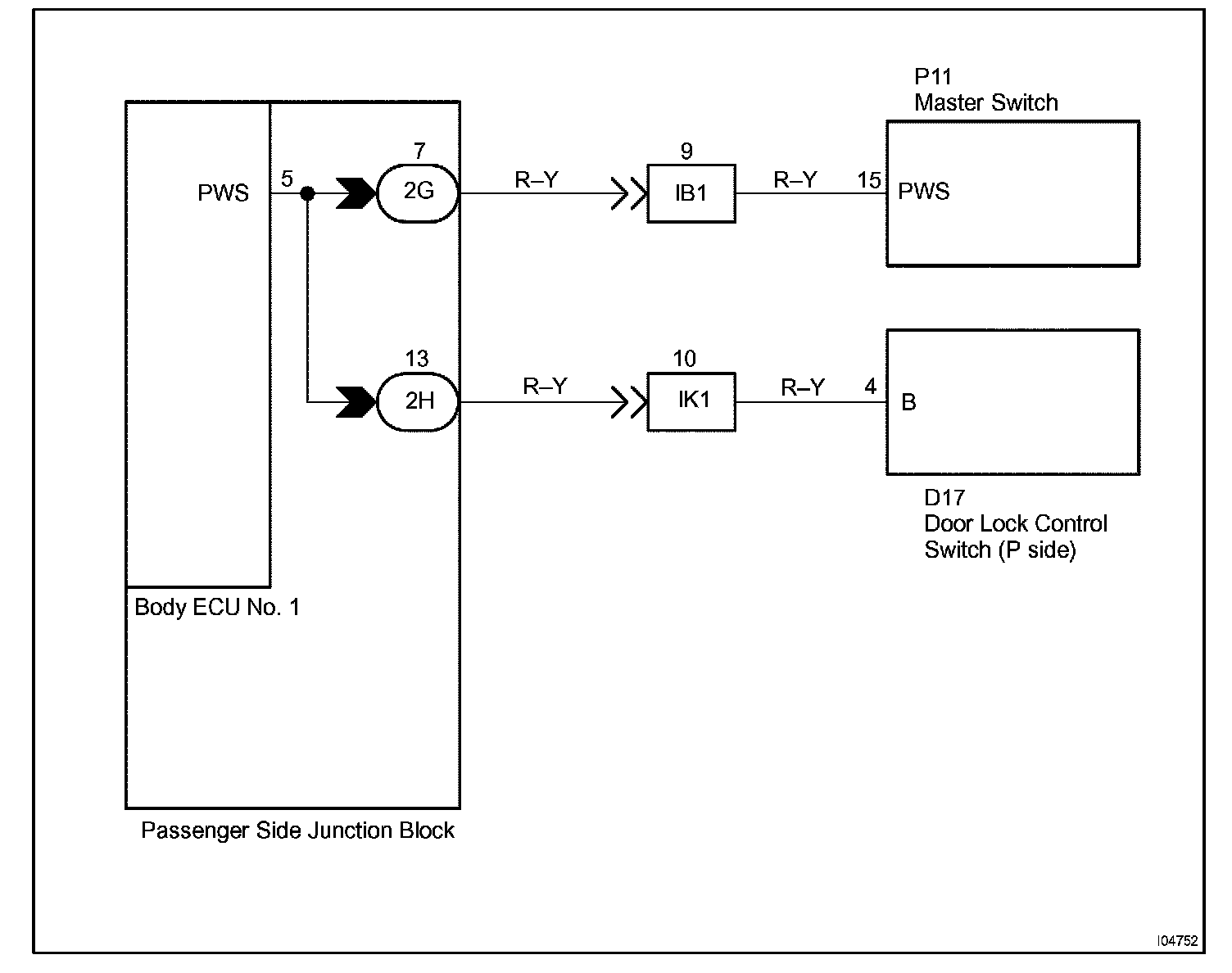

Wiring Diagram:

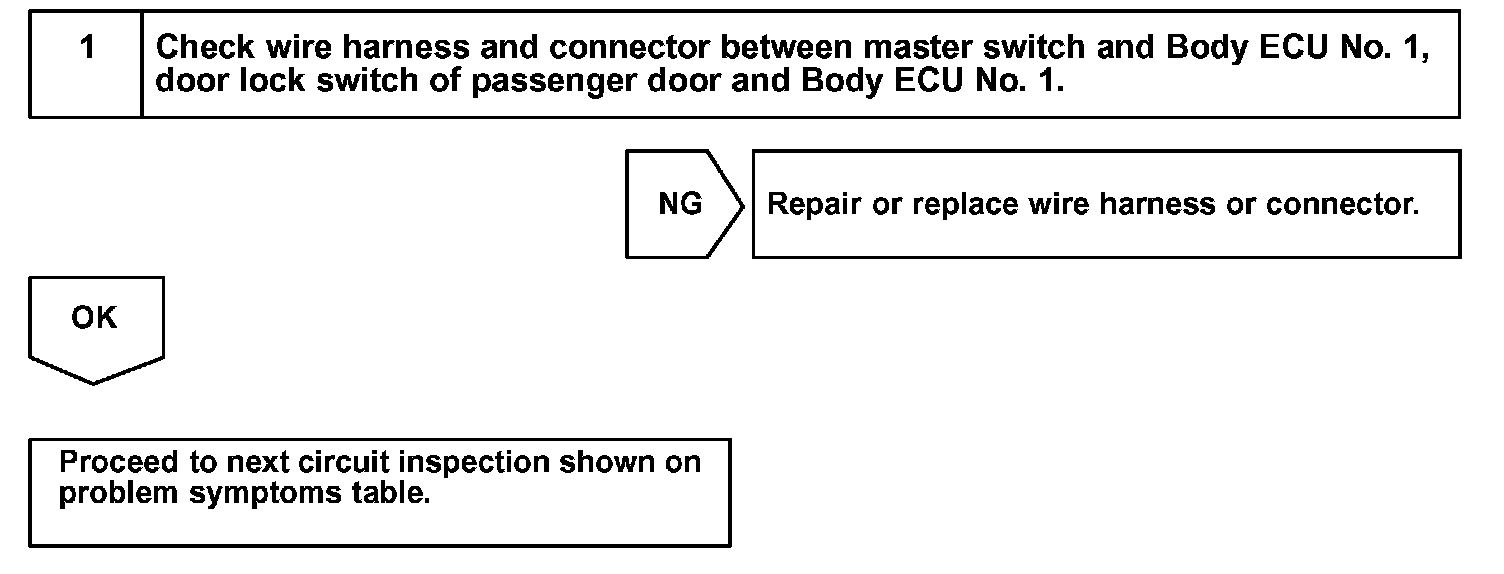

Step 1:




INSPECTION PROCEDURE
